Epson Mobilink TM-P60 Manual de usuario

One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

1 | P a g e

EPSON TM-P60 Receipt Printers

Installation for Windows XP

2 | P a g e

Table of Contents

TM-P60 Wireless Thermal Printer Information/Requirements

Setting Up the Wireless Printer

Resetting the Printer to Factory Default

Creating an Ad-Hoc Network to Configure the Printer

Installing the Epson Ethernet Configuration Utility

Configuring the TM-P60

Installing the Epson Printer Driver

Reverting to Original Network

Additional Printer Configuration

Configuration in CRE/RPE

3 | P a g e

TM-P60 Wireless Thermal Printer Information/Requirements

Requirements:

1. An available wireless network:

This network must be setup and configured prior to any configuration from pcAmerica.

The following network types are supported with the use of the TM-P60 Thermal Receipt

Printer:

oWEP Encryption (64-bit and 128-bit)

oOpen Networks (without encryption)

WPA Encryption (TKIP and AES) is NOT supported.

2. Information on the wireless network which you will be connecting the printer to:

SSID (or network name)

Wireless Password

Subnet mask of the network

IP Address of the router (Default Gateway)

3. A laptop or PC with a wireless adapter for configuration of the device

4 | P a g e

Setting Up the Wireless Printer

1. On the right side of the printer we will need to

locate the battery door.

2. Press the lever and open the door.

3. Insert the battery into the compartment.

5 | P a g e

4. Plug the power cable into the power brick and the

other end of the power cable into a power source

(wall outlet).

6 | P a g e

5. Plug the other end of the cable into the port on the

left side of the printer.

7 | P a g e

Resetting the Printer to Factory Default

Before doing any configuration on the device we must first reset it back to factory defaults.

1. Press the button on the top of the printer, to the

right of the paper roll cover.

2. Press and hold the FEED button and press the

POWER button, to power on the printer.

3. When the printer has powered on press the FEED

button 6 times, then close the paper roll cover.

Note: When closing the paper cover make sure the

paper is in between the guides, so that it can be ejected

properly.

8 | P a g e

4. The SELF-TEST page will then be printed.

5. To initialize the printer, open the paper roll cover,

press the FEED button 1 time, then close the paper

roll cover.

6. Initialize will then print on the receipt paper and the

paper roll will then be cut. This will start the factory

reset process.

7. The printer will restart after initialization has

completed.

9 | P a g e

Creating an Ad-Hoc Network to Configure the Printer

1. Select Start.

2. Select Control Panel.

3. Select Network Connections

4. Right-click the wireless adapter and select

Properties.

5. Select the Wireless Networks tab.

6. Select Add....

10 | P a g e

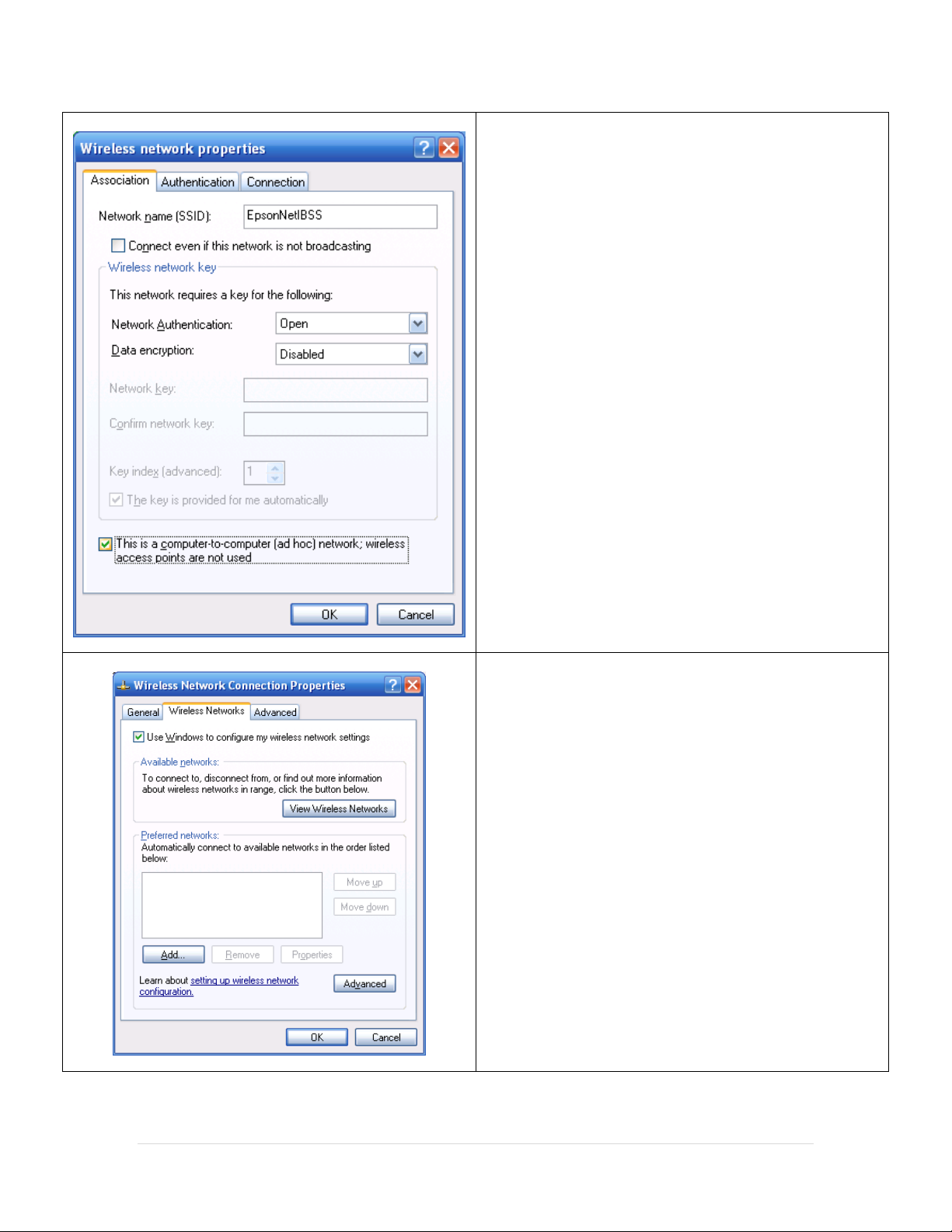

7. Enter the following information:

For Network name (SSID) enter EpsonNetIBSS

from the configuration sheet.

Uncheck Connect even if this network is not

broadcasting.

For Network Authentication use the dropdown

to select Open.

For Data encryption use the dropdown to select

Disabled.

8. The option This is a computer-to-computer (ad hoc)

network; wireless access points are not used MUST

be checked.

9. Select OK.

10. Select the Advanced button.
