Replacing Consumable Products

You must replace the following consumable products

when a notice message appears on the LCD panel or in

the EPSON Status Monitor 3 utility.

Replacing a toner cartridge

1. Confirm the color of the toner cartridge that needs

to be replaced by checking the LCD panel.

2. Open the front cover.

3. See which color currently appears in the cartridge

installation window.

If you can see the color that you need to replace, go

to step 5.

If you see a different color, go to the next step.

4. There is a switch located at the upper left. Push it

up, then release it. Turn the round knob located just

above the installation window clockwise until it

stops. The switch drops down to the lower position

automatically and the next cartridge slot appears

in the installation window. Repeat this step until

the cartridge that you want to replace appears.

Note:

If the knob cannot be turned, check if the switch is up.

Do not turn the knob by force.

Toner Cartridge (Yellow) S050016

Toner Cartridge (Magenta) S050017

Toner Cartridge (Cyan) S050018

Toner Cartridge (Black) S050019

Waste Toner Collector S050020

Photoconductor Unit S051061

Fuser Oil Roll S052002

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

Proof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

5. Turn the cartridge knob counterclockwise 90

degrees so that the

Osymbol on the knob is in the

position shown below. By turning the knob, the

cartridge extends slightly.

6. Pull the cartridge out of the slot.

7. Take a new cartridge out of its package, and gently

shake it back and forth and front to back as shown

below to distribute the toner evenly.

8. Hold the cartridge with the arrow side facing up.

Insert it all the way into the cartridge slot.

9. Turn the cartridge knob clockwise 90 degrees so

that the

Osymbol on the knob is in the position

shown below. By turning the knob, the cartridge is

inserted and locked into the slot.

cCaution:

Be sure to turn the knob all the way to the set

position. Otherwise, you may have toner

problems or leakage.

10. If you need to replace another cartridge, repeat

steps 3 to 9.

11. Close the front cover.

LProof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

Replacing the photoconductor unit

1. Turn off the printer.

Note:

Before replacing the photoconductor unit, be sure to turn

off the printer.

2. Open the front cover.

3. Turn the large lever counterclockwise 90 degrees.

4. Turn the small lever to the right.

5. Pull the photoconductor unit about 30 cm out of the

printer.

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

Proof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

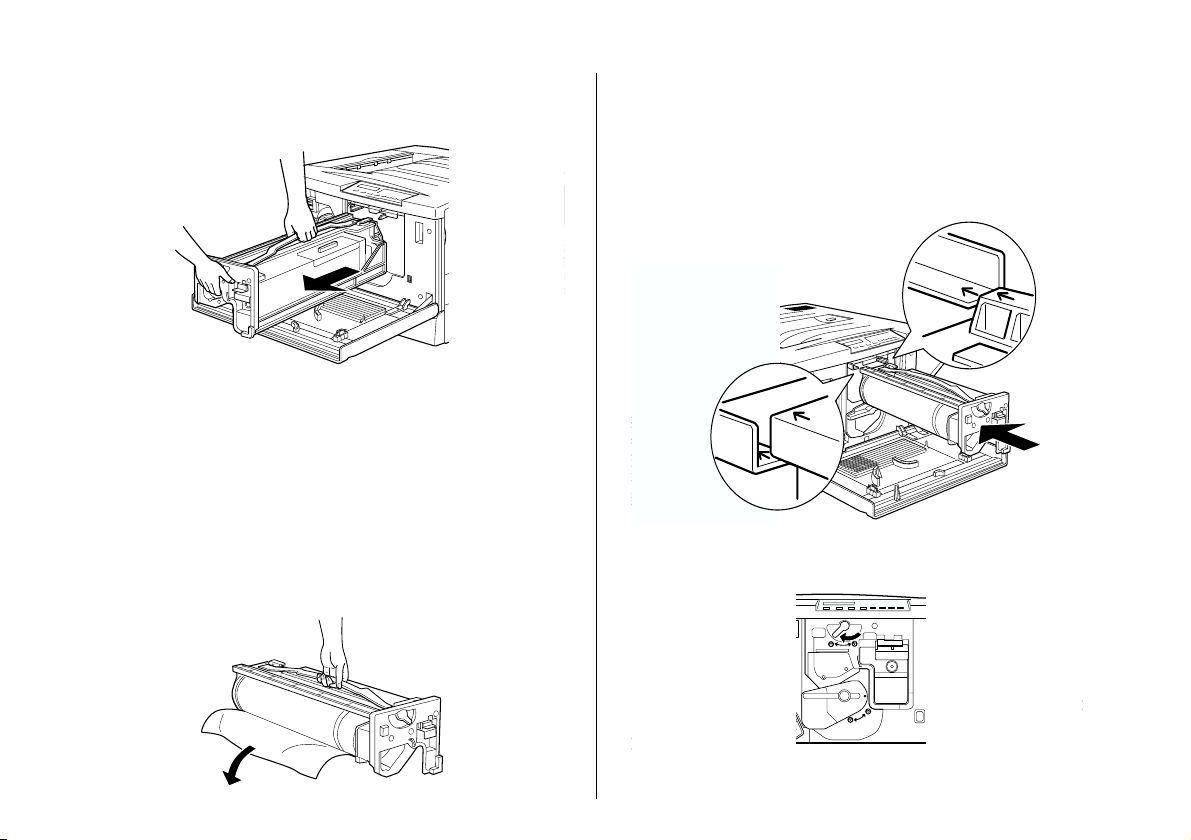

6. Hold the handle at the top of the photoconductor

unit and gently pull it all the way out.

7. Take the new photoconductor unit out of its

package and unwrap the protective sheet while

holding the handle as shown below.

cCaution:

❏Be sure not to scratch or touch the surface

of the drum.

❏When replacing the photoconductor unit,

avoid exposing it to room light any longer

than necessary.

8. Hold the handle on top of the photoconductor unit

and place the unit on the guide rails. Insert it all the

way into the printer.

cCaution:

Be sure not to touch the surface of the drum.

9. Turn the small lever to the left.

LProof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

10. Turn the large lever clockwise 90 degrees.

11. Close the front cover.

Replacing the waste toner collector

1. Open the front cover.

2. Grasp the handle and tab of the waste toner

collector to release the lock.

3. Pull out the waste toner collector.

4. Take out a new waste toner collector.

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

Proof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

5. Hold the handle of the collector and insert it into

the slot all the way until the tab clicks into place.

6. Close the front cover.

Replacing the fuser oil roll

1. Pull down the Face-up Tray.

2. Hold the handle of the fuser unit and pull it all the

way out.

wWarning:

Be careful not to touch the fuser which is marked

CAUTION! HIGH TEMPERATURE, or the

surrounding areas. If the printer has been in

use, the fuser and the surrounding areas may be

very hot.

3. Hold the handle of the fuser oil roll and pull it all

the way out.

LProof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

4. Take a new fuser oil roll out of its box, and remove

the cover and two shipping pins as shown below:

Note:

Do not touch the white roll surface.

5. Hold the roll handle and insert the fuser oil roll into

the fuser unit matching the green marks on the roll

and unit.

6. Push the roll down firmly until it clicks into place.

7. Push the fuser unit into the printer until it clicks.

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

Proof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

Clearing Jammed Paper

If jammed paper is torn and remains in the printer, or if

paper is jammed in a place not mentioned in this

chapter, contact your dealer.

wWarning:

Be careful not to touch the fuser, which is marked

CAUTION! HIGH TEMPERATURE, or the

surrounding areas. If the printer has been in use, the

fuser and the surrounding areas may be very hot.

Clearing the paper cassette

1. Pull the paper cassette out slowly until it stops. Be

careful not to tear the jammed paper.

2. Remove the jammed or crumpled paper. If the

paper is torn, be sure to remove all pieces.

3. Replace the paper in the paper cassette and close it.

4. Pull the paper path unit out slowly until it stops.

Be careful not to tear the jammed paper.

LProof Sign-off:

ABE K.Tsuno H.Kimura_______

H.Kimura _______

ABE J.Holmes _______

R4C4450 Quick Reference

Rev.C

A5 size QUICK.FM

7/18/00 Pass 0

1010

5. Pull out the jammed paper from the bottom of the

paper path unit.

6. Close the paper path unit firmly.

Clearing the MP tray

1. Pull the jammed paper out gently.

2. Pull the paper path unit out until it stops. Be careful

not to tear the jammed paper.

3. Open the unit cover by grasping the handle and

pulling up.
