User’s Guide

EPA POLLUTION PREVENTER

a!3

Printed on recycled paper with at least 10% post consumer content

IMPORTANT NOTICE

DISCLAIMER OF WARRANTY

Epson America makes no representations or warranties, either express or implied, by or

with respect to anything in this manual, and shall not be liable for any implied warranties

ofmerchantability and fitness for a particular purpose or for any indirect, special, or

consequential damages. Some states do not allow the exclusion of incidental or

consequential damages, so this exclusion may not apply to you.

system, or transmitted, in any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without the prior written permission of Epson

America, Inc. No patent liability is assumed with respect to the use of information

contained herein. Nor is any liability assumed for damages resulting from the use of the

information contained herein. Further, this publication and features described herein are

subject to change without notice.

TRADEMARKS

EPSON is a registered trademark of Seiko Epson Corporation

EPSON Connection is a service mark of Epson America, Inc.

General notice: Other product names used herein are for identification purposes only and

may be trademarks of their respective owners. EPSON disclaims any and all rights in

those marks.

1995 by Epson America, Inc.

400434500-1

Torrance, California, USA 9/95

Important Safety Instructions

Read all of these instructions and save them for later reference. Follow

all warnings and instructions marked on the computer.

Unplug the computer before cleaning. Clean with a damp cloth only.

Do not spill liquid on the computer.

Do not place the computer on an unstable surface or near a radiator

or heat register.

Do not block or cover the openings in the computer’s cabinet. Do not

insert objects through the slots.

Use only the type of power source indicated on the computer’s label.

Connect all equipment to properly grounded power outlets. Avoid

using outlets on the same circuit as photocopiers or air control

systems that regularly switch on and off.

Do not let the computer’s power cord become damaged or frayed.

If you use an extension cord with the computer, make sure the total

ampere rating of the devices plugged into the extension cord does

not exceed the cord’s ampere rating. Also, make sure the total of all

devices plugged into the wall outlet does not exceed 15 amperes.

Except as specifically explained in this User's Guide, do not attempt to

service the computer yourself.

Unplug the computer and refer servicing to qualified service

personnel under the following conditions:

If the power cord or plug is damaged; if liquid has entered the

computer; if the computer has been dropped or the cabinet damaged;

if the computer does not operate normally or exhibits a distinct

change in performance. Adjust only those controls that are covered

by the operating instructions.

If you plan to use the computer in Germany, observe the following:

To provide adequate short-circuit protection and over-current

protection for this computer, the building installation must be

protected by a 16 Amp circuit breaker.

iii

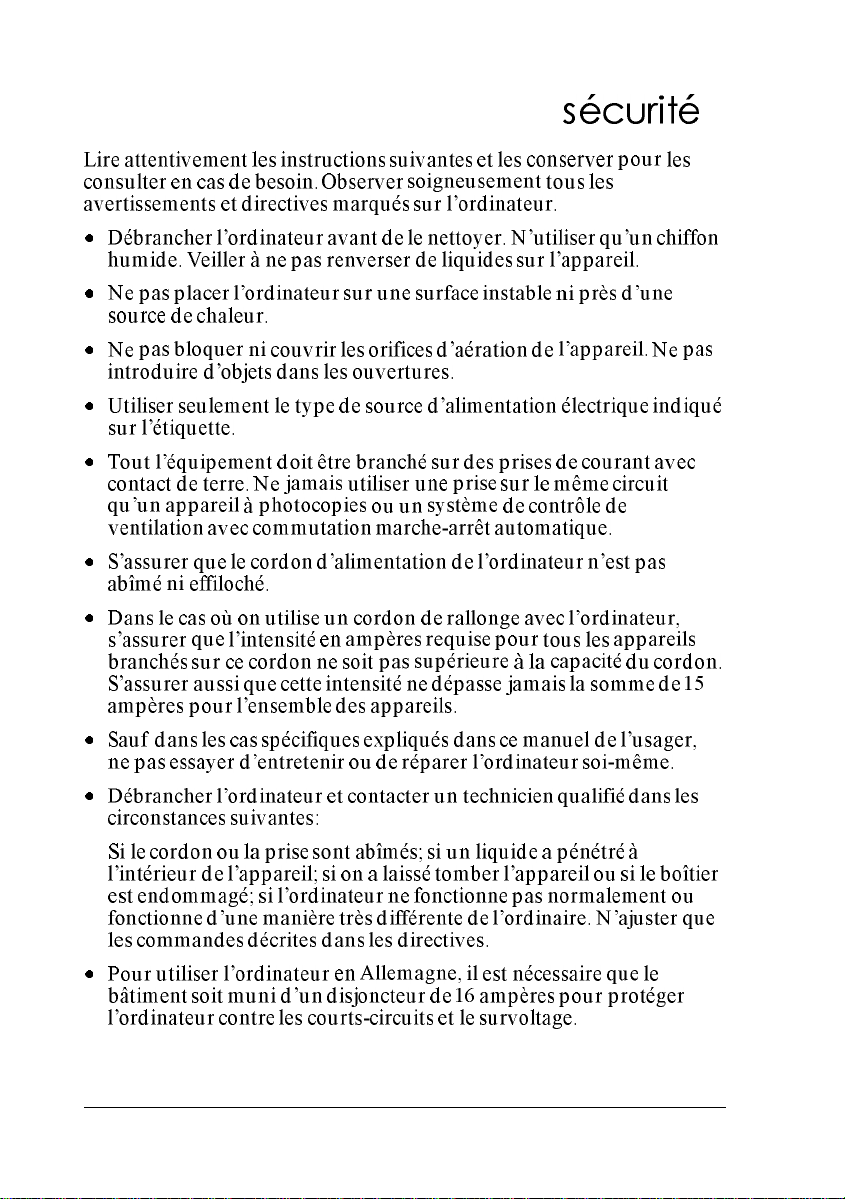

Importantes instructions de

sbcuritb

Lire

attentivement

les

instructions

suivantes

les

conserver

pour

les

consulter

cas

besoin.

Observer

soigneusement

tous

les

avertissements

directives

marques

sur

l’ordinateur.

Debrancher

l’ordinateur

avant

nettoyer.

N’utiliser

qu’un

chiffon

humide.

Veiller ane

pas

renverser

liquides

sur

l’appareil.

pas

placer

l’ordinateur

sur

une

surface

instable

pres

dune

source

chaleur.

pas

bloquer

couvrir

les

orifices

d’aeration

l’appareil.

pas

introduire

d’objets

dans

les

ouvertures.

Utiliser

seulement

type

source

d’alimentation

Clectrique

indique

sur

l’etiquette.

Tout

l’equipement

doit

Ctre

branche

sur

des

prises

courant

avec

contact

terre.

jamais

utiliser

une

prise

sur

meme

circuit

qu’un

appareil

photocopies

systeme

controle

ventilation

avec

commutation

marche-arret

automatique.

S’assurer

que

cordon

d’alimentation

l’ordinateur

n’est

pas

abime

effiloche.

Dans

cas ou

utilise

cordon

rallonge

avec

l’ordinateur,

s’assurer

que

l’intensite

amperes

requise

pour

tous

les

appareils

branches

sur

cordon

soit

pas

superieure

ala

capacite

cordon.

S’assurer

aussi

que

cette

intensite

depasse

jamais

somme

amperes

pour

l’ensemble

des

appareils.

Sauf

dans

les cas

specifiques

expliques

dans

manuel

l’usager,

pas

essayer

d’entretenir

reparer

l’ordinateur

soi-meme.

Debrancher

l’ordinateur

contacter

technicien

qualifie

dans

les

circonstances

suivantes:

cordon

prise

sont

abimes;

liquide

pen&C

l’interieur

l’appareil;

laisse

tomber

l’appareil

bonier

est

endommage;

l’ordinateur

fonctionne

pas

normalement

fonctionne

dune

man&e

tres

differente

l’ordinaire.

N’ajuster

que

les

commandes

d&rites

dans

les

directives.

Pour

utiliser

l’ordinateur

Allemagne,

est

necessaire

que

batiment

soit

muni

d’un

disjoncteur

amperes

pour

proteger

l’ordinateur

contre

les

courts-circuits

survoltage.

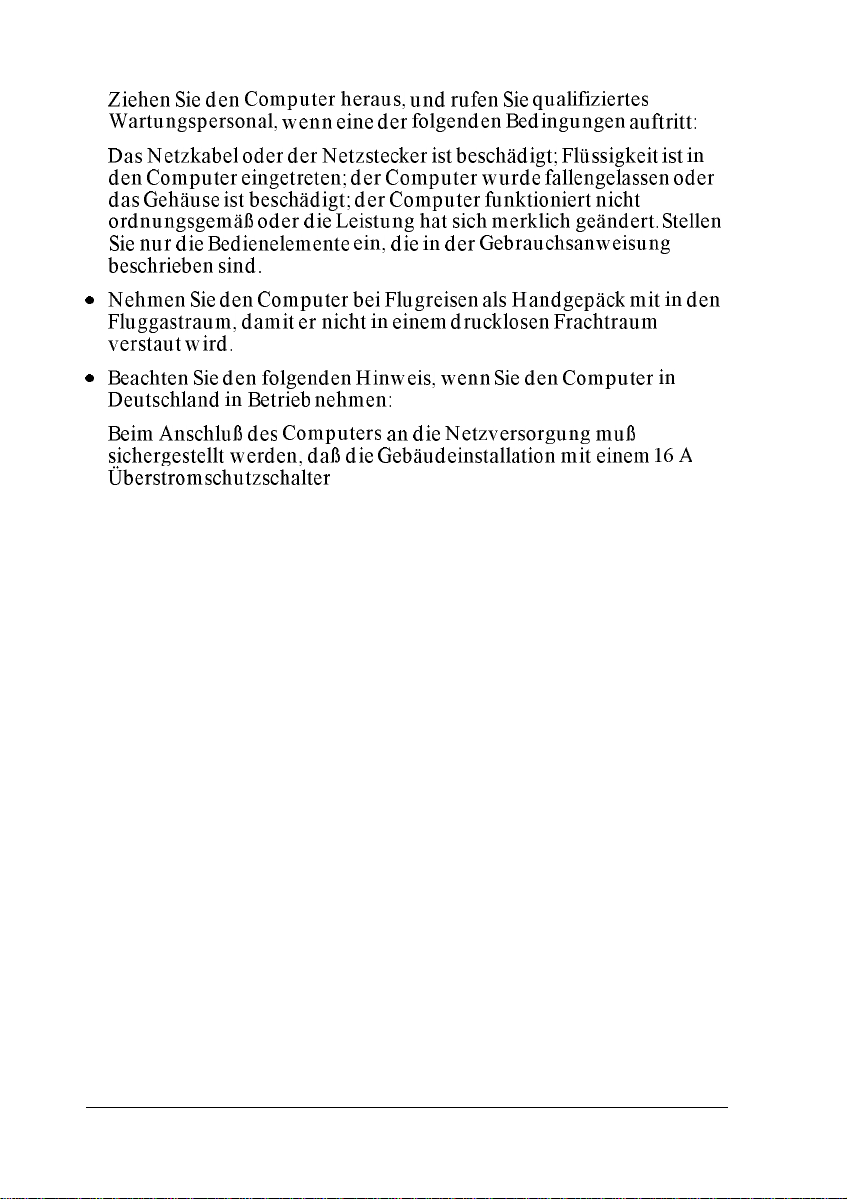

Ziehen

Sie

den

Computer

heraus,

und

rufen

Sie

qualifiziertes

Wartungspersonal,

wenn

eine

der

folgenden

Bedingungen

auftritt:

Das

Netzkabel

oder

der

Netzstecker

ist

beschadigt;

Fltissigkeit

ist

den

Computer

eingetreten;

der

Computer

wurde

fallengelassen

oder

das

Gehause

ist

beschadigt;

der

Computer

funktioniert

nicht

ordnungsgemain

oder

die

Leistung

hat

sich

merklich

geandert.

Stellen

Sie

nur

die

Bedienelemente

ein,

die

der

Gebrauchsanweisung

beschrieben

sind.

Nehmen

Sie

den

Computer

bei

Flugreisen

als

Handgepack

mit

den

Fluggastraum,

damit

nicht

einem

drucklosen

Frachtraum

verstaut

wird.

Beachten

Sie

den

folgenden

Hinweis,

wenn

Sie

den

Computer

Deutschland

Betrieb

nehmen:

Beim

Anschluh

des

Computers

die

Netzversorgung

muh

sichergestellt

werden,

dab

die

Gebaudeinstallation

mit

einem

ijberstromschutzschalter

abgesichert ist.

Introduction

Your new EPSON®computer is a full powered, full featured

system that gives you complete access for all your business and

home computer needs. And because your computer is plug and

play compliant and designed to take advantage of Microsoft@

Windows® 95, you’ll be able to use all the latest technology.

With the computer’s 586-class processor and a generous 8MB of

standard memory you can run a vast array of the latest

programs, utilities, and games designed for productivity and

fun.

The system’s state-of-the-art PCI (Peripheral Component

Interconnect) bus architecture enables faster and more efficient

response from your VGA monitor and any PCI devices you

may install, such as PCI option cards and IDE (Integrated Drive

Electronics) devices.

When you’re ready for even more capability, you can expand

your system, video, and cache memory, install option cards

and additional drives, and upgrade your processor.

Computer Features

Your computer offers the following features:

586-class processor

At least 8MB of RAM (Random Access Memory),

expandable to 128MB

PCI components on the main system board provide a direct

line for caching, memory, and device control for all PCI

devices

Introduction 1

High-speed, PCI VGA controller with an integrated 24-bit

RAMDAC and 64-bit DRAM interface

Two PCI, ATA-2 compatible, enhanced IDE interfaces

supporting up to four IDE devices, such as hard disk drives

and CD-ROM drives (two on each interface)

16KB of internal cache in the processor and up to 1MB of

external cache on the main system board

1MB of video memory, expandable to 2MB

Three Energy Star compliant power-saving modes for the

CPU, video, and hard disk drives in standard

configurations

Three 16-bit, ISA (Industry Standard Architecture) option

slots and two PCI option slots supporting up to two PCI

bus m aster cards

On the slim line computer, space for up to four mass storage

devices-three externally accessible and one internal; on

the tower computer, space for up to seven mass storage

devices-four externally accessible and three internal.

Power-saving Features

In standard configurations, this computer complies with the

United States Environmental Protection Agency’s Energy Star

Program, which promotes the manufacture of energy-efficient

printers, computers, and monitors. Your computer’s “deep

green” features place the CPU, video, and hard disk drives in

power-saving modes when the mouse and keyboard have been

inactive for a specified period of time. You can customize the

deep green features in the SETUP program.

2 Introduction

ISA and PCI Expansion Buses

Your computer includes two expansion buses for two types of

option cards: ISA and PCI. The ISA bus transfers data at

8.33 MHz for up to three 16-bit ISA option cards. This bus is

especially suitable for fax/ modem cards, sound cards, and

SCSI (Small Computer System Interface) cards for scanners.

The PCI bus provides extremely fast data transfer (33 MHz) for

up to two high-performance PCI cards, such as network

adapters and high-speed video cards. The computer supports

plug and play technology that automatically configures the

resources used by PCI cards, such as interrupt requests and

memory addresses.

System and video BIOS

The computer’s system and video BIOS are contained in a flash

ROM device on the main system board. The BIOS includes the

following:

ISA and PCI compatibility

Power-on diagnostics tests

SETUP program

PCI auto-configuration utility

BIOS upgrade and recovery code

Your computer supports shadowing of the system and video

BIOS to allow the BIOS routines to run from fast, 64-bit RAM

instead of from the slower, 8-bit flash ROM device.

Introduction 3

PCI Auto-configuration

The PCI auto-configuration utility works with the SETUP

program to support PCI option cards. When you turn on the

computer after installing a PCI option card, the BIOS

automatically configures interrupts, DMA channels, I/O

addresses, and other settings. You can also customize these

resources in SETUP.

BIOS Upgrades

Because the BIOS is stored in a flash ROM device, you can

easily upgrade the BIOS information without replacing the

chip. You can upgrade the BIOS by running a utility from a

diskette, hard disk, or network server.

How to Use This Manual

This manual contains the information you need to get the best

results from your computer. You don’t have to read everything

it contains.

If you are reading this manual online, select the highlighted

text in the summaries below to skip to the chapter you want to

read. You can also print out chapters you use frequently. If you

are reading a printed version of this manual, see the following

chapter summaries to find the sections you need.

Chapter 1 provides instructions for setting up your system and

connecting peripheral devices such as the monitor and printer.

Chapter 2 describes how to run the SETUP program to define

your computer’s configuration and how to install the PCI IDE

and video drivers.

4 Introduction

Otros manuales para ActionPC 8000

Tabla de contenidos

Otros manuales de De oficina de Epson

Epson

Epson Equity 486SX/25 PLUS Manual de instalación y operación

Epson

Epson Equity 386SX/16 PLUS Manual de instalación y operación

Epson

Epson 3865X Plus Manual de usuario

Epson

Epson Progression Manual de usuario

Epson

Epson ActionTower 7500 Dimensiones

Epson

Epson ActionDesk 4000 Dimensiones

Epson

Epson Express Station Express Station Manual de usuario

Epson

Epson ActionTower 8600 Manual de usuario

Epson

Epson Endeavor Manual de usuario

Epson

Epson EL 3S/33 Manual de usuario

Epson

Epson Endeavor Pro Manual de usuario

Epson

Epson 486SX Manual de usuario

Epson

Epson Equity 386SX PLUS Manual de instalación y operación

Epson

Epson Equity I Manual de usuario

Epson

Epson Powerspan Manual de instalación y operación

Epson

Epson EL 486UC+ Manual de instalación y operación

Epson

Epson Progression 4 Manual de usuario

Epson

Epson Equity 386/33 PLUS Dimensiones

Epson

Epson ActionPC 5000 Manual de usuario

Epson

Epson ActionDesk 4000 Manual de usuario

Epson

Epson EL 4S/33 Manual de usuario

Epson

Epson Stylus Pro 5000 - Print Engine Manual de instalación y operación

Epson

Epson EL 33 Manual de usuario

Epson

Epson Apex 110 Manual de instalación y operación

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
