Important Safety Instructions

Read all of these instructions and save them for later reference. Follow

all warnings and instructions marked on the computer.

Unplug the computer before cleaning. Clean with a damp cloth only.

Do not spill liquid on the computer.

Do not place the computer on an unstable surface or near a radiator

or heat register.

Do not block or cover the openings in the computer’s cabinet. Do not

insert objects through the slots.

Use only the type of power source indicated on the computer’s label.

Connect all equipment to properly grounded power outlets. Avoid

using outlets on the same circuit as photocopiers or air control

systems that regularly switch on and off.

Do not let the computer’s power cord become damaged or frayed.

If you use an extension cord with the computer, make sure the total

ampere rating of the devices plugged into the extension cord does

not exceed the cord’s ampere rating. Also, make sure the total of all

devices plugged into the wall outlet does not exceed 15 amperes.

Except as specifically explained in this User’s Guide, do not attempt

to service the computer yourself.

Unplug the computer and refer servicing to qualified service

personnel under the following conditions:

If the power cord or plug is damaged; if liquid has entered the

computer; if the computer has been dropped or the cabinet damaged;

if the computer does not operate normally or exhibits a distinct

change in performance. Adjust only those controls that are covered

by the operating instructions.

If you plan to use the computer in Germany, observe the following:

To provide adequate short-circuit protection and over-current

protection for this computer, the building installation must be

protected by a 16 Amp circuit breaker.

Beii

Anschluiz

des

Computers

die

Netzversorgung

mug

sichergestellt

werden,

dat3

die

Geb3udeinstallation

mit

einem

Uberstromschutzschalter

abgesichert

ist.

iii

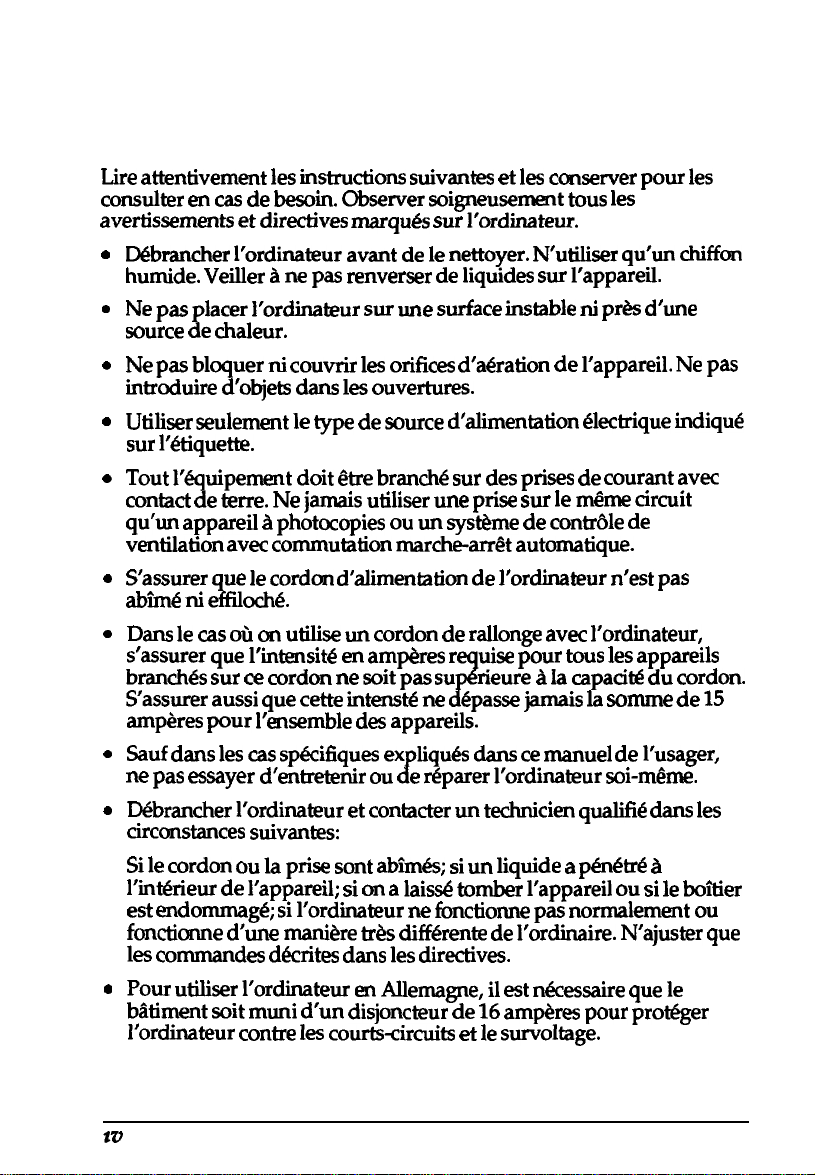

Importantes instructions de sécurité

Lire

attentivement

les

instructions

suivantes

les

conserver

pour

les

consulter

cas

be&n.

Observer

soigneusement

tous

les

avertksements

directives

marques

sur

l’ordinateur.

D&brancher

l’ordinateur

avant

nettoyer.

N’utiliser

qu’un

chiffon

humide.

Veiller

pas

renverser

liquides

sur

l’appareil.

pas

placer

I’ordinateur

sur

une

surface

instable

p&s

d’une

source

cbaleur.

pas

bloquer

couvrir

les

orifices

d’aeration

l’appareil.

pas

introduire

d’objets

dans

les

ouvertures.

Utiliser

seulement

type

source

d’alimentation

t!lectrique

indique

sur

Yetiquette.

Tout

1’4quipement

doit

&re

branche

sur

des

prises

courant

avec

contact

terre.

jamais

utiliser

une

prise

sur

m&e

circuit

qu’un

appareil

photocopies

syst&me

controle

ventilation

avec

commutation

marcbe-a&t

automatique.

S’assurer

que

cordon

d’alimentation

I’ordinateur

n’est

pas

alsMc2

effiloch6.

Dans

cas

utilise

cordon

rallonge

avec

l’ordinateur,

s’assurer

que

I’intensite

amperes

requise

pour

tous

les

appareils

branch&

sur

cordon

soit

pas

sup&ieure

capacitk

cordon.

S’assurer

aussi

que

cette

intenste

depasse

jamais

somme

amperes

pour

l’ensemble

des

appareils.

Sauf

dans

les

cas

spkcifiques

expliq&

clans

manuel

l’usager,

pas

essayer

d’entretenir

r&parer

l’ordinateur

soi-meme.

Dkbrancher

l’ordinateur

contacter

tecbnicien

qualifie

darts

les

circonstances

suivantes:

cordon

prise

sont

abimks;

liquide

p&&r&

l’intkieur

l’appareil;

laiss4

tomber

l’appareil

boitier

est

endommage;

l’ordinateur

fonctionne

pas

normalement

fonctionne

dune

man&e

t&s

differente

l’ordinaire.

N’ajuster

que

les

commandes

d&&s

dans

les

directives.

Pour

utiliser

I’ordinateur

Allemagne,

est

r&wake

que

b&iment

soit

muni

d’un

disjoncteur

amperes

pour

prot&er

I’ordinateur

contre

les

courts-circuits

survoltage.

FCC COMPLIANCE STATEMENT

FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio and

television reception. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause interference to radio and television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect

the equipment into an outlet on a circuit different from that to which the

receiver is connected

Consult an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will

invalidate the FCC Certification of this device and may cause interference levels that

exceed the limits established by the FCC for this equipment. It is the responsibility of the

user to obtain and use a shielded equipment interface cable with this device. If this

~.titi~t

has more than one interface connector, do not leave cables connected to unused

Changes or modifications not expressly approved by the manufacturer could void the

user’s authority to operate the equipment.

FOR CANADIAN USERS

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus as set out in the radio interference regulations of the Canadian

Department of communications.

L.e

prksent

appareil

num&ique

n’kmet

pas

bruits

radio&ctriques

d&passant

les

limites

applicables

aux

appareils

numkriqucs

Classe

prescritcs

darts

r&glement

sur

brouillage

radio&ctrique

6dicte

par

MinistLre

des

Communications du Canada

Introduction

Your new EPSON® computer is a versatile system ideally

suited for use as a network server or high-powered

workstation. It offers the following features:

Upgradable 486SX, SX2, DX, DX2, or Pentium™ OverDrive™

processor

Energy Star compliant, low-power standby mode for the

video and hard disk drive in standard configurations

High-speed, 32-bit local bus interfaces for both SVGA video

and IDE hard disk drives

4MB or 8MB of internal memory, expandable to 64MB

System and video BIOS shadow RAM

8KB of internal processor cache, with support for 64KB,

128KB, or 256KB of external cache

1MB of on board video memory, expandable to 2MB

Math coprocessor built into the microprocessor on DX,

DX2, and Pentium OverDrive systems

Local bus video with True Color™ support, which lets your

monitor display up to 16.8 million colors

Built-in SVGA port with support for energy-conserving

monitors

Two built-in serial ports and one built-in parallel port

One built-in PS/2™ compatible keyboard port and one

built-in PS/2 compatible mouse port

Three 16-bit, ISA option/expansion slots (one full-length

and two half-length) and two 32-bit VESA local bus slots

(VESA slots can also be used for ISA cards)

Space for up to four mass storage devices, three externally

accessible and one internal; on-board controllers support

up to two IDE hard disk drives and two diskette drives

Password security and anti-virus features.

Your system contains local bus interfaces for the video and IDE

controllers. These buses can transfer data at the full speed of

your processor rather than at the standard 8.33 MHz ISA bus

speed, so your system can access the hard disk drive and

process video data far more quickly. The local bus video,

combined with the standard 1MB of on-board video memory,

provides fast video response in a range of resolutions and

colors. (See Appendix A for a list of supported resolutions.)

In standard configurations, this computer complies with the

United States Environmental Protection Agency’s Energy Star

Program, which promotes the manufacture of energyefficient

printers, computers, and monitors. Your computer’s

“GreenPC” feature places the hard disk drive in a low-power

standby mode when the mouse or keyboard has been inactive

for a specified period of time.

Note

If you have an Energy Star compliant monitor, it also goes

into a low-power standby mode because it isn’t receiving

video signals from your computer. (Screens on

non-compliant monitors go blank, but do not enter a

low-power standby mode.)

The VESA option slots allow you to install high-performance

VESA-compliant devices such as a graphics accelerator card,

SCSI adapter, or network controller.

2 Introduction

Your computer’s SETUP configuration program lets you select

different time-out periods for the hard disk drive and video

signals so you can ensure that the standby feature fits the way

you work.

Your system may have been configured for you. If so,

everything you need to get started is already in place. The

settings for your hardware configuration have been adjusted to

ensure optimal system performance. The hard disk drive may

contain the operating system and Microsoft® Windows™. In

addition, the drivers needed to take advantage of your system’s

local bus features and enhanced video resolutions may have been

installed for you.

Optional Equipment

You can easily upgrade your computer by installing additional

memory and a wide variety of options, as described below.

(Installation instructions are provided in Chapters 4 and 5.)

System Memory

By adding 1MB, 2MB, 4MB, 8MB, 16MB, or 32MB SIMMs

(single inline memory modules) to the main system board, you

can expand the computer’s memory up to 64MB.

Video Memory

You can increase the video memory in your system to 2MB,

which allows you to use higher video resolutions with more

colors.

Introduction 3

Cache Memory

You can increase the cache memory to 64KB, 128KB, or 256KB

by installing additional SRAM chips on your main system

board. Additional cache allows your system to access

frequently used data faster, improving the overall performance

of the system.

Microprocessor

Your system supports the following microprocessors:

Drives

486SX/25 or /33

486SX2/50 or /66

486DX/33, /40, or /50

486DX2/50 or /66

Pentium OverDrive.

Your system can hold up to four mass storage devices,

including hard disk drives, diskette drives, a tape drive, a

CD-ROM drive, or an optical drive. As your storage needs

expand, you can install additional drives.

4 Introduction

SVGA and IDE Drivers

Your computer comes with special SVGA and IDE drivers for

the integrated local bus SVGA and IDE hard disk drive

interfaces. The IDE driver lets you use the high-speed, 32-bit

local bus IDE hard disk drive interface which dramatically

increases the speed of your computer as it reads from and

writes to your hard disk drive.

The SVGA drivers allow you to take advantage of the local bus

and extended VGA features such as high resolutions and

132-column text mode when you run popular application

programs.

If your system was configured for you, these drivers have

already been installed. If you need to install them yourself, see

Chapter 2 for instructions on installing the IDE driver. The

README.TXT file on Drivers diskette 2 tells you how to install

video drivers for specific applications. See Chapter 2 for more

information.

Introduction 5

Otros manuales para ActionPC 5000

Tabla de contenidos

Otros manuales de De oficina de Epson

Epson

Epson Equity 386/25 PLUS Manual de instalación y operación

Epson

Epson NX Manual de instalación y operación

Epson

Epson EL 33 Manual de usuario

Epson

Epson QX-10 Manual de usuario

Epson

Epson ActionPC 5500 Manual de usuario

Epson

Epson Powerspan Manual de instalación y operación

Epson

Epson ActionTower 2000 Manual de usuario

Epson

Epson EL 3S/33 Dimensiones

Epson

Epson EL 3S/33 Manual de instalación y operación

Epson

Epson Equity 386SX PLUS Manual de instalación y operación

Epson

Epson Equity 386SX/16 PLUS Manual de instalación y operación

Epson

Epson Equity III Manual de usuario

Epson

Epson Endeavor Dimensiones

Epson

Epson 3865X Plus Manual de usuario

Epson

Epson Endeavor L Manual de usuario

Epson

Epson ActionPC 6000 Manual de usuario

Epson

Epson Equity 386/20 Manual de instalación y operación

Epson

Epson Progression 4 Manual de usuario

Epson

Epson Equity 386/25 PLUS Dimensiones

Epson

Epson Pollution Preventer Manual de usuario

Epson

Epson ActionPC 8600 Manual de instalación y operación

Epson

Epson Equity 486DX2/50 PLUS Manual de instalación y operación

Epson

Epson Endeavor P60 Dimensiones

Epson

Epson NX Dimensiones

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
