Epson Stylus CX3200 Instrucciones de montaje

Macintosh Software

Installation

Requirements and Notices

CPD-14882R1

4040215-00

Contents

INSTALLING PRINTER SOFTWARE FOR

MACINTOSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting the EPSON Stylus CX3200 . . . . . . . . . . . . . . . . . . . . . . 1

Installing Printer Software on Mac OS 8.6 to 9.x . . . . . . . . . . . . . . . . 2

Installing Additional Software for Mac OS 8.6 to 9.x . . . . . . . . . . 3

Installing Printer Software on Mac OS X . . . . . . . . . . . . . . . . . . . . . 4

Installing Additional Software for OS X . . . . . . . . . . . . . . . . . . . 6

REQUIREMENTS AND NOTICES . . . . . . . . . . . . . . . . . . . 7

Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Macintosh System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Ink Cartridge Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 9

LCD Panel Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 10

FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

ENERGY STAR Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Epson America, Inc. Limited Warranty . . . . . . . . . . . . . . . . . . . . . 13

Responsible Use of Copyrighted Materials . . . . . . . . . . . . . . . . . 15

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installing Printer Software for

Macintosh

Connecting the EPSON Stylus CX3200

Before you start, make sure you set up your EPSON Stylus®CX3200 and installed

ink and paper, as described on the Start Here sheet. Then follow these steps to

connect the EPSON Stylus CX3200 to your Macintosh.

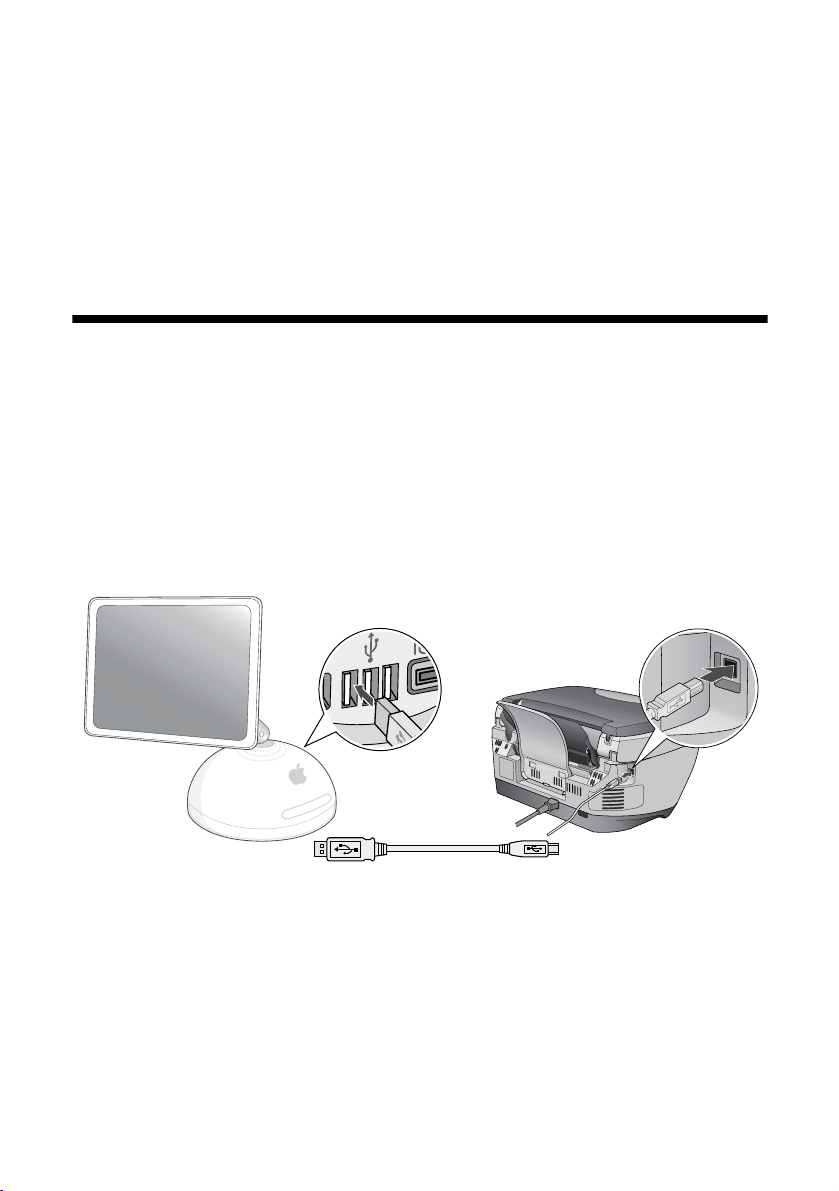

1. Remove the sticker from the USB port on the back of the Stylus CX.

2. Connect the square end of the USB cable to the USB port on the Stylus CX.

3. Then connect the flat end of the cable to a USB port on your Macintosh.

4. Follow the instructions in one of the next sections to install the printer

software on your Macintosh.

Flat end Square end

Installing Printer Software on Mac OS

8.6 to 9.x

1. Insert the EPSON Stylus CX3200 CD-ROM in your CD-ROM or DVD

drive.

2. Double-click EPSON on your desktop, if necessary. Then double-click

EPSON in the window that opens.

3. Read and agree to the license agreement to continue the installation.

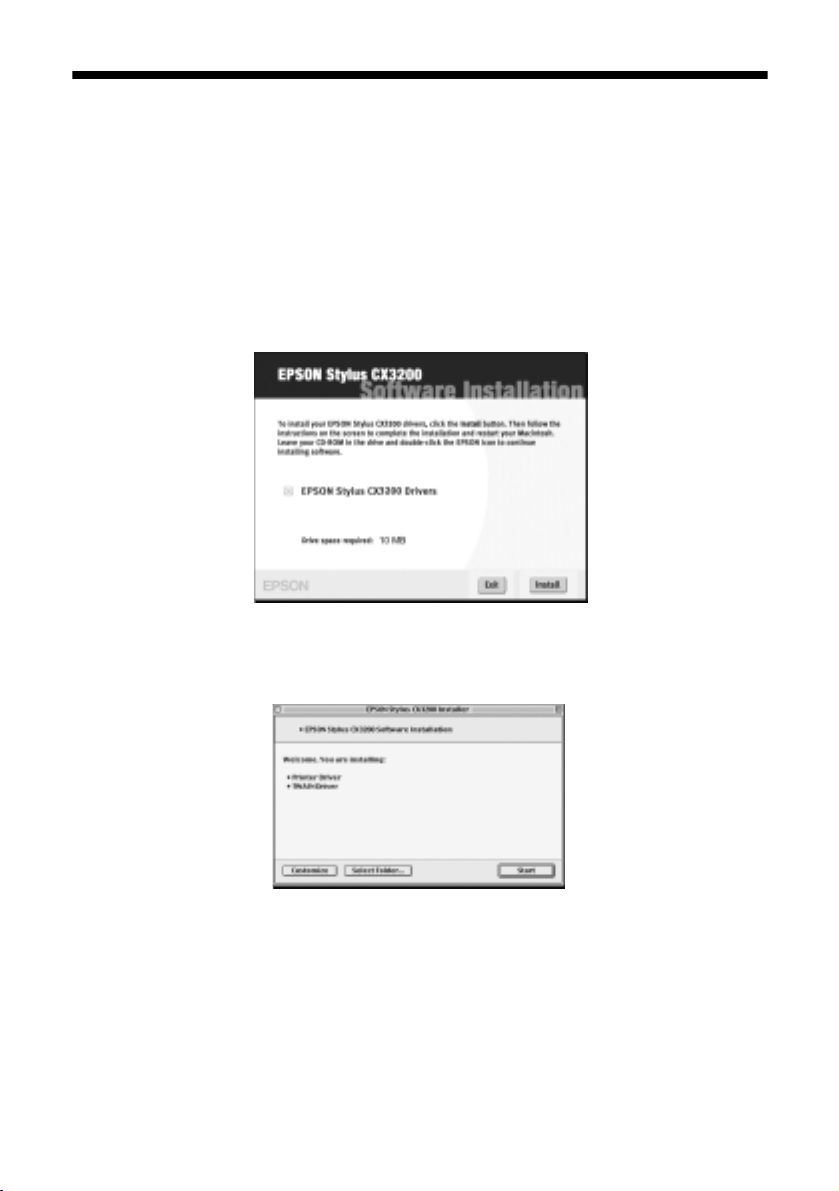

4. When the Software Installation screen appears, click Install. You see the

EPSON Stylus CX3200 Installer:

5. Click Start and follow the on-screen instructions to install the driver and

restart your Macintosh.

Then continue with the instructions in the next section.

Installing Additional Software for Mac OS 8.6

to 9.x

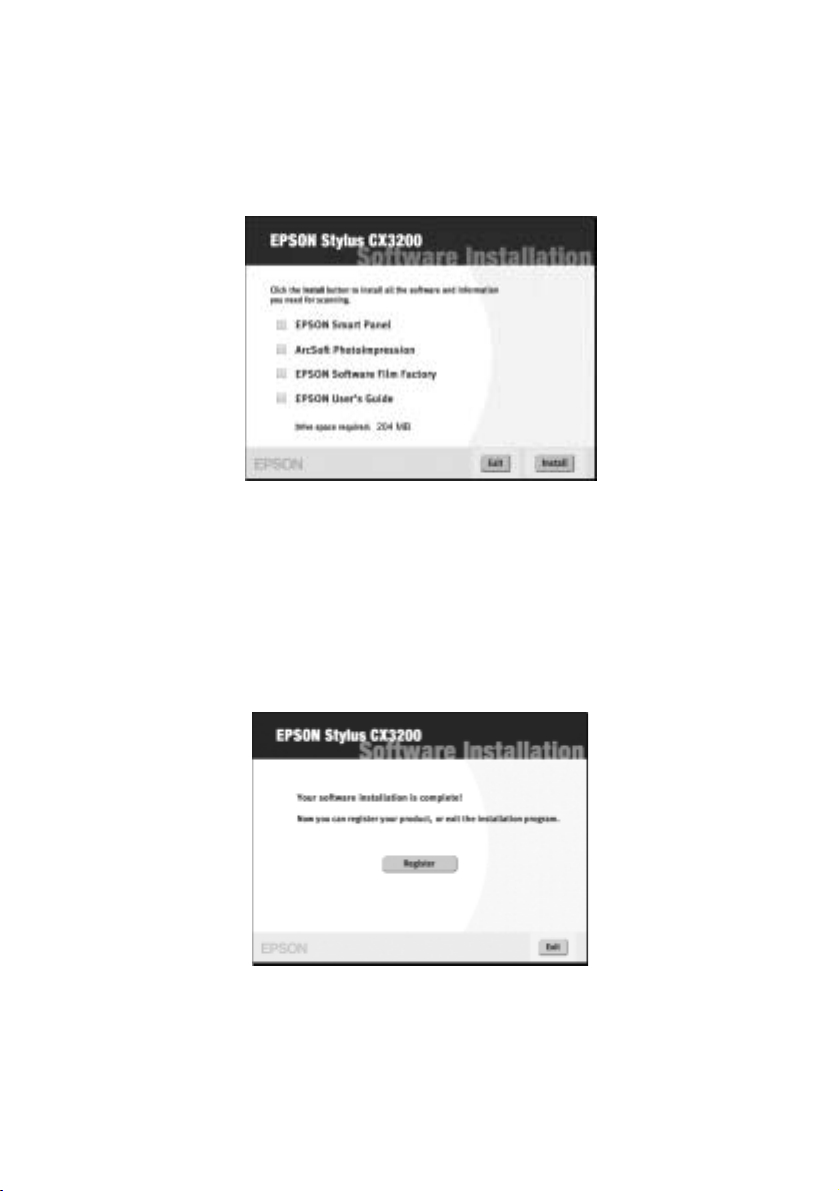

1. After your Macintosh restarts, double-click the EPSON CD-ROM icon to

open it, if necessary, then double-click EPSON. You see this screen:

2. Click Install and follow the on-screen instructions to install each program.

After each one is installed, click Quit to continue. Note that EPSON Smart

Panel™installs in several steps.

If you see a message about installing QuickTime,

™click Yes and follow the

on-screen instructions. You don’t need a registration number.

When installation is complete, you see this screen:

3. Click the Register button and follow the instructions to register your

Stylus CX. At the last screen, click Quit or close your browser.

4. Click Exit. Remove the CD-ROM and keep it in case you need to reinstall

any software later.

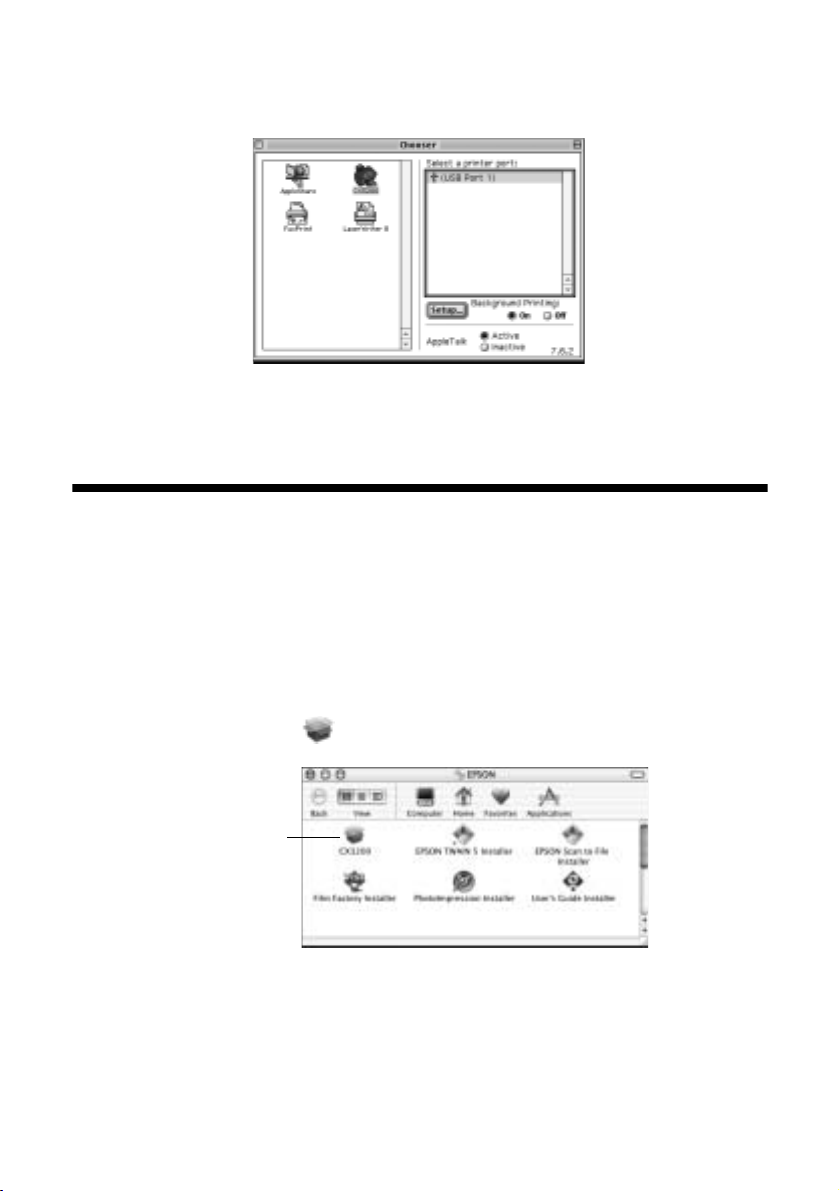

5. Open the Chooser from the Apple menu. Select CX3200, then select your

USB port and turn on background printing.

6. Close the Chooser. You’re ready to copy, scan, and print.

Installing Printer Software on Mac OS X

Before you start, make sure you set up your EPSON Stylus CX3200, installed ink

and paper, and connected it to your Macintosh as described on the Start Here

sheet. Then follow these steps to install your drivers and additional software.

1. Insert the EPSON CD-ROM in your CD-ROM or DVD drive.

2. Double-click EPSON on your desktop.

3. Then double-click the CX3200 icon in the window that opens.

4. If you have an administrator password, you need to enter it before you can

continue. With OS X 10.2x, enter your password and click OK.

Double-click

CX3200

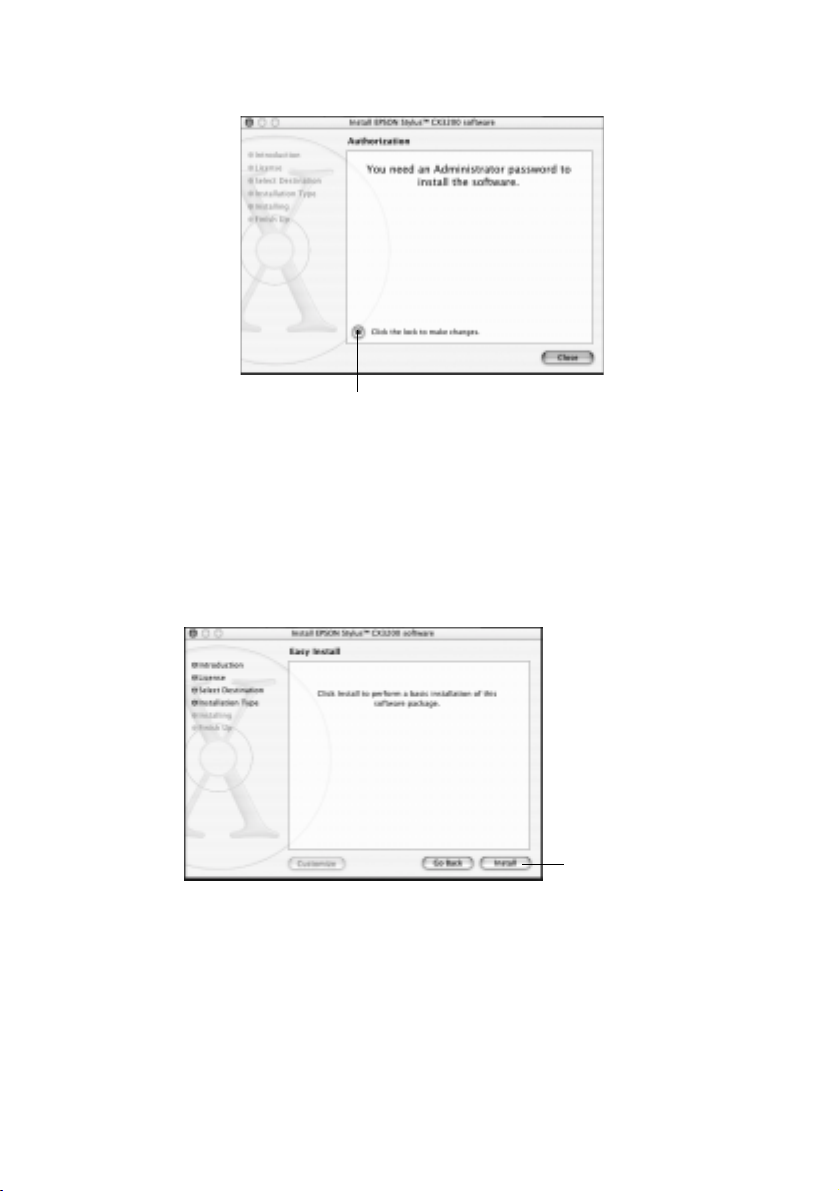

With OS X 10.1x, you see this screen:

Click the lock icon, then enter your password and click OK.

5. Click Continue, then read and agree to the license agreement to continue the

installation.

6. Select the OS X drive or partition and click Continue.

7. When you see the Easy Install screen, click Install.

8. Follow the on-screen instructions to complete the installation and restart your

Macintosh.

Then follow the steps in the next section to install additional software.

Click the lock icon

Click Install

Installing Additional Software for OS X

1. After your Macintosh restarts, double-click the EPSON TWAIN 5

Installer icon to install EPSON TWAIN. Follow the on-screen instructions.

2. Double-click the EPSON Scan to File Installer icon to install EPSON

Scan to File. Follow the on-screen instructions.

3. Double-click to the Film Factory Installer icon to install Film Factory

for OS X. Follow the on-screen instructions.

4. Double-click the PhotoImpression Installer icon to install ArcSoft

PhotoImpression. Follow the on-screen instructions.

5. Double-click the User’s Guide Installer icon to install your on-screen

EPSON Stylus CX3200 User’s Guide.

6. Open the OS X Applications folder, then open the Utilities folder and

double-click Print Center.

Note: If you see this screen, click

Add.

If CX3200(USB) already appears in

the Printer list, go to step 9.

7. At the Printer List screen, click Add Printer.

8. Select EPSON USB, click CX3200(USB), then click Add. Your printer

appears in the printer list.

9. Close Print Center. You’re ready to copy, scan, and print.

10. Now start up your Macintosh in OS 9.x. Follow the instructions on page 2 to

install the OS 9.x drivers and optional software for Macintosh Classic

programs.

Click Add

Requirements and Notices

Windows System Requirements

To use your EPSON Stylus CX3200 and its software, your system should have:

■A Microsoft®Windows®compatible PC with a Pentium®300 MHz or better

processor

■Microsoft Windows XP, Windows 2000, Windows Me, or Windows 98

■128MB RAM (256MB or more recommended)

■VGA monitor or better with at least 256 colors

■At least 200MB of free hard disk space (300MB or more recommended)

■CD-ROM or DVD drive for installing the software

■Windows-compliant USB port and the USB cable that came with your EPSON

Stylus CX3200.

Macintosh System Requirements

To use your EPSON Stylus CX3200 and its software, your system should have:

■An Apple®iMac™series, Power Macintosh®G3 or G4, PowerBook,

®iBook,

™or

eMac™

■Mac®OS 8.6 through 9.x or OS X 10.1 or higher (Mac OS 9.1 or later

recommended)

■At least 128MB of available RAM (256MB or more recommended and required with

OS X 10.1)

■At least 200MB of free hard disk space (300MB or more recommended)

■VGA display or better with at least 256 colors

■CD-ROM or DVD drive for installing the printer software

■The USB cable that came with your EPSON Stylus CX3200.

Important Safety Instructions

Before using your EPSON Stylus CX3200, read and follow these safety instructions:

■Be sure to follow all warnings and instructions marked on the Stylus CX.

■Use only the type of power source indicated on the Stylus CX label.

■Connect all equipment to properly grounded power outlets. Avoid using outlets on

the same circuit as air control systems or other high-load devices that regularly switch

on and off.

■Place the Stylus CX near a wall outlet where the plug can be easily unplugged.

Placez l’imprimante près d’une prise de contacte où la fiche peut être débranchée

facilement.

■Do not let the power cord become damaged or frayed.

■If you use an extension cord with the Stylus CX, make sure the total ampere rating of

the devices plugged into the extension cord does not exceed the cord’s ampere rating.

Also, make sure the total ampere rating of all devices plugged into the wall outlet does

not exceed the wall outlet’s ampere rating.

■Avoid electrical outlets controlled by wall switches or automatic timers.

■Keep your Stylus CX and computer system away from potential sources of

electromagnetic interference, such as loudspeakers or cordless telephone base units.

■Avoid locations that are subject to rapid changes in heat or humidity, shocks or

vibrations, or dust.

■Leave enough room around the Stylus CX for sufficient ventilation.

■Do not place the Stylus CX near a radiator or heating vent or in direct sunlight.

■Place the Stylus CX on a flat, stable surface that extends beyond its base in all

directions. It will not operate properly if it is tilted or at an angle. Leave enough space

in front of the Stylus CX (at least 9 inches) so it doesn’t tip forward and fall off of the

work surface.

■Turn off and unplug the Stylus CX before cleaning. Clean with a damp cloth only.

Do not spill liquid on it.

Caution: Always turn the Stylus CX off using the On button. Don’t turn off

the power using a switch on a power strip or unplug the Stylus CX until the

On light is off.

■Do not block or cover openings in the Stylus CX case or insert objects through the

slots.

■Except as specifically explained in your documentation, do not attempt to service the

Stylus CX yourself.
