Using the Control Panel

The control panel is adjustable. To raise it, lift it as shown below. To lower it, press

the

Unlock

button.

Caution:

To avoid damaging the Artisan 810 Series, make sure you press the Unlock button to

lower the control panel. Don’t try to push it down.

Using the Touch Panel

The touch panel makes it easy to use all the creative features of your Artisan 810

Series.

Caution:

Press the touch panel gently with the tip of your finger; don’t press too hard or use

sharp objects.

Blue status light

Using the Touch Panel

The touch panel displays only the buttons that are available for the project you are

working on.

■Press

to view more photos or access more options.

■Press

Home

to return to the Home screen.

■Press x

to make special settings. The touch panel retains the settings

from the last time it was used. If you want to start over, simply press

Clear

Settings

to clear settings for the mode you’re using (Copy, Fax, etc.).

■To save energy, the touch panel goes dark after several minutes of inactivity.

Touch the screen to wake it up.

■The blue status light at the bottom of the panel flashes when the Artisan 810

Series is printing or performing routine maintenance.

Note:

If the blue status light flashes rapidly, check the Artisan 810 Series for error

messages.

You may see the following icons on the screen:

Icon Meaning

The Artisan 810 Series is connected to a wired network

The Artisan 810 Series is connected to a wireless network

ADF A document is loaded in the automatic document feeder

The current photo is cropped

The Fix Red-Eye setting is on for the current photo or all photos

Reminds you whether View Auto Correct is on or off (see page 26)

Using the Control Panel

Charging USB Devices

You can charge your cell phone, MP3 player, or other portable device by

connecting it to the Artisan 810 Series. All you need is a user-supplied USB cable

that’s designed to work with your device (one may have come with it).

Caution:

Make sure your portable device complies with USB 2.0 standards. Devices that draw

more than 500 mA may damage your Epson product. Epson cannot guarantee the

compatibility of your device. Contact the manufacturer of your device for more

information.

1. Turn on your Artisan 810 Series.

2. Connect your portable device to the USB port on the front of your

Artisan 810 Series.

3. Leave your Artisan 810 Series on while charging (it will continue to charge

even after going into sleep mode).

Note:

You cannot use the USB port to transfer images from your portable device to

your computer. If you want to transfer images, use the memory card slots instead (see

the online Epson Information Center for instructions).

Loading Paper

Your Artisan 810 Series has two paper trays. The main tray is for letter-size, legal-

size, A4, or 8 × 10-inch paper. You can load up to 120 sheets of letter-size or A4

plain paper in the main tray. When extended, the tray can hold up to 50 legal-size

sheets.

The photo tray is for 4 × 6 or 5 × 7-inch photo paper. You can load up to 20

sheets.

1. Pull out the paper cassette. Then slide back the photo tray and lift it up.

2. Squeeze the edge guides and slide them out. Then insert paper with the glossy

or printable side face-down.

Note:

Load letterhead or pre-printed paper face-down, with the top edge at the back of

the paper cassette. To load legal-size paper, squeeze the lever and extend the tray.

For legal-size paper,

squeeze lever to extend tray

Loading Paper

3. Slide the left edge guide against the paper.

4. Adjust the front edge guide to your paper size.

5. Lower the photo tray.

Make sure the paper stack

fits under the edge guide

Loading Paper

6. To load paper in the photo tray, squeeze the edge guides and slide them out.

Then insert photo paper with the glossy or printable side face-down.

7. Slide the left edge guide against the paper. Then adjust the front edge guide to

your paper size.

Note:

Make sure the paper fits under the edge guide.

8. Keep the cassette flat as you insert it.

Loading Paper

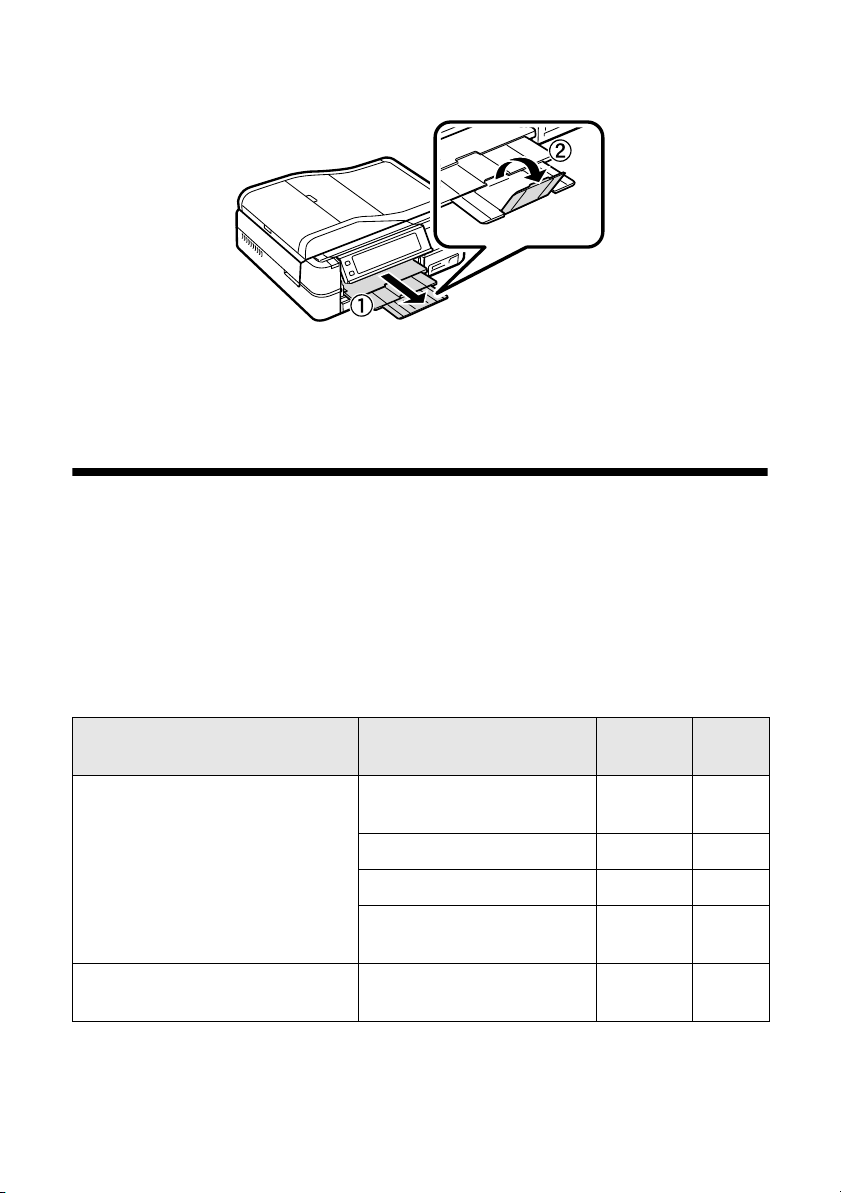

9. Extend the output tray and flip up the stopper.

For details on paper and instructions on loading envelopes and legal-size sheets,

see the online Epson Information Center.

Using Special Papers

Epson offers a wide array of high quality papers, making it easy to maximize the

impact of your photos, presentations, and creative projects.

You can purchase genuine Epson ink and paper at Epson Supplies Central

www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can

also purchase supplies from an Epson authorized reseller. To find the nearest one,

call 800-GO-EPSON (800-463-7766).

Paper name Size

Part

number

Sheet

count

Epson Ultra Premium Photo

Paper Glossy

Borderless 4 × 6 inches S042181

S042174

100

Borderless 5 × 7 inches S041945 20

Borderless 8 × 10 inches S041946 20

Letter (8.5 × 11 inches) S042182

S042175

Epson Ultra Premium Photo

Paper Luster

Letter (8.5 × 11 inches) S041405 50
