EPOX NForce2 Ultra 400 Manual de usuario

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 3.0

November 06, 2003

nVIDIAnVIDIA

nVIDIA nForce2 Ultra 400 (nForce2 SPP)nForce2 Ultra 400 (nForce2 SPP)

nForce2 Ultra 400 (nForce2 SPP)nForce2 Ultra 400 (nForce2 SPP)

nForce2 Ultra 400 (nForce2 SPP)

mainboard for AMD Socket A processormainboard for AMD Socket A processor

mainboard for AMD Socket A processor

User’User’

User’ss

ManualManual

Manual

6000002R3+300

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii

80 Port Frequently Asked Questions (Optional)

Below is a list of some basic POST Codes, possible problems and solutions. For

more detailed information about POST Codes, refer to Appendix E in this manual.

POST CODE Problem Solution

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. Mainboard problem

4. Add-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VGA

BIOS

2. VGA card inserted

incorrectly

1. Replace VGA card

2. Reinsert the VGA

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

Table of Contents

Section 1 Introduction

Package Contents ................................................ 1-1

Overview

AthlonTM Processors ............................................ 1- 2

Chipset Overview ................................................. 1-3

Accelerated Graphics Port .................................. 1-4

Ultra ATA66/100/133 ............................................ 1- 4

LAN (Optional) ..................................................... 1- 4

Hardware Monitoring ........................................... 1- 4

Serial ATA (Optional) ........................................... 1- 4

IEEE 1394 (Optional) ............................................. 1- 5

Mainboard Form-Factor ....................................... 1- 6

I/O Shield Connector .......................................... 1-7

Power-On/Off (Remote) ..................................... 1-7

System Block Diagram........................................ 1-8

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Layout ............................................... 3- 2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings ................................................... 3-5

System Memory Configuration ............................ 3- 6

Expansion Slots .................................................... 3- 8

Device Connectors ............................................... 3-10

STR (Suspend To RAM) Function....................... 3-17

CPU Overheating Protection ................................ 3-18

Page

Section 4 Award BIOS Setup

BIOS Instructions ................................................. 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features ..................................... 4-3

Advanced Chipset Features ................................ 4-7

Integrated Peripherals .......................................... 4-11

Power Management Setup ................................... 4-16

PNP/PCI Configuration Setup .............................. 4-18

PC Health Status .................................................. 4-20

Power BIOS Features ............................................ 4-22

Defaults Menu ..................................................... 4-23

Supervisor/User Password Setting ...................... 4-24

Exit Selecting ........................................................ 4-25

Section 5 Driver Installation

Easy Driver Installation ........................................ 5-1

Realtek Sound Manager Quick User-guide .......... 5-2

Appendix Appendix A

Realtek Media Player User’s Guide ...................... A-1

Appendix B

Update Your System BIOS ................................... B-1

Appendix C

EEPROM BIOS Remover ..................................... C-1

Appendix D

GHOST 7 Quick User’s Guide (Optional) ................. D-1

Appendix E

POST Codes (Optional) ......................................... E-1

Page Left Blank

Introduction

Page 1-1

Section 1

INTRODUCTION

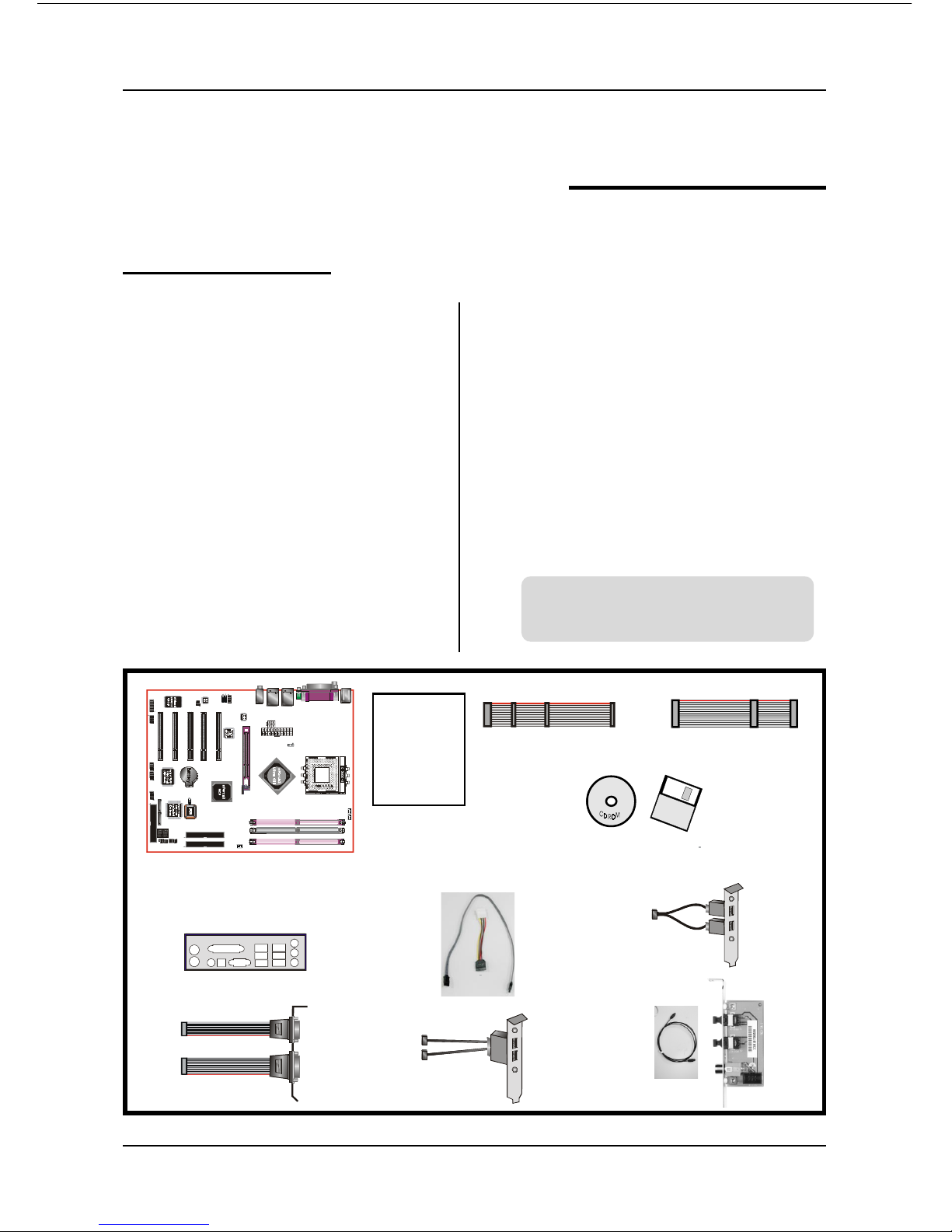

Package Contents

USER’S

MANUAL

Contents

A. Mainboard

B. User’s manual

C. Floppy disk drive cable

D. HDD drive cable or round cable

E. CD or diskette (drivers and

utilities)

F. I/O Shield

Deluxe Pack Items

G. Game & COM bracket cable

H. S-ATA data and power cable

I. IEEE 1394 two ports bracket

Optional Items

J. Extra USB2.0 port cable

K. S/PDIF Module

If you need the optional item, please

contact your dealer for assistance.

Introduction

Page 1-2

AthlonTM Processors

The AMD AthlonTM is a seventh-generation micro architecture with an integrated

L2 cache, which is powerful enough to support the bandwidth requirements of a

large range of applications, hardware, graphics, and memory technologies. These

processors implement advanced design techniques such as:

 Socket A (PGA 462)

266/333/400MHz system interface based on the Alpha™ EV6 bus protocol.

 Three out-of-order, superscalar, pipelined Multimedia Units.

 Three out-of-order, superscaler, pipelined Integer Units.

 Fixed-sized internal instruction formats (MacroOPs).

 72-entry Instruction Control Units.

 AMD enhanced 3DNow!™ technology

 L1 and L2 caches.

 Dynamic branch prediction.

Socket A is the name for AMD’s new socketed interface designed to support AMD

AthlonTM processors. This innovation is made possible by integrating the L2 cache

memory on chip with the processor. Socket A will help enable smaller enclosures,

and ultimately result in a wider variety of solutions in the market.

The AthlonTM processors in the Socket A format continue to deliver the ultimate

performance for cutting-edge applications. Both bring to desktop systems running

industry-standard x86 software superscalar RISC performance. Being provided in

the Socket A format they are the world’s most powerful x86 processors. They easily

deliver the highest integer, floating-point, and 3D multimedia performance for

applications running on x86 platforms around.

It features full-speed, on-chip cache memory, a 266/333/400MHz front side system

bus, and enhanced 3DNow!™ technology. The AMD AthlonTM processor is

targeted at the performance segment, and as such will have more cache memory and

higher clock speeds.

Introduction

Page 1-3

Chipset Overview

This board is designed with nVidia chipset, nForce2TM Ultra 400 (also known as

nForce2TM SPP) as North Bridge and nForce2TM MCP as South Bridge. NVIDIA®

has developed the next generation System Platform Processor (SPP) nForce™ 2, to

provide the highest-performance, fullest-featured system architecture for the AMD

Athlon XP Processor™. The second generation System Platform Processor works

together with the second generation of the NVIDIA Media Communication

Processor, the MCP.

The nForce2 was architected specifically for the AMD AthlonXP Processor.

NVIDIA’s patent-pending DASP (Dynamic Adaptive Speculative Pre-Processor)

technology intelligently predicts and prefetches requests from the AMD Athlon XP

Processor to boost system performance beyond its nominal speed grade.

The nForce2 Ultra 400 delivers twice the bandwidth by implementing the new

NVIDIA DualDDR™ Memory Architecture speed to DDR 400 memories. This

generation System Platform Processor also implements the AGP 8× interface,

HyperTransport Link, and is fully compliant with industry standard power manage-

ment specifications such as ACPI 2.0 and PCI Power Management Interface (PMI)

Spec 1.1.

The NVIDIA®nForce™ MCP Media and Communications Processor (MCP)

provides a highly integrated, high-performance, low-cost PC2001-compliant

peripheral controller that supports NVIDIA processor bridge functionality for

next-generation PCs. No other single-device controller provides all the functionality

of NVIDIA’s MCP.

Introduction

Page 1-4

Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 3.0 specification. This

new specification enhances the functionality of the original AGP specification by

allowing 8X data transfers ( 8 data samples per clock) resulting in maximum band-

width of 2.1GB/s. In addition, it defines 1.5 volt power supply operation. Complying

with this specification, this board supports external AGP-8X/4X cards with Fast

Write Transactions. Only 1.5V AGP cards are supported.

Ultra ATA/66/100/133

The MCP provides two independent ATA133 IDE controllers, supporting standard

programmable input/output (PIO) and Direct Memory Access (DMA) mode

operations, as well as UltraDMA-133/100/66/33 standards for a maximum data

transfer rate of 133MB/sec per channel.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system opera-

tion and status. The features include CPU temperature, voltage and fan speed in

RPMs.

LAN (Optional)

This mainboard is optionally mounted with LAN chipset. It allows the mainboard to

connect to a local area network by means of a network hub.

Serial ATA (Optional)

The evolutionary serial ATA interface replaces the standard parallel ATA physical

storage interface. The serial ATA specification provides scalability and allows

future enhancements to the computing platform. Serial technology overcomes

performance limits of parallel interface architecture, meeting the escalating need for

faster data throughput in servers and storage devices.

Serial ATA is completely software compatible with parallel ATA, requiring no

modification to your operating system. The serial ATA interface cable requires lower

voltages and uses smaller cable connectors, providing ease of installation. You can

easily upgrade storage devices that are compatible with the serial ATA interface

specification.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de EPOX

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario

EPOX nForce2 Ultra 400 Manual de usuario

Manuales populares de Placa madre de otras marcas
