Episode HT Series Manual de usuario

Episode HTSeries

Welcome to the documentation page for Episode HTin-room speakers.

Use the navigation to access our various installation guides.

Pro Tip: -_These docs get updated from time to time based on your feedback. To ensure you have

the latest version, either clear your cache, or open this in a new incognito/privacy tab.

Build 230414

1

Install the HT-IRATM

Box Contents

Your box should contain:

lspeaker

l2 × grilles

l2 × screws

l4 × small feet

l4 × large feet

l2 × mounting pins

lmounting bracket

lmounting pad

llocking bar

Ensure your mounting surface is able to hold three times the weight of the speaker.

2

Attach the grilles

Place the magnetic grilles over the speakers for protection during the install.

3

Select the speaker mode

Flip the switch to designate whether the speaker is aimed at a wall or ceiling ("Reflected," right), or

is aimed at the audience ("Directed," left).

4

Attach the wires

Run the wires beneath the stress relief bar as shown, and connect them to the speaker terminals.

If your wires already have banana clips attached, you can loosen the screws holding the stress

relief bar.

5

For standing installs...

If you are installing this on a flat place like a bookshelf or on top of a floor-standing speaker, attach

the four small adhesive feet. Set the speaker in place, and you're done!

Otherwise, continue.

6

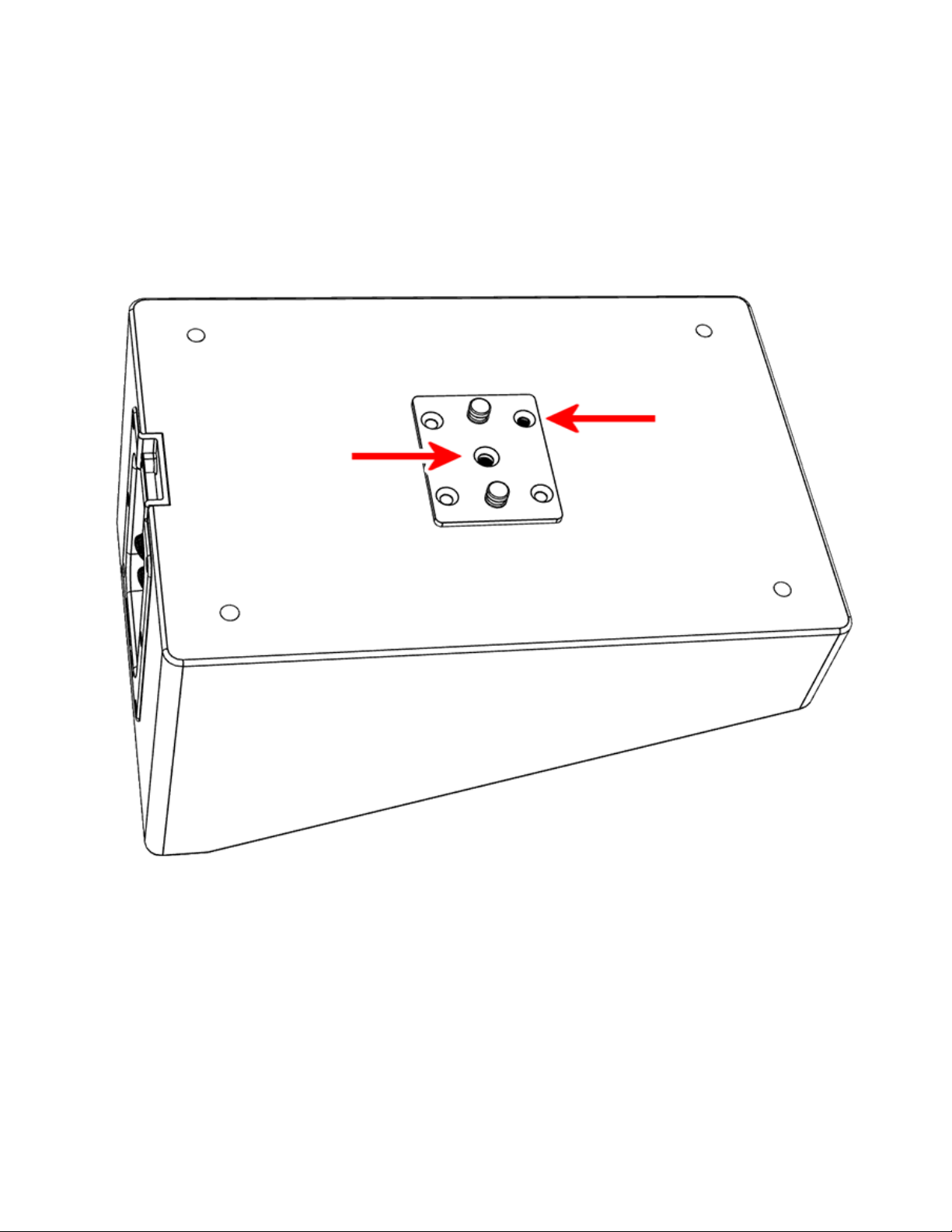

Attach the mounting pins

Insert the mounting pins into the mounting pad.

7

Attach the large feet

Attach the four large feet to the speaker to insulate it from the mounting surface.

8

Secure the pad to the speaker

Use the screws provided to secure the mounting base to the speaker body as shown.

9

Attach the bracket

Attach the bracket to the mounting surface. Note that the keyholes are angled; be sure to use the

guides etched into the bracket for proper centering.

10
