Eonon E20 Manual de usuario

User Manual

Contents

Precautions 01

Product Appearance 02

Wiring Diagram

Accessories

Wired Android Auto Setup Steps 19

Wireless Android Auto Setup Steps 20

Wired CarPlay Setup Steps 22

Wireless CarPlay Setup Steps 23

Setup Steps of Wired Autolink for Android 24

Setup Steps of Wireless Autolink for Android 25

Setup Steps of Wired Autolink for iPhone 26

AirPlay 27

Product Overview 02-06

USB/SD 16-18

Home Screen 09-10

Installation Method 06-08

Bluetooth Phone Call/Music 11-15

Connections 19-27

FM Transmit 28

Settings 29-30

Parameters 31

FAQ 32-33

Precautions

This product is only suitable for vehicles with DC12-24V power system. Do not install it on vehicles whose power supply is not DC12-24V, or it may

damage the product or cause a fire due to overvoltage.

Do not allow this product to come into contact with liquids. Otherwise it may result in product damage.

Please turn off the car and disconnect the positive battery terminal before installation to prevent product damage caused by short circuits.

Please do not use the car audio after the engine is turned off for a long time, or it will drain the battery power.

If this product is exposed to water damage or foreign matter is discovered in the product while you’re driving, please park your vehicle in a safe

place, turn off the ignition switch(ACC OFF) immediately and consult your dealer or Eonon customer service. Do not use this product in this

condition because doing so may result in a fire, electric shock, or other failure.

If smoke, strange noises or unusual odorsoccur during normal use, or any other abnormal signs appear on the LCD screen, please turn off the

power immediately and consult your dealer or Eonon customer service. Do not use this product in this condition because doing so may result in

a fire, electric shock, or other failure.

For interior inspection, adjustment or maintenance, please consult your dealer or Eonon customer service.

Please use this product in accordancewith traffic laws.

Keep this manual handy as a reference for operating procedures and safety information.

We reserve the right of final explanation.

Product Appearance

1 2 3 4

5 9

7 8

1. MIC

2. Volume-

3. Home

4. Volume+

5. Power Supply Input

6. MicroSD Card Slot

7. USB Port

8. Video Input for Backup Camera

9. AUX Output

10. Built-in Speaker

2. Backup Camera Video Input Cable1. Cigarette Lighter Power Cable

3. Backup Camera Control Wire 4. AUX Adapter Cable

Wiring Diagram

E20J取扱説明書

User Manual *1

Suction Cup Holder *1 Cigarette Lighter Power Cable *1 AUX Adapter Cable *1

Backup Camera Video Input Cable *1 Suction Cup Mount Base *1 Sunshade Cover *1

Adhesive Cable Clip *1

Accessories

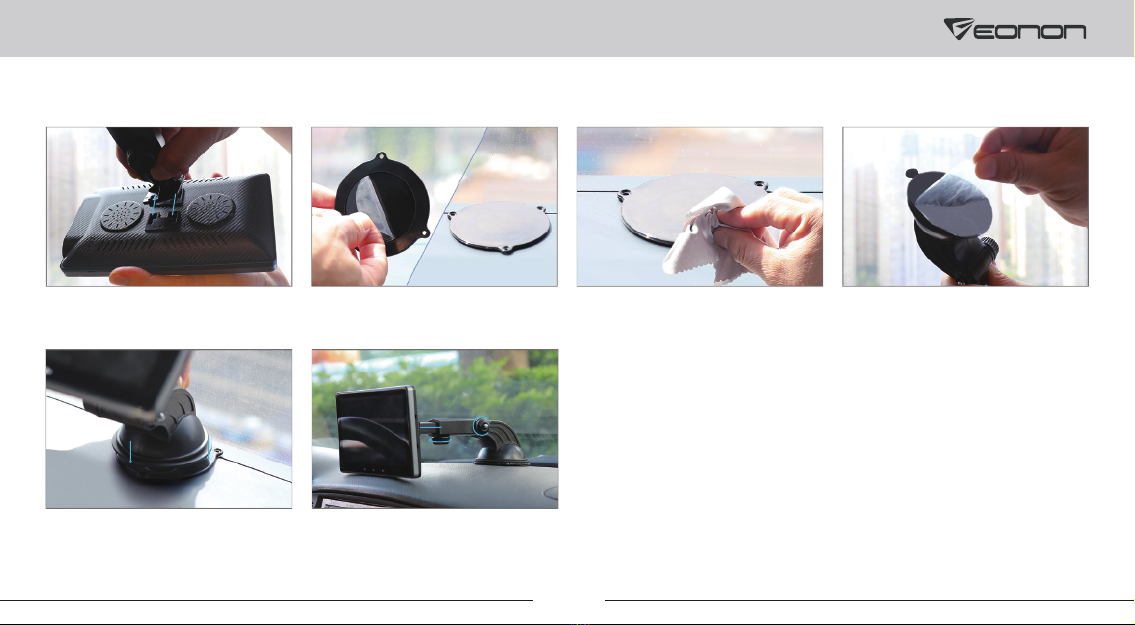

Installation Method

1. Install the suction cup holder. 2. Clean the windshield.3. Remove the protective film from the

suction cup.

4. Push the suction cup against the

windshield, until it sticks to the windshield.

5. Adjust the position of the car stereo if necessary.

To install the unit to the windshield:

4. Remove the protective film from the

suction cup.

5. Push the suction cup against the mount

base, until it sticks to the mount base.

6. Adjust the position of the car stereo if necessary.

2. Stick the suction cup mount base to the

center console.

1. Install the suction cup holder. 3. Clean the suction cup mount base.

To install the unit on the center console:
