ENERGY SISTEM Neo 2 Manual de usuario
1/23 energysistem.com
ENGLISH
Introduction 3 .....................................................................................................................................................................
Care and maintenance 3 ...................................................................................................................................................
Main features 3 ...................................................................................................................................................................
Product content 4 ...............................................................................................................................................................
General overview 5 ............................................................................................................................................................
Charging the battery 6 ......................................................................................................................................................
Switch on and off 6 ............................................................................................................................................................
Main gestures 6 ..................................................................................................................................................................
Basic gestures 6 .............................................................................................................................................................
Main screen 7 ......................................................................................................................................................................
Widgets 8 .............................................................................................................................................................................
SIM card settings 9 ............................................................................................................................................................
Bluetooth setup 10 .............................................................................................................................................................
Wi-Fi settings 11 ................................................................................................................................................................
Internet browser 12 ...........................................................................................................................................................
E-mail settings 13 ...............................................................................................................................................................
Music player 13 ...................................................................................................................................................................
Video Player 14 ...................................................................................................................................................................
Camera 15 ............................................................................................................................................................................
Gallery 16 .............................................................................................................................................................................
MicroSD / USB 18 ................................................................................................................................................................
Updates 20 ..........................................................................................................................................................................
Troubleshooting 21 ............................................................................................................................................................
Safety precautions and SAR 22 ........................................................................................................................................
Safety precautions 22 .....................................................................................................................................................
Exposure information (SAR) 22 .......................................................................................................................................
Warranty 22 .........................................................................................................................................................................
Warranty procedure 22 .....................................................................................................................................................
Trademarks 22 ....................................................................................................................................................................
Declaration of conformity 23 ............................................................................................................................................
2/23 energysistem.com
3/23 energysistem.com
Introduction
Thank you for your trust in us and for buying the new Phone Neo 2. We hope you enjoy it.
Your new phone has a 4.5" IPS FWVGA (854 x 480 pixels) touch display with anti-fingerprint coating, Quad Core ARM
Cortex A53 1.0 GHz processor, Bluetooth 4.0, Wi-Fi, GPS, 4G/3G connectivity, supports microSD up to 128 GB, front
camera, rear camera with flash, powerful Xtreme Sound speaker and two interchangeable rear cases.
Before you start using your smartphone, we recommend you to read this manual and familiarize yourself with it. It will
only take a few minutes and will help you enjoy your device with maximum performance.
Care and maintenance
Do not expose your Phone Neo 2 to impacts, dust, direct sunlight, humidity or high temperatures for long
periods of time.
Do not use neither corrosive nor abrasive cleaning products.
Keep the device clean and free of dust using a soft and dry cloth.
Charge the battery when the display shows the low battery icon.
Please do not dismantle the device. All reparation works should be carried out exclusively by qualified staff of
Energy Sistem Technology, S.A.
Main features
DISPLAY
4/23 energysistem.com
4.5" anti-fingerprint touch screen
IPS FWVGA technology
HD resolution (854 x 480 pixels)
PROCESSOR
Quad Core ARM Cortex A53 1.0 GHz processor
Integrated GPU Mali-T720 MP1
OPERATING SYSTEM
Android#trade# 6.0 Marshmallow
CAMERAS
5 MP rear camera with autofocus and LED flash
2 MP front camera with 83.7º FOV.
MEMORY
1 GB RAM DDR3
8 GB internal memory further expandable via microSD-HC\/XC cards (up to 128 GB)
CONNECTIVITY
4G: 800\/900\/1800\/2600 MHz (FDD-LTE XX \/ VIII \/ III \/ VII BANDS)
3G: 900\/2100 MHz (WCDMA VIII \/ I BANDS)
2G: 850\/900\/1800\/1900 MHz (GSM BANDS)
Bluetooth® 4.0
WI-FI 802.11 b\/g\/n
A-GPS
CONNECTIONS
Dual microSIM
MicroUSB 2.0 connection
Audio Jack 3.5 mm with CTIA standard
BATTERY
Battery capacity: 2000 mAh, Li-Ion battery
Battery life: up to 128 hours on standby and 10 hours conversation time.
Recommended features: AC \/ DC power adapter (Europlug, not included in the product). Input: 100-240 VAC
50-60 Hz. Output: 5 V 1 A
OTHER FEATURES
Integrated 2 W Xtreme Sound Speaker
Notification LED
Motion sensor (accelerometer)
Proximity sensor
Luminosity sensor
Integrated omnidirectional microphone
87.5 to 108 MHz FM radio with presets
SAR rate: 0.716 (W\/Kg) at the head and 1.449 (W\/Kg) at the body (10 mm distance)
Product content
Phone Neo 2.
Two rear cases in different colours.
Quick guide.
5/23 energysistem.com
Screen protector.
USB cable.
Rechargeable lithium battery.
General overview
Rear camera1.
Rear flash2.
Notification LED3.
Proximity and luminosity sensors4.
Earphones output5.
MicroUSB input6.
6/23 energysistem.com
Receiver7.
Front camera8.
Volume button9.
On/Off button10.
Slot to remove rear case11.
Microphone12.
Touch buttons: Recent Apps, Home, Back13.
Xtreme Sound speaker14.
MicroSIM card slot 115.
MicroSD card slot16.
MicroSIM card slot 217.
IMEI and serial numbers18.
Battery19.
Charging the battery
Your Phone Neo 2 has a 2000 mAh battery. The charging time ranges from 2 hours and 30 minutes to 3 hours and 30
minutes, depending on whether the device is on or off. Always charge your phone through the USB cable that comes
with the product to comply with the battery charging times. We recommend to use an AC / DC power adapter (not
included in the product). Input: 100-240 VAC 50-60 Hz. Output: 5 V 1 A.
Switch on and off
Make sure that the microSIM card or both microSIM cards are inserted in their slots and that the battery is correctly
placed (19) before turning on your Phone Neo 2. Press the On/ Off button (10) located on the right side of your device
for one second. Once the operating system has loaded completely, please unlock the device to start using it. Proceed to
enter the PIN number of your microSIM card and then drag the padlock upwards.
To turn off the device, press the On / Off button (10) until you see the power off menu and then, select "Switch off".
Briefly press the On / Off button (10) to lock/unlock the device thus, turning the screen on/off.
Main gestures
Basic gestures
Tap
Touch the screen briefly
Double tap
Touch the screen twice quickly
Drag
Move your finger over the screen while maintaining continuous contact
7/23 energysistem.com
Slide
Slide your finger quickly over the screen
Press
Touch the screen for an extended period of time
Zoom
Zoom in and out the image on screen
Main screen
8/23 energysistem.com
Search: Direct access to Google's™ search engine.1.
Status Bar: Displays information about the signal status, battery and clock. If you slide down your finger over2.
this area twice, you will access the basic settings menu that manages notifications as well as the main settings
menu.
Voice Search: Access to Google's™ voice search and much more.3.
Music: Music player.4.
Play Store™: Download the best and most popular apps for your Android™ system.5.
Internet: Web browser.6.
E-mail: E-mail service.7.
Menu: Access to the application and widget menu.8.
Contacts: Contact management.9.
Phone: Calls and call log.10.
Gallery™: Image display.11.
Camera: Access to the built-in camera.12.
Widgets
9/23 energysistem.com
In order to add a Widget to one of your desktops, tap the centre of the desktop (1) and then, select "WIDGETS" at the
bottom of the screen (2). You can slide your finger to the right (3) to see all your installed Widgets. Select the one you
want to add to your desktop by keeping it pressed and then release it on the desktop.
Widgets can be easily removed or relocated to other screen areas. To relocate a widget, press it and keep it selected for
a few seconds. Once the app has been highlighted, you can move it to another desktop position.
To remove the widget, keep it pressed for a few seconds without releasing it until the X icon appears on top of the
screen. Then, drag the widget to that icon and release it.

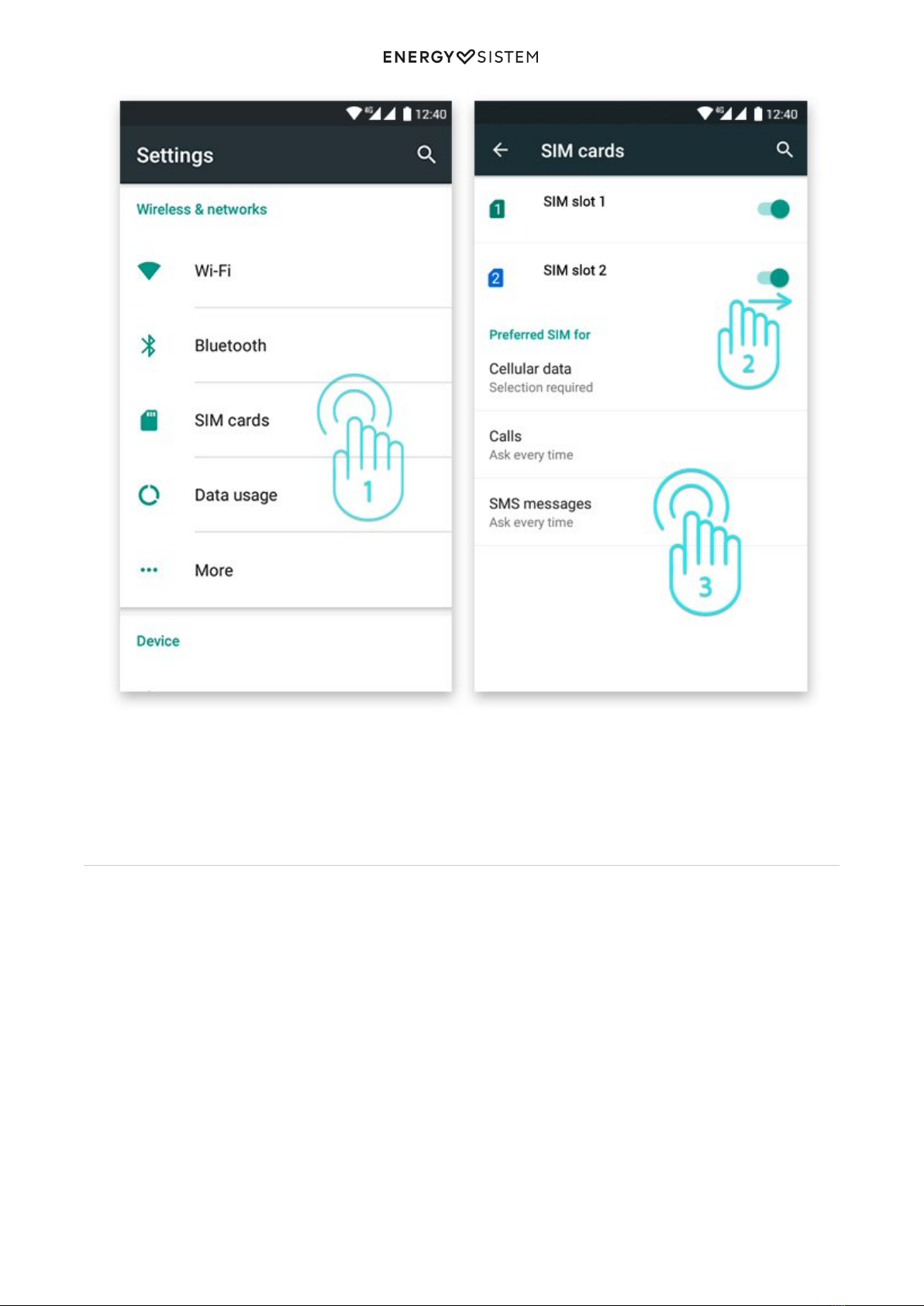

SIM card settings
10/23 energysistem.com
Your Phone Neo 2 allows you to use two microSIM cards. In Settings > SIM Management, you can manage the use of
both cards.
In this section you can set the default card to make or receive calls, send and receive text messages and set the data
connection.
Bluetooth setup
Your Phone Neo 2 has Bluetooth 4.0 to connect your device to headphones, computers, tablets or any device that
supports such communication protocol. You just need to go to Settings > Bluetooth and turn the switch ON. Then, the
device will start a search of all available devices and once it has finished, you will only have to select one of them to
establish the connection.
