INSTALLATION AND OPERATION MANUAL

for

HDC-2080CS

Table of contents

1. Safety Instructions and Notes….......................................................................................................

2. General Descriptions............................................................................……………………………...

3. Supplied Items......................................................................................……………………………...

4. Part names…………………………….…...................................................…………………………...

5. Installation Instructions......................................................................................……………………...

6. Setup Menu ……………............................................................................…………………………...

7. Specifications ………………………………………………..................................................................

8. Dimensional Drawings ……………………………………………............................................................

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure that

may be of sufficient magnitude to constitute a risk of electric shock

to persons.

Warning(NTSC version) -- This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Caution -- Any changes or modifications in construction of this device which are not expressly approved by

the party responsible for compliance could void the user's authority to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user of the model requires

continued operation during power mains interruptions, it is recommended that the model be powered from

an uninterruptible power supply (UPS) or a battery.”

Notice -- The images used in manual are processed to help comprehension and may

differ from actual video of the camera.

WARNING

NEVER USE THIS CAMERA

1. IN AREA WHERE HAS SHOCK OR VIBRATION WHICH RESULTS IN THE

PROBLEM.

Caution

To prevent electric shocks

and risk of fire hazards, do

NOT use other than specific

power source.

WARNING

1. Safety Instructions and Notes

•Please read this safety and operating instructions before putting the camera into

operation.

•Keep the manual in a safe place for later reference.

• Pay attention to safety when laying the connection cable and observe that the cable is not

subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

•Use only a mild detergent to clean the housing.

•The camera should never be operated beyond the technical specifications. This can lead

to destruction.

•The camera should never be operated in the water.

2. General Descriptions

FULL HD WDR HD-SDI CAMERA, 1920 x 1080/30p(25p)

Highly detailed pictures can be achieved and color reproducibility deserves attention.

With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

With 24VAC/12VDC dual power design,

- Offers the flexibility of installation

- Ensures the reliability

With Intelligent Focus Indicator and FOCUS ADJUST menu,

- Offers easy adjustment of Focus

- Eliminates the mistake of the erratic focus adjustment

Main features are;

•Full HD, 1920 x 1080/30p(25p)

•True Wide Dynamic Range

•Improved Noise figure with the enhanced 3D-NR

•Motion Detect, Privacy Mask, Anti-Fog, Sense-up(x8) , BLC/HLC, Digital Zoom

•Pointing Zoom which enables the flexible zooming at any area.

•Smart Motion Zoom in combining with Pointing Zoom.

•Intelligent Focus Indicator on Screen which helps to get the sharpest focus.

•DUAL Filter Switcher – No Focus Shift at Night.

•Day & Night Simulation

•Scale down the image to 720p without loss of field of view

•Top performance at low light sensitivity(Sense-up On)

•LSC(Lens Shade Compensation)

•RS-485(Pelco-D)

•OSD MENU Control

•Easy & Stable Back Focus adjustment.

•CVBS Video output BNC for Easy installation and Maintenance

•Input voltage: 24VAC/12VDC (Dual Power)

•Circuit protection against faulty connection

•Isolated power supply against ground loop problem.

3. Supplied Items

•1x FULL HD Network Camera

•1x Installation and Operating Instructions

•1x Dust protection cap

•1x 3mm Hex L-wrench for Back Focus Adjustment

②

①

③

④

⑤

⑥

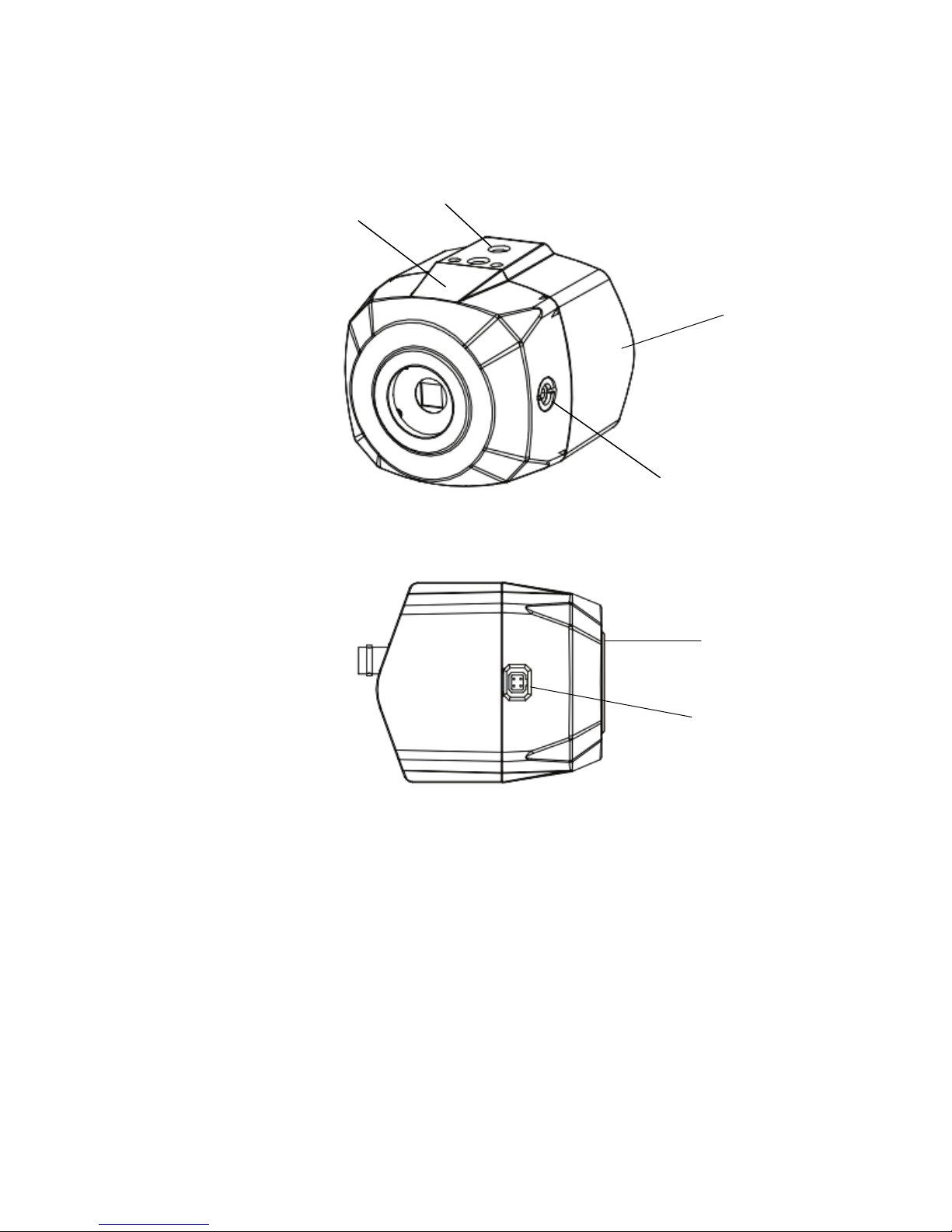

4. Part Names

4.1 Front view

①Front Body

②

Mount Hole (Top and Bottom)

③

Rear Body

④

Back Focus Adjustment

⑤

Lens connector for auto iris lens

⑥

Dust Protection Cap

ⓐ

ⓑ

ⓒ

ⓔ

ⓓ

- Lens Connector for Auto-iris lens (DC Drive)

4.2 Rear side view

5. Installation and commissioning Instructions

•Make sure the power is removed before the installation.

•After all connections are finished properly, follow the order for applying power.

First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC outlets to avoid an

improper reset from power jitter and a damage from the surge voltage when no load.

PIN No

DC Iris

Damp(-)

Damp(+)

Drive(+)

GND

PIN 4 PIN 2

PIN 3 PIN 1

ⓐOSD menu switches (Up/ Down/ Left/ Right / Enter)

ⓑ

Video Output Connector (BNC)

ⓒ

Power Input Terminal

ⓓ

RS-485 / IR Connector

ⓔ

HD-SDI Output Connector

5.1. Attaching the lens

•Remove the Dust Protection cap from the lens mount

•Screw the lens onto the camera firmly.

•Plug the lens plug into the lens connector

5.2. Setting the back focus

The proper back focus adjustment is essential for the motorized zoom lens to get the all time sharp focus

when zooming in and out by the remote control.

For easier and better adjustment, this camera provides FOCUS ADJUST menu which prevents from the

mistake of the focus adjustment.

With enabling FOCUS ADJUST menu, follow the procedure to get the best back focus adjustment.

1. Set the lens for the zoom position to WIDE and the focus position to INFINITE(

∞

)

2. Shoot the object departing from about 10Meters.

3. Adjust

⑤

Back focus Adjustment with 3mm Hex L-wrench until the optimum focus is achieved.

4. Set the lens for zoom position to TELE and adjust the lens focus for best focus.

5. Set the lens for zoom position to WIDE again, check if the focus adjustment was the best.

If not, re-adjust

⑤

Back focus Adjustment slightly.

5.3. Installation

The camera has a 1/4” thread insert on its top and bottom side for mounting the camera to a tripod or the

wall or ceiling with a corresponding mount.

5.4 Commissioning

•Connect power supply to the power terminal on the rear panel of camera firstly

•Plug the power adaptor to the mains supply secondly

•Power indicator LED will be lit

•The camera is ready for operation

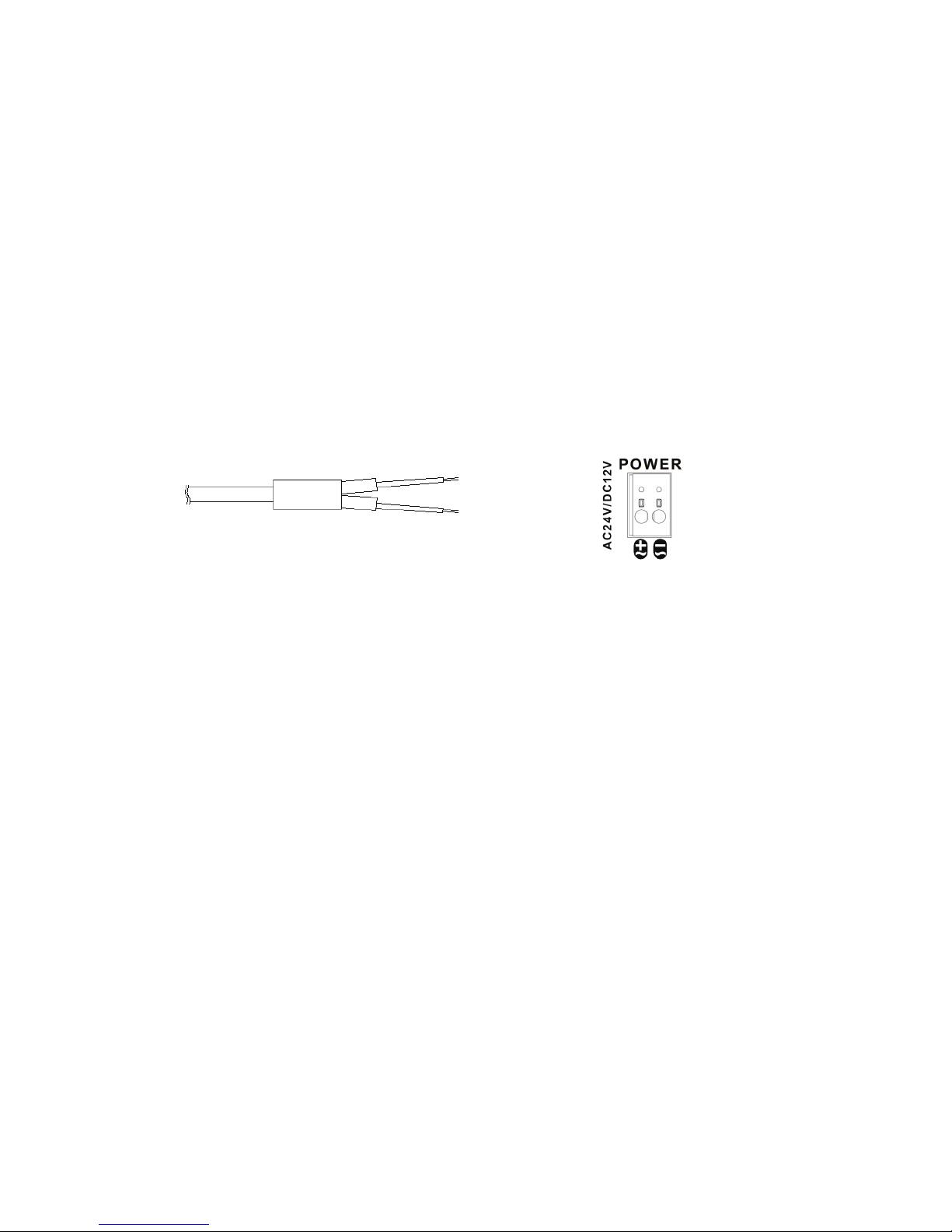

5.5 Power Supply Connections

Camera can work with either 24VAC or 12VDC, dual voltage power. It does NOT require the polarity-

matched connection for 12VDC supply. Primary and secondary grounds are completely isolated to avoid

the possible ground-loop problems. Its excellently wide operating voltage range of 10.5V-30V for DC and

12-28.8V for AC gives an extra flexibility at the installation.

6. Setup Menu

Setup menu can be accessed and controlled by OSD control joy stick at the back of camera.

Five commands are available with the joy stick.

Picture of OSD may differ by the models.

In the menu,

use ▲,▼to move menu, ◀,▶to change the settings and press

☟

to select or enter.

The actual value of FACTORY DEFAULT may differ from this manual due to further technical improvements.

Joy stick

SYMBOL descriptions for joystick operation;

-▲,▼,◀,▶denotes the directions of Joystick

lever operation.

☟

denotes the long press down straightly

for about 1.5 seconds.

D-Zoom Adjustment

(Only works when OSD Menu is not operating &

IP is not connected)

▲D-Zoom In

▼D-Zoom Out
