Installation Manual

Waypole

ENGLISH

Sommario

1. Purpose 3

2. Field of application 3

3. Denitions/Abbreviations 3

4. Equipment 4

5. Material supplied by the manufacturer 5

6. Unpacking 6

7. The Plinth 8

8. Installation 9

8.1. Warnings 9

8.2. Exploded diagram 10

8.3. Preparing the Waypole 11

8.4. Placing the Waypole in position 14

8.5 Wiring the power supply and eah 16

8.6. Concluding steps 19

9. Final steps 20

10. Waypole specications 21

Appendix A 23

Appendix B 24

Appendix C 25

1. Purpose

The purpose of this document is to describe how to install the equipment named “Enel X

Way Waypole™”.

2. Field of application

It is used to document installation activities for such equipment as pa of an Electric Vehicle

Charging System.

CAUTION: The safety of the equipment is only guaranteed if the instructions below

are used correctly. It is therefore necessary to keep them. Only qualied personnel

can carry out installation or any other work on stations in operation, and only in

accordance with the safety requirements in force.

PI INSTALLATION REQUIREMENTS (This document)

RCCB RESIDUAL CURRENT CIRCUIT BREAKER

TMCB THERMAL-MAGNETIC CIRCUIT BREAKER

4. Equipment

Anyone who secures the pole to the ground and connects it electrically to the mains power

must have at least the following tools:

TOOL SIZE USE

Long socket wrench for

hexagon head screws 13 mm Power terminals, 400 Vac + PE

Socket wrench for

hexagon head screws 17 mm Nuts for securing anchors

Hexagon key 3 mm Doors

Hexagon key 4 mm Lexan guard

Hexagon key 5 mm Fastening metal cable clamp

Open-end wrench 22 mm Small cable glands

Open-end wrench 55 mm Large cable glands

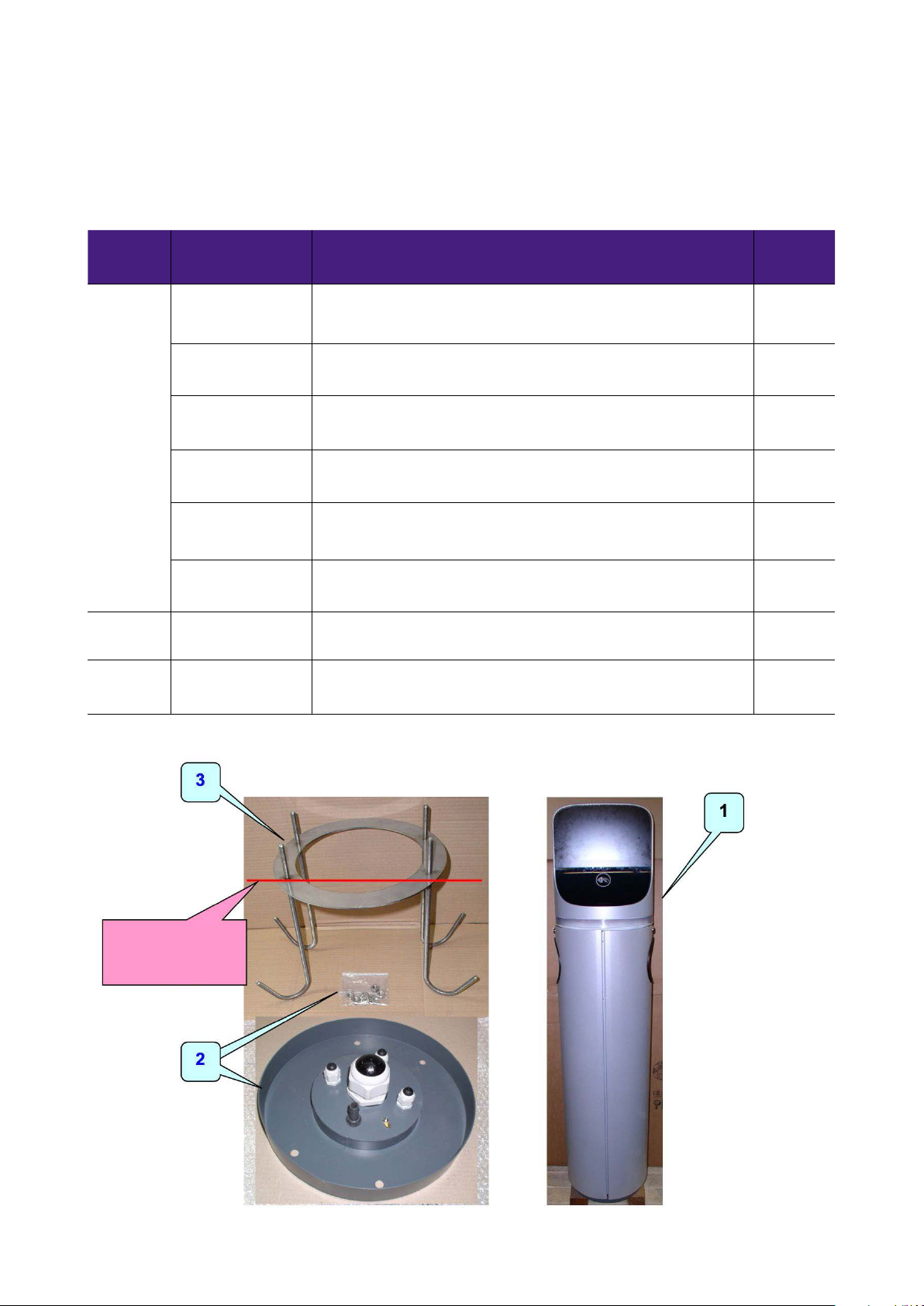

5. Material supplied by the manufacturer

The table below lists the materials that the manufacturer supplies for each Waypole to be

used for installation.

POSITION THE

“LONG SIDE”

AT THE FRONT

REF. CODE DESCRIPTION QT Y.

467015221 P. S. 4G Enel Three-phase Three-phase 1

467015231 P. S. 4G Enel Single-phase Three-phase 1

467015371 P. S. 4G Enel Three-phase Three-phase Siemens 1

467015381 P. S. 4G Enel Single-phase Three-phase Siemens 1

467015391 P. S. 4G Enel Single-phase Single-phase Siemens 1

467015401 P. S. 4G Enel Single-phase Three-phase 1

2161192211 P. S. 4G Cap Unit 1

3161107391 Plate with anchors 1

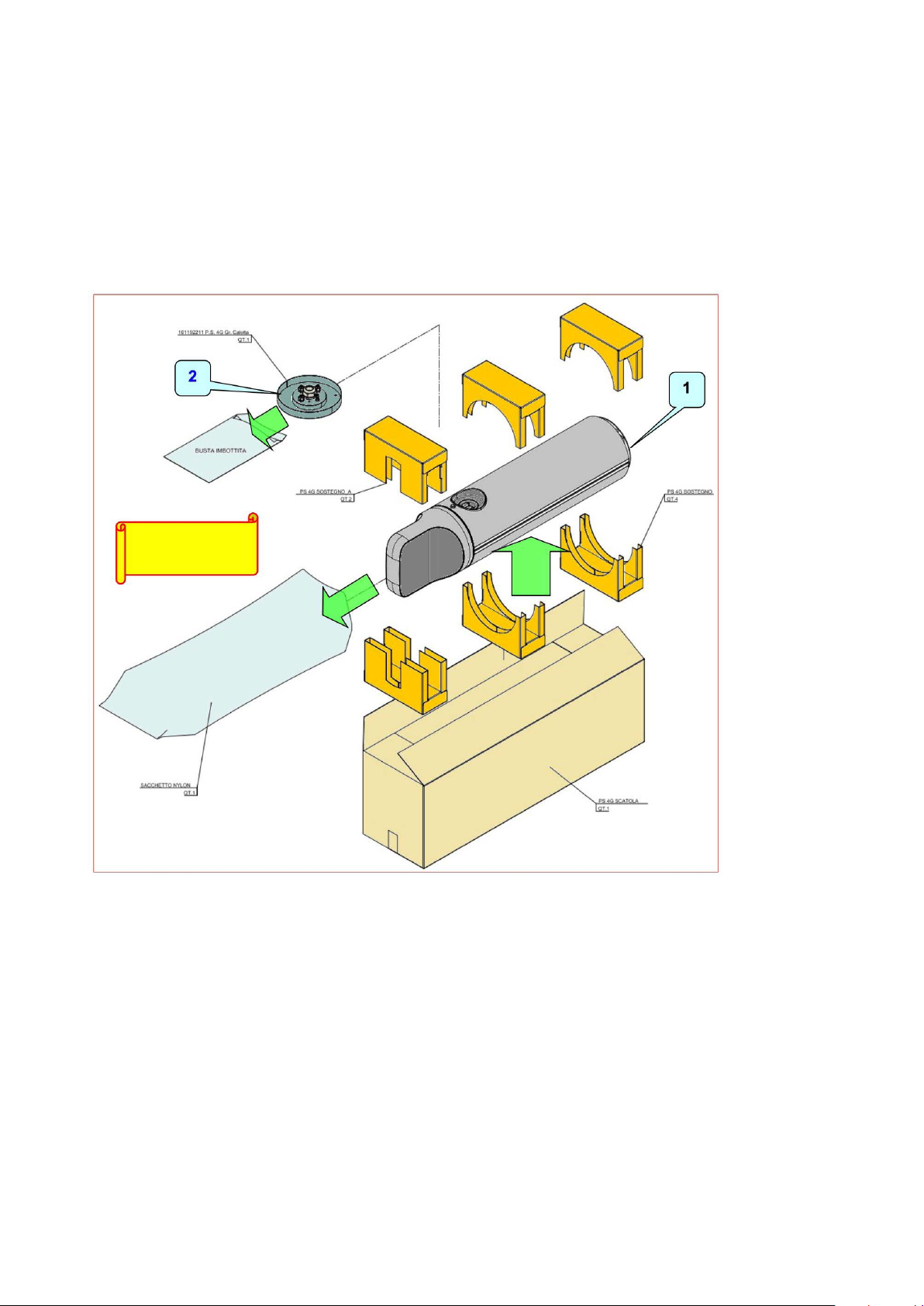

6. Unpacking

Remove the pole from its packaging (cardboard box) by sliding out the cardboard protection

pieces, and then place it veically on the paving, taking care not to damage it.

Also take out the accessory material need to install the pole, and keep it carefully on-site

until it is used.

Main package

EXAMPLE

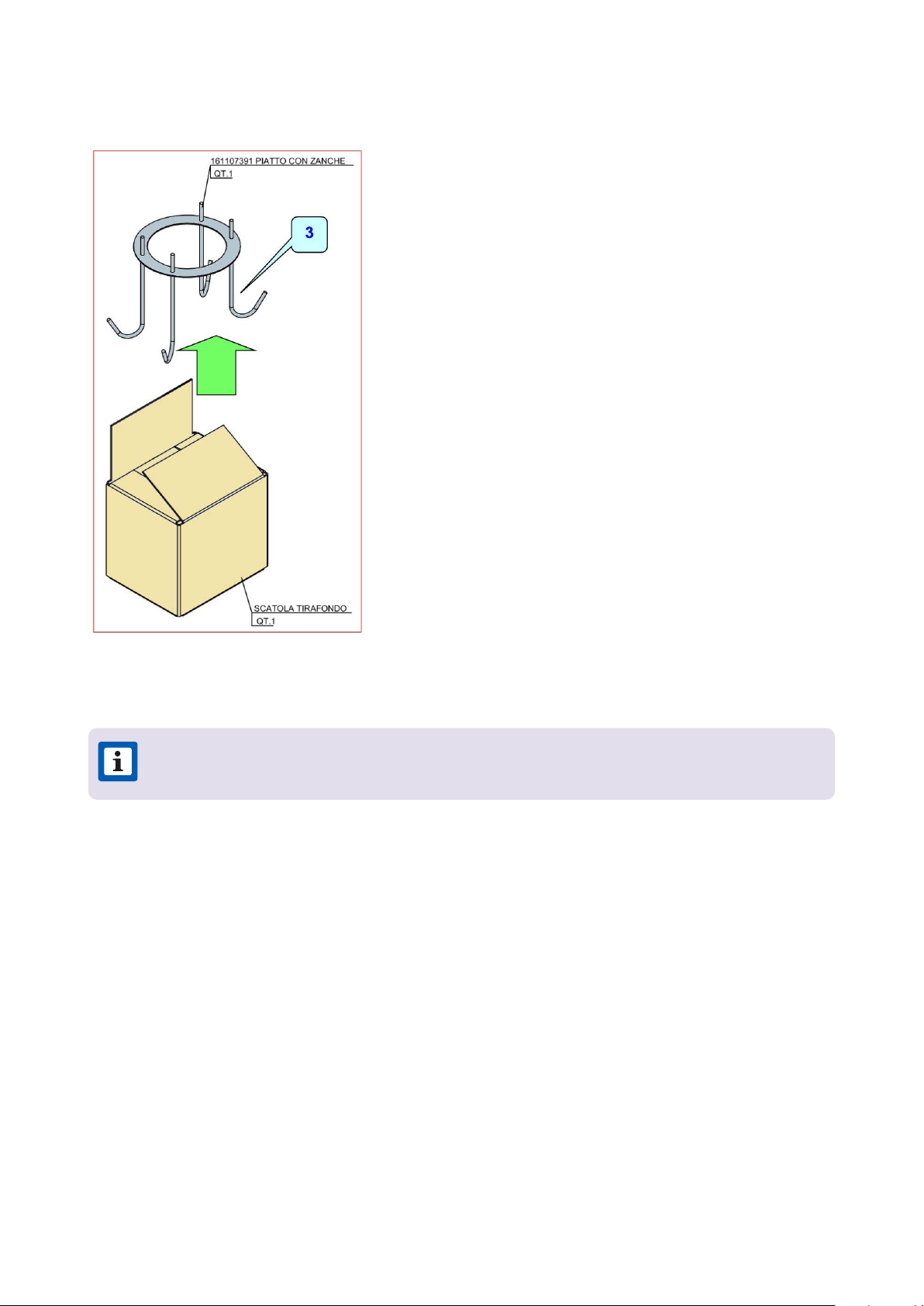

Take the plate with anchors out of the packaging.

The plate with anchors

NOTE: Obviously, this will be done a reasonably long time before unpacking the

Waypole, when the civil works are carried out.

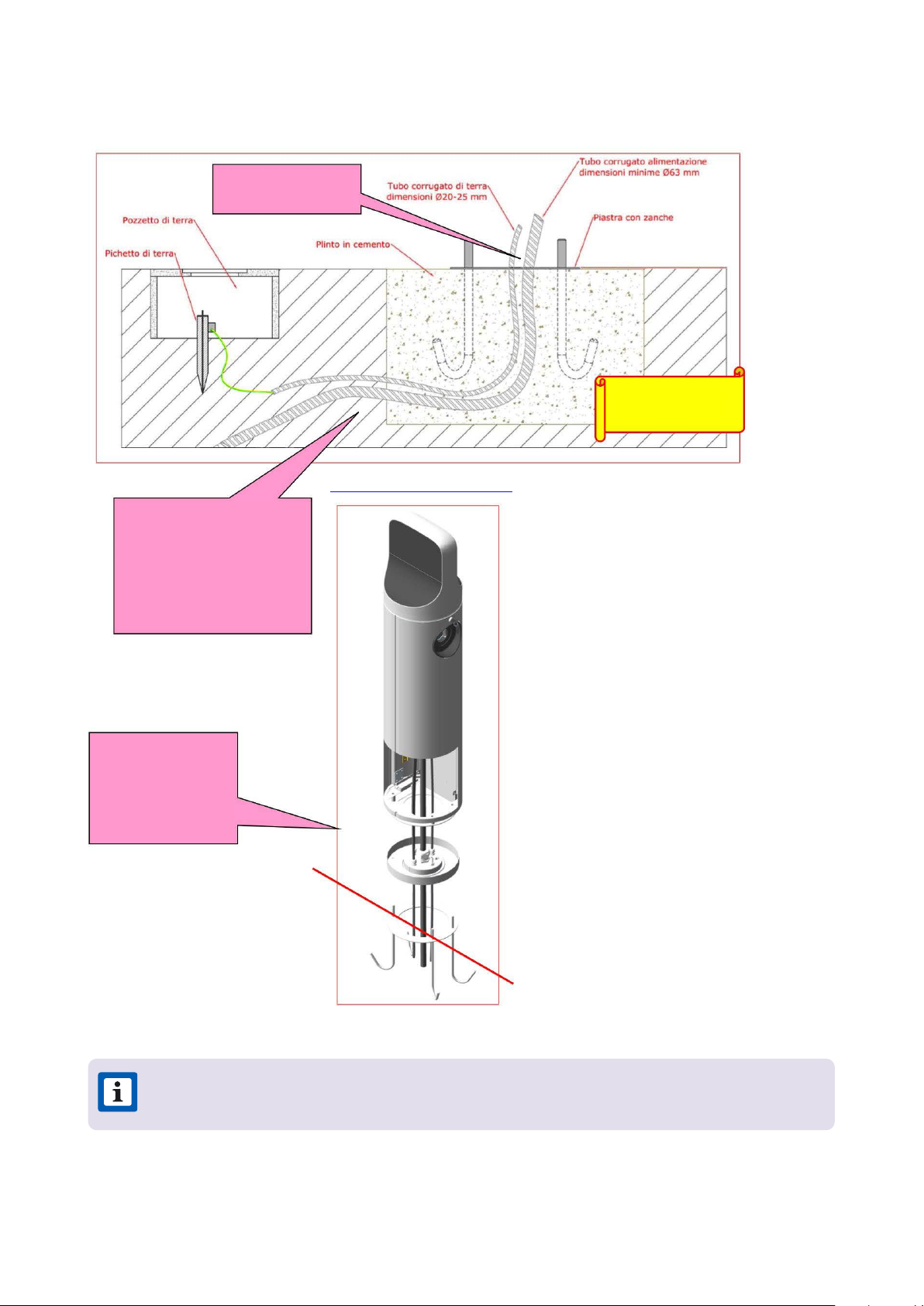

7. The Plinth

EXAMPLE

Cables protruding

at least 100 cm

Position the plinth where

it ensures at least one

metre from walls and

obstacles to the sides of

the pole (sides with the

sockets on them).

Section of the plinth area

Place the pole on

the anchors with

the “long side”

towards the front

NOTE: See also Appendix A.

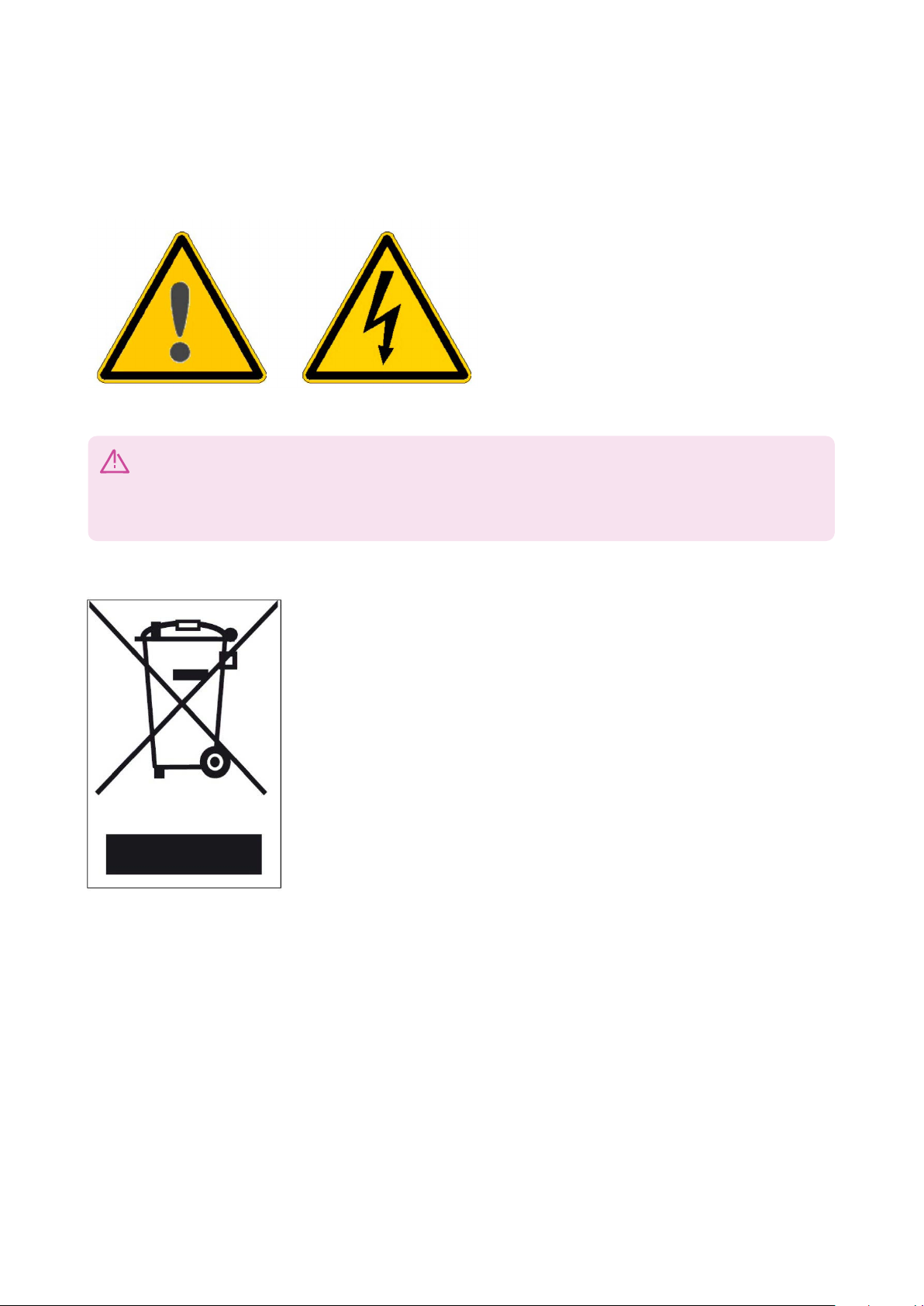

8. Installation

8.1. Warnings

CAUTION: All of the activities described in this manual must be carried out with no

power connected, which must be veried in accordance with the procedures set

out in the regulations in force.

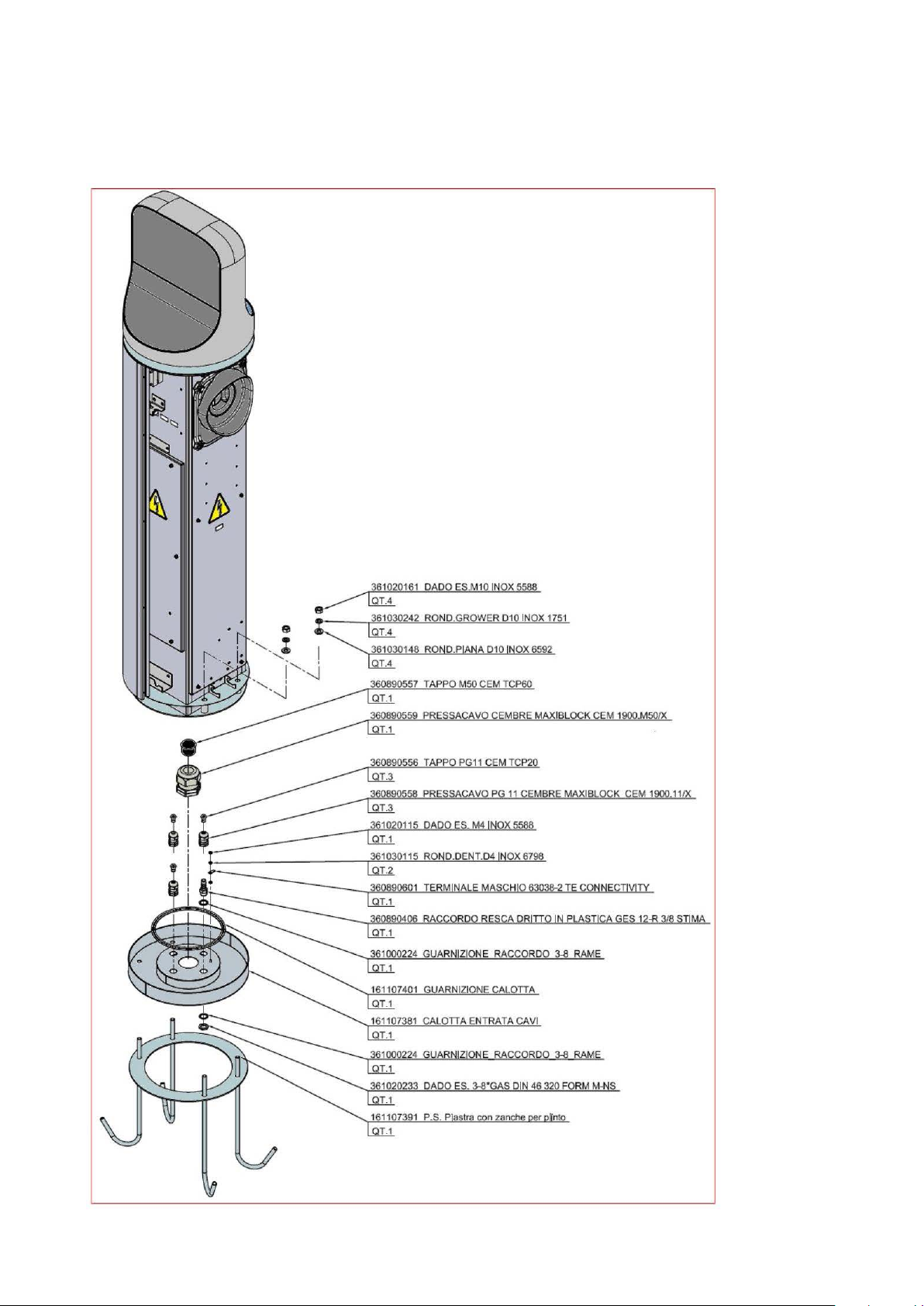

8.2. Exploded diagram

Below there is an exploded diagram of the installation.
