Brief Operating Instructions

Micropilot FMR67B

PROFINET with Ethernet-APL

Free space radar

advanced physical layer

These Brief Operating Instructions are not a substitute for the

Operating Instructions pertaining to the device.

Detailed information is provided in the Operating Instructions

and other documentation.

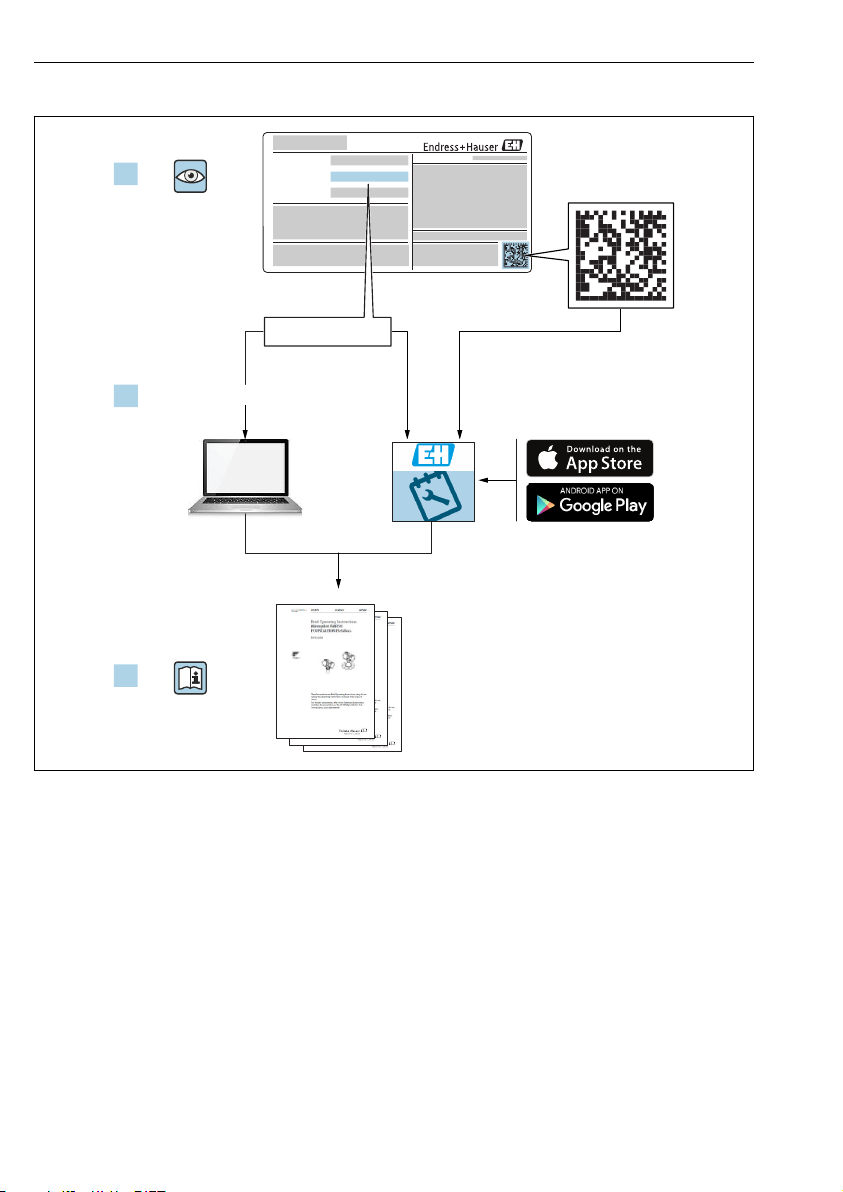

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smartphone/tablet: Endress+Hauser Operations app

KA01615F/00/EN/01.23-00

71610094

2023-04-22

Micropilot FMR67B PROFINET with Ethernet-APL

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Micropilot FMR67B PROFINET with Ethernet-APL Table of contents

Endress+Hauser 3

Table of contents

1 Symbols .......................................................................... 4

1.1 Safety symbols ........................................................................ 4

1.2 Symbols for certain types of information and graphics ........................................... 4

2 Requirements for personnel ...................................................... 5

3 Intended use ...................................................................... 5

4 Workplace safety ................................................................. 6

5 Operational safety ................................................................ 6

6 Product safety .................................................................... 6

7 Incoming acceptance .............................................................. 7

8 Product identification ............................................................. 7

8.1 Nameplate ........................................................................... 7

8.2 Manufacturer address ................................................................... 8

9 Storage and transport ............................................................. 8

9.1 Storage conditions ..................................................................... 8

9.2 Transporting the product to the measuring point ............................................... 8

10 Mounting ......................................................................... 8

10.1 General instructions .................................................................... 8

10.2 Mounting requirements ................................................................. 9

10.3 Mounting the measuring device ...........................................................11

10.4 Post-mounting check .................................................................. 17

11 Electrical connection ............................................................ 18

11.1 Connecting requirements ............................................................... 18

11.2 Connecting the device .................................................................. 20

11.3 Ensuring the degree of protection ......................................................... 26

11.4 Post-connection check ..................................................................26

12 Operation ....................................................................... 27

12.1 Reading off the device locking status ....................................................... 27

12.2 Reading off measured values ............................................................. 27

12.3 Adapting the device to process conditions ................................................... 27

13 Commissioning .................................................................. 27

13.1 Preliminaries ........................................................................ 27

13.2 Function check ....................................................................... 27

13.3 Establishing a connection via FieldCare and DeviceCare ......................................... 28

13.4 Configuring the operating language ....................................................... 29

13.5 Configuring the device ................................................................. 30

Symbols Micropilot FMR67B PROFINET with Ethernet-APL

4 Endress+Hauser

1 Symbols

1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.2 Symbols for certain types of information and graphics

Permitted

Procedures, processes or actions that are permitted

Preferred

Procedures, processes or actions that are preferred

Forbidden

Procedures, processes or actions that are forbidden

Tip

Indicates additional information

Reference to documentation

Reference to graphic

Notice or individual step to be observed

Series of steps

Result of a step

1, 2, 3, ...

Item numbers

A, B, C, ...

Views

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions

Micropilot FMR67B PROFINET with Ethernet-APL Requirements for personnel

Endress+Hauser 5

2 Requirements for personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Personnel must be authorized by the plant owner/operator.

‣Personnel must be familiar with federal/national regulations.

‣Before starting work: personnel must read and understand the instructions in the manual

and supplementary documentation as well as the certificates (depending on the

application).

‣Personnel must follow instructions and comply with general policies.

3 Intended use

Application and media

The measuring device described in these Operating Instructions is intended for continuous,

non-contact level measurement primarily in bulk solids. Because of its operating frequency of

approx. 80 GHz, a maximum radiated peak power of 6.3 mW and an average output power of

63 µW, unrestricted use outside of closed, metallic vessels is also permitted (for example over

heaps). Operation does not pose any danger whatsoever to humans and animals.

If the limit values specified in the "Technical data" and the conditions listed in the instructions

and additional documentation are observed, the measuring device may be used for the

following measurements only:

‣Measured process variables: level, distance, signal strength

‣Calculable process variables: volume or mass in any shape of vessel

To ensure that the measuring device remains in proper condition for the operation time:

‣Use the measuring device only for media against which the process-wetted materials are

adequately resistant.

‣Observe the limit values in the "Technical data".

Incorrect use

The manufacturer is not liable for damage caused by improper or non-intended use.

Avoid mechanical damage:

‣Do not touch or clean device surfaces with pointed or hard objects.

Clarification of borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability.

Residual risks

Due to heat transfer from the process as well as power loss in the electronics, the temperature

of the electronics housing and the assemblies it contains (e.g. display module, main

electronics module and I/O electronics module) may rise to 80 °C (176 °F). When in operation,

the sensor may reach a temperature close to the medium temperature.

Workplace safety Micropilot FMR67B PROFINET with Ethernet-APL

6 Endress+Hauser

Danger of burns from contact with surfaces!

‣For elevated fluid temperatures, ensure protection against contact to prevent burns.

4 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

‣Switch off the supply voltage before connecting the device.

5 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for interference-free operation of the device.

Hazardous area

To eliminate the risk of danger to persons or the facility when the device is used in the

approval-related area (e.g. explosion protection, pressure equipment safety):

‣Check the nameplate to verify if the device ordered can be put to its intended use in the

approval-related area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of this manual.

6 Product safety

This device is designed in accordance with good engineering practice to meet state-of-the-art

safety requirements, has been tested, and left the factory in a condition in which it is safe to

operate.

It meets general safety standards and legal requirements. It also complies with the EC

directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms

this by affixing the CE mark to the device.

Micropilot FMR67B PROFINET with Ethernet-APL Incoming acceptance

Endress+Hauser 7

7 Incoming acceptance

DELIVERY NOTE

1 = 2

A0016870

Check the following during incoming acceptance:

• Is the order code on the delivery note (1) identical to the order code on the product sticker

(2)?

• Are the goods undamaged?

• Do the data on the nameplate correspond to the order specifications and the delivery note?

• Is the documentation provided?

• If required (see nameplate): are the Safety Instructions (XA) provided?

If one of these conditions is not met, please contact the manufacturer's sales office.

8 Product identification

The following options are available for identification of the device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

‣Device Viewer(www.endress.com/deviceviewer); manually enter the serial number from

the nameplate.

 All the information about the measuring device is displayed.

‣Endress+Hauser Operations app; manually enter the serial number indicated on the

nameplate or scan the 2D matrix code on the nameplate.

 All the information about the measuring device is displayed.

8.1 Nameplate

The information that is required by law and is relevant to the device is shown on the

nameplate, e.g.:

• Manufacturer identification

• Order number, extended order code, serial number

• Technical data, degree of protection

Storage and transport Micropilot FMR67B PROFINET with Ethernet-APL

8 Endress+Hauser

• Firmware version, hardware version

• Approval-related information, reference to Safety Instructions (XA)

• DataMatrix code (information about the device)

8.2 Manufacturer address

Endress+Hauser SE+Co. KG

Hauptstraße 1

79689 Maulburg, Germany

Place of manufacture: See nameplate.

9 Storage and transport

9.1 Storage conditions

• Use the original packaging

• Store the device in clean and dry conditions and protect from damage caused by shocks

9.1.1 Storage temperature range

See Technical Information.

9.2 Transporting the product to the measuring point

LWARNING

Incorrect transport!

The housing or sensor can be damaged or pull off. Risk of injury!

‣Transport the device to the measuring point in its original packaging or by the process

connection.

‣Always secure lifting equipment (slings, eyes, etc.) at the process connection and never lift

the device by the electronic housing or sensor. Pay attention to the center of gravity of the

device so that it does not tilt or slip unintentionally.

10 Mounting

10.1 General instructions

LWARNING

Loss of protection rating if the device is opened in a wet environment.

‣Only open the device in a dry environment!

Micropilot FMR67B PROFINET with Ethernet-APL Mounting

Endress+Hauser 9

1. Install the device or turn the housing so that the cable entries do not point upwards.



A0029263

2. Always firmly tighten the housing cover and the cable entries.

3. Counter-tighten the cable entries.

4. A drip loop must be provided when laying the cables.

10.2 Mounting requirements

10.2.1 Internal vessel fittings

A0031814

Mounting Micropilot FMR67B PROFINET with Ethernet-APL

10 Endress+Hauser

Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings,

heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α.

10.2.2 Avoiding interference echoes

A0031817

Metal deflector plates, installed at an angle to scatter the radar signals, help prevent

interference echoes.

10.2.3 Vertical alignment of antenna axis

Align the antenna so that it is perpendicular to the product surface.

The maximum reach of the antenna can be reduced, or additional interference signals

can occur, if the antenna is not installed perpendicular to the product.

10.2.4 Radial alignment of the antenna

Based on the directional characteristic, radial alignment of the antenna is not necessary.

Tabla de contenidos

Otros manuales de Radar de Endress+Hauser

Endress+Hauser

Endress+Hauser Micropilot FMR62B PROFINET with Ethernet-APL Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot S FMR530 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP53 Manual

Endress+Hauser

Endress+Hauser Micropilot FMR66B PROFINET with Ethernet-APL Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR20 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP53 FOUNDATION Fieldbus Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot S FMR540 Especificaciones técnicas

Endress+Hauser

Endress+Hauser FOUNDATION Fieldbus Micropilot FMR53 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR66B Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR63B Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR51 Manual

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR56 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP55 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR60B PROFIBUS PA Manual

Endress+Hauser

Endress+Hauser Micropilot M FMR244 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot M FMR245 Manual de usuario

Endress+Hauser

Endress+Hauser PROFIBUS PA Levelflex FMP50 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Micropilot FMR63B PROFIBUS PA Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR51 Manual de usuario

Endress+Hauser

Endress+Hauser HART Micropilot S FMR533 Especificaciones técnicas

Manuales populares de Radar de otras marcas

SAW D2L

SAW D2L Valentine One Gen2 Manual de usuario

Raymarine

Raymarine Raytheon R20X Manual de usuario

Simrad

Simrad CA34 Manual de usuario

ECHOMAX

ECHOMAX Active-X-Band Manual de usuario

AGD

AGD 340 Manual de usuario

Kustom Signals

Kustom Signals Eagle 3 Manual de usuario

SYMEO

SYMEO STU Manual de usuario

Axis

Axis D2110-VE Manual de usuario

MALA

MALA MIRA Manual de usuario

Emerson

Emerson ROSEMOUNT 5300 Manual de usuario

Rosemount

Rosemount 5300 Series Manual de usuario

TERMA

TERMA SCANTER 5102 Manual de usuario

GSSI

GSSI UtilityScan Manual de usuario

Acconeer

Acconeer A111 Manual de usuario

Crosley

Crosley CR37 Manual de usuario

AGD

AGD 318 Manual de usuario

Cobra

Cobra SLR 650G Manual de usuario

Faselase

Faselase D10 Manual de usuario
