Endres AKKULIFT STANDARD Manual de usuario

Operating Instructions

AKKULIFT®-Bathlift STANDARD

AKKULIFT®-Bathlift FELIX

AKKULIFT®-Bathlift FELIX2/ 2T

AKKULIFT®-Bathlift SOFTLINE

________________________________________________________________________________________

2 of24

Content

AKKULIFT®-Product Description.................................................................................................3

For Your OwnSafety......................................................................................................................4

Important Information...................................................................................................................4

Important SafetyRegulations.......................................................................................................5

Installation and Use........................................................................................................................6

Unpacking....................................................................................................................................6

Instructions for use ofside flap protectors for bathlifts..................................................................6

Insertingthe AKKULIFT®intothe Bathtub....................................................................................7

Operatingthe AKKULIFT®inthe bath...........................................................................................9

ManualControl...........................................................................................................................10

Removingthe lift from the bathtub..............................................................................................11

Maintenance and Care.................................................................................................................13

Maintenance ofthe AKKULIFT®..................................................................................................13

Maintenance ofAKKULIFT®FELIX / FELIX 2/2T........................................................................14

Assemblyofnewcushion plugsfor AKKULIFT®FELIX..............................................................15

Chargingof12-Volt StorageBattery(tobe connected directlytothe charger)...........................17

Supplement...................................................................................................................................18

TechnicalData............................................................................................................................18

Troubleshooting..........................................................................................................................19

Disposal......................................................................................................................................20

Warranty.....................................................................................................................................20

Spare Partsand Accessories for AKKULIFT®.............................................................................21

Explanation ofsymbols...............................................................................................................22

Type Labels................................................................................................................................22

Information about thismanual....................................................................................................22

Index -inAlphabetical Order.......................................................................................................23

Addresses.....................................................................................................................................24

________________________________________________________________________________________

3 of24

Akkulift®Standard

AKKULIFT®-Product Description

Manythanks for decidingfor AKKULIFT®, designed byPeter Endres GmbH & Co. KG.

This sturdy, high-qualityproduct will simplifygettingin and out ofthe bath fromnowon.

AKKULIFT®mainlyconsists ofhigh-quality,recyclable

light-weight plastic. It is therefore easyto transport,

easyto store and simple to use -at home, at the

nursinghome, or on journeys.

The storagebatteryis accommodated in arobust ABS

plastic housing.It can be inserted without anydifficulty

into the compartment in the backrest.

Usingthe manual control, which floats on the water,

comfortable raisingand loweringis possible in the

normal sittingposition. AKKULIFT®can also be

adjusted to variable positions.

The driveis housed in asealed hood, the control

electronics in the sealed manual control. It is therefore

also possible to use AKKULIFT®with the shower

facilityin the bath.

The sturdycollapsible frameenables the chair to be

raised and lowered from8to 42 cm.The liftingrod

effects the raising/loweringmovement ofthe seat top

after pushingthe Up- and Down-buttons.

The backrest and drive, which can be tilted forward, is notched into the seat ofthe chair and

automaticallylocks when it is raised. Therefore, the backrest cannot be tilted unintentionally.

Due to an integrated power control, AKKULIFT®onlylowers ifthere is still sufficient power

available to raise it.

________________________________________________________________________________________

4 of24

For Your OwnSafety

Attention!

Important Information

· AKKULIFT®must not be used as aladder, or as ameans for gettinginto and out ofany

place other than the bath; nor should it be employed as astand, liftingdevice or for any

other similar purpose. It mayonlybe used for bathing persons inside the bath.

· AKKULIFT®must be inaccessible to children and animals.

· Repairs must onlybe undertaken byauthorised specialists or the manufacturer. Further

information, e.g.the circuit diagram,is available fromthe authorised specialists at Peter

Endres GmbH &Co. KG. On non-compliance, anyguarantee claimswill becomeinvalid.

For further information please read the supplement.

· Onlyraise or lower the liftingrod when the backrest is upright and notched in!

· Always remove the storage batterybefore transportingAKKULIFT®.

· If AKKULIFT®has been exposed to lowtemperatures for alonger period of time

(e.g. longer storage in avehicle during the winter), allowit to warm up to room

temperature before use, in order to avoid damages.

· AKKULIFT® must be cleaned directlyafter use (preferablyunder ahot shower) in order to

avoid unforeseen defects and to maintain AKKULIFT®in a perfect, hygienic condition.

· Do not use anydetergents containing acetic acid for cleaning the AKKULIFT®.

· The chargingunit must onlybe used outside the bathroomin adryenvironment. The

chargingunit must onlybe used for chargingthe storagebatterysupplied together with

AKKULIFT®.

· Please read the enclosed instructions for the batterycharger thoroughlybefore use.

· The chargingunit must not be connected to the mains until the storagebatteryhas been

correctlyinserted/connected.

Safe bathing with AKKULIFT®is onlyensured

if the operating instructions are read carefully

and the given information is strictlyobserved.

________________________________________________________________________________________

5 of24

· The batteryhas to be charged before the first use of AKKULIFT® and should be

charged after each use!

· Onlyuse the storage batterysupplied with AKKULIFT®to operate it.

· The contacts ofthe storagebatterymust not comeinto contact with metal parts (danger

ofexplodingor catchingfire).

· Used storagebatteries must be disposed ofin the proper manner. Storagebatteries must

not come into contact with open fire (danger ofexploding!)

· The AKKULIFT®,chargingunit and storagebatteryare ofrobust construction, but should

not be allowed to fall. Should anyvisible or audible damagebe detected, AKKULIFT ®

must no longer be used. In this case please contact your specialist dealer (the address

can be found in the supplement ofthese operatinginstructions).

· Please note:

The suction cups on the underside ofthe AKKULIFT®must be clean and drywhen

placingthe bathliftonto aclean drybath surface. Werecommend that you frequently

clean the suction cups and bathtub to ensure optimumsuction is achieved.

· For further information, technical details and addresses, please read the supplement to

these operatinginstructions.

· In the event ofafailure, please read the supplement to these operatinginstructions and

the "Troubleshooting"chapter. Make sure to observethe information and instructions

given there. For your ownsafetyyou should not use AKKULIFT®in the meantime, until

the fault has been remedied.

Important Safety Regulations

a) Alwayssit in the middle ofthe lift,stretch your legsforward slightlyand place your free

hand either on the edgeofthe bath or on your lap. Usingthe other hand, regulate the

AKKULIFT®movement up or down.

b) Whilst raisingor loweringAKKULIFT®,do not place your hands between the edgeofthe

bathtub and AKKULIFT®or under the seat ofthe chair, as this can cause injuries.

c) Persons with severe physical handicaps or mentallydisturbed persons should never be

left unattended in the bath.

d) Before usingthe bathlift, atest run should be carried out (for raising,loweringand

stopping, and also for checkingthe Emergency-Stop, the red button on the manual).

e) Ifamalfunction has occurred, please do not operate AKKULIFT®,but contact your

distributor and ask himto remedythe problem.

f) Do not take anyobjects into the bathtub when bathing!

These operating instructionsshouldbekeptinasafe place!

________________________________________________________________________________________

6 of24

Installation and Use

Unpacking

Please check the shippingcarton for completeness. The carton should contain the following

parts:

1. Backrest with drive and manual control unit

2. Collapsible frame with base-plate incl. central suction cup (black)

3. Chargingunit

4. Storage battery

5. Operatinginstructions

6. 4 xSuction cup (transparent) for mountingon the underside ofbase-plate

7. 2 xSide flap protector

Please note that the twoside flap protectors are onlysupplied for USE in the UK

market!

If one of these parts should be missing, please inform your dealer.

Unpack the chargingunit first, then unpack the remainingparts. The shippingcarton should

be kept for later use (i.e. transportingand storingAKKULIFT®).

Prior to startingup the device for the first timewerecommend to chargethe storagebattery.

Please observe the information given in section ‘Chargingthe Storage Battery’ on page 17.

Instructions for use of side flap protectors for bathlifts

The side flap protectors must be used on baths fitted with handles!

Note:Failure in using the side flap protectors on integral bath handles, mayresult in

damage to your bathlift, which can not be covered under fair wear and tear.

1. Place hooked end ofside flap protector over bath handle and pull downwards, as shown.

2. The side flap protector acts as a guide rail and prevents the hand support rail from

obstructingthe side flap when raisingthe bathlift.

________________________________________________________________________________________

7 of24

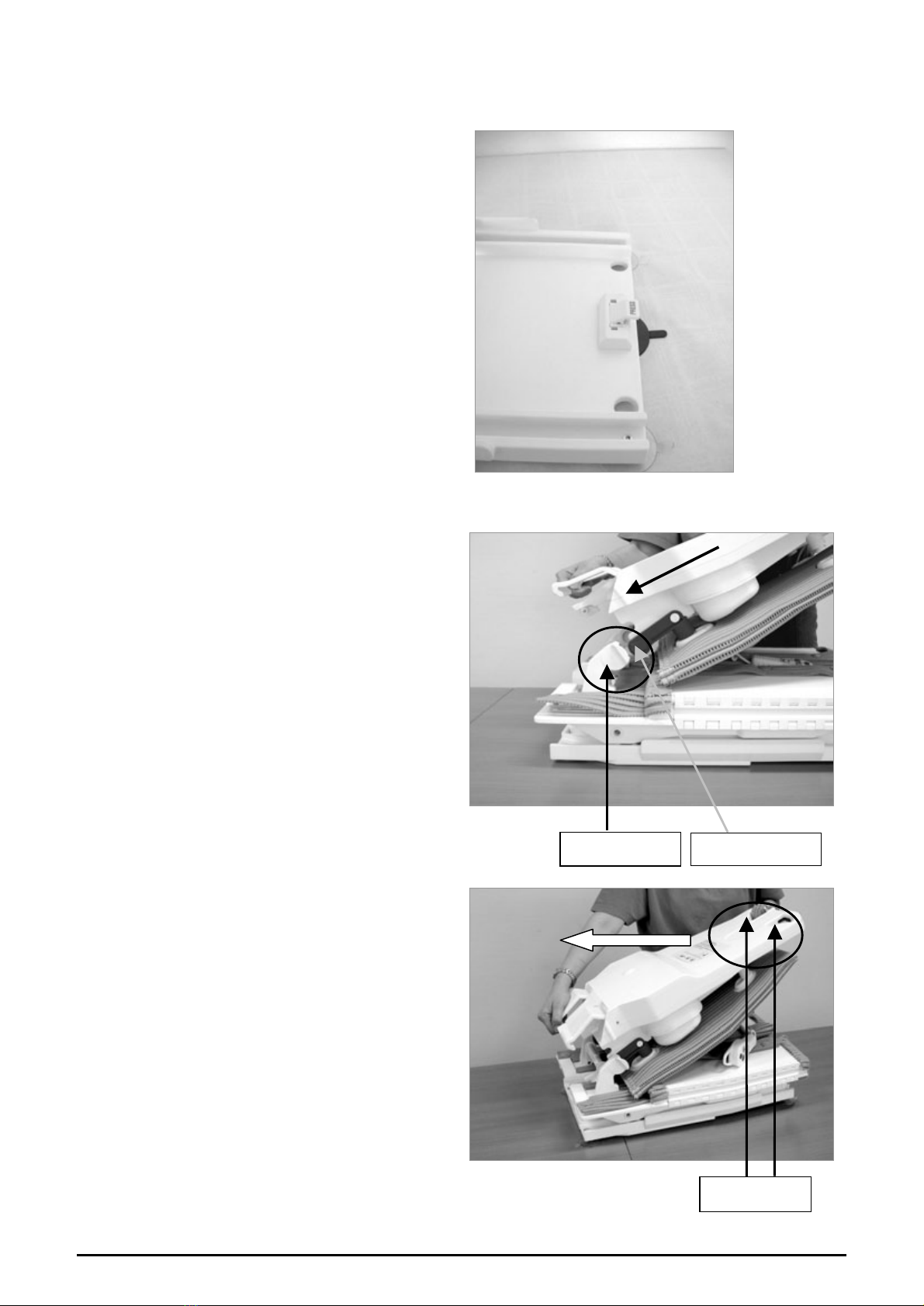

Inserting the AKKULIFT®into the Bathtub

Make sure that the bottomofthe empty

bathtub is clean. Removeanynon-

slip

mats fromthe bathtub.

Insert the seat frameinto the empty

bathtub. The rear suction cups

should be

located at the bevelled edgeofthe

bathtub.

Press downthe suction lever ofthe front

mid suction cup. This automatically

adjusts the mid

suction cup to the bottom

ofthe bathtub and fixes it into position

(see Figure 1).

Place the backrest with cover on the

framein the bathtub. Then insert the

guide pins ofthe backrest into the bearing

blocks ofthe frame, as shown in Figure 2.

Attenti

on:Alwaysmake sure that both

guide pins are inserted in the bearing

blocks!

Take the manual control lever in one hand

and pull it awayfromthe liftuntil the cable

is slightlytensioned.

6. Take the hand grip

with the other hand

and fol

dup the backrest until it reaches

the stop position ofthe base-

plate (see

Figure 3).

Figure 1

Figure 2

Figure 3

Bearing block

Guide pin (red)

Hand grips

________________________________________________________________________________________

8 of24

Make sure that the unlock rampis in its

correct position (see Figure 4+5).

Figure 5

8. Insert the storagebatteryin the batter

compartment (Figure 6).

Note:If the bathtub wall on the side of

the backrest is vertical and, con-

sequently,there is arisk that the backrest

is pushed against it, the lift must be

installed outside the bathtub and must be

driven to its upper positio

nbefore it is

placed into the bathtub again. However, it

maybe possible that the backrest can no

longer be tilted back during the bath,

because the distance between the

backrest and bathtub wall is too close.

Figure 4

Figure 6

Batterycompartment

Battery

________________________________________________________________________________________

9 of24

Operating the AKKULIFT®in the bath

1. Before startingup your AKKULIFT®,make sure

that the batteryis inserted in the battery

compartment and the manual control is correctly

connected (plug-type connection –see figure 7).

Press the ON-button at the manual control. The

green lamp is illuminated.

2. Press the orangekey(“UP”-button). The backrest

is moved into an upright position first; then the lift

moves up to its end position and switches off

automatically.When the button is released, the lift

is stopped, thus makingit possible to moveto

intermediate stop positions.

3. Fold out the side flaps until theyrest on the sides

ofthe bathtub.

4. Help the disabled person to sit downon

AKKULIFT®.

5. Tolower AKKULIFT®,press the blue key(“DOWN”-button

). The liftmoves downuntil it

reaches its end position and switches off automatically.When the button is released,

the lift is stopped, makingit possible to move to intermediate stop positions.

Attention:Release the blue button immediat

elyif the backrest is pushed against the

wall of the bathtub!

In case of an emergency, press the red button on the manual control. Then all

movements come to a halt. To reset you have to press the “ON”-button again!

6. After bathing,press the orange key(“UP”-button

) ofthe manual control in order to move

the liftback to aconvenient height (the max.position is the upper stop position). Make

sure that the slide flaps do not get caught at anybathtub fittings or handles.

7. Help the disabled person to leave the bathtub.

The bathlift switches off automaticallyafter 30 minutes, but ifyou want to switch it

off manuallythen use the red button (LED is then off).

Note:When moving up or down, the disabled person should lean back against the

backrest and put his or her hands on the lap.

If the lift is to remain inside the bathtub, then remove the batteryfrom the

batterycompartment. This will prevent unintended discharging of the storage

battery.

Figure 7

________________________________________________________________________________________

10 of24

Manual Control

The capacityofafullycharged storagebatteryis accordingto the user’s weight maximal 20

baths. Duringthese baths, the green control lamp ofthe manual control is illuminated.

As soon as the charginglevel of the storagebatteryfalls to factory-defined value, the colour

ofthe control lampchanges to yellow,and the lampflashes slowly,which means that there

is onlysufficient power for one more bath. After that, the storagebatteryshould be

recharged accordingto the instructions given under “Chargingthe StorageBattery“on page

17.

Ifthe device is used duringthe yellowphase ofthe control lampofthe storagebattery,the

colour ofthe lampmaychangeto red, and the lampmaystart flashingat fast intervals. This

indicates that the liftwill nowmoveupward to ensure that the handicapped person can leave

the bath safely.Ifthis condition occurs, the storagebatterymust be charged immediately

(see “Chargingthe Storage Battery“ on page 17).

The chargingstatus ofthe storagebatteryis monitored byelectronic control elements. After

one liftingmovement the storagebatteryneeds approx.30 seconds to recover and is

subsequentlychecked bythe control elements. Therefore, at the end ofabath, wait for

approx. 20 seconds and check the colour ofthe manual control lamp.

GREEN Lamp:

YELLOWLamp:

RED Lamp:

Lift is readyfor

operation.

Limited readiness for

operation (sufficient

power for just 1 more

bath).The storage

battery should be

charged now.

The lift is no longer

readyfor operation and

will onlymove upward

for leavingthe bath.

The storage battery

must be charged now.

Figure 8

EmergencyStop-button (red):

Ifthere is anysituation in which it is necessaryto stop all functions ofthe bathlift,

press the red emergencybutton. To reset you have to press the “ON”-button again.

The bathlift switches off automaticallyafter 30 minutes, but ifyou want to switch it

off manuallythen use the red button.

ON-Button

UP-Button

(orange)

DOWN-

Button (blue)

Control lamp

EmergencyStop

(red)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Sistema de elevación de otras marcas

morse

morse 82H-124 Manual de usuario

Braun

Braun NL955 Series Manual de usuario

haacon

haacon 1889.10 Manual de usuario

Protekt

Protekt AT 252 Manual de usuario

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manual de usuario

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manual de usuario

Genie

Genie Z-60/34 Manual de usuario

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manual de usuario

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manual de usuario

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manual de programación

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manual de programación

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manual de programación

BERG

BERG BeNomic EasyLeaf Manual de usuario

Powermate

Powermate LiftGate LG-3 Manual de usuario

Snorkel

Snorkel TM12 Series Manual de usuario

Terberg

Terberg OMNIDEKA Manual de usuario

Harmar Mobility

Harmar Mobility AL625 Instrucciones de funcionamiento

Rotary

Rotary SPO16 Manual de usuario
