Encore ENUTV-DAT Manual de usuario

ENCORE

ENUTV-DAT

User Quick Installation Guide

Chapter 1: Introduction

1.1 Package Contents

Upon receiving your ENUTV-DAT, please make sure the following items are

included in the package.

zENUTV-DAT device

zApplication Driver CD

zQuick Installation Guide

zUSB extended cable

zAntenna

zPAL to NTSC connector

zRemote control

1.2 System Requirements

•Pentium 4 1.2 GHz or equivalent

•Minimum 256 MB memory (512MB DDR RAM recommended)

•Minimum 150 MB free hard disk space for program installation

•One free USB2.0 slot

•Microsoft Windows XP/Vista 32bit/Vista 64bit (Windows XP

Home/Professional with DirectX 9.0c and Windows Media Player 9 or 10

installed)

•CD-ROM/DVD-ROM drive

•For time-shifting and MPEG-2 capturing, a Pentium 4 2.0 GHz processor (or

higher) or equivalent is required.

•To support High definition TV (1080P) with DX-VA (video card hardware

acceleration) disable, a Pentium 4 2.8 GHz processor (or higher) or

equivalent is recommended.

•To support High definition TV, recommended to enable DX-VA (video card

hardware acceleration), graphic minimum requirement is：

◇ATI Radeon 7200 or above

◇nVidia Geforce MX 440 or above

◇Intel 82865 or above

•To Support High definition TV (1018P) and subtitle/DTV CC, recommended

to enable DX-VA (video card hardware acceleration), graphic minimum

requirement is：

◇ATI Radeon 9600 Pro with 128M RAM or above

◇nVidia Geforce FX 5200 with 128M RAM or above

(ATI Radeon X700 with 256M RAM or above, nVidia Geforce FX 6200 with

256M RAM or above recommended)

1.3 Usage of Remote Control

Key Win 2000/XP

Open/Close TV Software

Back button

Select / Enter button

Mute ON / Mute OFF button

0~9 Number Selections 0 to 9

Switch to the next channel

Switch to the previous channel

Volume High

Volume Low

Move Cursor Up button

Move Cursor Down button

Move Cursor Left button

Move Cursor right button

Chapter 2: Getting Started

2.1 Connect the ENUTV-DAT

1. Connect a digital TV antenna cable to

the TV Tuner Antenna port.

2. Connect the TV Tuner USB Stick to

Computer’s USB port.

2.2 Device Driver Installation for

Windows XP

3. Once you connect the TV box, just

follow the messages to finish the driver

installation.

2.2 Device Driver & Software Installation for Windows XP

To install the ENUTV-DAT to your computer, follow these steps:

1. When ENUTV-DAT is inserted to the

USB port the first time, a “Found New

Hardware” message will appear near

the computer’s clock. This is a sign

that Windows detected the TV Tuner.

Ignore this message.

2. Wait a few seconds and a new

Windows dialogue box will

automatically appear on your monitor

screen. Select “No, not this time”

then click “NEXT”

3. Choose “Install from a list or specific

location (Advanced)”. Click “Next”

button.

4. Check the “Include this location in the

search” and type-in “[CDROM Drive

letter:\Drv\32bit\”, Where: CDROM

Drive letter is the letter assign for

your CDROM drive, this can be any

letter, usually D: or E: Click “Next” to

install the device driver.

5. Click “Continue Anyway” button

6. Click “Finish” to end and finish the

installation of your new hardware

2.3 Install the TotalMedia™ software.

1. Double click “Setup.exe” from installation

CD.

2. Click “Setup Utility” to begin the software

installation.

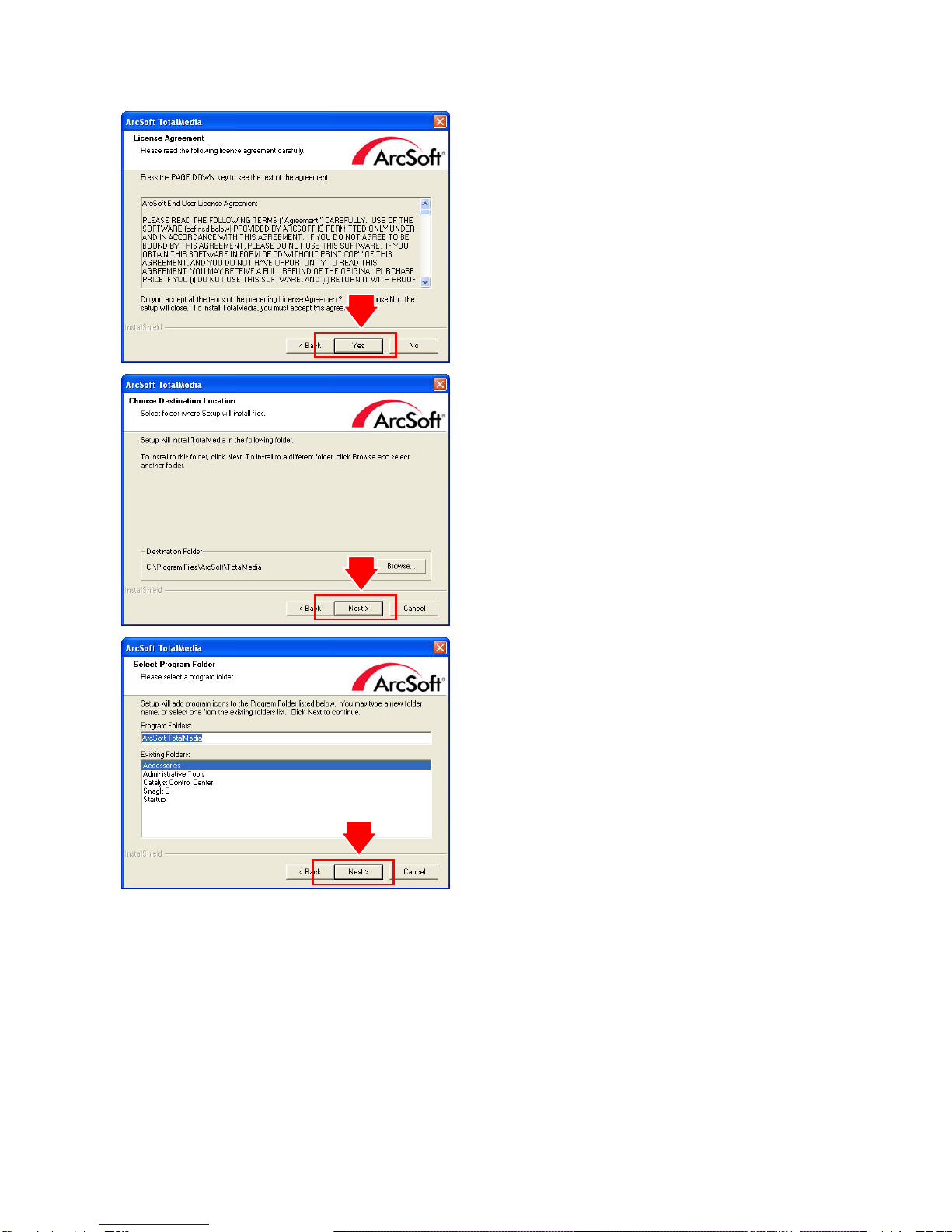

3. Click “Yes” button to continue.

4. Click “Next” button or choose setup folder

for installation.

5. Click “Next” button.

6. Click “Finish” button to exit.

7. Use remote control or mouse to select TV

function.

8. Click “Next” button to continue.
