Encore ENPWI-SG Manual de usuario

Wireless 802.11 Super-G PCMCIA Adapter

ENPWI-SG

Product Description

The Super-G PCMCIA Wireless Adapter is capable of transferring file at 108Mbps. That’s

2x faster than normal 802.11g. Supports WPA and WEP for your protection and is

backwards compatible with 802.11b and 802.11g devices. Installation is quick and easy

using the included software. Perfect for increasing wireless speed and performance on

your laptop.

Product Features

•　Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds

of 54Mbps data ratestandards

•　Dynamic date rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g

•　Dynamic date rate scaling at 11, 5.5, 2 and 1Mbps for 802.11b

•　Supports Super GTM technology data rate up to 108Mbps

•　Maximum reliability, throughput and connectivity with automatic data rate s witching

•　Supports wireless data encryption with 64/128-bit WEP standard for security

•　Supports WPA-PSKu Integrated microstrip dual diversity antenna for the multi-path

environment

•　Drivers support Windows 98(SE), 2000, ME and XP

•　Simple user setup & diagnostics utilities

•　Type approval compliant with FCC Part 15.247 for US, ETS 300 328 for Europe

Encore Electronics 2006

www.encore-usa.com

ENPWI-SG

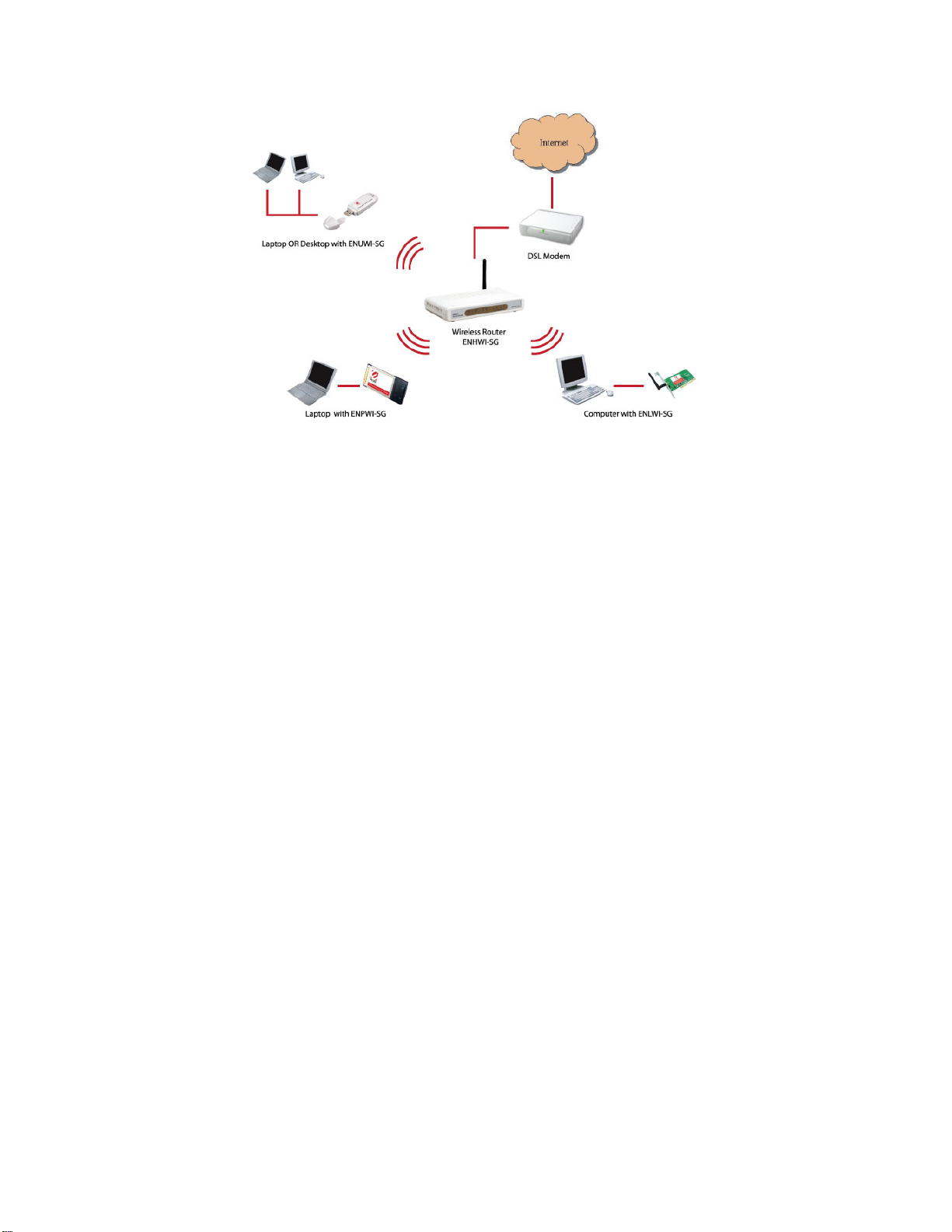

Figure 1 Usage Diagram

Specifications

Radio Technology

IEEE 802.11g Orthogonal Frequency Division

Multiplexing (OFDM) IEEE 802.11b Direct

Sequence Spread Spectrum (DSSS)

Interface

CardBus Type II specification 32bit data bus

Transmission Rate 1, 2, 5.5, 6, 11, 12, 18, 24, 36,

48, 54Mbps (auto sense) 108Mbps for Super G™

Technology

Receiver Sensitivity

54Mbps: Typical - 75dBm @ 10% PER 11Mbps:

Typical - 85dBm @ 8% PER Wireless LAN

Frequency Range 2412 ~ 2484 MHz ISM band

(channels 1 ~ 14)

Modulation Schemes

DBPSK/DQPSK/CCK/OFDM

Media Access Protocol

CSMA/CA with ACK

Transmit Power

Minimum 17dBm typically @ 802.11b

Minimum 14dBm typically @ 802.11g

Channel

USA: 11

Europe: 13

Japan: 14

Driver Support

Windows 98(SE)

Windows 2000

Windows ME

Windows XP

Security

64/128-bits WEP Encryption/Decryption

WPA-PSK (Wi-Fi Protected Access Pre-Shared

Key) WPA

Range Coverage

Indoor: 35 ~ 100 meters (depends on

environment) Outdoor: 100 ~ 300 meters

(depends on environment)

Roaming

Full mobility and seamless roaming from cell to

cell

Antenna

Integrated Microstrip dual diversity antennas

Continuous Current Consumption

250mA typ. for receive mode

350mA typ. for transmit mode

Diagnostic LEDs

Power & Link status

Dimensions (W x H x D) 118 x

54 x 7 mm (W x H x D)

Operation Temperature

0 ~ 40 oC

Storage Temperature

-10 ~ 70 oC

Humidity

10% ~ 95% RH, no condensation

Certifications

FCC Part 15.247 for US ETS 300 328 for Europe

Encore Electronics 2006

www.encore-usa.com

ENPWI-SG
