EMX Ultra II D-TEK Manual de usuario
APOLLO
EMX Ultra II D-TEK Plug In Style
Vehicle Loop Detector
*AS A SAFETY DEVICE*

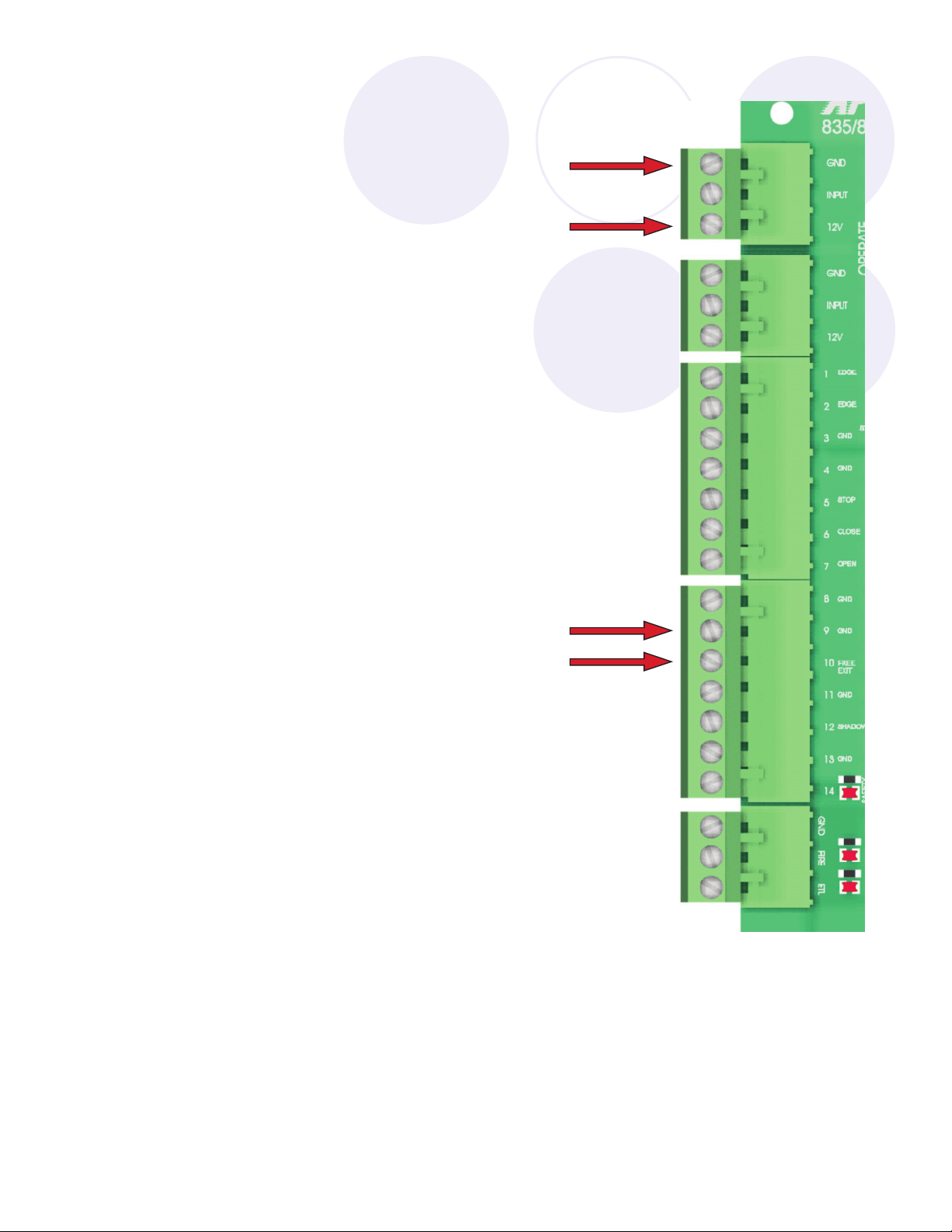

1. Connect Terminal 3 on loop detector to 12V on one of the
3 pin terminal strips.
2. Connect Terminal 4 on loop detector to Terminal GND on
one of the 3 pin terminal strips.
3. Connect Terminal 5 on loop detector to Terminal 13 GND.
4. Connect Terminal 6 on loop detector to Terminal 14
SAFETY.
GND
INP
12V
GND
INP
12V
EDGE
EDGE
GND
GND
STOP
CLOSE
OPEN
GND
GND
FREE EXIT
GND
SHADOW
GND
SAFETY
GND
FIRE
UL
1.
2.
3.
4.
APOLLO
EMX Ultra II D-TEK Plug In Style
Vehicle Loop Detector
*AS AN OPENING DEVICE*
1. Connect Terminal 3 on loop detector to 12V on one of the
3 pin terminal strips.
2. Connect Terminal 4 on loop detector to Terminal GND on
one of the 3 pin terminal strips.
3. Connect Terminal 5 on loop detector to Terminal 9 GND.
4. Connect Terminal 6 on loop detector to Terminal 10 FREE
EXIT.
GND
INP
12V
GND
INP
12V
EDGE
EDGE
GND
GND
STOP
CLOSE
OPEN
GND
GND
FREE EXIT
GND
SHADOW
GND
SAFETY
GND
FIRE
UL
1.
2.
4.
3.
