Emerson CORSAIR 44" Manual de usuario

Part No. F40BP73860000 Form No. BP7386

Model No.: CF3400

READ AND SAVE THESE INSTRUCTIONS

Net Weight: Lbs.

CORSAIR™

44” or 52” Ceiling Fan

Owner's Manual

CF3400AP

Antique Pewter

CF3400ORH

Oil Rubbed Bronze

with Highlights

Model Numbers

24” - 21.4

36” - 22.9

48” - 24.5

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 1

WARNING: To avoid fire, shock, and serious personal injury, follow these

instructions.

Safety Instructions

1. Read your owner’s manual carefully and keep it for future reference.

2. Before servicing or cleaning unit, switch power off at service panel and lock service

panel disconnecting means to prevent power from being switched on accidentally.

When the service disconnecting means cannot be locked, securely fasten a

warning device, such as a tag, to the service panel.

3. Be careful of the fan and blades when cleaning, painting, or working near the fan.

Always turn off the power to the ceiling fan before servicing.

4. Do not put anything into the fan blades while they are turning.

5. Do not operate reversing switch until fan blades have come to a complete stop.

Additional Safety Instructions for Installation

1. To avoid possible shock, be sure electricity is turned off at the fuse box before

wiring, and do not operate fan without blades.

2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA

70-2008 and Local Codes. Use the National Electrical Code if Local Codes do not

exist. The ceiling fan must be grounded as a precaution against possible electrical

shock. Electrical installation should be made or approved by a licensed electrician.

3. The outlet box and joist must be securely mounted and capable of reliably

supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for

Fan Support”, and use the mounting screws provided with the outlet box. Most

outlet boxes commonly used for support of light fixtures are not

acceptable for fan support and may need to be replaced. Consult a qualified

electrician if in doubt.

4. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent

accidental contact with the fan blades.

5. Follow the recommended instructions for the proper method of wiring your ceiling

fan. If you do not know enough about electrical wiring, have your fan installed by a

licensed electrician.

NOTE: This fan is suitable for use with solid-state speed controls.

WARNING: To reduce the risk of fire or electric shock, this fan should only be used

with fan speed control UC9020 (SW46), manufactured by Rhine Electric Co, Ltd.

WARNING: This product is designed to use only those parts supplied with this

product and/or any accessories designated specifically for use with this product by

Emerson Electric Co. Substitution of parts or accessories not designated for use with

this product by Emerson Electric Co. could result in personal injury or

property damage.

WARNING: To reduce the risk of personal injury, do not bend the blade flange when

installing the blade flanges, balancing the blades or cleaning the fan. Do not insert

foreign objects in between rotating fan blades.

!WARNING

DATE CODE:

The date code of this fan may be found on the box, stamped in ink on a white label.

You should record this data above and keep it in a safe place for future use.

2Model No.: CF3400

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 2

This Manual is Designed to Make it as Easy as Possible for You to

Assemble, Install, Operate and Maintain Your Ceiling Fan

Do not install or use fan if any part is

damaged or missing. Call Toll-Free:

1-800-654-3545

!WARNING

This product is designed to use only

those parts supplied with this product

and/or any accessories designated

specifically for use with this product by

Emerson Electric Co. Substitution of

parts or accessories not designated for

use with this product by Emerson Electric

Co. could result in personal injury or

property damage.

!WARNING

Tools Needed for Assembly

One Phillips head screwdriver

One wire stripper

One stepladder

Materials

Wiring, outlet box and box connectors

must be of type required by the local code.

The minimum wire shall be a 3-conductor

(2-wire with ground) of the following sizes:

Installed Wire Length Wire Size A.W.G.

Up to 50 ft. 14

50-100 ft. 12

Before assembling your ceiling fan, refer

to section on proper method of wiring

your fan (Page 5). If you feel you do not

have enough wiring knowledge or

experience, have your fan installed by a

licensed electrician.

!WARNING

Unpacking Instructions

For your convenience, check-off boxes are provided next to each step. As each

step is completed, place a check mark in the box. This will insure that all steps

have been completed and will be helpful in finding your place should you be

interrupted.

A. Ceiling Fan Assembly

B. One Ceiling Cover

C. One Medallion Set (2 pieces)

D. One Hanger Bracket

E. One SW46 Wall Control

F. One Loose Parts Bag Containing:

1. Seven #10-32 x .75” Oval

Head Screws

2. Four #8-32 x .25 Flat

Head Screws

3. Four Wire Connectors

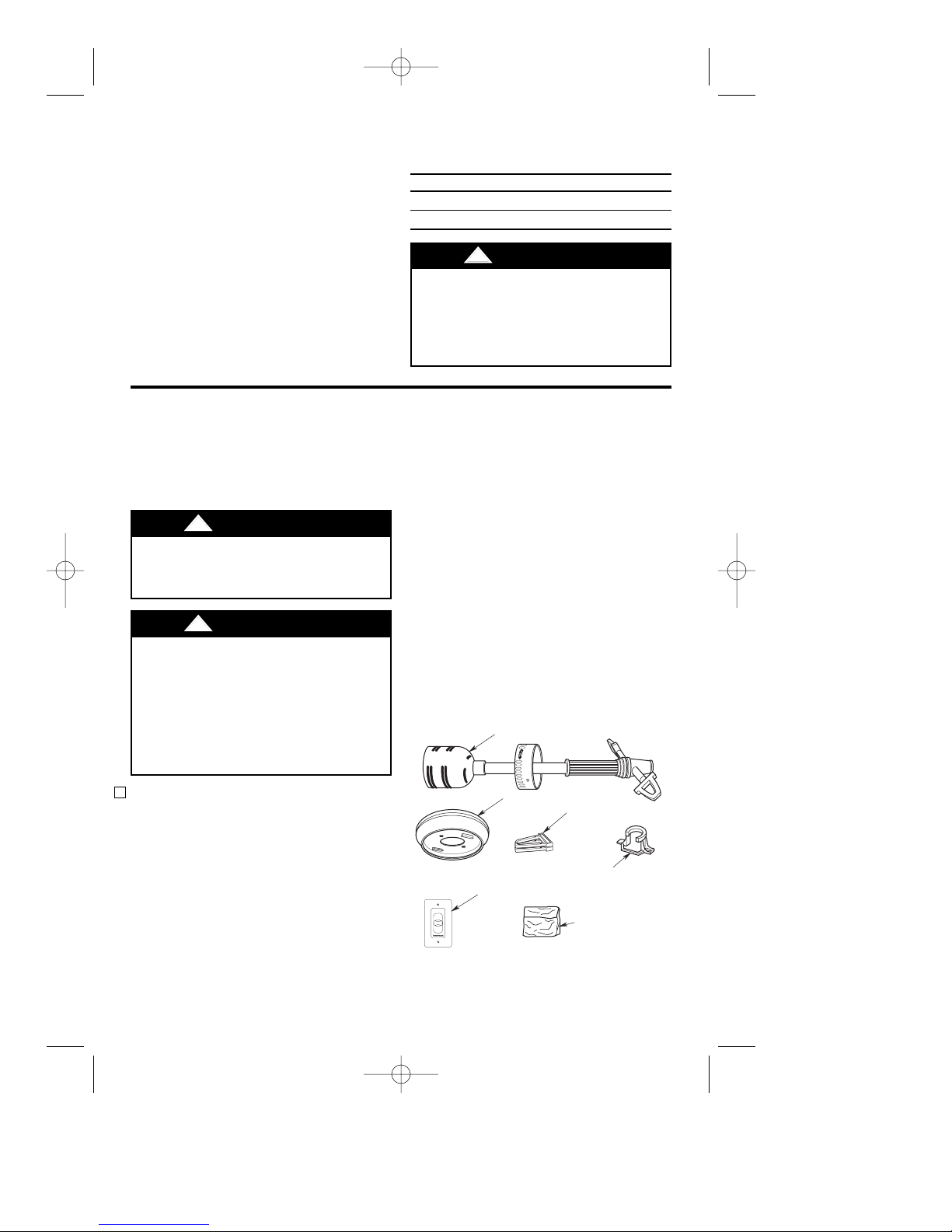

1. Open carton containing fan. Remove

top half of styrofoam unit. Remove

parts, placing all carton contents on a

soft protective surface to prevent

scratching the painted or plated

finishes, and check to see that you

have received the following parts:

Model No.: CF3400

B. CEILING

COVER C. MEDALLION

SET (2)

E. SW46 WALL

CONTROL

D. HANGER

BRACKET

A. CEILING FAN

ASSEMBLY

F. LOOSE

PARTS BAG

NOTE: Place the parts from the loose

parts bags in a small container to keep

them from being lost.

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 3

Your new ceiling fan will require a

grounded electrical supply line of 120 volts

AC, 60 Hz, 15 amp circuit.

The outlet box must be securely anchored

and capable of withstanding a load of at

least 50 pounds.

To reduce the risk of fire, electric shock,

or personal injury, mount fan to outlet box

marked “Acceptable for Fan Support”,

and use screws supplied with outlet box.

Most outlet boxes commonly used for

support of light fixtures are not

acceptable for fan support and may need

to be replaced. Consult a qualified

electrician if in doubt.

!WARNING

If your fan is to replace an existing ceiling

light fixture, turn electricity off at the main

fuse or circuit breaker box at this time and

remove the existing light fixture.

Electrical Requirements How to Hang

Your Ceiling Fan

Turning off wall switch is not sufficient.

To avoid possible electrical shock, be

sure electricity is turned off at the main

fuse or circuit breaker box before wiring.

All wiring must be in accordance with

National and Local codes and the ceiling

fan must be properly grounded as a

precaution against possible electrical

shock.

!WARNING

To avoid possible fire or shock, follow all

wiring instructions carefully. Any

Electrical work not described in these

instructions should be done or approved

by a licensed electrician.

!WARNING

Turning off wall switch is not sufficient.

To avoid possible electrical shock, be

sure electricity is turned off at the main

fuse or circuit breaker box before wiring.

All wiring must be in accordance with

National and Local codes and the ceiling

fan must be properly grounded as a

precaution against possible electrical

shock.

!WARNING

Model No.: CF3400

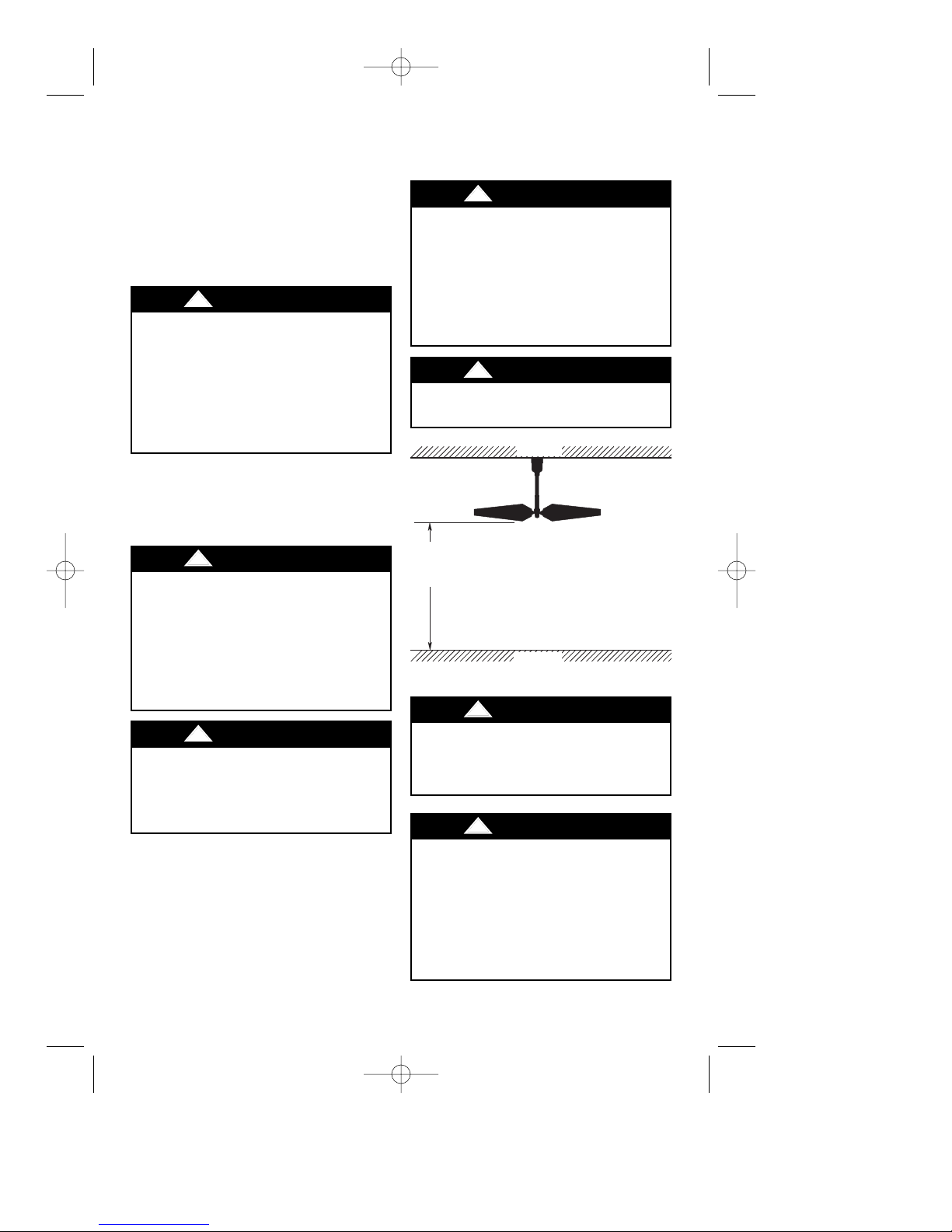

The fan must be hung with at least 7' of

clearance from floor to blades (Figure 1).

!WARNING

The outlet box and joist must be securely

mounted and capable of supporting at

least 50 lbs. Use only a U.L. outlet box

listed as “Acceptable for Fan Support”.

!WARNING

To reduce the risk of fire, electric shock,

or personal injury, mount fan to outlet box

marked “Acceptable for Fan Support”,

and use screws supplied with outlet box.

Most outlet boxes commonly used for

support of light fixtures are not

acceptable for fan support and may need

to be replaced. Consult a qualified

electrician if in doubt.

!WARNING

CEILING

FLOOR

LEAST

Figure 1

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 4

3. Pull the electrical supply wires through

the opening on the back side of the

hanger bracket for installation of the

fan’s hanger ball.

4. To prevent scratching the fan assembly,

secure the upper motor cover onto a

blade flange with masking tape.

5. Carefully lift the fan assembly and

install the fan’s hanger ball into the

hanger bracket. For added clearance,

position the fan’s reverse switch to the

side of the hanger bracket during

installation.

6. Carefully rotate the fan assembly to

engage the hanger ball groove onto the

hanger bracket locking tab. When

locked in position, the fan will not rotate

on the hanger bracket.

5Model No.: CF3400

CEILING

COVER

HANGER BRACKET

MOUNTING SCREW (2)

TAB

Figure 2

GREEN GROUNDING

LEAD FROM THE

HANGER BALL

HANGER BRACKET

HANGER BALL

GREEN GROUNDING LEAD FROM

THE HANGER BRACKET

Figure 3

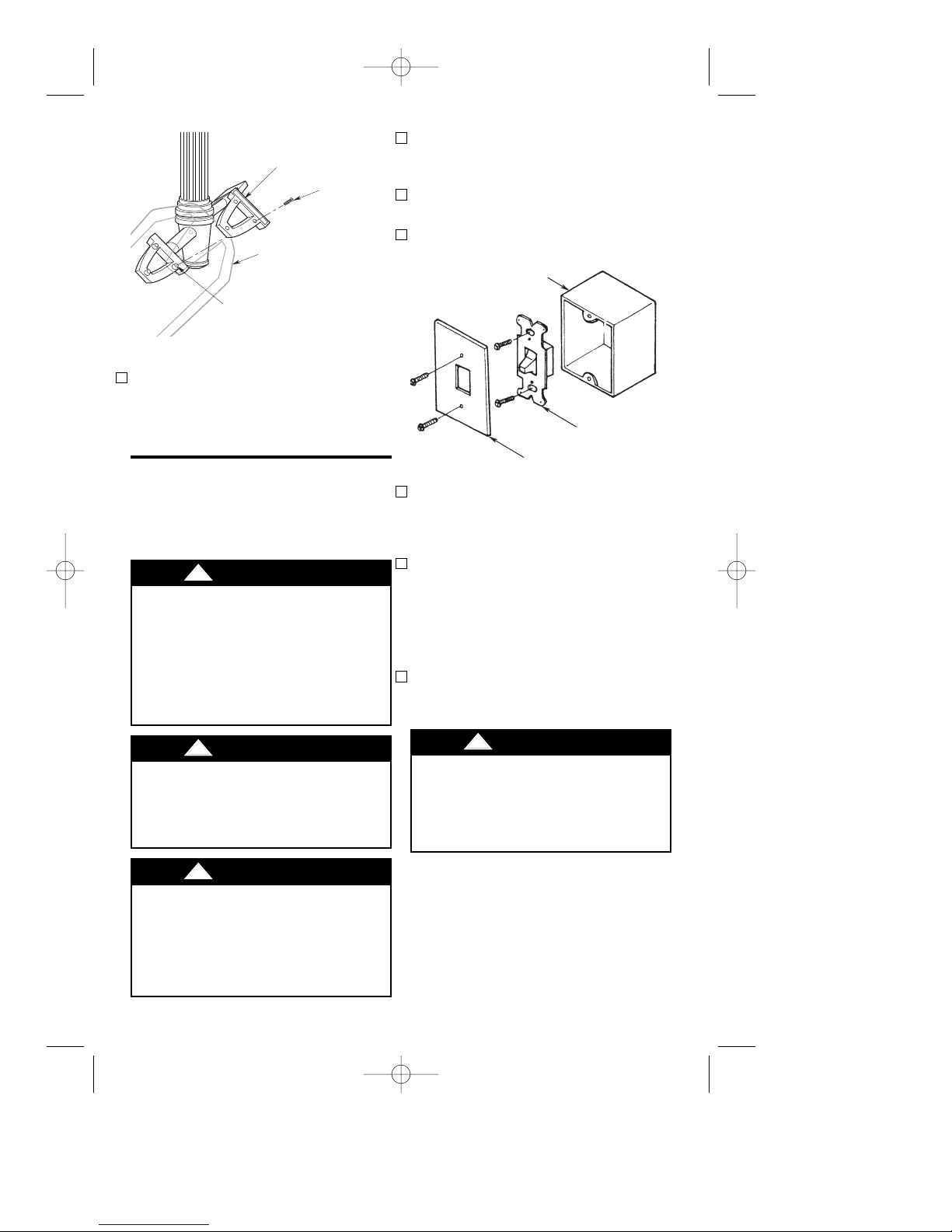

1. Pull the electrical supply wires through

the center opening of the ceiling cover.

2. Install the ceiling cover and hanger

bracket together onto the outlet box

using the two screws supplied with the

outlet box. The hanger bracket will nest

into the ceiling cover between the

raised guides on the bottom surface of

the cover. The center hole of the ceiling

cover provides visual access to view

installation of the outlet box screws into

the threaded mounting holes of the box

(Figure 2).

This product is designed to use only

those parts supplied with this product

and/or any accessories designated

specifically for use with this product by

Emerson Electric Co. Substitution of

parts or accessories not designated for

use with this product by Emerson Electric

Co. could result in personal injury or

property damage.

!WARNING

1. Connect the green grounding lead from

the hanger ball and the green

grounding lead from the hanger bracket

to the grounding conductor of supply

(this may be a bare wire or wire with

green colored insulation) with wire

connector supplied. (Figure 3.)

Failure to seat tab in groove could cause

damage to electrical wires and possible

shock or fire hazard.

!WARNING

To avoid possible fire or shock, do not

pinch wires between the hanger

ball/downrod assembly and hanger

bracket.

!WARNING

To avoid possible fire or shock, do not

pinch electrical wires between the ceiling

cover and hanger bracket, or the

electrical box and the ceiling cover.

!WARNING

If you feel that you do not have enough

electrical wiring knowledge or exper-

ience, have your fan installed by a

licensed electrician.

NOTE: Pivot the fan on its mounting

ball to improve access to the top of the

motor when making electrical con-

nections with supply wires (Figure 3).

How to Wire

Your Ceiling Fan

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 5

6. Carefully slide the motor ring up the

motor housing and position the ring so

that the reverse switch slot in the ring is

in the correct position (Figure 5).

NOTE: Careful not to scratch ceiling

fan assembly while positioning the

motor ring in place.

7. Secure the motor ring to the motor

housing assembly using the three

#8-32 x .25” flat head screws supplied

(Figure 5).

SUPPLY GROUND

BLACK

WIRES

WHITE WIRES

8-32 X .25" FLAT

EAD SCREW (3)

REVERSE SWITCH

MOTOR RING

MOTOR

HOUSING

Figure 5

To avoid possible fire or shock, make

sure that the electrical wires are

completely inside the outlet box and not

pinched between the ceiling cover and

the ceiling.

!WARNING

To reduce the risk of personal injury, do

not bend the blade flange when installing

the blades, balancing the blades or

cleaning the fan. Do not insert foreign

objects in between rotating fan blades.

!WARNING

1. With the fan suspended on the ceiling,

position a blade on top of the ceiling fan

blade flange by aligning the raised

bosses into the blade mounting holes.

Carefully position the blade medallion

onto the blade by aligning its bosses

with the blade holes. Install three #10-

32 x .75” oval head screws into the

mounting holes of the medallion and

securely tighten each screw (Figure 6).

If using wooden blades, be very careful

not to over tighten the blade screws.

NOTE: Screws for the wooden blades

are shipped with the blades. Do not

discard the blade packaging until you

have located the screws.

NOTE: Recommend the blades screws

be checked regularly for tightness.

Check to see that all connections are

tight, including ground, and that no bare

wire is visible at the wire connectors,

except for the ground wire. Do not

operate fan until blades are in place.

Noise and fan damage could result.

!WARNING

To avoid possible fire or shock, do not

pinch wires between the hanger

ball/downrod assembly and hanger

bracket.

!WARNING

2. Securely connect the fan motor white

wire to the supply white (neutral) wire

using wire connector supplied

(Figure 4).

3. Securely connect the fan motor black

wire to the supply black (hot) wire using

wire connector supplied (Figure 4).

Blade Installation

Figure 4 6Model No.: CF3400

4. After connections have been made,

separate the white and green wires

from the black wires.

5. Carefully turn the wires upward and

insert them up through the center

opening of the ceiling cover and into

the outlet box. Push the green and

white wires into one side of the outlet

box; push the black wires into the other

side of the the outlet box.

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 6

BLADE

(Sold Separately)

#10-32 x .75"

OVAL HEAD

SCREW

(3 per blade

assembly)

BLADE

MEDALLION

MEDALLION BOSS

(3 per medallion)

Figure 6

2. Assemble the remaining blade per

previous instructions.

NOTE: Take care not to scratch fan

blades during installation.

This control is designed to operate only

one ceiling fan.

WALL PLATE

WALL OUTLET BOX

SWITCH

Figure 7

4. Connect one BLACK wire from the fan

control to the fan/motor load wire

with a wire connector (provided)

(Figure 8).

5. Connect the other BLACK wire from the

Fan Control to the 120VAC hot supply

wire with a wire connector (provided

with control).

NOTE: Use wire connectors (supplied)

to secure electrical connections.

6. If present, connect the supply white

neutral wire to the branch circuit white

neutral wire with a wire connector.

How to Wire Your Ceiling

Fan - SW46 Wall Control

7Model No.: CF3400

1. Remove the wall plate and screws from

the existing wall switch. Pull switch out

from wall outlet box.

2. Disconnect wire from existing fan wall

switch (Figure 7).

3. Slide the fan control to the OFF position

(0).

Turning off wall switch is not sufficient.

To avoid possible electrical shock, be

sure electricity is turned off at the main

fuse or circuit breaker box before wiring.

All wiring must be in accordance with

National and Local codes and the ceiling

fan must be properly grounded as a

precaution against possible electrical

shock.

!WARNING

To avoid possible fire or shock, follow all

wiring instructions carefully. Any

Electrical work not described in these

instructions should be done or approved

by a licensed electrician.

!WARNING

To avoid possible electrical shock, be

sure electricity is turned off at the main

fuse or circuit breaker panel.

NOTE: If you are not sure if the outlet box

is grounded, contact a licensed

electrician for advise, as it must be

grounded for safe operation.

!WARNING

Check to see that all connections are

tight, including ground, and that no bare

wire is visible at the wire connectors,

except for the ground wire. Do not

operate fan until blades are in place.

Noise and fan damage could result.

!WARNING

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 7

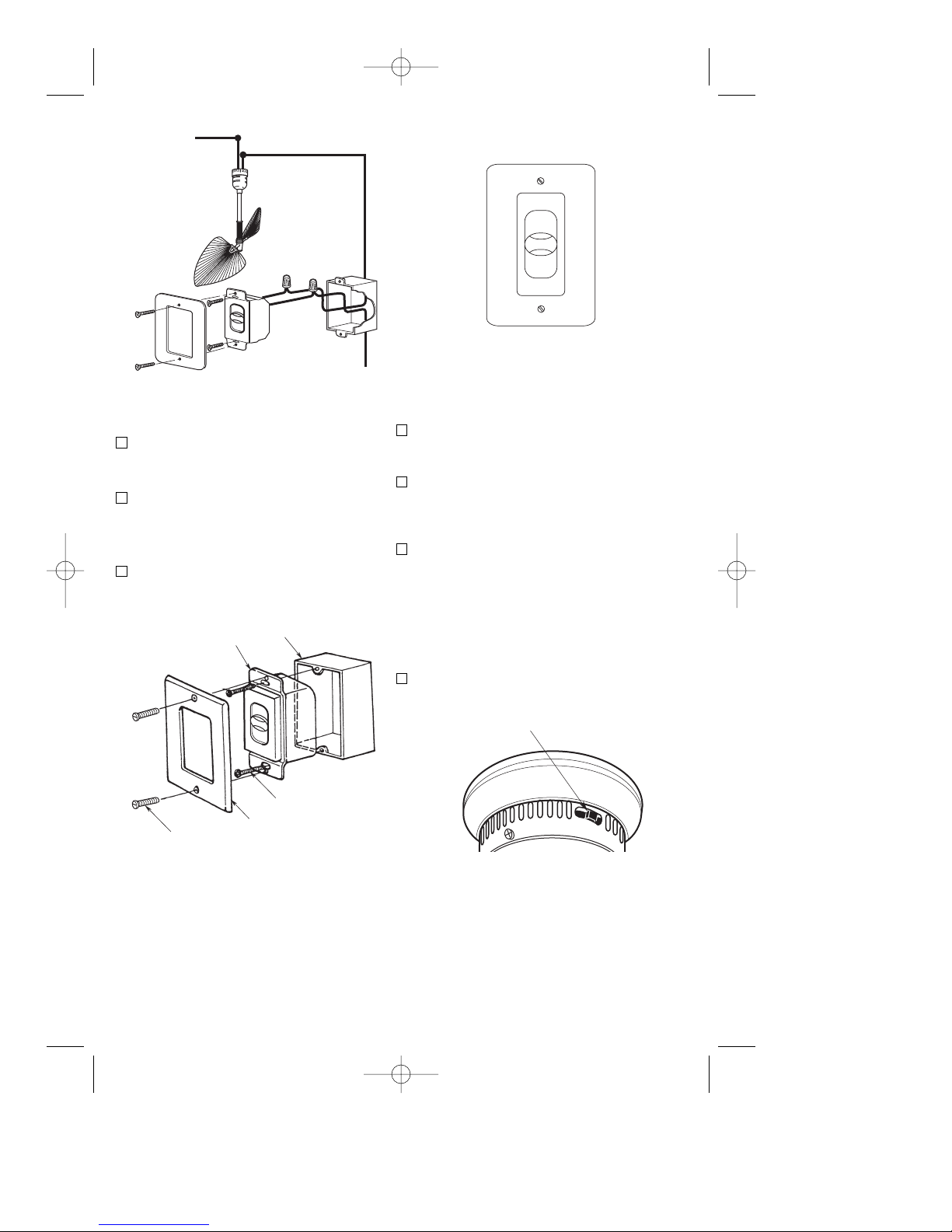

Figure 10

Using Your Ceiling Fan

IMPORTANT

Fan installation must be completed,

including the installation of the fan

blades, before testing of the controls.

1. Restore electrical power to the outlet

box by turning the electricity on at the

main fuse box or circuit breaker panel.

2. Check the operation of the fan by

sliding the bar of the control through the

four positions marked 1 - 4 (“0” position

is OFF) (Figure 10).

3. All fans are shipped from the factory

with the reversing switch positioned to

circulate air downward. If airflow is

desired in opposite direction, turn your

fan OFF and wait for the blades to stop

turning, then slide the reversing switch

to the opposite position, and turn fan on

again (Figure 11).

4. The fan blades will turn in the opposite

direction and reverse the airflow.

Figure 11

REVERSE SWITCH

8Model No.: CF3400

7. Attach the fan control to the wall outlet

box with two 6-32 x 3/4” screws

(provided with control).

8. Position the wall plate (provided with

control) onto the speed control. Using

the two 6-32 x 1/4” screws, fasten the

wall plate to the control (Figure 9).

9. Installation of the ceiling fan is now

complete. Restore power at the main

fuse box or circuit breaker panel.

TO NEUTRAL TO FAN MOTOR LOAD

TO 120VAC

SOURCE

HOT

BLACK

Figure 8

6-32 x 1/4"

SCREW (2)

WALL PLATE

SW46 FAN CONTROL

OUTLET BOX

6-32 x 3/4"

SCREW (2)

Figure 9

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 8

Trouble Shooting

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

1. Fan will not 1. Fuse or circuit breaker 1. Check main and branch

start. blown. circuit fuses or circuit breakers.

WARNING: Make sure

main power is turned off.

2. Loose electrical connections 2. Check that all electrical

to the fan or wall control. connections are secure.

3. Fan Wall Control is OFF. 3. Turn ON Fan Wall Control.

WARNING: Make sure main

power is turned off.

2. Fan sounds 1. Blades not securely attached 1. Attach blades to fan before

noisy. to fan. operating or tightening the blade

screws.

3. Fan wobbles 1. Fan blades are not seated 1. Check to be sure that the

excessively. into the blade flanges properly. flange and medallion bosses are

seated into the blade mounting

holes.

2. Fan blades are out of balance. 2. Follow the instructions of the

blade balancing kit supplied

with the ceiling fan to correct

the wobble.

9Model No.: CF3400

1. Blades (see store or catalog).

Do not use water when cleaning your

ceiling fan. It could damage the motor or

the blades and create the possibility of an

electrical shock.

!WARNING

The use of any other control not

specifically approved for this fan could

result in fire, shock and personal injury.

!WARNING

This product is designed to use only

those parts supplied with this product

and/or any accessories designated

specifically for use with this product by

Emerson Electric Co. Substitution of

parts or accessories not designated for

use with this product by Emerson Electric

Co. could result in personal injury or

property damage.

!WARNING

Maintenance

IMPORTANT CARE INSTRUCTIONS

for your Ceiling Fan

Periodic cleaning of your new ceiling fan is

the only maintenance that is needed.

When cleaning, use only a soft brush or

lint free cloth to avoid scratching the finish.

Abrasive cleaning agents are not required

and should be avoided to prevent damage

to finish.

Accessories

WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX

OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 9

10 Model No.: CF3400

Part Numbers

Key Model No. Model No.

No. Description CF3400AP00 CF3400ORH00

1 Ceiling Plate (1) 763816-AP 763816-ORH

2 Hanger Bracket Assembly (1) 760732 760732

3 Hangerball Assembly (1) 763949 763949

4 Reverse Switch (1) 763898 763898

5 Axillary Capacitor 8.0 uF (1) 763948 763948

6 Motor Assembly, K55XL (1) 763820 763820

7 Medallions (set of two) 763897-AP 763897-ORH

8 Finial Cover (1) 763838-AP 763838-ORH

9 SW46 Wall Control (1) 761971 761971

* Parts Bag, Containing: 763828 763828

10 Connectors, Wire, 12 Ga. (4) — —

11 #10-32 x .75” Oval Head Screws (7) — —

12 #8-32 x .25” Flat Head Screws (4) — —

— Owner's Manual (1) BP7386 BP7386

Repair Parts Listing

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Emerson

Emerson

Emerson BUILDER UNIPACK CF701ORB00 Manual de usuario

Emerson

Emerson Northwind CF755AB05 Manual de usuario

Emerson

Emerson BUCKINGHAM CF715AB00 Manual de usuario

Emerson

Emerson CARRERA GRANDE CF787 series Manual de usuario

Emerson

Emerson RC188 Manual de usuario

Emerson

Emerson MARIOL PORTICO CF690CK00 Manual de usuario

Emerson

Emerson CF330GRT00 Manual de usuario

Emerson

Emerson Bella CF442ORB00 Manual de usuario

Emerson

Emerson CALLAN CF110BS00 Manual de usuario

Emerson

Emerson MONACO CF830GES00 Manual de usuario

Emerson

Emerson CF550BS00 Manual de usuario

Emerson

Emerson VININGS CF240ATB00 Manual de usuario

Emerson

Emerson WYATT CF530BS00 Manual de usuario

Emerson

Emerson CURVA SKY CF144BS00 Manual de usuario

Emerson

Emerson CROFTON CF790BS00 Manual de usuario

Emerson

Emerson Northwind CF702PB03 Manual de usuario

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Emerson

Emerson HIGHPOINTE CF205BS0 Manual de usuario

Emerson

Emerson CURVA CF252LGRT00 Manual de usuario

Emerson

Emerson TILO CF130BS00 Manual de usuario

Emerson

Emerson MONTEREY II Manual de usuario

Emerson

Emerson SUMMERHAVEN LED CF850SW01 Manual de usuario

Emerson

Emerson CF936GBZ00 Manual de usuario

Emerson

Emerson APOLLO CF3900AB01 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje

Litex Industries

Litex Industries E-CGL52CB5C1 Manual de usuario
