Installation and maintenance

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

SAFETY MEASURES

Before using your machine for the rst time,

it is important to read the whole of this

installation and maintenance manual.

All necessary operations and interventions

on this machine must be performed by a

qualied technician.

Our technical support service will be pleased

to provide any additional information you

may require.

The various operations described in this

manual are accompanied by recommen-

dations or symbols to alert the user to

potential risks of accidents. It is vital that you

understand and take notice of the following

warning symbols.

Warning symbol for an operation capable

of damaging or destroying the machine

or surrounding equipment.

Warning symbol for general danger to

personnel.

Warning symbol for electrical danger to

personnel.

All servicing or repair operations

performed on the AVR should be

undertaken by personnel trained in the

commissioning, servicing and main-

tenance of electrical and mechanical

components.

When the generator is driven at a

frequency less than 28 Hz for more than

30 seconds with an analogic regulator,

the AC power must be disconnected.

WARNING

This A.V.R. can be incorporated in a

machine marked C.E.

This manual is be given to the end user.

characteristics of its products at any time in

order to incorporate the latest technological

developments. The informa-tion contained

in this document may therefore be changed

without notice.

This document may not be reproduced in

any form without prior authorization.

All brands and models have been registered

and patents applied for.

WARNING

This manual concerns the alternator A.V.R. which you have just purchased.

We wish to draw your attention to the contents of this maintenance manual.

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

CONTENTS

1 - SUPPLY..............................................................................................................................4

1.1 - SHUNT excitation system ............................................................................................4

2 - R220 A.V.R. ........................................................................................................................4

2.1 - Characteristics .............................................................................................................4

2.2 - R220 AVR option ..........................................................................................................4

3 - INSTALLATION - COMMISSIONING .................................................................................5

3.1 - Electrical checks on the AVR ........................................................................................5

3.2 - Settings........................................................................................................................5

3.3 - Electrical faults.............................................................................................................6

4 - SPARE PARTS...................................................................................................................7

4.1 - Designation..................................................................................................................7

4.2 - Technical support service.............................................................................................7

Disposal and recycling instructions

WARNING

The R220 AVR cannot be used in dedicated single-phase 60 Hz.

The R220 is an IP00 product. It must be installed inside a unit so that this unit’s cover can

provide IP20 minimum total protection (it must only be installed on our alternators in the

appropriate location so that when viewed externally, it has a higher degree of protection than

IP20).

2016.05 / g

Electric Power Generation

124 mm

85 mm

T1 T2 T3

T4 T5 T6

5+ 6-

T7 T8 T9

T10 T11 T12

E+ E-

110

R220

ST3

VOLT

OPEN FOR 60 Hz STAB

POT 1K

ST4

50 Hz 60 Hz

Installation and maintenance

R220

A.V.R.

4291 en -

1 - SUPPLY

1.1 - SHUNT excitation system

The alternator with Shunt excitation is self-

excited with an R220 voltage regulator.

The regulator monitors the exciter excitation

current as a function of the alternator output

voltage. Very simple in design, the alternator

with shunt excitation has no sustaining

short-circuit capacity.

2 - R220 A.V.R.

2.1 - Characteristics

- Storage : -55°C ; +85°C

- Operation : -40°C ; +65°C

- Voltage regulation: ± 0.5%.

- Voltage supply/sensing range 85 to 139 V

(50/60 Hz)

- Rapid response time (500 ms) for a

transient voltage variation amplitude of ± 20%

- Voltage setting P1

- Stability setting P2.

- Power supply protected by 8 A fuse, slow-

blow action (tolerates 10 A for 10 s)

The fuse is impregnated in the resin,

therefore it can not be replaced.

- Frequency: 50 Hz with ST3 jumper - 60 Hz

without ST3 jumper.

- The size of the screwdriver tip used to

adjust the potentiometer is 2.5 mm.

2.2 - R220 AVR option

Potentiometer for remote voltage

adjustment, 1000 Ω/ 0.5 W min: adjustment

range ± 5%.

- Remove the ST4 jumper.

For wiring up the external potentiometer;

the “earth” wires must be isolated as

well as the potentiometer terminals

(wires at the same voltage as the power).

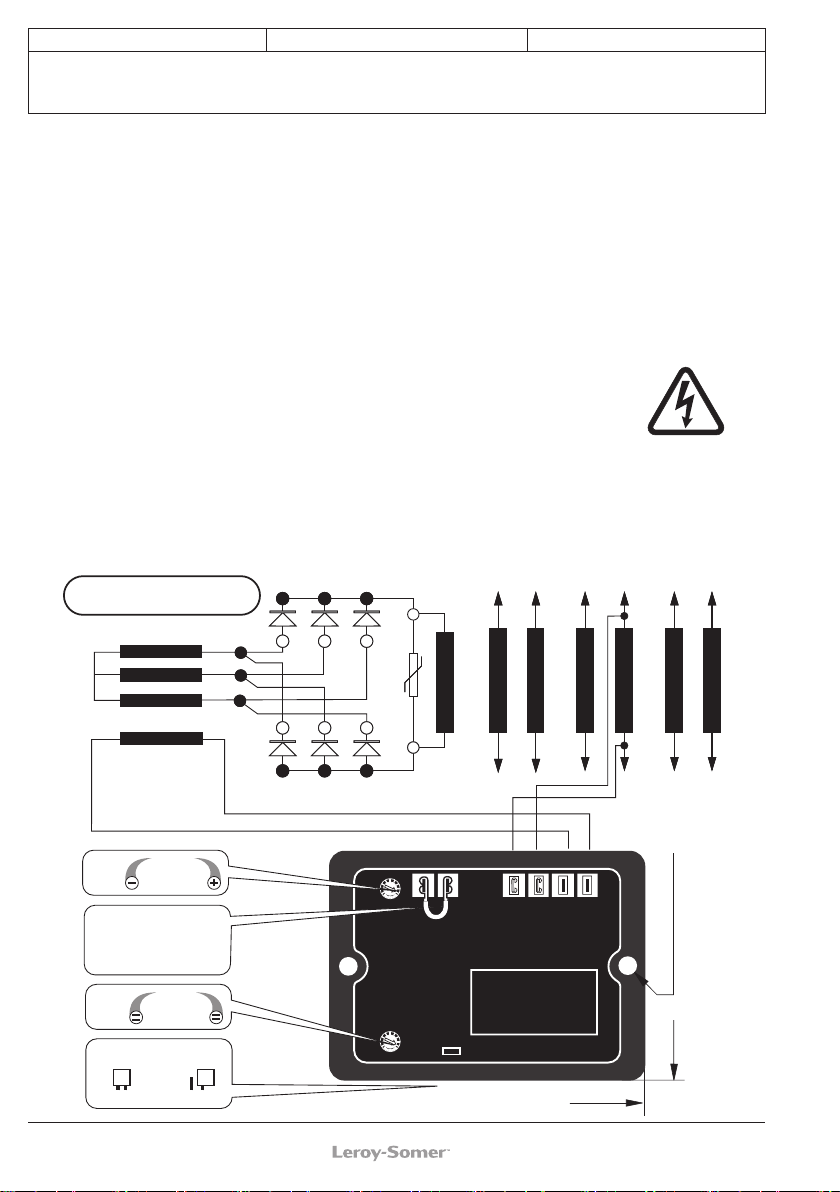

SHUNT SYSTEM

MAIN FIELD STATOR : 12 wires (marked T1 to T12)

Armature

Field

Voltage

Option

Stability

Frequency

Potentiometer for remote

voltage adjustment

Varistor

2 x holes Ø 5.8 x 109 mm

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

3 - INSTALLATION -

COMMISSIONING

3.1 - Electrical checks on the AVR

- Check that all connections have been

made properly as shown in the attached

wiring diagram.

- Check that the ST3 frequency selection

jumper is on the correct frequency setting.

- Check whether the ST4 jumper or the

remote adjustment potentiometer have

been connected.

3.2 - Settings

The machine is tested and set at the

factory. When rst used with no load,

make sure that the drive speed is correct

and stable (see the nameplate). After

operational testing, replace all access

panels or covers.

The only possible adjustments to the

machine should be made on the AVR.

3.2.1 - R220 setting (shunt system)

Initial potentiometer settings

- P1 potentiometer (AVR voltage

adjustment): fully anti-clockwise.

- Remote voltage adjustment potentiometer:

centre position.

Run the alternator at its rated speed. If the

voltage does not increase, the magnetic

circuit should be remagnetized (see section

3.3).

- Turn the AVR voltage adjustment

potentiometer P1 slowly until the output

voltage rated value is obtained.

- Adjust the stability setting using P2.

Clockwise: increase the rapidity.

Anti-clockwise: decrease the rapidity.

3.2.2 - Special type of use

Excitation circuit E+, E- must not be left

open when the machine is running : AVR

damage will occur.

3.2.2.1 - R220 eld weakening (SHUNT)

The exciter is switched off by disconnecting

the AVR power supply (1 wire - 0 or 110V).

Contact rating : 16A - 250V alt.

The power supply contactor must only be

closed when the alternator is not being

driven

3.2.2.2 - R220 eld forcing

Battery must be isolated from the earth.

Exciter eld may be at line potential.

WARNING

E+ E-

110

VOLT POT 1K

Battery (B Volt)

(400V - 10A) Diode

E+ E-

110

Exciter field

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

3.3 - Electrical faults

Fault Action Effect Check/Cause

No voltage at

no load on

start-up

Connect a new battery

of 4 to 12 volts to

terminals E- and E+,

respecting the polarity,

for 2 to 3 seconds

The alternator builds up and its

voltage is still correct when the

battery is removed.

- Lack of residual magnetism

The alternator builds up but its

voltage does not reach the rated

value when the battery is

removed.

- Check the connection of the voltage

reference to the AVR

- Faulty diodes

- Armature short-circuit

The alternator builds up but its

voltage disappears when the

battery is removed

- Faulty AVR

- Field windings disconnected

- Main eld winding open circuit - check the

resistance

Voltage too

low

Check the drive speed

Correct speed

Check the AVR connections (AVR may be

faulty)

- Field windings short-circuited

- Rotating diodes burnt out

- Main eld winding short-circuited - Check

the resistance

Speed too low

Increase the drive speed

(Do not touch the AVR voltage pot. (P2)

before running at the correct speed)

Voltage too

high

Adjust AVR voltage

potentiometer

Adjustment ineffective Faulty AVR

Voltage

oscillations

Adjust AVR stability

potentiometer

- Check the speed : possibility of cyclic

irregularity

- Loose connections

- Faulty AVR

- Speed too low when on load (or U/F bend

set too high)

Voltage

correct at no

load and too

low when on

load (*)

Run at no load and

check the voltage

between E+ and E- on

the AVR

- Check the speed (or U/F bend set too

high)

- Faulty rotating diodes

- Short-circuit in the main eld. Check the

resistance

- Faulty exciter armature.

(*) Caution : For single-phase operation, check that the sensing wires coming from the AVR are correctly connected to the

operating terminals

Voltage

disappears

during

operation

Check the AVR, the

surge suppressor, the

rotating diodes, and

replace any defective

components

The voltage does not return to the

rated value.

- Exciter winding open circuit

- Faulty exciter armature

- Faulty AVR

- Main eld open circuit or short-circuited

Warning : after operational testing, replace all access panels or covers.

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

4 - SPARE PARTS

4.1 - Designation

Description Type Code

A.V.R. R220 AEM 110 RE 028

4.2 - Technical support service

Our technical support service will be happy

to provide any information you require.

When ordering spare parts, you should in-

dicate the complete machine type, its serial

number and the information indicated on the

nameplate.

Part numbers should be identied from the

exploded views and their description in

the parts list.

Our extensive network of «service stations»

can dispatch the necessary parts without

delay.

To ensure correct operation and the safety

of our alternators, we recommend the use of

original manufacture spare parts.

In the event of failure to comply with this ad-

vice, the manufacturer cannot be held res-

ponsible for any damage.

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

Disposal and recycling instructions

We are committed to limit the environmental

impact of our activity. We continuously

survey our production processes, material

sourcing and products design to improve

recyclability and diminish our footprint.

These instructions are for information

purposes only. It is the user responsibility to

comply with local legislation regarding

product disposal and recycling.

Recyclable materials

Our alternators are mainly built out of iron,

steel and copper materials, which can be

reclaimed for recycling purposes.

These materials can be reclaimed through a

combination of manual dismantling,

mechanical separation and melting

processes. Our technical support depar-

tment can provide detailed directions on

products dismounting upon request.

Waste & hazardous materials

The following components and materials

need a special treatment and need to be

separated from the alternator before the

recycling process:

- electronic materials found in the terminal

box, including the Automatic Voltage

Regulator (198), Current Transformers

(176), interference suppression module

(199) and other semi-conductors.

- diode Bridge (343) and Surge suppressor

(347), found on the alternator rotor.

- major plastic components, such as the

terminal box structure on some products.

These components are usually marked with

plastic type information.

All materials listed above need special

treatment to separate waste from

reclaimable material and should be handed

to specialized disposal companies.

The oil and grease from the lubrication

systemshouldbeconsideredasahazardous

waste and has to be handled according to

local legislation.

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

2016.05 / g

Electric Power Generation Installation and maintenance

R220

A.V.R.

4291 en -

Tabla de contenidos

Otros manuales de Controladores de Emerson

Emerson

Emerson Fisher 912N Series Manual de usuario

Emerson

Emerson Alco Controls FSX Series Manual de usuario

Emerson

Emerson Digitax ST Manual de usuario

Emerson

Emerson Fisher L2 Manual de usuario

Emerson

Emerson unidrive sp Manual de usuario

Emerson

Emerson Fisher 1051 Manual de usuario

Emerson

Emerson Fisher 3024S Manual de usuario

Emerson

Emerson MR98 Series Manual de usuario

Emerson

Emerson Unidrive M101 Manual de usuario

Emerson

Emerson Bettis GTD Series Instrucciones de funcionamiento

Emerson

Emerson AVENTICS 651 Series Manual de usuario

Emerson

Emerson Leroy Somer R450 Manual de instrucciones

Emerson

Emerson Unidrive M702 Manual de usuario

Emerson

Emerson Tescom 26-1000 Series Manual de usuario

Emerson

Emerson Dixell XRB06CH Diagrama de cableado

Emerson

Emerson dixell XW90LT Diagrama de cableado

Emerson

Emerson DL8000 Guía rápida

Emerson

Emerson Bettis XTE3000 Manual de usuario

Emerson

Emerson FISHER T208 Series Manual de usuario

Emerson

Emerson PNC001-A Series Manual de usuario

Emerson

Emerson Fisher 299HR Manual de usuario

Emerson

Emerson Hytork XL Series Manual de instalación y funcionamiento

Emerson

Emerson White-Rodgers 11B79-3 Manual de usuario

Emerson

Emerson iPro Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

3M MicroTouch EX113 Manual de usuario
