Emerson KEYSTONE OM13 EPI-2 Manual de usuario

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

May 2022

Keystone OM13 - EPI2

3-Wires Module

Notes

May 2022

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

This page intentionally left blank

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

Table of Contents

May 2022

Table of Contents

Section 1: Optional Module 13: 3-Wires Module

1.1 OM13 Module Functionality ....................................................................... 1

1.2 Manufacturer ............................................................................................. 2

Section 2: Installation

2.1 Assembling Procedure for Models 63-125 Nm

Old Version (US or Non-US Market) ............................................................. 4

2.2 Assembling Procedure for Models 250-500-1000-2000 Nm

Old Version (US or Non-US Market) ............................................................. 9

2.3 Assembling Procedure for Models 63-125 Nm

New Version (US or Non-US Market) ........................................................... 14

2.4 Assembling Procedure for Models 250-500-1000-2000 Nm

New Version (US or Non-US Market) ........................................................... 20

Section 3: OM13 Module Setting and Conguration

OM13 Module Setting and Conguraton .............................................................. 25

Section 4: OM13 Kit

OM13 Kit .............................................................................................................. 26

Section 5: OM13 Wiring Diagram

OM13 Wiring Diagram ......................................................................................... 30

Notes

May 2022

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

This page intentionally left blank

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1 May 2022

1Optional Module 13: 3-Wires Module

Section 1: Optional Module 13: 3-Wires Module

NOTE:

Before installation, these instructions must be fully read and understood.

Section 1: Optional Module 13:

3-Wires Module

1.1 OM13 Module Functionality

The OM13 3-wires module is supplied as an option to the Keystone EPI2 actuators. It is

possible to receive the actuator already equipped with the OM13, ordering it with the

basic feature. Alternatively, it is possible to order the OM13 as a separate kit and install

it in the basic actuator in the factory or in the field. The OM13 is an optional module

suitable to accomplish the following EPI2 actuator additional functionality:

• 120/240 V AC 1-phase, 50/60 Hz, 3-wire control for open/close operations,

without additional power supply.

NOTE:

For decommissioning instructions, please refer to the relevant section in the EPI2

VCIOM-15516-EN.

NOTE:

The OM13 command has to be provided by two separate switches for open and for close

with a delay of at least one second between the two commands, when reversing the

operation from open to close or vice versa.

!WARNING

EPI2 actuator must be electrically isolated before any disassembling or reassembling

operations. Before any disassembling or reassembling operations, please follow in

detail the relevant paragraph of the basic installation and operating manual (latest

revision available).

!WARNING

The electronic parts of the EPI2 actuators and all option modules can be damaged by

a discharge of static electricity. Before you start, touch a grounded metal surface to

discharge any static electricity.

May 2022

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

2Optional Module 13: 3-Wires Module

Section 1: Optional Module 13: 3-Wires Module

! WARNING

It is assumed that the installation, conguration, commissioning, maintenance and repair

works are carried out by qualied personnel and checked by responsible specialists.

! WARNING

Repair work, other than operations outlined in this manual, is strictly reserved to qualied

Emerson personnel or to personnel authorized by the company itself.

1.2 Manufacturer

Manufacturer with respect to Machinery Directive 98/37: as specied on the EPI2 label.

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1 May 2022

3Installation

Section 2: Installation

To assemble the OM13 into the EPI2 actuator, proceed as follows:

• Ensure that all the parts received with the OM13 are available as described in

Section 4.

• Using Section 4, select only mechanical parts (screws and spacers) depending on

actuator models.

• Gather the right tools for the assembly and for setting the actuator controls.

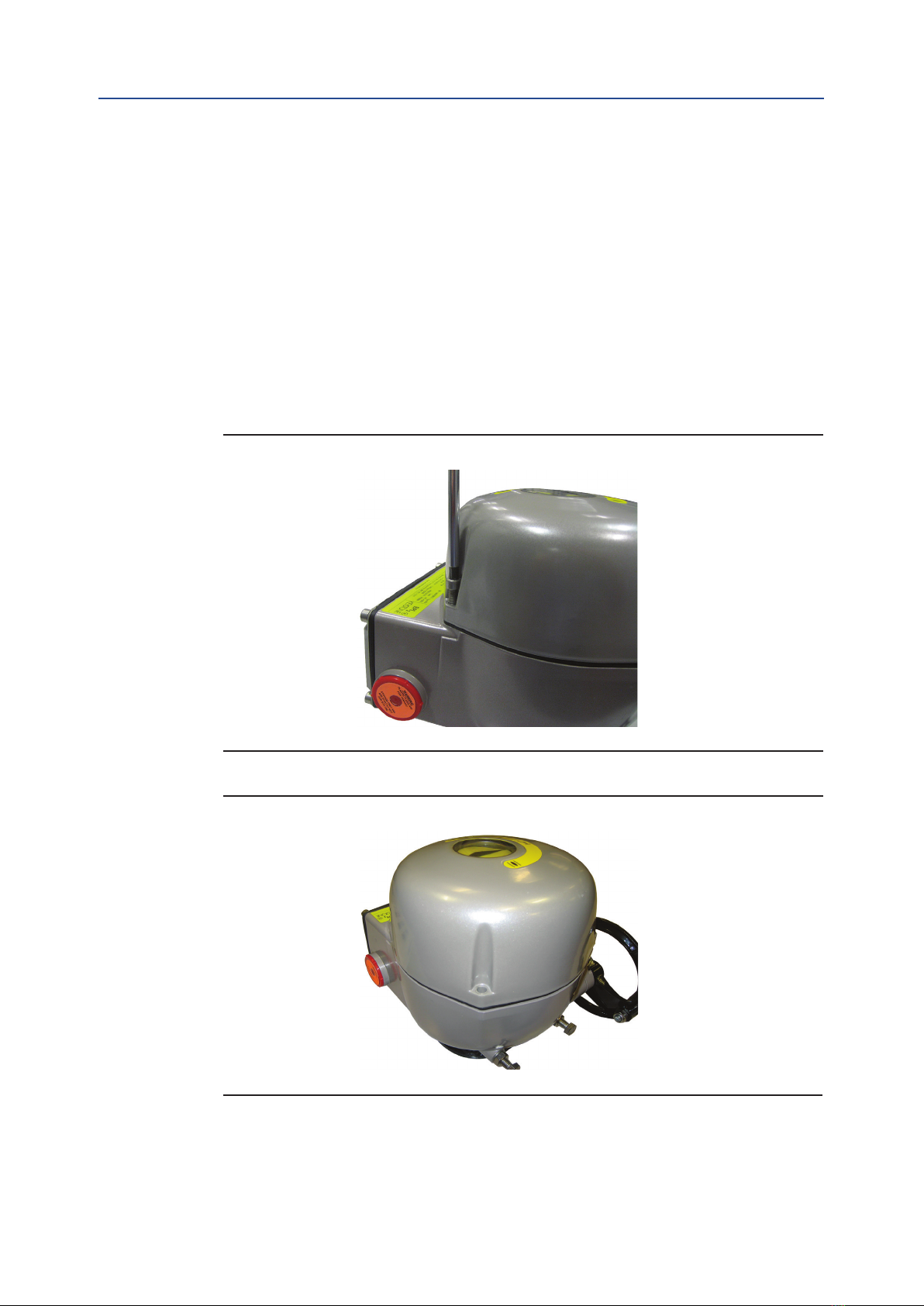

• With an Allen wrench of 5 mm, unscrew the cover screws as shown in Figure 1.

• Remove the actuator cover as shown in Figure 2.

Figure 2

Figure 1

Follow one of the following assembling procedures depending on actuator model.

May 2022

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

4Installation

Section 2: Installation

2.1 Assembling Procedure for Models 63-125 Nm

Old Version (US or Non-US Market)

• Verify that you received the correct OM13 3-wire module as shown in Figure 3.

• Remove the following as indicated in Figure 4:

— 3-pins connector cable

— 4-pins connector cable

— 8-pins connector cable

Figure 3

Figure 4

• Remove the 3-wire power connector cable from the power card as indicated in

Figure 5.

• Remove the 3 screws (3 pcs M3x10) from the logic board and screw the 3 metal

spacers as shown in Figure 6.

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1 May 2022

5Installation

Section 2: Installation

Figure 5

Figure 6

• Place the OM13 card onto the spacers and tighten the 4 screws as shown in Figure 7.

• Remove the 2-pins connector cable from J1 on the power card as shown in Figure 8.

Figure 7

screws

metal spacers

May 2022

Installation, Operation and Maintenance Manual

VCIOM-01495-EN Rev. 1

6Installation

Section 2: Installation

Figure 8

• Connect the 2-wire power connector cable of the OM13 card to the power card as

shown in Figure 9.

• Connect the 3-wire power connector cable of the terminal board to the OM13

card as shown in Figure 10.

Figure 9

Figure 10
