TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 1/6

Date of last update: Feb-23

Ref: TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00

Application Engineering Europe

XC PRO CONTROLLER – BIOS UPDATE

QUICK USER’S MANUAL

1. Connect laptop to controller:

a. Identify the IP address of the controller.

i. Go to the "Service" menu on the Visotouch display connected to the controller (yellow

wrench icon) →Scroll down to "Conf IP & MDB Management" →The IP address is shown

in this menu.

ii. The default IP address of the controller is 192.168.0.250.

TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 2/6

b. Connect the laptop to the controller with a crossover cable.

c. The laptop can only communicate with the controller if they are in the same network.

i. Disconnect the laptop from your company data network.

ii. In the Windows environment go to "Network & Internet Settings", then "Change adapter

options".

iii. Select "Ethernet" and "Properties".

TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 3/6

iv. Click on "Internet Protocol Version 4 (TCP/IPv4)" and "Properties".

v. In "Properties" set the IP parameters according to the IP address of the controller.

vi. Click on "OK" to confirm.

TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 4/6

d. Open the webpage of the controller.

i. Go to the browser.

ii. Enter the IP address of the controller.

iii. Enter username "admin" and password "Dixell" to login.

e. Open "Info" page on the left.

TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 5/6

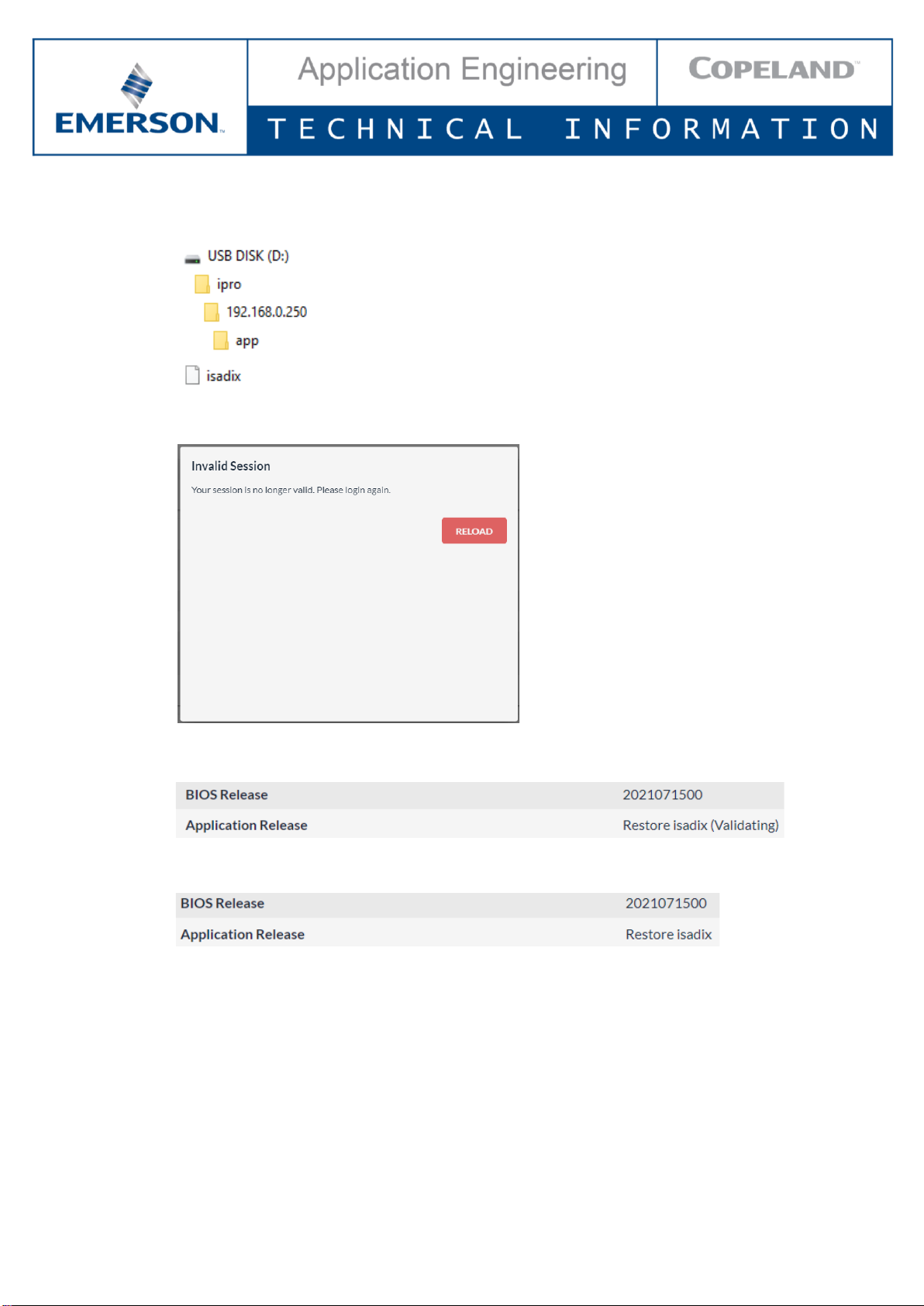

2. Load empty application:

a. Prepare USB stick with following folders and correct isadix file in folder "app". Contact the Emerson

Application Engineering department for the correct isadix file.

b. Connect USB stick to the controller.

c. Session will become invalid (after a few minutes).

d. Reload the page.

e. Application release shows "Restore isadix (Validating)".

f. When the message “(Validating)” disappears (reloading of the page might be necessary), remove

the USB stick.

TI_Unit_OMTE_CO2_Scroll_01_EN_Rev00 6/6

3. Load new BIOS:

a. Prepare USB stick with following folders and correct zupdater file in folder "bios" and correct isadix

file in folder "app". Contact the Emerson Application Engineering department for the correct zupdater

and isadix files.

b. Connect USB stick to the controller.

c. Session will become invalid (after a few minutes).

d. Reload the page.

e. BIOS and application release show "(Validating)".

f. When the message "(Validating)" disappears (reloading of the page might be necessary), remove

the USB stick.

g. Update is successful if the correct number is shown in row "BIOS Release" without "(Validating)".
