Bettis RTS Relay Board (RP4AF)

Electric Actuator

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

August 2023

Notes

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

This page intentionally left blank.

Table of Contents

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Table of Contents i

Table of Contents

Section 1: Tools

Tools.......................................................................................................................................1

Section 2: Material

Material.................................................................................................................................2

Section 3: Installation

Installation............................................................................................................................3

Section 4: Programming

Programming.......................................................................................................................7

Notes

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

This page intentionally left blank.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Tools

Section 1: Tools

Section 1:Tools

! WARNING

Remove all power supplies before doing the exchange. Act always with caution

during the exchange!

• Needle nose pliers

• Screw driver phillips

• Screw driver at

• Allen key 5

• Socket wrench 5

Figure 1.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Material

Section 2: Material

Section 2:Material

• 1x relay board RP4AF (ID:15772)

• 2x steel screw M3x16 (ID:952)

• 3x plastic distance 8 mm (ID:9896)

• 1x plastic screw M3x15 (ID:9895)

• 1x plastic nut M3 (ID:7084)

• 2x lock plates M3 red (ID:13674)

Figure 2.

Figure 3.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Installation

Section 3: Installation

Section 3:Installation

1. Unscrew the 4 hexagon socket screws from the cover and remove it carefully.

Mind the connection cable between display and logic board.

Figure 4.

2. Unscrew the 4 cross recessed screws from the existing logic board and afterwards

tilt it carefully to you.

Figure 5.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Installation

Section 3: Installation

3. Remove the cable with the 10-pole connector and connect it with the

relay board.

Figure 6.

4. Insert plastic screw M3x15 in provided hole and add plastic distance on it,

after connect the relay board with the logic board on suitable connector.

Add plastic nut on plastic screw to x the board.

Figure 7.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Installation

Section 3: Installation

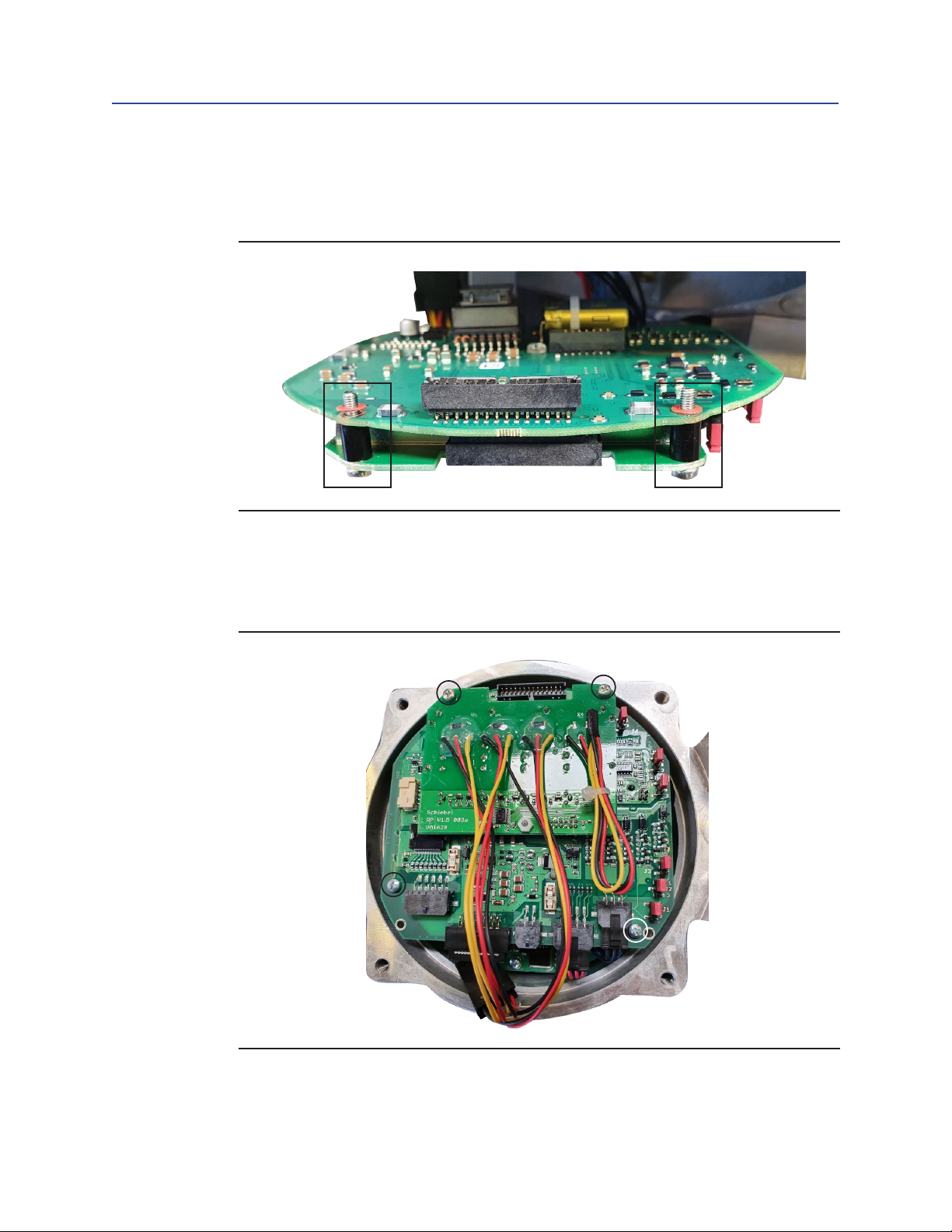

5. Put two plastic distances 8 mm between logic and relay board, insert the

M3x16 steel screws through the estimated holes in logic board, plastic

distances and relay board and secure the screws with the red lock plates.

Figure 8.

6. Install die logic + relay board back to the control (two small screws for

original installation will remain). Take care of possible damage of cables or

other parts.

Figure 9.

August 2023

Installation, Operation and Maintenance Manual

VCIOM-15749-EN Rev. 1

Installation

Section 3: Installation

7. Connect cable between display cover and logic board. Perform a Firmware

update now, before installing display cover on the unit. This update is

important for the following programming steps (use FW version display 1507,

logic 219 or higher). For a detailed description on how to perform a rmware

update, please refer to separate manual.

During display cover installation, pay attention to the O-ring which must

sit correctly between cover and housing and x it with the 4 hexagon

socket screws.

Figure 10.
