Thankyou.........

Forpurchasing thisEmerson PersonalCDPlayer.The CDplayerhasa20

track programmablememorysoyou can listen tothesongsonyourfavorite

CD'sinanyorderyouchoose.Oryoucan usetheRandomplayback feature

and letthe playerselectthe playback orderforyou.Usethe 3-wayRepeat

featuretorepeatasingletrack,the entiredisc,oraprogrammed sequence

oftracks,indefinitely.We'vealsoincluded 60 second ElectronicAnti-Skip

Protection whichmakesthisplayervirtuallyskip-free during mostactive

uses.

Finally,thismodelincludesawired remotecontrolthatletsyou operate

the playerwhileitisbeing carried inapurse,back-pack,orpocketbook.

Pleaseread thisinstruction manualcompletelyand carefullytomakesure

you understand the properoperation ofthisproduct, and getthe maximum

enjoymentoutofall the featuresofthisstate-of-the-artCD player.

Onceagain,thanks forpurchasing thisEmerson product.

The serialnumberofyourCD playercan be found on the bottomcabinet.

Wesuggestthatyou recordthe serialnumberofyourunitinthe space

belowforfuturereference.

ModelNumber:HD8100R

SerialNumber:

HD8100R_031604.p65 16/3/2004, 14:171

WARNING: TOPREVENTFIREORSHOCKHAZARD,

DONOTEXPOSETHISUNITTORAINORMOISTURE.

Thisdevicecomplieswithpart15 ofthe FCC rules.Operation issubjecttothe

condition thatthisdevicedoesnotcauseharmfulinterference.

CLASS 1LASERPRODUCT

APPAREILÁLASERDECLASSE 1

PRODUCTOLASERDECLASE 1

CAUTION

INVISIBLELASERRADIATION

WHENOPENAND INTERLOCKS

DEFEATED.

AVOIDEXPOSURETOBEAM

ThisproductcontainsalowpowerLaserDevice.

•Placesexposed todirectsunlightor

closetoheatradiatingappliancessuch

aselectricheaters.

Avoidinstalling theunitinlocationsdescribedbelow:

•Dustyplaces.

•Placessubjecttoconstant

vibration.

•Humidormoistplaces.

CAUTION

THISLASERCOMPACTDISCPLAYERFUNCTIONSBY HELPOFINVISIBLE

LASERLIGHTAND ISEQUIPPEDWITHSAFETYSWITCHES TOAVOID

EXPOSUREWHENDOORISOPENAND SAFETYINTERLOCKS ARE

DEFEATED.ITISDANGEROUSTODEFEATORBYPASS SAFETYSWITCHES.

IMPORTANTNOTES

DANGEROUSVOLTAGE

Uninsulated DangerousVoltage,thatmaybe ofsufficient

magnitude toconstitutearisk ofelectricshock topersonsis

presentwithinthisproduct'senclosure.

ATTENTION

The Owner'sManualcontainsimportantoperating and

maintenanceinstructions.

Foryoursafety,itisnecessarytorefertothe manual.

HD8100R_031604.p65 16/3/2004, 14:172

PREPARATIONFORUSE

REMOVE THE TRANSIT CARD

This personal CD player is shipped with a dummy CD ‘transit card ‘ inside the CD

compartment. The purpose of this card is to prevent the laser from moving during

shipment of the product. This card must be removed before using the CD player.

Slide the OPEN switch to the right to unlock the CD door. Remove the ‘transit card’

from the player and discard it.

POWER SOURCES

This personal CD player is designed to operate on two “AA” batteries, not included.

Use a well known brand of Alkaline batteries for longest life and best performance.

This player can also be operated by with an optional AC/DC converter/adapter, not

included. If you decide to purchase an optional AC/DC adapter the specification

must be as follows:

Input: 120V 60Hz AC

Output: 4.5V DC, 500 mA.

Plug: 1.7 mm Female Type with Positive Center, UL Listed.

You may also purchase a “Universal” type AC/DC adapter which allows you to

select the required output voltage and plug polarity, and normally includes multiple

plug sizes to fit most brands of equipment. Always look for the “UL” listing mark

when you purchase an adapter.

Positive(+)Negative(–)

HD8100R_031604.p65 16/3/2004, 14:173

INSTALLING THE BATTERIES

Note: The battery compartment is located inside the CD compartment.

1.) Slide the OPEN switch to the right to open the CD door. If you have not already

done so, remove the dummy CD ‘transit card’ and discard it.

2.) Press the battery door locking tab in the direction of the ‘Arrow’ to open the

battery door. Lift the door upward as shown.

3.) Inserttwoalkaline“AA”batteries in the batterycompartment.Be sure to observe

the polarity markings engraved in the battery compartment. If the batteries are

inserted incorrectly the unit will not work.

4.) Fold the battery removal ribbon over the top of the batteries, close the battery

door, and push the battery door downward until you hear a ‘click’ sound to lock

the door again.

5.) Close the CD door.

REPLACING THE BATTERIES

When the battery symbol appears in the display the batteries are becoming

weak and should be replaced.Always replace both batteries at the same time with

new fresh alkaline batteries. Do not mix old and new batteries or different types of

batteries together.

If the display remains blank when you press thePLAY/PAUSE button, the batteries

are completely dead. Replace them immediately. If dead batteries are left inside

the battery compartment for a long period of time they may leak and cause damage

to the unit, and such damage or corrosion from leaking batteries is not covered by

your warranty.

HD8100R_031604.p65 16/3/2004, 14:174

CONNECTING THE OPTIONAL AC ADAPTER (NOT INCLUDED)

1.) Connect the small female plug of the optionalAC adapter to the “DC IN 4.5 V”

jack on the right side of the CD player.

2.) Connect the adapter housing to your 120V 60HzAC outlet.

Notes:

• Never connect or disconnect the adapter from the AC outlet while your hands

are wet.

• The housing of the AC adapter may become warm during operation. This is

normal.

• The female plug of the AC adapter must be completely disconnected from the

CD player in order to operate the player on batteries.

BATTERYPRECAUTIONS

Followtheseprecautionswhen using batteriesinthisdevice:

1.Useonlythe sizeand type ofbatteriesspecified.

2.Besuretofollowthe correctpolaritywhen installing the batteriesasindicated inthe battery

compartment. Reversed batteriesmaycausedamage tothe device.

3.Donotmixdifferenttypesofbatteriestogether(e.g.Alkaline and Carbon-Zinc)oroldbatteries

withfreshones.

4. If the deviceisnottobe used foralong period oftime,removethe batteriestoprevent

damage orinjuryfrompossiblebatteryleakage.

5.Donottrytorecharge batteriesnotintended tobe recharged;theycan overheatand rupture

(Followbatterymanufacturer’s directions.)

DC 4.5V INPUT JACK

TO 120V/60Hz AC OUTLET

OPTIONAL AC/DC ADAPTER

HD8100R_031604.p65 16/3/2004, 14:175

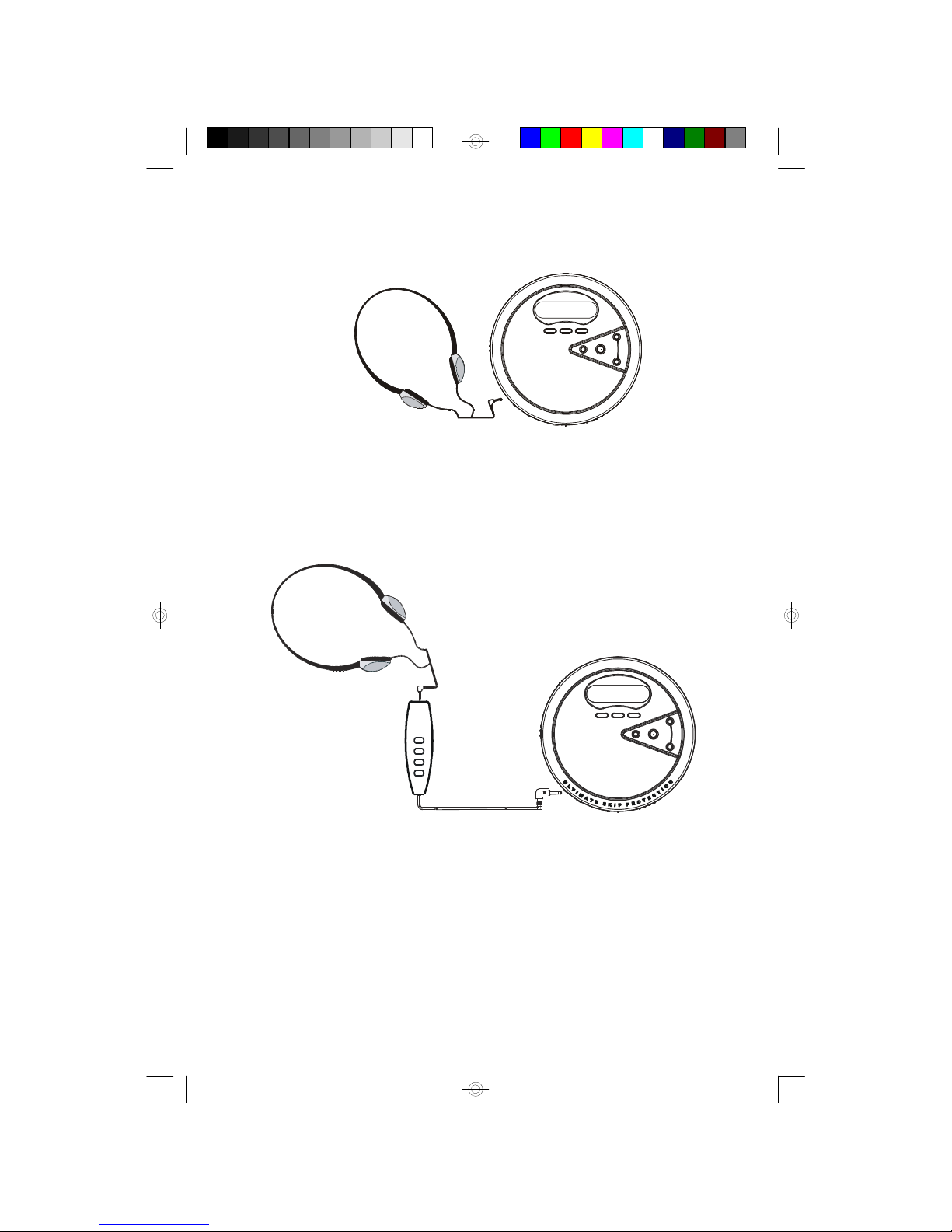

CONNECTING THE STEREO HEADPHONES AND REMOTE CONTROL

•Connect the plug of the supplied stereo headphones directly to the green-colored

PHONES jack on the left side of the cabinet.

•Or you may connect the headphones to the supplied Remote Control, then to

the PHONES jack.

Note: The control buttons PLAY/PAUSE, STOP, SKIP FWD and SKIP REV

function same as those on front panel.

NOTE: Make sure that the plugs are inserted into the jacks as far as they will

go. If the plugs are not fully inserted, you may only hear sound from one side

of the headphones.

IMPORTANT!

Always set the VOLUME control to a low level before you put the headphones on

and begin playing a CD. Then start playback and gradually increase the volume to

a comfortable listening level. Do not play the CD at loud volume levels that might

prevent you from hearing warning sounds such as car horns, etc.

PLAY/PAUSE

STOP

SKIP FWD.

SKIP REV.

HD8100R_031604.p65 16/3/2004, 14:176

1.)OPENSwitch–Slide tothe righttounlock and open the CD door..

2.)VOLUMEControl–Raisesorlowersthe volume.

3.)PHONES Jack –Connectstereo headphones,included,tothisjack.

4.)HOLDSwitch(BottomCabinet).

5.)PROG (Program)Button.

6.)PLAY/PAUSE Button.

7.)SKIPREV Button.

8.)SKIPFWDButton.

9.)LCDDisplay–ShowsTrack number,Playing time,Anti-Skipstatus,Program,

Repeat, Shuffle,and Intromodes.

10.)ESP Button.

11.)MODEButton –Selectsthe playback mode:Repeat1/All,Shuffle,orIntro.

12.)STOPButton.

13.)DC IN4.5VInputJack –Connectan ACadapter(notincluded)tothisjack to

use120V60Hzhousecurrent.

14.)CDDoor.

15.)BASS BOOSTON/OFF Switch.

16.)BatteryCompartment(Inside CD Compartment).

LOCATIONOFCONTROLSAND INDICATORS

HD8100R_031604.p65 16/3/2004, 14:177

1.)Track NumberDisplay.

2.)PROG (Program) Indicator–Appearswhen programming tracks or

playing programmed tracks.

3.)SHUFF (Shuffle)Indicator–Appearswhen Randomplayback mode

isselected.

4.)INTROIndicator–Appearswhen Introplayback mode isselected.

5.)HOLDIndicator–Appearswhen HOLDswitchissetto‘On’position.

6.)(Repeat1)/ALL Indicators–Appearswhen the Repeatplayback

mode isselected.

7.)BatteryStatusIndicator–Appearswhen batterylevelbecomeslow.

8.)Elapsed Time(Seconds)Display.

9.)Elapsed Time(Minutes)Display.

10.)ANTI-SHOCK Indicator–IndicatesESP Protection isactivated.

LCD DISPLAYINDICATORS

HD8100R_031604.p65 16/3/2004, 14:188

OPERATINGINSTRUCTIONS

SPECIAL FUNCTIONS

HOLD Switch

The HOLD switch on the bottom of the cabinet must be in the ‘Off’ (left) position to

start the CD player. If you plan to carry the CD player in a handbag, briefcase,

school bag, back pack, etc, slide the HOLD switch to the ‘On’ (right) position.

While the HOLD switch is ‘On’ all of the controls on the CD door are disabled. This

prevents the player from starting accidentally by something pressing against the

PLAY/PAUSE button.

After you begin CD playback you may also slide the HOLD switch to the ‘On’ (right)

position to disable all the controls on the CD door. You can then place the player in

a handbag, backpack, etc, and do not have to worry that the player will be

accidentally turned off by something pressing against the STOP button or Track

Skip buttons.

BASS BOOST ON/OFF Switch

During CD playback you may slide the BASS BOOST switch to the ‘ON’ position

to activate the Bass Boost function as desired.

HOLD

(Off)

HD8100R_031604.p65 16/3/2004, 14:189
