Emerio FN-122397.1 Manual de usuario

FN-122397.1

Stand fan (EN)

Stand Ventilator (DE)

Ventilateur sur pied (FR)

Golvfläkt (SE)

Ventilator op standaard (NL)

Podstawka wentylatora (PL)

- 1 -

Content –Inhalt –Teneur –Innehåll –Inhoud –Treść

Instruction manual –English......................................................................................- 2 -

Bedienungsanleitung –German .................................................................................- 9 -

Mode d’emploi – French ..........................................................................................- 17 -

Bruksanvisning –Swedish.........................................................................................- 25 -

Gebruiksaanwijzing –Dutch.....................................................................................- 33-

Instrukcja obsługi – Polish........................................................................................- 41 -

- 2 -

Instruction manual –English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in

order to avoid injury or damage, and to get the best results

from the appliance. Make sure to keep this manual in a safe

place. If you give or transfer this appliance to someone else

make sure to also include this manual.

In case of damage caused by user failing to follow the

instructions in this manual the warranty will be void. The

manufacturer/importer accepts no liability for damages

caused by failure to follow the manual, a negligent use or

use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction

concerning use of the appliance in a safe way and

understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the

specifications on the rating label.

6. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of

the extension cord and/or plug may occur. There is a

potential risk of injuries from tripping over the extension

cord. Be careful to avoid dangerous situations.

7. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

- 3 -

8. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric

shock!

10. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

11. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it

to an authorized service center for repair.

12. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

13. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric

shock.

14. Never leave the appliance unattended during use.

15. This appliance is not designed for commercial use.

16. Do not use the appliance for other than intended use.

17. Do not wind the cord around the appliance and do not

bend it.

18. Keep the appliance away from damp, and protect from

splashes.

19. Use the appliance on a flat, dry and heat resistance

surface.

20. Do not store or operate the appliance in the open air.

21. Keep the appliance in a dry place for storage, inaccessible

to children (in its packaging).

22. Never put fingers or any other objects through the fan

guards when the fan is running.

23. Never operate the product without the fan guards in place,

as serious personal injury may result.

24. The appliance must be assembled completely before use.

25. Watch out for long hair! It can be caught in the fan owing

to the air turbulence.

26. Do not point the air flow at people for a long time.

27. Ensure that the fan is switched off from the supply mains

before removing the guard.

- 4 -

FN-122397.1 EN

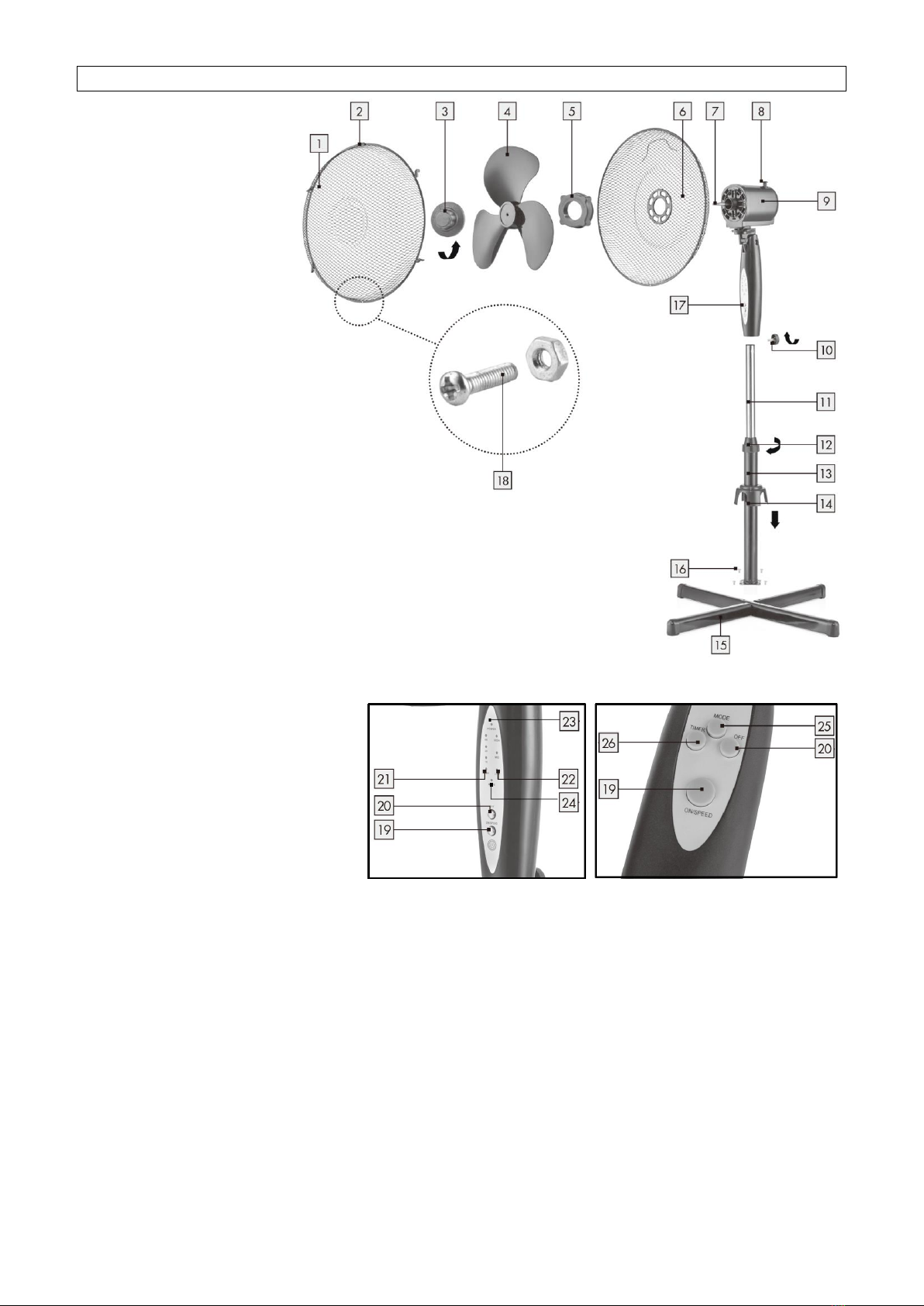

PARTS DESCRIPTION

1. Front guard

2. Locking clips

3. Blade fastening screw

4. Fan blade

5. Guard fastening screw

6. Rear guard

7. Motor shaft

8. Oscillation button

9. Motor

10. Fastening screw

11. Height adjustment pipe

12. Fasten set

13. Standing shaft

14. Cover piece

15. Standing base

16. 4 Screws

17. Control panel

18. Small nut and bolt

Control panel

/remote control

19. On and speed button

20. Off button

21. Timer indicators

22. Speed indicators

23. Power indicator

24. Mode indicator

25. Mode button

26. Timer button

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Assemble the stand

Connect the two parts of the base together into a cross.

Unscrew the four screws from the base.

Attach the standing shaft onto the base and fix firmly with the four screws.

Rotate the fasten set out of the standing shaft. Put the cover piece on the base through the standing shaft.

Rotate back the fasten set.

- 5 -

2. The whole assembly

Pull the height adjustment pipe out and tighten the fasten set.

Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.

3. Rear grille assembly

Unscrew the blade fastening screw and the guard fastening screw from the motor shaft.

Fix the rear guard onto the two pillars of the motor front shell.

Screw the guard fastening screw tightly in clockwise direction.

4. The assembly of fan blade

Take the black shaft protective cover out of the shaft. Insert fan blade onto shaft ensuring blade fits

properly.

Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise.

5. Front grille assembly

Open up all locking clips on the sides of the front guard.

Place the front guard into position by lining up the location plate over the top of the rear guard and push

down.

Unscrew the small nut and bolt at the bottom of the front grille, then fasten the two guards together with

them.

Secure the two guards by closing the clips over the outer rim.

OPERATION

Please press the buttons on the control panel or the buttons on the remote control to choose your desired

function. The corresponding LED lights will illuminate accordingly.

1. On/Off function

Press the button “ON/SPEED” once to turn on the unit. The unit starts to work under normal mode at low

speed.

Press the button “OFF” to turn off the unit.

2. Speed function

When the appliance is on, continue to press the “ON/SPEED” button to set your desired wind speed from

low, mid, high, indicated with the speed lights illuminating one by one.

3. Oscillation

To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull

up the oscillation knob.

4. Mode function

Press the mode button to set your desired working mode:

Normal mode (mode indicator: red)

Nature mode (mode indicator: green)

Sleep mode (mode indicator: off).

1) Normal: under this mode, the motor works with the preset speed. You can press button “ON/SPEED”

to choose speed Low /Mid /High.

2) Natural: under this mode, you can press button “ON/SPEED” to choose speed Low /Mid /High. The

fan will operate as follows:

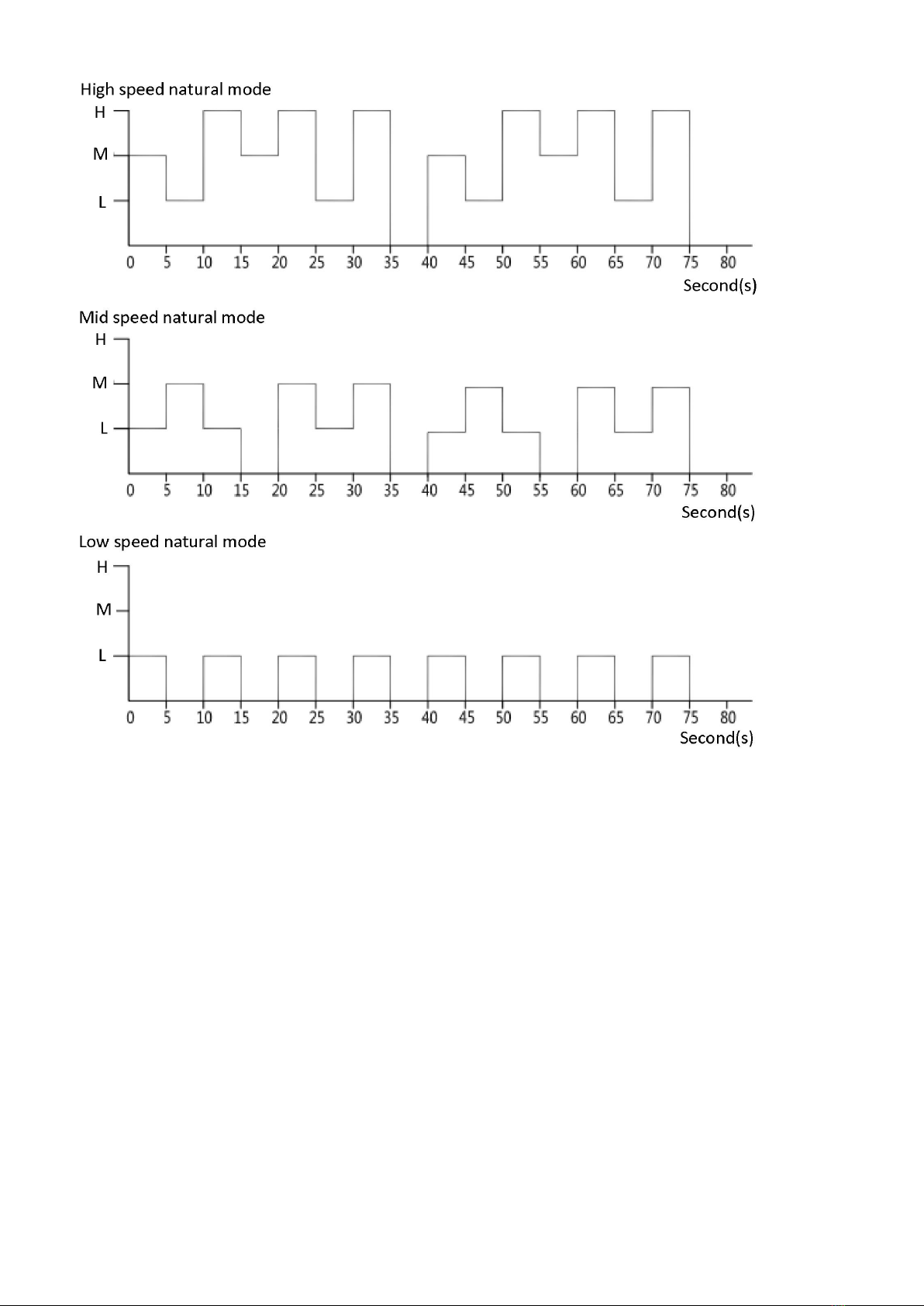

- 6 -

3) Sleeping: under this mode, you can press button “ON/SPEED” to choose speed Low /Mid /High. The

fan will operate as follows:

a. In high speed: 30 minutes high natural wind →30 minutes medium natural wind → continuous low

natural wind

b. In mid speed: 30 minutes medium natural wind → continuous low natural wind

c. In low speed: continuous low natural wind

5. Timer function

Press the timer button to set your desired working time from 0.5h to 7.5h (increment by 0.5h).

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains

cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it

down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it

occasionally using a dry brush or vacuum cleaner.

- 7 -

TECHNICAL DATA

Operating voltage: 220-240V ~ 50/60Hz

Power consumption: 45W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred

during production or transportation, please return the device to your dealer. In addition to statutory legal

rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a

defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs

by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,

without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction

manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the

instruction manual is not properly executed. Damage to accessories does not mean free replacement of the

whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts

is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning,

maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling –European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To

prevent possible harm to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höffer Weg 14

51519 Odenthal

Germany

Customer service:

T: +49 (0) 3222 1097 600

E: info.de@emerio.eu

- 8 -

ERP information (EN)

Supplier: Emerio Deutschland GmbH

Höffer Weg 14

51519 Odenthal

Germany

Declare that the product detailed below:

Information requirements

Information to identify the FN-122397.1 to which the information relates to

[Stand fan]

Description

Symbol

Value

Unit

Maximum fan flow rate

54,30

m3/min

Fan power input

39,00

Service value

1,39

(m3/min)/W

Standby power consumption

PSB

0,42

Fan sound power level

LWA

53,29

dB(A)

Maximum air velocity

3,24

meters/sec

Measurement standard for service

value

IEC 60879:1986 (corr. 1992)

Contact details for obtaining more

information

Emerio Deutschland GmbH

Höffer Weg 14

51519 Odenthal

Germany

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION

REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of

the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE

information, please check the instruction manual provided with packaging.

- 9 -

Bedienungsanleitung –German

SICHERHEITSHINWEISE

Lesen Sie vor dem Gebrauch unbedingt die nachfolgenden

Anleitungen, um Verletzungen oder Beschädigungen zu

vermeiden und das beste Ergebnis mit dem Gerät zu erzielen.

Bewahren Sie diese Bedienungsanleitung an einem sicheren

Ort auf. Wenn Sie dieses Gerät an eine andere Person

weitergeben, stellen Sie sicher, dass Sie auch diese

Bedienungsanleitung aushändigen.

Im Falle von Beschädigungen, die durch die Missachtung der

Anleitungen in dieser Bedienungsanleitung verursacht

wurden, wird die Garantie ungültig. Der Hersteller/Importeur

haftet nicht für Schäden, die durch Missachtung der

Bedienungsanleitung, fahrlässigen Gebrauch oder Benutzung,

die nicht in Übereinstimmung mit den Anforderungen dieser

Bedienungsanleitung erfolgt, verursacht wurden.

1. Dieses Gerät kann von Kindern ab 8 Jahren und Personen

mit eingeschränkten körperlichen, sensorischen oder

geistigen Fähigkeiten oder mangelnder Erfahrung und

Kenntnis benutzt werden, wenn sie beaufsichtigt werden

oder in die sichere Benutzung des Gerätes unterwiesen

werden und die damit verbundenen Gefahren verstehen.

2. Kinder dürfen nicht mit dem Gerät spielen.

3. Die Reinigung und vom Benutzer auszuführende

Wartungsarbeiten dürfen von Kindern nur unter Aufsicht

durchgeführt werden.

4. Wenn das Netzkabel beschädigt ist, muss es vom

Hersteller, seinem Kundendienst oder einer ähnlich

qualifizierten Person ausgewechselt werden, um Gefahren

zu vermeiden.

5. Bevor Sie den Stecker mit der Netzsteckdose verbinden,

prüfen Sie bitte, ob die Spannung und die Frequenz mit

den Angaben auf dem Typenschild übereinstimmen.

6. Falls ein Verlängerungskabel verwendet wird, muss es für

den Stromverbrauch des Gerätes geeignet sein, sonst kann

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de emerio

emerio

emerio FN-121056 Manual de usuario

emerio

emerio FN-108451.1 Manual de usuario

emerio

emerio TFN-111338 Manual de usuario

emerio

emerio FN-120952.1 Manual de usuario

emerio

emerio TFN-212915 Manual de usuario

emerio

emerio FN-114474.4 Manual de usuario

emerio

emerio FN-110143 Manual de usuario

emerio

emerio TFN-122988.1 Manual de usuario

emerio

emerio FN-108784.2 Manual de usuario

emerio

emerio TFN-212586.1 Manual de usuario

emerio

emerio FN-110001 Manual de usuario

emerio

emerio FN-114201.3 Manual de usuario

emerio

emerio TFN-110154.13 Manual de usuario

emerio

emerio TFN-114569.1 Manual de usuario

emerio

emerio FN-114316 Manual de usuario

emerio

emerio TFN-114513 Manual de usuario

emerio

emerio MIS-123774.1 Manual de usuario

emerio

emerio TFN-111649 Manual de usuario

emerio

emerio FN-108740.4 Manual de usuario

emerio

emerio FN-121191 Manual de usuario

emerio

emerio FN-114355.2 Manual de usuario

emerio

emerio FN-114224.4 Manual de usuario

emerio

emerio FN-114204.15 Manual de usuario

emerio

emerio FN-114501.8 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje

emerio FN-122397.1 Manual de usuario

Manuales populares de Admirador de otras marcas
