Elumenati OmniFocus 200 Series

Installation and Operation Guide

Last updated: November 2012

This document applies to the OmniFocus 3020 and 30210 sold after anuary 2013.

For all previous 200 Series products please refer to the “OmniFocus 200 Series

pre2013” manual.

For brevity, we refer to the 200 Series throughout. ifferences are noted where applicable.

Elumenati OmniFocus 200 Series .................................................................................1

Installation and Operation Guide..................................................................................1

200 Series Overview...................................................................................................2

Introduction...........................................................................................................2

Equipment List.......................................................................................................2

200 Series Setup........................................................................................................3

Projector Connection...............................................................................................3

Lens Installation.....................................................................................................4

First Light..............................................................................................................5

Projector Settings Adjustment..................................................................................5

Stand Assembly (Optional)......................................................................................7

200 Series Information...............................................................................................8

Maintenance..........................................................................................................8

Troubleshooting......................................................................................................8

Product Support.....................................................................................................8

200 Series Product Specifications.................................................................................9

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

OmniFocus 200 Series Installation and Operation Guide

200 Series Overview

Introduction

This guide covers the installation and operation of the 200 Series projection system, as well

as an overview of operation. Please read through this entire guide before following the in-

structions. This will familiarize you with the process of setup for the 200 Series Projection

System. The 200 Series is a variation of the 200 Series using the same lens but with a dif-

ferent projector and mounting system.

Equipment List

1. Canon WUX4000 projector with Elumenati lens mount attached and aligned

2. OmniFocus 200 Series lens (straight or folded version)

3. Video and power cables, remote w/ batteries, projector manual, and quick start guide

4. 200 Series stand (optional)

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

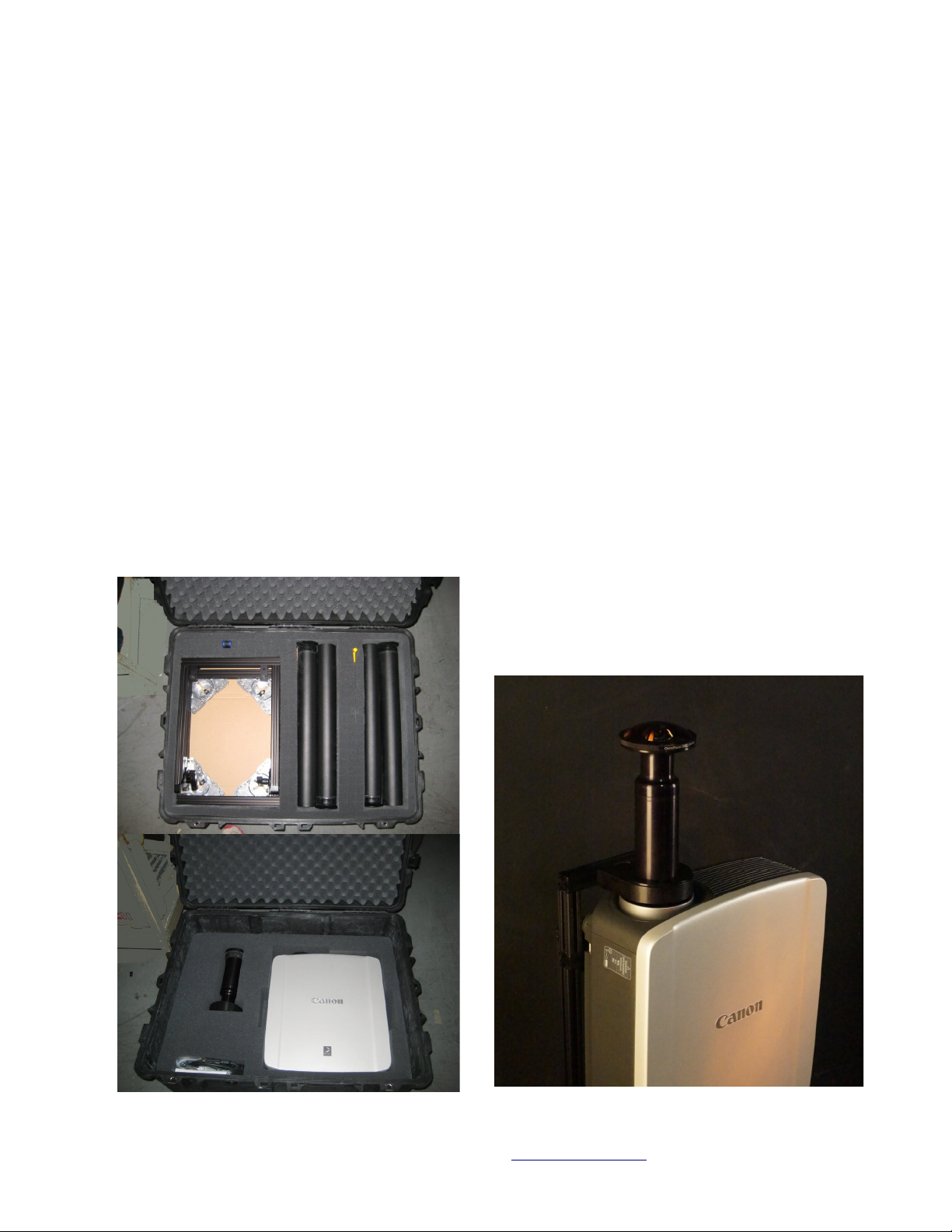

(Fig. 1) Case has two layers: Stand (top)

and Projection System (bottom)

(Fig. 2) Assembled 0200 on stand

OmniFocus 200 Series Installation and Operation Guide

200 Series Setup

The 200 Series is shipped with the adjustable lens mount already installed and aligned to

the default setting (truncated or fulldome). The lens is removed from the mount and housed

separately inside the case. The following describes the setup procedure.

Projector Connection

Before attaching the Elumenati lens, set up and/or install the projector and connect the pro-

jector to the video source. Please refer to the WUX4000 manual for details on projector op-

eration.

1. Connect either the VI or H MI cable from the computer to the projector (Fig. 3). Con-

nect power cable. Turn on the projector and aim at any flat surface more than three (3)

feet away.

2. Turn on your computer.

3. Press the “input” button on the remote control or the projector control panel and choose

“ igital PC” input signal.

●You may need to adjust the focus and/or zoom at first in order to read the image. On

the control panel cycle through Focus, Zoom and Shift by repeatedly pressing the Lens

button.

●Note that the arrow keys used for adjustment are slow to respond. Press and hold for

one second before expecting to see changes.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

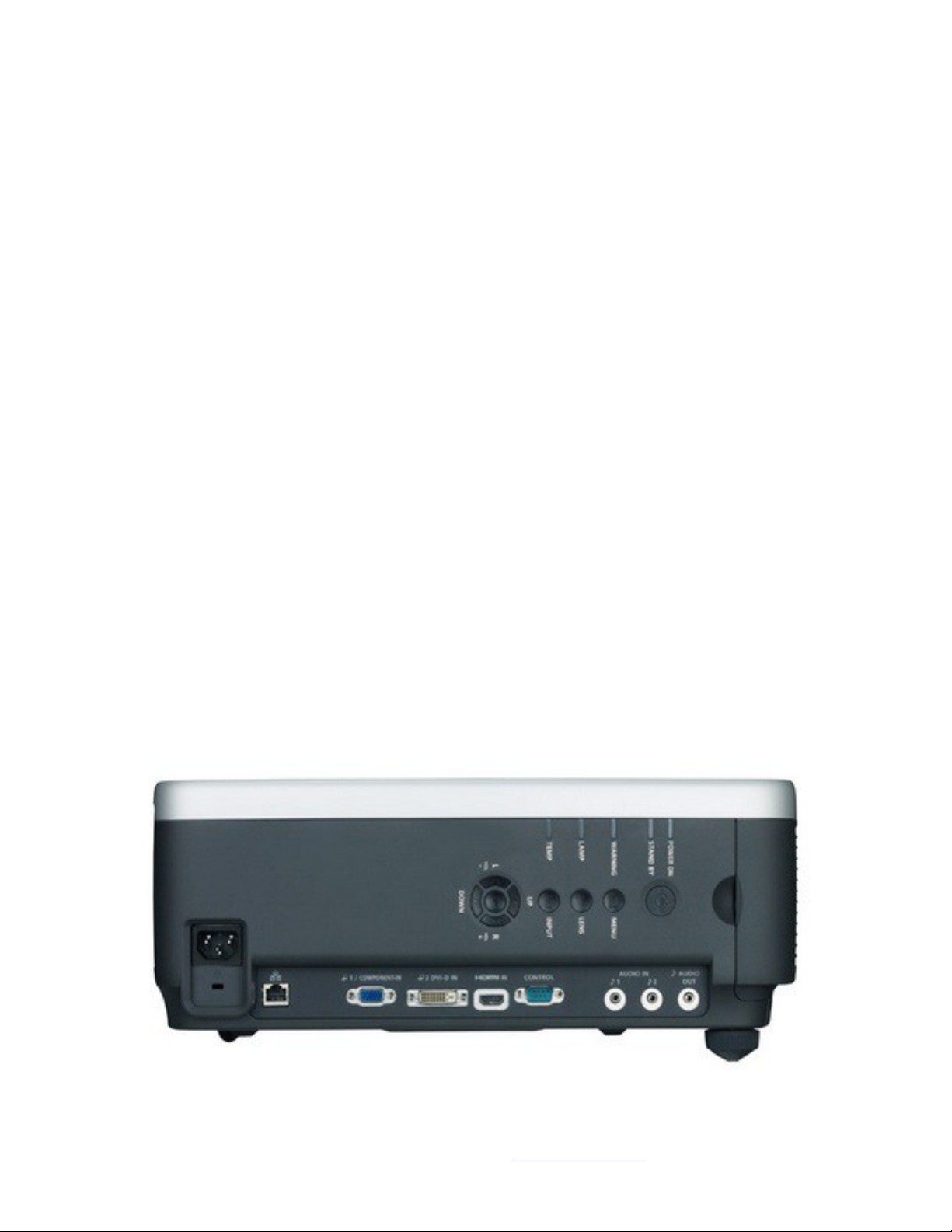

(Fig. ) Control Panel of the WUX4000

OmniFocus 200 Series Installation and Operation Guide

4. The graphics card of your computer should detect the projector. Adjust desktop settings

to enable the second monitor (extended displays mode). efault resolution is 1920 x 1200.

It may be helpful to use either the truncated or fulldome Elumenati alignment image as your

desktop background. Again use desktop settings to change your background making certain

that the image is displayed 1:1 and not stretched or tiled.

5. Once you have a proper signal from the projector, you are ready to proceed to lens in-

stallation. You may turn off the projector at this point if you wish, though it is not neces-

sary.

Lens Installation

1. If you have purchased a 200 Series stand, please assemble it according to the directions

located at the end of this manual. If you are not using the stand, place the projector on a

flat, sturdy surface to allow mounting of the lens.

2. The lens is secured using a magnetic bayonet mount.

●Remove the small lens cap on the projector side of the lens.

●Insert the lens into the mount and rotate until the magnets engage (Fig. 4).

●If using the folded lens (30210) ensure that the pins on the lens align with the grooves

in the mount (Fig. 5).

3. You are now ready for first light.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

(Fig. 4) Magnetic mount (Fig. 5) Note groove for folded lense at top of

mount

OmniFocus 200 Series Installation and Operation Guide

First Light

1. Turn on projector.

2. Remove the large lens cap by pulling it off. Do not attempt to unscrew the lens cap.

●Take care not to scratch the fisheye element/lens while removing and replacing cap.

3. You should see the projector startup screen.

4. Adjust focus using either the projector control panel or remote control. (Fig. 3 above)

●Focus to “good enough”. Final focus is done after setup is complete.

●For fine Focus and Zoom adjustments use the left and right arrow keys.

Projector Settings Adjustment

With the 200 Series, the stock lens not only has Focus and Zoom adjustment but also Lens

Shift. This added capability allows optimization of the projected image. The system is

already delivered in a nearly optimal state so any adjustments to be made will be minor.

1. Use the projector remote control or control panel to make any needed adjustments. The

following images show the projector nominal isplay and Focus settings for truncated

(180°x112°) projection mode as well as the nominal Zoom and Lens Shift settings.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

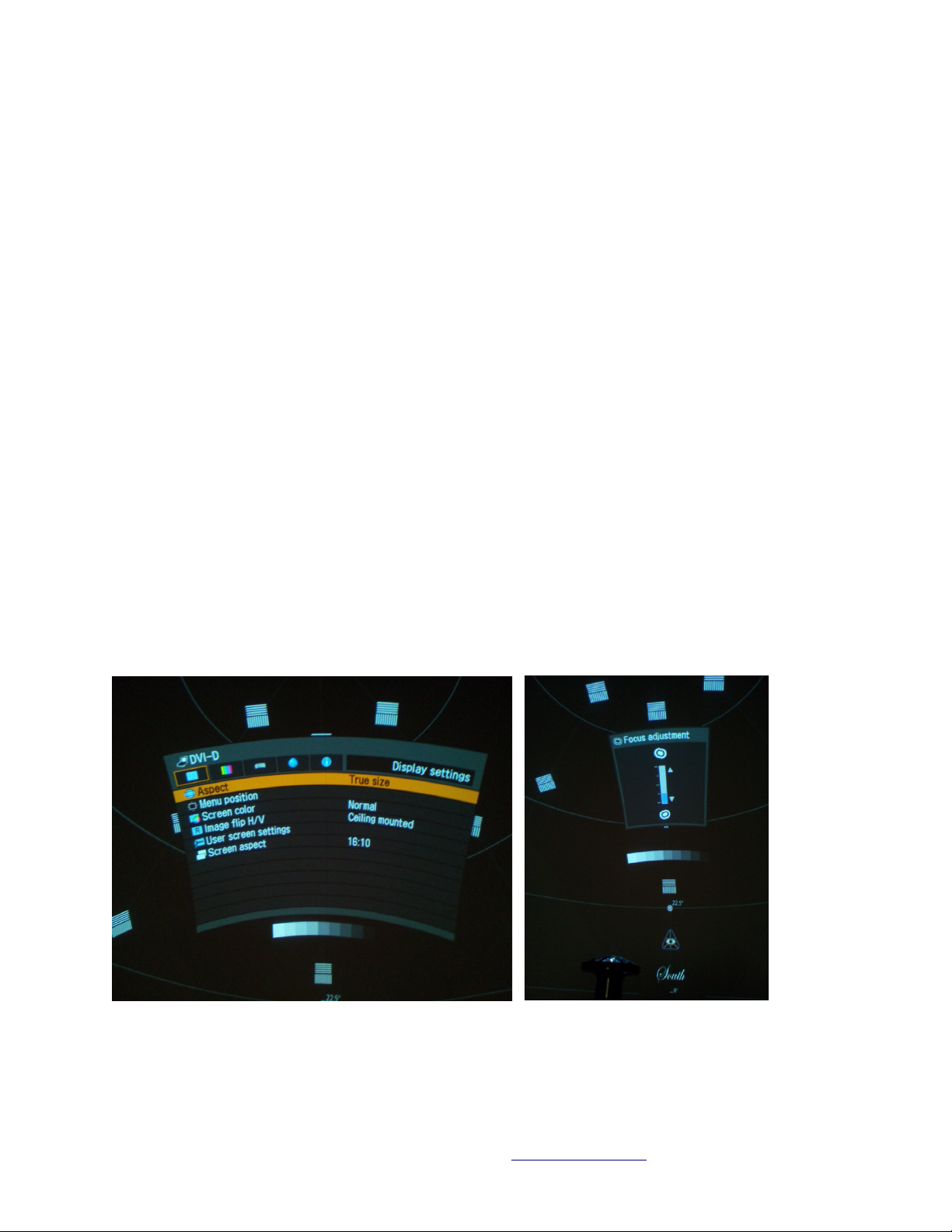

(Fig. 6) Nominal Display and Focus settings for truncated projection.

OmniFocus 200 Series Installation and Operation Guide

2. Zoom and Lens Shift are interdependent, they must be adjusted together. It is best to

use the Elumenati supplied alignment pattern described above during these adjustments.

●For Truncated projection

•Adjust Zoom to its narrowest setting (Fig. 7).

•Then adjust the physical height of the projector so that the outer circle of the align-

ment pattern (Fig. 8) runs the extent of and is parrallel to the screen edge.

●For Fulldome projection

•Adjust Zoom to the desired setting. The fulldome projection angle is continuously

variable from 112° to 165°.

•Adjust vertical Lens Shift so that the cross at the center of the concentric circles is

projected directly out of the optical axis.

•Then adjust the physical height of the projector so that the outer circle of the align-

ment pattern (Fig. 8) runs the extent of and is parrallel to the screen edge.

●Use Lens Shift to make final minor adjustments to the alignment.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

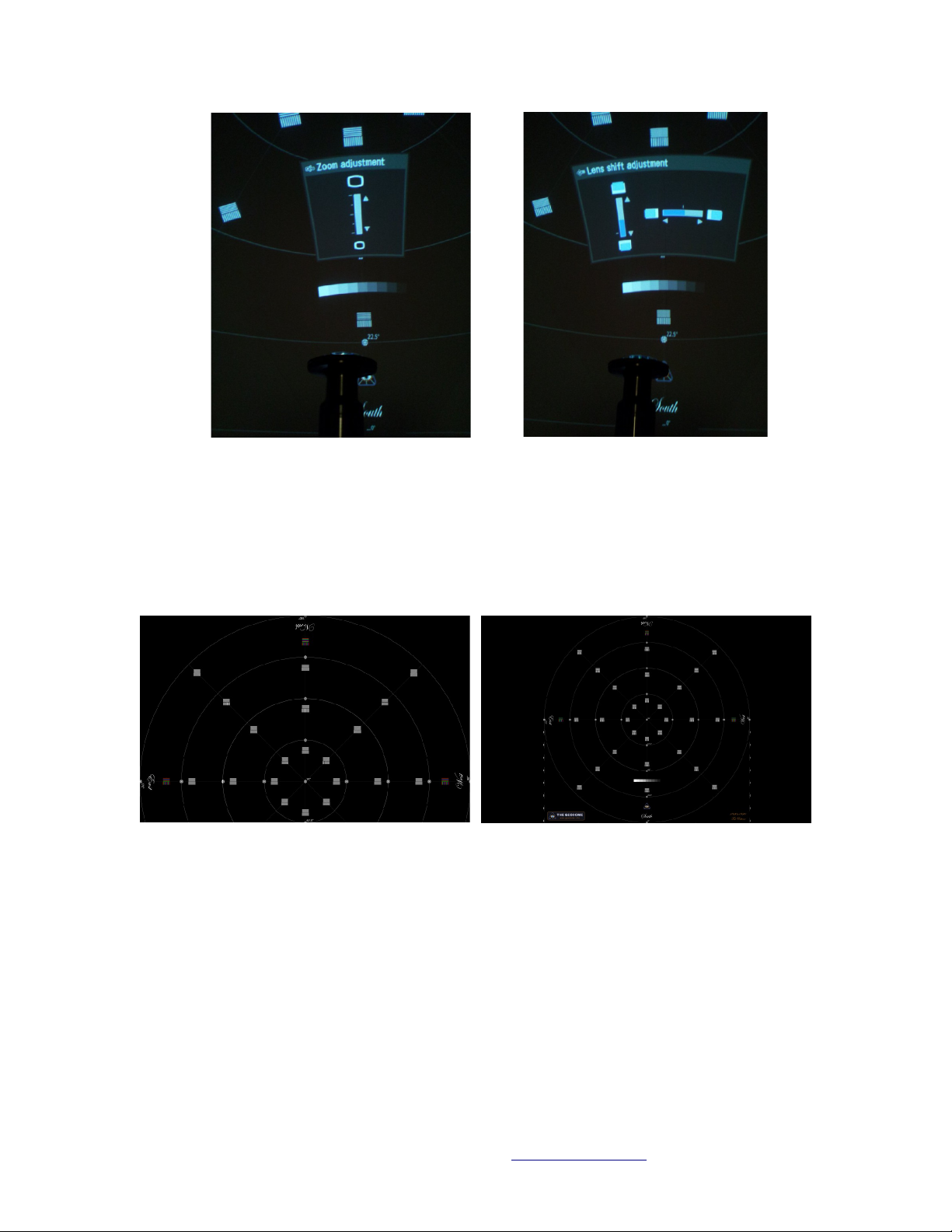

(Fig. 7) Nominal Zoom and Lens Shift settings for truncated projection.

(Fig. 8) Truncated (left) and Fulldome alignment patterns. Outer circle aligns with

dome edge (springline) and center cross projects through the lens optical axis.

OmniFocus 200 Series Installation and Operation Guide

Stand Assembly (Optional)

The stand is shipped collapsed flat.

1. Loosen the tilt knobs and raise the vertical section to 90°. Tighten the knobs.

2. Loosen the 6 bolts that join the vertical section to the base (3 on either side) and slide

the vertical section in about 1/3 of the base length. Tighten the bolts. Your stand should

resemble the image in Fig. 9.

3. The extruded aluminum framing on the 200 Series project allows for multiple mounting

options. 1/4”-20 bolts and t-nuts are provided for mounting using the 90° brackets as

desired.

●Option 1: Use the mounting plate and carriage bolt arrangement for maximum height

adjustment (up to 9”).

●Option 2: With no mounting plate there is still about 3” of height adjustment.

●Option 3: The easiest to assemble but with a fixed height setting.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

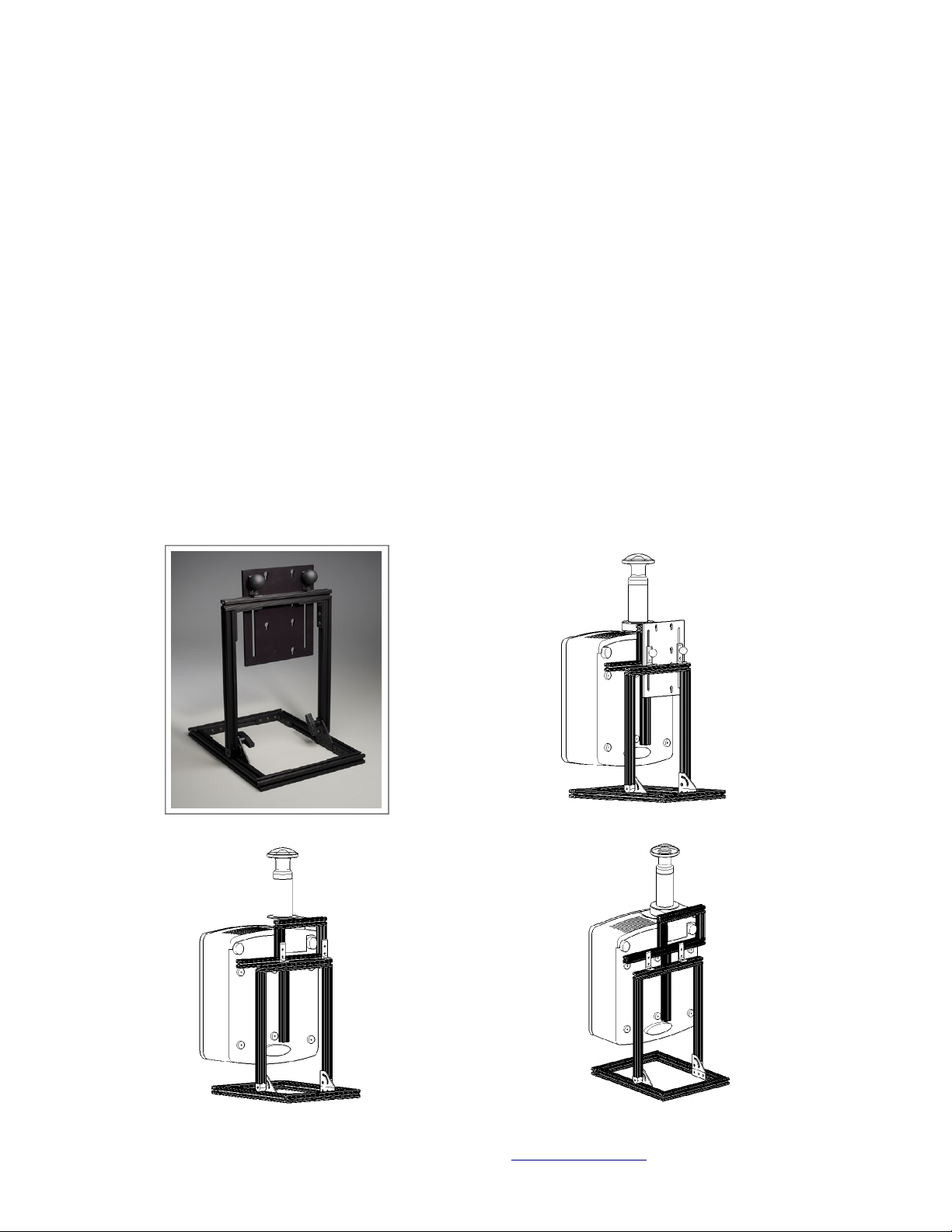

(Fig. 9) Fully Assembled Stand (Option 1) 9” height adjustment

(Option 2) " height adjustment (Option ) Easiest mounting

OmniFocus 200 Series Installation and Operation Guide

200 Series Information

This section contains product specifications, troubleshooting tips, and support information.

Maintenance

Lens Care

The bright light of the projector exaggerates the amount of dust on the lens surface. ust

has very little effect on picture quality and can be blown off or wiped away with a cloth. We

recommend cleaning the lens ONLY if there are fingerprints or similar on the lens.

To clean:

1. Use a soft lint-free lens tissue or cotton cloth.

2. The Elumenati recommend PUROSOL™ Optical Cleaner from Edmund Optics; however,

any high-quality camera optics cleaning fluid will work. Do not use acetone-based

solvents.

●Tip: In an emergency, Windex™ and a soft cotton t-shirt will work, but be careful!

3. Apply the cleaning fluid directly onto the tissue until moistened. Wipe gently until the lens

is clean. To avoid scratching the lens, make sure that the tissue is always moist and do not

scrub with excessive force.

4. When the lens is clean, finish with a light-pressure, single sweep across the surface of the

lens using a drier portion of the tissue. iscard the tissue after every use.

Troubleshooting

Product Support

Please contact us with your questions via email at support@elumenati.com or phone at 1-

888-384-3826, extension 2.

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

OmniFocus 200 Series Installation and Operation Guide

200 Series Product

Specifications

OMNIFOCUS PROJECTION

• Infinite depth of focus

• Optimized pixel placement

• Zoom adjustable from 180° x 112° to 165° fulldome

projection


• 4000 ANSI lumens

• 88% brightness uniformity across the screen

• Contrast ratio: variable, 1000:1

ISPLAY TECHNOLOGY AN RESOLUTION

• 0.7” reflective LC panels (LCoS) x 3

• 1920 x 1200 pixels

• Pixel fill factor >90%, significantly improving “screen

door” effect over LP

INPUT SIGNAL COMPATIBILITY

• Analog PC: VGA through WUXGA (1920 x 1200)

• igital PC:

◦ VI through WUXGA (1920 x 1200)

◦ H MI through WUXGA (1920 x 1200)

INPUTS, CONTROL, & NETWORKING

• VI- (24 pin): igital PC / Analog PC / igital Video

• H MI

• Mini -Sub 15 pin: Analog PC / Component / SCART

• Stereo mini jack: Stereo audio input

• Wireless IR remote control and built-in keypad

• Mouse Control Receiver (USB)

• RS-232C Control Terminal

• Optional LAN Adaptor

IMENSIONS

• Weight: 22.0 lbs / 10.0 kg

• Size: 680 mm L x 392 mm W x 184 mm H

LAMP

• 300W NSHA lamp

• Lamp life: 1500 hours (normal); 2000 hours (quiet)

POWER REQUIREMENTS

• Line voltage 100-240 VAC ± 10% @ 50/60 HZ

• Power consumption: 410W / 365W / 1.7W

(normal / quiet / standby)

STAN AR ACCESSORIES

• Shipping case

• Line cord

• Wireless remote unit

• User manual

• Computer cable

• Omnimap Software API

OPTIONAL ACCESSORIES

• Projector stand

• Folded lens ccnfiguration

OPERATING ENVIRONMENT

• Operating temp: 41˚ to 95˚ F (5˚ to 35˚ C)

• Storage temp: -22˚ to 140˚ F (-30˚ to 60˚ C)

• Storage humidity: 5% - 90%

• Audible noise: 39/36dB (normal/quiet mode)

LIMITE WARRANTY

• 1 year parts and labor

• Lamp: 120 days or 500 hrs, whichever comes first

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

OmniFocus 200 Series Installation and Operation Guide

Immersive Projection esign - www.elumenati.com

Elumenati, Geo ome OmniFocus and OmniMap are all trademarks of The Elumenati LLC.

(Fig. 11) 0200 straight lens minimizes interference in traditional

planetarium installations.

(Fig. 12) 0210 features a folded lens minimizing the overall fm factor.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
