Elsner Suntracer KNX-GPS Guía

Item number 3093

Suntracer KNX-GPS

Weather Station

Installation and Adjustment

1 Contents

Elsner Elektronik GmbH • Sohlengrund 16 • D-75395 Ostelsheim • Germany

Weather Station Suntracer KNX-GPS • from software version 1.00, ETS programme version 1.0

Status: 05.06.2018 • Subject to technical changes. Errors excepted.

1. Description ........................................................................................... 5

1.1. Technical data ........................................................................................................... 5

2. Installation and commissioning ........................................................... 7

2.1. Installation notes ...................................................................................................... 7

2.1.1. Installation position ...................................................................................... 7

2.2. Mounting the weather station ................................................................................. 9

2.2.1. Attaching the mount ..................................................................................... 9

2.2.2. Rear view and drill sketch .......................................................................... 10

2.2.3. Weather station layout ............................................................................... 11

2.2.4. Connection of the weather station ............................................................ 12

2.2.5. Layout of the circuit board ......................................................................... 13

2.2.6. Mounting the weather station ................................................................... 13

2.3. Notes on mounting and commissioning .............................................................. 14

3. Maintenance ....................................................................................... 15

4. Transmission protocol ....................................................................... 16

4.1. List of all communications objects ....................................................................... 16

5. Parameter setting .............................................................................. 25

5.1. Behaviour on power failure and restoration of power ........................................ 25

5.2. General settings ..................................................................................................... 25

5.3. GPS Settings ........................................................................................................... 26

5.4. Location ................................................................................................................... 27

5.5. Rain .......................................................................................................................... 28

5.6. Night ........................................................................................................................ 29

5.7. Temperature ........................................................................................................... 29

5.7.1. Temperature threshold value 1 / 2 / 3 / 4 .................................................. 30

5.8. Wind ........................................................................................................................ 31

5.8.1. Wind threshold value 1 / 2 / 3 .................................................................... 32

5.9. Brightness ............................................................................................................... 34

5.9.1. Brightness threshold value 1 / 2 / 3 / 4 ...................................................... 34

5.10.Twilight ................................................................................................................... 37

5.10.1. Twilight threshold value 1 / 2 / 3 ................................................................ 37

5.11.Shading ................................................................................................................... 39

5.11.1. Classifying the facades for the control unit .............................................. 39

5.12.Shade settings ........................................................................................................ 40

5.13.Facade settings ...................................................................................................... 41

5.13.1. Shadow edge tracking ................................................................................ 44

5.13.2. Slat tracking ................................................................................................. 45

5.13.3. Shadow edge tracking and slat tracking ................................................... 45

5.13.4. Orientation and inclination of the facade ................................................. 47

5.13.5. Slat types and determination of width and distance ............................... 47

5.13.6. Slat position with horizontal slats ............................................................. 48

5.13.7. Slat position with vertical slats .................................................................. 49

5.14.Facade actions ........................................................................................................ 51

5.15.Calendar time switch ............................................................................................. 54

2 Contents

Elsner Elektronik GmbH • Sohlengrund 16 • D-75395 Ostelsheim • Germany

Weather Station Suntracer KNX-GPS • from software version 1.00, ETS programme version 1.0

Status: 05.06.2018 • Subject to technical changes. Errors excepted.

5.15.1. Calendar clock Period 1 / 2 / 3 .................................................................... 54

5.15.2. Calendar clock period 1 / 2 / 3, Sequence 1 /2 .......................................... 54

5.16.Weekly time switch ................................................................................................ 55

5.16.1. Weekly clock Mo, Tu, We, Th, Fr, Sa, Su 1 … 4 ........................................ 55

5.16.2. Use of weekly clock .................................................................................... 55

5.17.Logic ........................................................................................................................ 56

5.17.1. AND Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 .............................................................. 56

5.17.2. Use of the AND logic .................................................................................. 58

5.17.3. Connection inputs of the AND logic .......................................................... 58

5.17.4. OR Logic ...................................................................................................... 62

5.17.5. Connection inputs of the OR logic ............................................................. 62

3 Clarification of signs

This manual is amended periodically and will be brought into line with new software

releases. The change status (software version and date) can be found in the contents footer.

If you have a device with a later software version, please check

www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to-

date version of the manual is available.

Clarification of signs used in this manual

Installation, inspection, commissioning and troubleshooting of the device

must only be carried out by a competent electrician.

Safety advice.

Safety advice for working on electrical connections, components,

etc.

DANGER! ... indicates an immediately hazardous situation which will lead to

death or severe injuries if it is not avoided.

WARNING! ... indicates a potentially hazardous situation which may lead to

death or severe injuries if it is not avoided.

CAUTION! ... indicates a potentially hazardous situation which may lead to

trivial or minor injuries if it is not avoided.

ATTENTION! ... indicates a situation which may lead to damage to property if it is

not avoided.

ETS In the ETS tables, the parameter default settings are marked by

underlining.

4 Clarification of signs

5 Description

Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

1. Description

The Weather Station Suntracer KNX-GPS measures temperature, wind speed and

brightness. It recognises precipitation and receives the GPS signal for time and loca-

tion. In addition, using location coordinates and the time, it calculates the exact posi-

tion of the sun (azimuth and elevation).

All values can be used for the control of threshold value-dependent switching outputs.

States can be linked via AND logic gates and OR logic gates. The compact housing of

the Suntracer KNX-GPS accommodates the sensors, evaluation circuits and bus-

coupling electronics.

Functions:

•Brightness and position of the sun: The current light intensity is measured

by a sensor. In addition the Suntracer KNX-GPS calculates the position of the

sun (azimuth and elevation) using time and location

•Shade control for up to 6 facades with slat and shadow edge tracking

•Wind measurement: The wind strength measurement takes place

electronically and thus noiselessly and reliably, even during hail, snow and

sub-zero temperatures. Even turbulent air and anabatic winds in the vicinity of

the weather station are recorded

•Precipitation recognition: The sensor surface is heated, so that only drops

and flakes are recognised as precipitation, but not mist or dew. When the rain

or snow stops, the sensor is soon dry again and the precipitation warning ends

•Temperature measurement

•Weekly and calendar time switch: The weather station receives the time

and date from the integrated GPS receiver. The weekly time switch switches up

to 4 different periods per day. With the calendar time switch up to 3 additional

time periods can be defined, in which up to 2 On/Off switches take place. The

switching outputs can be used as communications objects. The switch times

are set via parameters.

•Threshold values can be adjusted per parameter or via communication

objects

•8 AND and 8 OR logic gates with 4 for each input. All switching events as

well as 16 logic inputs (in the form of communications objects) can be used as

inputs for the logic gates. The output of each gate can be optionally configured

as 1-bit or 2 x 8-bit

Configuration is made using the KNX software ETS. The product file can be down-

loaded from the Elsner Elektronik website on www.elsner-elektronik.de in the “Ser-

vice” menu.

1.1. Technical data

Housing Plastic

Colour White / Translucent

Mounting Surface-mounted

Protection rating IP 44

6 Description

Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

The product conforms with the provisions of EU directives.

Dimensions approx. 96 × 77 × 118 (W × H × D, mm)

Weight approx. 170 g

Ambient temperature Operation -30…+50°C, storage -30…+70°C

Auxiliary voltage 12…40 V DC, 12…28 V AC.

An appropriate power supply unit can be obtained from

Elsner Elektronik.

Auxiliary current max. 185 mA at 12 V DC,

max. 81 mA at 24 V DC,

Residual ripple 10%

Bus current max. 8 mA

Data output KNX +/- Bus connector terminal

BCU Type own microcontroller

PEI Type 0

Group addresses max. 254

Assignments max. 255

Communication objects 254

Heater rain sensor approx. 1,2 W

Measurement range tem-

perature

-30…+80°C

Resolution (temperature) 0,1°C

Accuracy (temperature) ±1°C at -10…+85°C,

±1,5°C at -25…+150°C

Measurement range wind 0…35 m/s

Resolution (wind) 0,1 m/s

Accuracy (wind) at ambient temperature -20…+50°C:

±22% of the measurement value when incident flow is

from 45…315°

±15% of the measurement value when incident flow is

from 90…270°

(Frontal incident flow corresponds to 180°)

Measurement range

brightness

0…150.000 Lux

Resolution (brightness) 1 Lux at 0…120 Lux

2 Lux at 121…1.046 Lux

63 Lux at 1.047…52.363 Lux

423 Lux at 52.364…150.000 Lux

Accuracy (brightness) ±20% at 0 lx … 10 klx

±15% at 10 klx … 150 klx

7 Installation and commissioning

Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

2. Installation and commissioning

2.1. Installation notes

Installation, testing, operational start-up and troubleshooting should

only be performed by an electrician.

CAUTION!

Live voltage!

There are unprotected live components inside the device.

• National legal regulations are to be followed.

• Ensure that all lines to be assembled are free of voltage and take

precautions against accidental switching on.

• Do not use the device if it is damaged.

• Take the device or system out of service and secure it against

unintentional use, if it can be assumed, that risk-free operation is no

longer guaranteed.

The device is only to be used for its intended purpose. Any improper modification or

failure to follow the operating instructions voids any and all warranty and guarantee

claims.

After unpacking the device, check it immediately for possible mechanical damage. If it

has been damaged in transport, inform the supplier immediately.

The device may only be used as a fixed-site installation; that means only when assem-

bled and after conclusion of all installation and operational start-up tasks and only in

the surroundings designated for it.

Elsner Elektronik is not liable for any changes in norms and standards which may occur

after publication of these operating instructions.

2.1.1. Installation position

Choose an installation position in the building where wind, rain and sun can be meas-

ured unhindered by the sensors. The weather station must not be installed underneath

any structural parts from which water can still drip onto the rain sensor after it has

stopped raining or snowing. The weather station must not be shaded by anything,

such as building structures or trees.

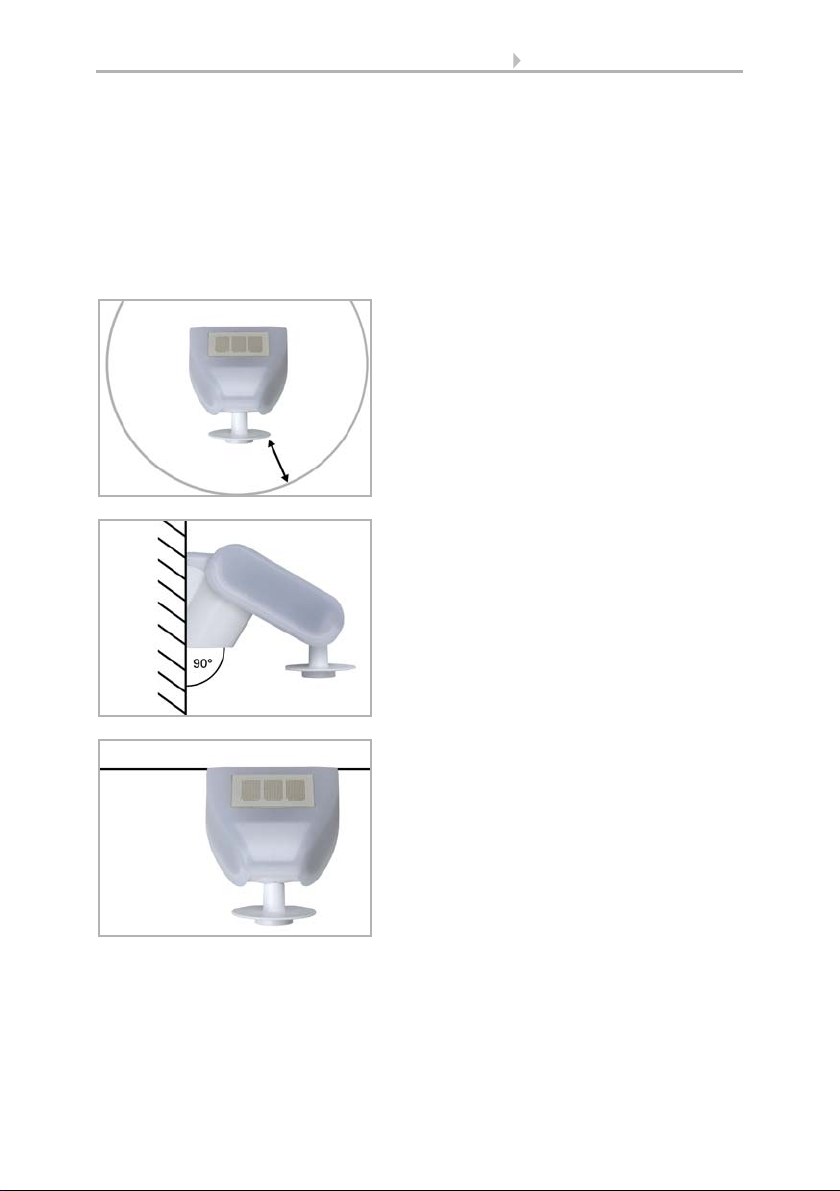

At least 60 cm of clearance must be left all round the weather station. This facilitates

correct wind speed measurement without eddies. The distance concurrently prevents

spray (raindrops hitting the device) or snow (snow penetration) from impairing the

measurement. It also does not allow birds to bite it.

Please take note that an extended awning does not shade the device from sun and

wind.

8 Installation and commissioning

Weather Station Suntracer KNX-GPS • Status: 05.06.2018 • Errors excepted. Subject to technical changes.

Temperature measurements can also be affected by external influences such as by

warming or cooling of the building structure on which the sensor is mounted, (sun-

light, heating or cold water pipes). Temperature variations from such sources of inter-

ference must be corrected in the ETS in order to ensure the specified accuracy of the

sensor (temperature offset).

Magnetic fields, transmitters and interfering fields from electricity consumers (e.g. flu-

orescent lamps, neon signs, switched-mode power supplies etc.) can interfere with or

even cut out reception of the GPS signal.

Fig. 1

There must be at least 60 cm of space below,

to the sides and in front of the weather station

left from other elements (structures, con-

struction parts, etc.).

60 cm

Fig. 2

The weather station must be mounted on a

vertical wall (or a pole).

Wall

pole

Fig. 3

The weather station must be mounted in the

horizontal transverse direction (horizontally).

Horizontal

Otros manuales para Suntracer KNX-GPS

Tabla de contenidos

Otros manuales de Estación meteorológica de Elsner

Elsner

Elsner Suntracer KNX basic Guía

Elsner

Elsner Suntracer KNX-GPS Manual de usuario

Elsner

Elsner Suntracer KNX sl Guía

Elsner

Elsner P03/3 Manual de usuario

Elsner

Elsner P03 3 Manual de usuario

Elsner

Elsner Suntracer KNX basic Guía

Elsner

Elsner Suntracer KNX basic Series Manual de usuario

Elsner

Elsner Suntracer KNX sl Guía

Elsner

Elsner KNX Suntracer pro Guía

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
