INSTALLATION INSTRUCTIONS:
E953516 KIT-EMV-INGENICO ICMP CRADLE-PAYPOINT
E002639 KIT-EMV-VERIFONE E355 CRADLE-PAYPOINT
Pg.1
QIG600028 Rev. B

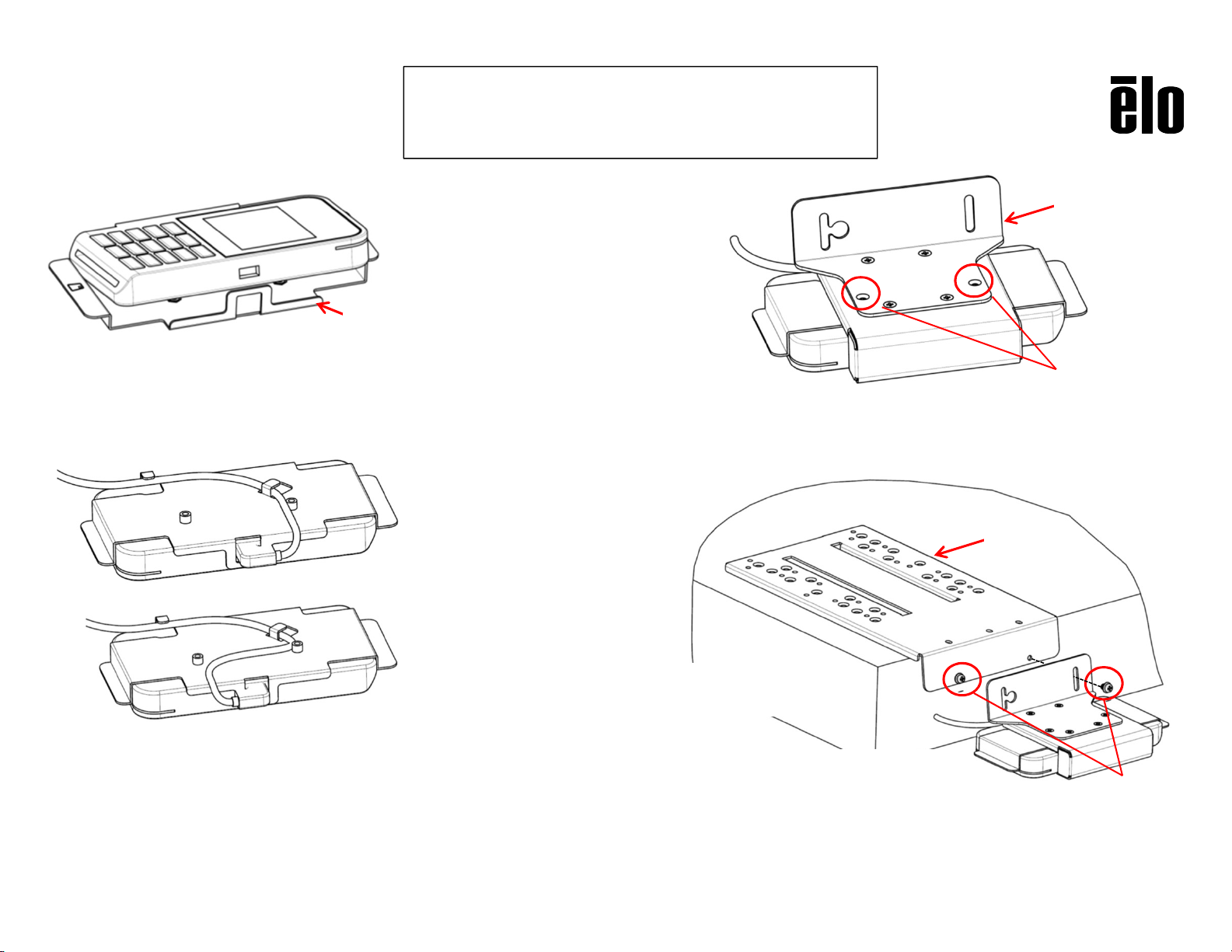

1- Add payment
module to bracket (1)
1
2- Add USB cable, route as shown.
3- Add payment module/bracket (1) to bracket (2)
with 2 screws from bag L.
2
Screws,
X2
INGENICO ICMP
VERIFONE E355
Pg.2
4- Attach payment module assy. to
bracket (3) with 4 screws from bag G. 5- Attach module + bracket (3) using 2
screws from bag K.
Attach module USB cable to computer
accessory port. Use provided USB type A
adapter where needed.
3
INSTALLATION INSTRUCTIONS:
E953516 KIT-EMV-INGENICO ICMP CRADLE-PAYPOINT
E002639 KIT-EMV-VERIFONE E355 CRADLE-PAYPOINT
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02
E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02
Pg.1
1- Add payment
module to bracket (1)
1
2- Add USB cable, route as shown.
10”/15”/22” landscape = short cable.
15”/22” portrait = long cable.
3- Add payment module/bracket (1) to bracket (2)
with 2 screws from bag C.
2
Screws,
X2
For X-series, see pg. 2.
For IDS-series, see pg. 3.
INGENICO ICMP
VERIFONE E355
QIG600028 Rev. B
Pg.2
5- Attach payment module assy. to
bracket (3) with 2 screws from bag D.
(Partially attach L screw first and slide
on module to aid assy.).
USB
4- Attach module USB cable to computer
accessory port.
Attach bracket (3) using 2 screws from bag A.
3
L
X-series
INSTALLATION INSTRUCTIONS:
E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02
E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02
QIG600028 Rev. B
L
Pg.3
8- Remove two existing screws from
IDS back-cover (green circles).
Attach bracket (5) using 2 screws from
bag H.
Add one screw (5b) from bag A.
USB
6- Attach module USB cable to computer
accessory port.
Attach bracket (3) using 2 screws from bag A.
4
IDS-series
INSTALLATION INSTRUCTIONS:
E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02
E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02
5b
7- Attach payment module assy. to
bracket (4) with 2 screws from bag D.
(Partially attach L screw first and slide
on module to aid assy.).
5
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M
E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M
Pg.1
1- Add payment
module to bracket (1)
1
2- Add USB cable, route as shown.
10”/15”/22” landscape = short cable.
15”/22” portrait = long cable.
3- Add payment module/bracket (1) to bracket (2)
with 2 screws from bag C.
2
4- Attach payment module assy. to
bracket (3) with 2 screws from bag D.
(Partially attach L screw first and slide
on module to aid assy.).
Screws,
X2
3
(Use table or box edge
to aid assembly) L
Screws,
X2
INGENICO ICMP
VERIFONE E355
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M
E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M
Pg.2
For display in landscape
orientation, see pg. 3 -
For display in portrait
orientation, see pg. 5 -
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M
E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M
Pg.3
6- Attach needed cables to computer / display
(eg. pwr., video, USB,).
Replace L/R cable doors.
7- Attach module USB cable to
computer accessory port.
4
8- Attach bracket (4) using 2
screws from bag A.
8b- Add bracket (5) to bracket (4)
using 2 screws from bag J.
For models 2002L, 1502L, ESY22i,
ESY15i.
* bracket (5) is not required for
thinner edge product – 1302.
Bracket (5) up = 2002L
Down = ESY22i, ESY15i, 1502L
5
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M
E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M
Pg.4
9- Attach bracket (3) assy. to VESA mount with 2 M4 flat head screws*.
For all systems larger than 15”, attach bracket (6) with 2 M4 flat head
screws* (red arrows).
*Use screws in bag E for 10”/15” systems, bag F for systems larger than 15”.
Attach bracket (3) assy. to bracket (4) or (5) using screw(s) from bag A
(red circles). One screw in mid. hole for ESY15/22i.
Use 4 - M4 threaded holes next to screws in VESA area to mount whole
system to stand / wall bracket (green arrows).
6
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M
E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M
Pg.5
11- Attach bracket (3) assy. to VESA mount with 4 M4 flat
head screws* (red arrows).
*Use screws in bag E for 10”/15” systems, bag F for systems
larger than 15”.
Attach module USB cable to computer accessory port.
Attach bracket (4) using 2 screws from bag A.
(red circles).
Use 4 - M4 threaded holes next to screws in VESA area to
mount whole system to stand / wall bracket (green arrows).
10- Attach needed cables to computer /
display (eg. pwr., video, USB,).
Replace L/R cable doors.
4
USB
QIG600028 Rev. B
