ELNA Lotus Manual de usuario

The new Elna Lotus combines maximum

sewing pleasure and minimum fuss. With

sturdy aps that help protect the machine

and create a handy, generous sewing

table, it is the ultimate all-in-one sewing

machine.

From the integrated pop-up spool pin at

the head of the machine to the automatic

thread cutter, integrated needle threader

and accessory storage, the compact and

streamlined design aids practicality and

portability. Our nishing touch was to

place the needle bar in a unique position

in the centre of the machine to give you

much more room to move and manoeuvre

your fabric.

Simplicity and ease-of-use: that’s the

Lotus spirit.

HAPPY SEWING!

THE LOTUS SPIRIT

Compact. Simple. Enjoyable.

A compact machine with a unique

design: the original Elna Lotus from

1968 is in the collection of The

Museum of Modern Art (MoMA) in

New York.

The Lotus was Elna’s best selling

machine of all time and a worldwide

success: over one million machines

were sold.

ELNA LOTUS

AT MoMA

READY, STEADY, SEW!

Sewing fans will love the fact that they can always have their Elna Lotus to hand. Thanks to

its ‘carry-case’ concept and folding aps that open with the ick of a lever, you’ll always be

ready to sew on the go.

THE ESSENTIALS.

NOTHING MORE,

NOTHING LESS.

SIMPLER SEWING FOR THOSE

WHO SIMPLY LOVE TO SEW.

18 stitches selected for their sewing suitability. We’ve combined utility stitches with

decorative stitches to create a range of effects, from patchwork, quilting, buttonholes

and darning to appliqué and embellishments. Simply switch stitches at the touch of

a button! Utility stitches include straight stitch, stretch, zigzag and super overlock.

Decorative stitches encompass patchwork and bridging stitch and scallop edges. You’ll

also make use of the classic square and classic keyhole buttonholes as well as the

darning stitch. You’ll have the condence to give your sewing a professional nish.

The Lotus comes with a comprehensive instruction manual, which provides a complete

list of stitches, their uses and instructions.

THE ‘ALL-IN-ONE’

SEWING MACHINE

Comfortable, easy sewing with a host of professional features.

Slow opening /

cloSing flapS

carrying handle

integrated bobbin Spool pin

for permanent threading

centraliSed

needle bar

flapS removed

= free arm

built-in automatic

needle threader

flapS opened = extra-wide Sewing area

integrated

acceSSory Storage

automatic

thread-cutter

integrated

acceSSory

drawer

POPS UP… AND AWAY!

The bobbin spool pin springs up and pops

back in, making it easy to change thread

spools of any size. A spool neatly integrated

into the machine contributes to the Lotus’

sleek design and also ensures it cannot be

damaged or snapped during transport.

INTEGRATED

BOBBIN SPOOL

FOR PERMANENT

THREADING

MORE SPACE,

MORE STABILITY.

Whether it’s a heavy pair of curtains, a bulky patchwork project

or delicate, slippery material, the centralised needle bar gives you

plenty of room to move and manoeuvre your fabric. Space to hold

the cloth in place with both hands makes for stable sewing and

slicker results.

CENTRALISED

NEEDLE BAR

READY TO SEW IN AN INSTANT.

A handy needle threader puts an end to ddly threading. You can get started with no fuss

or quickly change threads as you sew.

BUILT-IN AUTOMATIC

NEEDLE THREADER

THE SCHOOL OF SWISS FINISHING.

Start and nish your sewing with seamless results. Five handy buttons bring perfection

to your project. ‘Start/Stop’ gets you going without the foot pedal. ‘Reverse Stitch’ adds

strength with some nifty backstitching. ‘Autolock’ creates an end knot after nishing the

stitch design. The ‘Up/Down needle position’ allows you to halt the needle in the fabric or

in the ‘up’ position, whilst the ‘Thread Cutter’ button swiftly snips away remaining thread

for a awless nish.

PUSH BUTTONS:

THREAD CUTTER,

NEEDLE POSITION,

AUTOLOCK,

REVERSE,

START & STOP

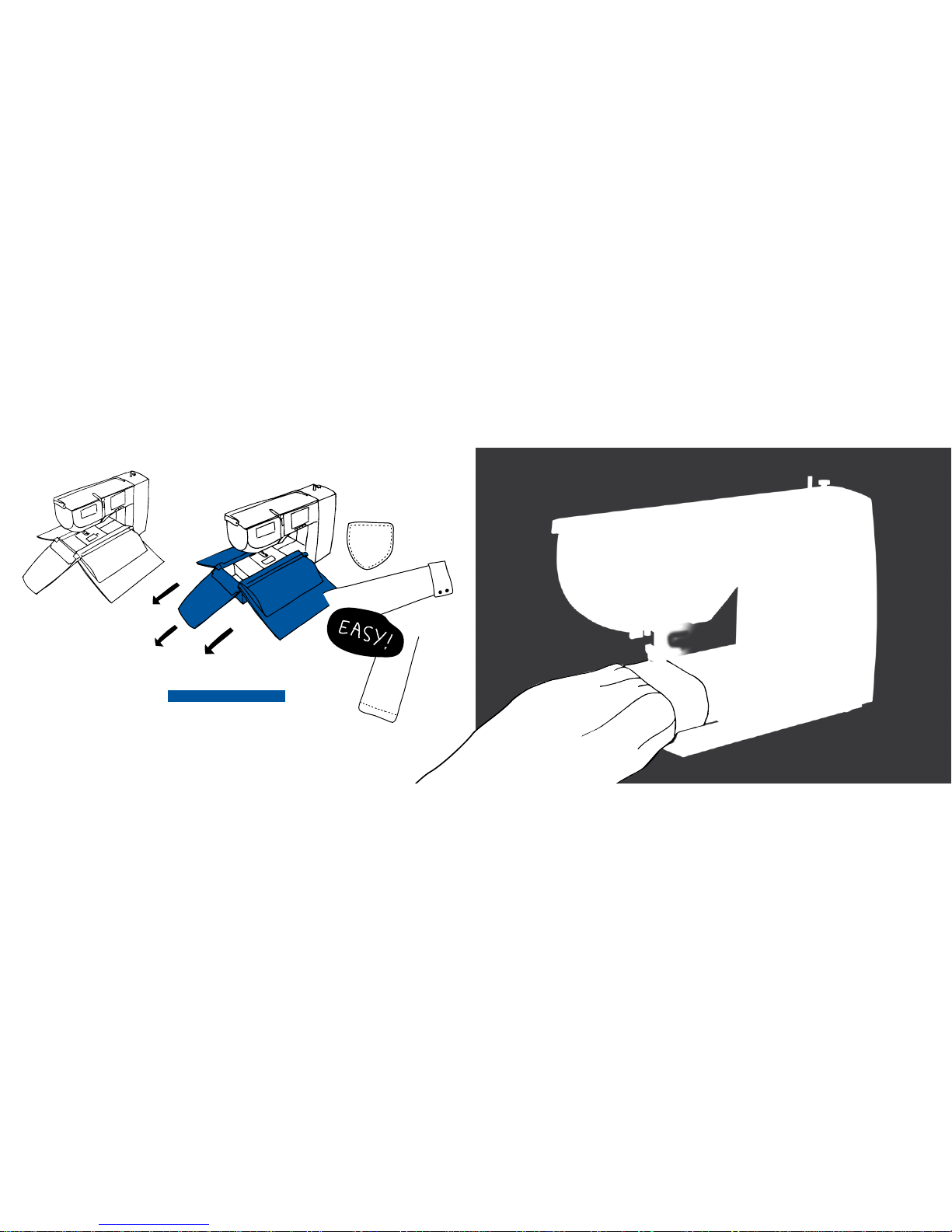

DELIGHT IN THE DETAILS!

Pockets, sleeves, trouser legs, cuffs and

darning: the protective lower aps slide

away to reveal the rounded, shaped free

arm. The free arm is particularly useful

when sewing tubular items, smaller

projects and repairs. Tricky just got easy.

FREE

ARM

A PRIME EXAMPLE

OF SWISS DESIGN.

Everything in its place and a place for everything. Open the

top cover ap and you will nd a storage area for the machine

essentials (needles, sewing feet, buttonhole foot, instruction

chart, etc). Slide open the grip front ap to reveal the accessory

drawer for items that are useful to have close at hand: bobbins,

lint brush, spool holder, screwdriver and seam ripper.

Seam Ripper

Screwdriver

Lint brush

Bobbins

Spool holders

DUAL

ACCESSORY

STORAGE

FE ATU RES

Computerized model

Horizontal rotary hook with transparent

bobbin cover

Free arm

Body dimensions: W 426 mm / H 298 mm /

D 155 mm

Free arm dimensions: L 162.5 mm /

H 110 mm

Start with foot controller or Start/Stop key

Speed control up to 700 stitches/min. with

the Start/Stop key

Speed control up to 820 stitches/min. with

the foot controller

Vertical spool pin with Pop-up system

Automatic thread cutter

Two accessory storage areas – top cover

and drawer

Integrated sewing table, made by the aps

LCD screen: W 62 mm / H 27 mm

Two white LED lamps

ACCESSORIES

4 bobbins

Assorted needle set

Screwdriver

Seam ripper

Lint brush

Spool holder (large)

Spool holder (small)

Zigzag foot A

Zipper foot E

Blind hem foot G

Satin stitch foot F

Rolled hem foot D

Automatic buttonhole foot R

Power supply cable

Foot controller

Instruction manual

Foot control and power supply cable case

TECHNICAL FEATURES

18 stitches

Two one-step buttonholes

Maximum stitch width: 7 mm

Maximum stitch length: 5 mm

Direct stitch selection on the touch screen

Automatic needle threader

Start/Stop key

Reverse stitch key

Autolock key

Needle Up/Down key

Automatic thread cutter key

Automatic bobbin-winding with automatic

declutch system

Manual thread tension control

Extra-high pressure foot lift

Drop feed dog

Clip-on presser feet

Metallic shuttle hook

Thread cutter on the machine head

Flaps release lever

STITCHES PANEL

TECHNICAL SHEET
