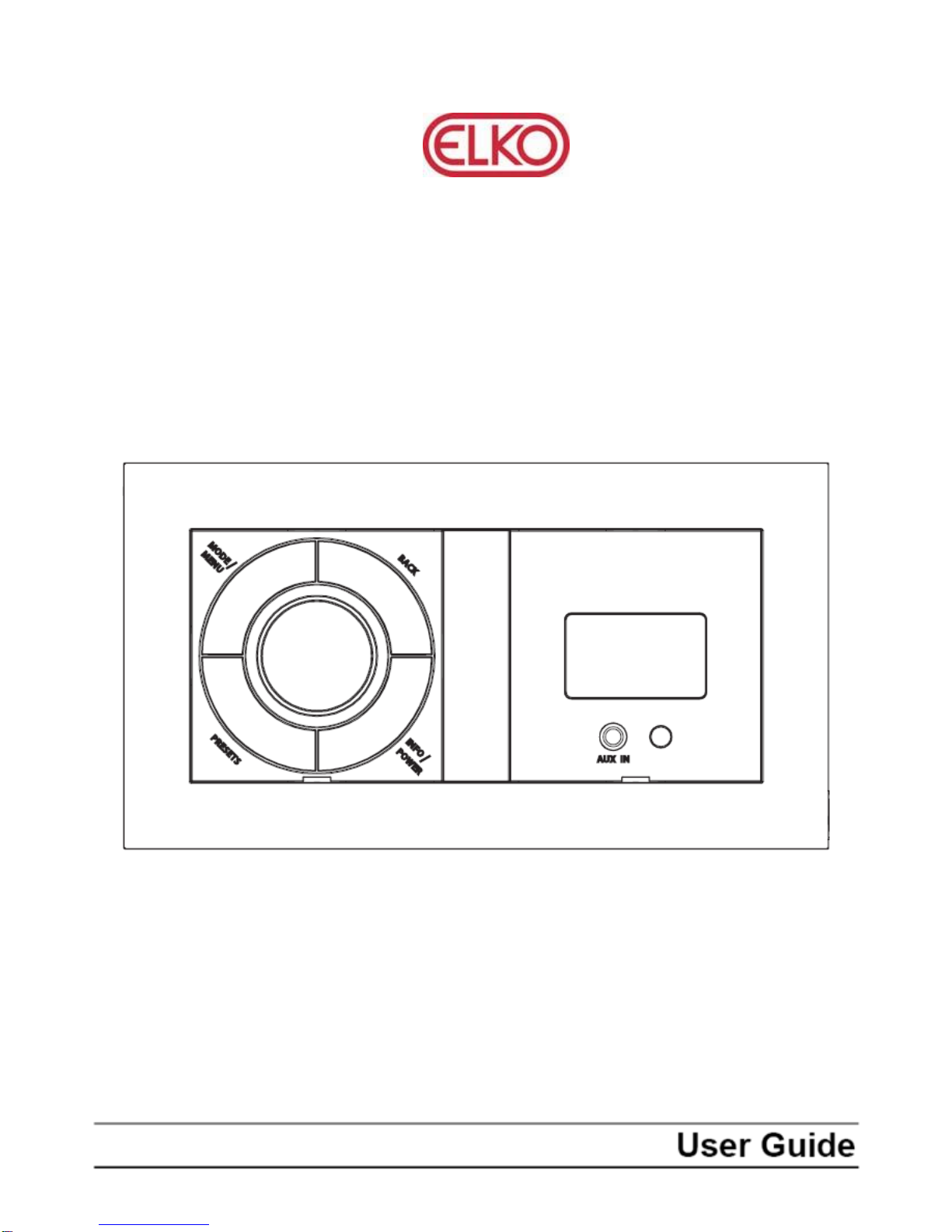

Elko Penbex Manual de usuario

I n t e r n e t , D A B / D A B + a n d F M R a d i o

Safety Information

9. Do not defeat the safety purpose of the polarized

or grounding - type plug. a polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus. If the power cord is damaged, it

must be repaired by a qualified repairer.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod, bracket or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

15. The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

16. The mains plug or an appliance coupler is used as

the disconnect device, the disconnect device shall

remain readily operable.

17. Please read Rating Labels at the back of the unit

for power input and other safety information.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electrical shock, fire, etc.:

1. Read these instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth. For stubborn stains, use

a soft cloth dampened with a weak solution of mild

detergent and water. Dry the apparatus

immediately afterwards with a clean cloth. Do not

use abrasive clothes, thinners, alcohol, or other

chemical solvents, because they may damage the

finish or remove the panel lettering.

7.Do not block any ventilation openings. The

ventilation shall not be impeded by covering the

ventilation openings with items, such as

newspapers, table clothes, curtains, etc.

8.Do not install near any heat source such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

Contents

Safety Information................................................................................................................................................................2

Contents................................................................................................................................................................................3

Package Contents............................................................................................................................................................. 5

Unit Overview.................................................................................................................................................................. 5

Remote Contorl overview................................................................................................................................................ 6

Internet Radio Quick Start Guide.........................................................................................................................................7

What you need before you can use your Internet Radio.................................................................................................. 7

Chapter 1 Internet Radio Mode.........................................................................................................................................8

1.1 Turning on............................................................................................................................................................... 8

1.2 Setup Wizard........................................................................................................................................................... 8

1.3 Access to Wireless Network ................................................................................................................................... 9

1.4 Local Stations.......................................................................................................................................................... 9

1.5 Choose a Station.................................................................................................................................................... 10

1.6 Select a Station through Podcasts ......................................................................................................................... 10

1.7 GetAccess Code and FAQ Solutions.................................................................................................................... 10

1.8 Add Station to ‘My Favourites’ .............................................................................................................................11

1.9 Add Station to ‘MyAdded Stations’..................................................................................................................... 12

1.10 Connecting to Wired Network ............................................................................................................................ 13

1.11 Shift to Wireless Network................................................................................................................................... 13

Chapter 2 Music Player Mode.........................................................................................................................................14

Chapter 3 DAB Mode......................................................................................................................................................16

3.1 Getting Started ...................................................................................................................................................... 16

3.2 Shift to another DAB/DAB+ Station.................................................................................................................... 16

3.3 Update Station List................................................................................................................................................ 16

3.4 Dynamic Label Segment (DLS)............................................................................................................................ 16

3.5 Prune Invalid......................................................................................................................................................... 16

3.6 DRC (Dynamic Range Control) Value.................................................................................................................. 17

3.7 To change station order......................................................................................................................................... 17

4Chapter 4 FM Mode ......................................................................................................................................................18

4.1 General Operation................................................................................................................................................. 18

4.2 Scan Setting .......................................................................................................................................................... 18

4.3 Audio Setting........................................................................................................................................................ 18

4.4 Station Presets (for Internet, DAB and FM Mode)............................................................................................... 19

4.5 Access Preset Station (for Internet, DAB and FM Mode) .................................................................................... 19

Chapter 5 AUX IN Mode................................................................................................................................................20

Chapter 6 General Settings..............................................................................................................................................21

6.1 Sleep Function ...................................................................................................................................................... 21

6.2 Setting Clock......................................................................................................................................................... 21

6.3 Browse Station Information.................................................................................................................................. 21

6.4 Setting Alarm........................................................................................................................................................ 22

6.5 Equaliser ............................................................................................................................................................... 23

6.6 Language............................................................................................................................................................... 23

6.7 Factory Reset ........................................................................................................................................................ 23

6.8 Enter Setup Wizard ............................................................................................................................................... 23

6.9 SW Version and Radio ID (or System Info).......................................................................................................... 23

6.10 Network Setup .................................................................................................................................................... 24

6.11 Software Update.................................................................................................................................................. 24

6.12 Backlight............................................................................................................................................................. 24

Chapter 7 Specification ...................................................................................................................................................25

Chapter 10 Troubleshooting............................................................................................................................................26

Package Contents

Carefully unpack and remove the package. You will find:

User guide

Main unit

User manual

Unit Overview

Keys

All mode

INFO/POWER

a. Long press to turn on/off Radio.

b. When alarm is sounding, long press to turn off alarm.

c. Internet, Media Player, DAB/DAB+ and FM mode: Press to browse station info.

MODE/MENU

Press to change mode.

Long press to go to ‘main menu’and other options.

BACK

Press to go to previous page.

PRESETS

Internet, DAB/DAB+ and FM mode:

Press and hold to activate preset stations function; and short press to load preset stations.

SELECT

a. In Menu, turn to browse options, press to confirm.

b. While a program is playing, turn to adjust volume level.

c. FM mode: while frequency is showing up, press and turn it to manually adjust frequency

0.05MHz per step, or long press to autoscan active stations.

d. When alarm is sounding, press to activate Snooze function.

Remote Contorl overview

Control

All mode

Press to turn on/off radio.



SELECT 



Press or to scroll right and left. Press or to scroll up and down.

Press SELECT to confirm.

MODE

Press to change mode.

MUTE

Press to put radio into mute mode, press again to exit this order.

PRESET

Internet, DAB/DAB+ and FM mode:

Press and hold to activate preset stations function; and short press to recall

preset stations.

SCAN

DAB/DAB+, FM mode: Press to autoscan active stations.

INFO

Internet, Music Player, DAB/DAB+ and FM mode: Press to browse station

information.

+ VOLUME -

Press to adjust volume level.

+ BASS -

Press to adjust bass value.

+ TREBLE -

Press to adjust treble value.

Music player mode: Press to previous track, press to next track, play

to play/pause.

Internet Radio Quick Start Guide

What you need before you can use your Internet Radio

Thanks for your buying! Before use it, you need to know followings:

Wireless LAN Setting:

A broadband Internet connection.

A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router.

If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access

(WPA) data encryption then you need to know the WEP or WPA code so you can get the Internet Radio to

communicate with the network.

For security reason, you may need enter the Radio’s MAC address into your wireless access point. To find

the Radio’s MAC address, use menu items as follows:

Main menu System settings Network View settingsMAC Address

To enter the MAC address into your wireless access point, you must read the instructions supplied by the

wireless access point.

Before you continue, make sure that your wireless access point is powered up and connected to your

broadband Internet. To get this part of the system work, read the instructions supplied by the wireless

access point is highly recommending!

Chapter 1 Internet Radio Mode

1.1Turning on

Long press INFO/POWER to switch on radio, for initial use, ‘Setup wizard’is requested.

1.2 Setup Wizard

1. Continue the above step, press SELECT to confirm ‘YES’turn SELECT to your preferred ‘hour format’,

press SELECT to confirm.

2. Press SELECT to confirm ‘Update from Network’. Now, follow your radio’s instruction, configure the

following parameters:

Timezone:select your local timezone.

Daylight savings: On or Off

Wlan region: Most of Europe/USA/Canada/Spain etc.

SSID: Sometimes radio may find more than one network, turn SELECT to your selecting one, then press SELECT.

Note: If a password (WEP/WPA) isn’t required by your network, radio will connect to the network automatically.

3. If a WEP/WPAkey (password) is required, radio will ask you to input

the WEP/WPAcode and display the password entry screen as:

Turn SELECT to cycle through the alphanumeric character list,

press SELECT to select an appointed character.

Note: WEP/WPA pass codes are case-sensitive.

If a wrong operation is being conducted, select ‘ ’ to delete

this wrong character.

Note: a.> = Backspace.

b.> the method of select , or :while cursor point to ‘ ’, anti-clockwise turn SELECT to

select , then continue anti-clockwise turn SELECT to select or in turn.

c.> means back to previous track.

d.> Radio will automatically save the WEP/WPA you’ve input, so no bother to re-enter these codes.

4. After select the final character of your password, turn SELECT to press SELECT to confirm.

5. Press SELECT again to exit, the setting is OK now!

1.3 Access to Wireless Network

1. After set the ‘setup wizard’, it will show you as below, and then press SELECT to enter ‘Internet radio’mode.

Note: Or, you may also press MODE/MENU repeatedly until ‘Internet radio’shows up, then stop press to enter.

2. While cursor point to < Station list >, press SELECT to confirm.

If it fail to connect to internet, please follow:

Check your router, see it working normally or not;

Relocating your radio to a stronger signal position may be necessary!

Make sure your password is input correctly.

1.4Local Stations

Make sure your radio connected to network.

‘Local China’can be changeable according to your current location, for instance, it can be local US, local UK, etc. In a word, it’s

a very easy way for you to pick up local programs.

1. To enter Local stations, long press MODE/MENU < Station list >< Local China >, press SELECT to

confirm.

2. Turn SELECT to your favourite item, press SELECT to confirm, and then step by step to the program you

wanted.

1.5Choose a Station

Note: ensure your radio connecting to network.

1. To access to this order, long press MODE/MENU < Station list >< Stations >, press SELECT to

confirm.

2. There are five options available for you to choose a station as above photo.

‘LOCATION’enables you to choose from the radio stations provided by any country which you choose from a list.

a. While cursor point to < Location >, press SELECT to confirm.

b. Turn SELECT to the region you wanted, press SELECT to confirm.

c. Using the same method to choose country, station in turn, radio will perform loading.

‘GENRE’enables you to choose radio stations according to their content such as Classic Rock, Sport, News, etc.

Note: a. Some radio stations do not broadcast 24 hours a day, and some stations are not always on-line.

b. If this station has on-demand content, that is, it gives an option of listening to the old programs which have

already been broadcast.

1.6Select a Station through Podcasts

1. To access to this order, long press MODE/MENU < Station list >< Podcasts >, press SELECT to confirm,

and then turn SELECT to your favorite option.

2. Press SELECT to confirm, and then step by step to your selecting program.

1.7Get Access Code and FAQ Solutions

1. To access to this order, long press MODE/MENU < Station list >< Help >, press SELECT to confirm.

Note: at this step, you can also listen radio FAQ solutions.

2. While cursor point to < Get access code >, press SELECT to confirm, you will get it.

Tabla de contenidos

Manuales populares de Sistema estéreo portátil de otras marcas

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manual de usuario

LG SB159ST Manual de usuario

Philips

Philips AZ305 Manual de usuario

Manta

Manta BBX002 Manual de usuario

Sony

Sony ZS-BTG900 Manual de usuario

Memcorp

Memcorp Disney DB3000-P Manual de usuario

Sharp

Sharp GF-800HS Manual de usuario

Philips

Philips AZ 2760 Manual de usuario

Hyundai

Hyundai H-1443 Manual de usuario

Grundig

Grundig RR 300 CD Manual de usuario

Insignia

Insignia NS-BCDCAS1 Manual de usuario

Philips

Philips AZ380W Manual de usuario

Sony

Sony ZS-S10CP Manual de instrucciones de instalación

AudioSonic

AudioSonic 42373117 Manual de usuario

Akai

Akai A60009 Manual de usuario

Sony

Sony HCD-E301 Manual de usuario

Memorex

Memorex MW5554 Manual de usuario

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manual de usuario
