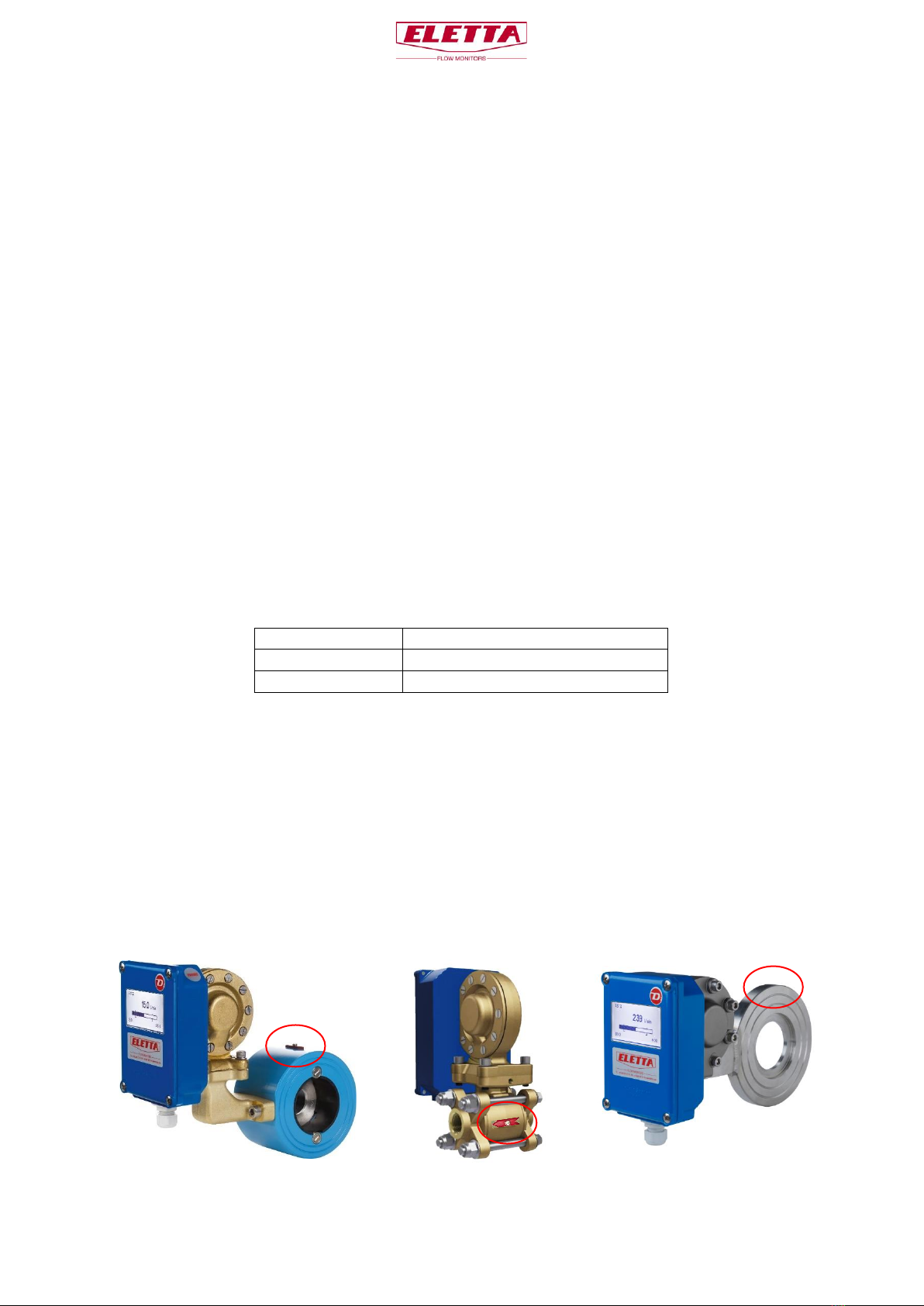

Eletta D Series Manual de usuario

D-series Flow Monitor

Manual



2021-09-06 70C2E22
Contents
D-series Flow Monitor ...................................................................................................... 1
Manual ............................................................................................................................ 1
Contents........................................................................................................................... 2
About this Manual............................................................................................................ 4
Proprietary Rights ............................................................................................................ 4
Distributors ...................................................................................................................... 4
Customer Service.............................................................................................................. 4
General Information ...................................................................................................... 5
1 Description _________________________________________________________________ 5
2 Overview Control Unit ________________________________________________________ 6
3 Overview Pipe Section ________________________________________________________ 6
4 Pipe Dimensions _____________________________________________________________ 7
5 PED Certification _____________________________________________________________ 7
6 EMC_______________________________________________________________________ 7
7 Type Plate __________________________________________________________________ 8
8 Specifications _______________________________________________________________ 9
Installation .................................................................................................................. 10
1 Unpacking _________________________________________________________________ 10
2 Preparations _______________________________________________________________ 10
3 Installation of the Flow Monitor________________________________________________ 11
4 Installation and Changing of the Control Unit _____________________________________ 14
5 Separate Mounting of the Control Unit and Pipe Section ____________________________ 15
5.1 Separate Mounting - Installation______________________________________________ 16
6 Electrical Installation_________________________________________________________ 17
6.1 HART Protocol Specification _________________________________________________ 19
6.3 HART Identifying Device_____________________________________________________ 19
6.2 Zero based / Non-Zero based Calibration _______________________________________ 20
Operation .................................................................................................................... 21
1 Display Settings_____________________________________________________________ 21
1.1 Overview ________________________________________________________________ 21
1.2 Language ________________________________________________________________ 22
1.3 Settings__________________________________________________________________ 22



2021-09-06 70C2E22
1.4 Options__________________________________________________________________ 25
1.5 Simulation _______________________________________________________________ 27
1.6 Info_____________________________________________________________________ 27
1.7 Factory Default____________________________________________________________ 28
1.8 Calibrate_________________________________________________________________ 29
2 Change of Flow Direction _____________________________________________________ 31
3 Change of Flow Range________________________________________________________ 31
Differential Pressure Measurement.............................................................................. 34
1 The Differential Pressure Principle ______________________________________________ 34
2 Pressure Drop ______________________________________________________________ 34
Trouble Shooting ......................................................................................................... 36
1 Inaccurate Flow Prediction ____________________________________________________ 36
2 Spares ____________________________________________________________________ 36
Spare Parts .................................................................................................................. 37
1 BOM Drawing D-GL/FA _______________________________________________________ 37
2 BOM Drawing D-GSS/FSS _____________________________________________________ 39
Weight and dimensions ............................................................................................... 41
Measuring Ranges ....................................................................................................... 42
Recycling ..................................................................................................................... 43


2021-09-06 70C2E22

About this Manual

• This manual relates to the D-series Flow Monitor.

• Note that the latest version of this manual is always available as a PDF file on our web site

www.eletta.com

• On our web site you also find other interesting information such as leaflets, newsletters and

application reports.

Proprietary Rights

This manual contains confidential technical data, including trade secrets and proprietary

information, that are the property of Eletta Flow AB, Sweden.

Any changes or alterations to downloaded or printed Eletta original documentation such as manuals,

drawings, leaflets, newsletters, etc. are not permitted without a written permission from Eletta Flow

AB, Sweden.

These data are only disclosed to you under permission of limited use within your company. Use for

manufacturing or processing is not permitted.

Any other use of data and information is strictly prohibited without prior written permission from

Eletta Flow AB, Sweden.

Distributors

Eletta has appointed a number of distributors all over the world. You will find more information

about your closest distributor at our web site www.eletta.com, or by contacting our Customer

Service Center.

Customer Service

Phone +46 8 603 07 70 Switchboard

+46 8 603 07 80 Orders and Inquires

Postal Mail Eletta Flow AB

P.O. Box 5084

SE-141 05 Kungens Kurva

SWEDEN

E-mail [email protected]

Web www.eletta.com

2021-09-06 70C2E22

1 General Information

1.1 Description

The D-series Eletta Flow Monitor are used to measure and control flows of liquids and gases in

threaded pipes with sizes DN15-DN40 and flange fitted pipe sizes DN15 to DN500.

The Eletta Flow Monitor is based on the proven and dependable differential pressure principle, using

interchangeable orifice plates for different measuring ranges. The Flow Monitors are working with

two different differential pressure ranges, i.e. 500-2000 mmH2O (49-196 mbar) for the D2 and 220-

5500 mmH2O (22-539 mbar) for the D5, depending on the desired and ordered flow range and the

same goes for our models; V1 and V15, S2 and S25 and R2 and R5. Due to the working principle of

the instrument, it is of utmost importance that the installation instructions are followed carefully in

order to get the proper function of the instrument.

The Instrument mainly consists of two parts i.e. the Pipe Section and the Control Unit. The Pipe

Section is the part that is to be mounted in the process pipe and the Control Unit is mounted directly

(standard) or remote on/to the Pipe Section.

D-series is available with four different types of pipes; Threaded GL/GSS and FA/FSS for flanged

fitting.

D-GL

D-GSS

D-FA

D-FSS

2021-09-06 70C2E22

1.2 Overview Control Unit

The Control Unit mainly contains the diaphragm housing and two circuit boards (the display circuit

board and the power circuit board). The mechanical movement on the diaphragm lever created by

the differential pressure in the pipe is acting on the rubber diaphragm in the same way as our other

mechanical Flow Monitors. The lever connected to the diaphragm is acting on a linear potentiometer

placed on the power circuit board in the Control Unit. As our Monitors have a linear function

between the differential pressure and the flow, the circuit board will give you a linear flow output of

4-20 mA, HART protocol, pulse or 200-1000 Hz frequency. The difference to our mechanical V and S-

series is that in the D-series there is no mechanical linkage acting on micro switches, as the unit lacks

them, only the potentiometer giving infor-

mation to the circuit board. Since there

are fewer moving parts and less

mechanical linkage in the Control Unit,

the D-series will give you a higher

accuracy than V and S-series.

In order to get the unit to work properly with good accuracy, it is very important that the unit is

installed correctly according to the installation instruction, see chapter 2 “Installation”.

1.3 Overview Pipe Section

The Pipe Section is assembled in-line with the process pipe and the Control Unit is fitted on top of

the Pipe Section. It is also possible, for example when measuring a too hot media, to install the

Control Unit separated (using either steel pipes or tubes) from the Pipe Section, see chapter 2.5.

There are four different types of Pipe Sections; GL, GSS, FA and FSS. All Pipe Sections except FSS

contains an exchangeable Orifice Plate. The FSS Pipe Section do not contain an exchangeable Orifice

Plate since the shaft and orifice makes one integrated unit.

-GL

-GSS

-FA

-FSS

Display circuit board

Potentiometer

Power circuit board

2021-09-06 70C2E22

1.4 Pipe Dimensions

The Pipe Sections are available in various dimensions and materials to fit different requirements of

various applications. Following tables provide a summary of our different materials and fittings.

Threaded connections

Pipe material

Type

Available dimensions

Dezincified Brass,

CW602N/EN12420

GL15 - GL40

DN15 - DN40, ½ - 1½” BSP

DN15 - DN40, ½ - 1½” NPT

Stainless Steel

1.4470/EN10213

GSS15 - GSS25

DN15 - DN25, ½ - 1” BSP

DN15 - DN25, ½ - 1” NPT

Flange connections

Pipe material

Type

Available dimensions

Powder coated

(2022009697096) steel,

1.0060/E335/SS1650.

FA15 - FA400

DN15 - DN400, DIN PN16

DN15 - DN100, ANSI 150 lbs

DN125 - DN200, Suitable ANSI 150 lbs

DN250 - DN300, ANSI 150 lbs

Stainless Steel

EN1.4435/EN1.4401/EN1.4404

FSS15 - FSS500

DN15 - DN500, DIN PN16

DN15 - DN500, ANSI 150 lbs

Stainless Steel

254SMO/EN1.4547 *

FSS15 - FSS500

DN15 - DN500, DIN PN16

DN15 - DN500, ANSI 150 lbs

Bronze

CC491K/493K-GC/GZ/1982 *

Option

FA15 - FA400

DN15 - DN400, DIN PN16

DN50 - DN100, ANSI 150lbs

DN125 - DN200, Suitable ANSI 150 lbs

DN250 - DN300, ANSI 150 lbs

*Optional material for given types and dimensions.

1.5 PED Certification

Complies with applicable parts in Pressure Equipment Directive 2014/68/EU. Conformity

assessment has been performed according to module A. Internal production control

combined with module A2. Internal manufacturing checks with monitoring of the final

assessment, for category 2. Performed by Kiwa Inspecta AB. PED Declaration of conformity

will be sent to you upon request and are also available on www.eletta.com.

1.6 EMC

D-series Flow Monitor comply with the EMC directive 2004/108/EC through the following

harmonized standards:

- EN 61 000 - 6 - 3:2007 Generic Emission - Residential, commercial and light industry.

- EN 61 000 - 6 - 2:2005 Generic Immunity - Industry.

2021-09-06 70C2E22

1.7 Type Plate

Each Eletta Flow Monitor wear a Type Plate with technical data and specifications for the specific

Flow Monitor. The Type Plate is located on the top of the Control Unit shown as below.

Always check that the information on the Type Plate corresponds to what you have ordered.

The Type Plate states the following:

•Type: Model type of the Flow Monitor.

For example: D5-GL15.

•Range: Flow range of which the Flow

Monitor has been manufactured.

i.e. what the Orifice Bore has been

calculated for.

•Liquid: The media of which the Flow

Monitor has been manufactured.

For example: Water, Oil, Air, etc.

•Model: The article number of the Flow

Monitor.

•No: The serial number of the Flow

Monitor.

•Temp: The operating temperature range

allowed for the Flow Monitor.

•Max Pressure: The maximum operating

pressure allowed for the Flow Monitor.

•Protection Class: IP-classification of the

Flow Monitor (International Protection

Marking).

•Std: Pipe standard of the Pipe Section.

For example: DIN PN16/ANSI, BSP/NTP.

•CE marking and year of manufacturing.

2021-09-06 70C2E22

1.8 Specifications

Flow range

Liquids: 0,4-25 000 l/min, depending on pipe size

See chapter 8 “Measuring Ranges” for a table of our standard flow

ranges for water and oil

Gases: will be calculated according to application

Flow measuring range

(Turn Down)

D2-model: TD of 1:2 (50-100% Flow Range)

D5-model: TD of 1:5 (20-100% Flow Range)

Accuracy

±2% F.S. (Full scale)

Accuracy is stated as per reference and under ideal conditions i.e.

straight runs, temperature, pressure, viscosity and density. It is

recommended that you always chose the flow range of the Flow

Monitor so that the normal process flow is in the middle of the

Monitor Flow Range. For example: If you have a flow of 110 l/min

maximum and the normal flow is at 90 l/min, choose the Eletta Flow

Monitor D2 with a flow range of 60 - 120 l/min. This will give you

the highest accuracy since your flow is in the middle of the Monitor

Flow Range and will also give you a lower pressure loss

Pressure

Pressure class: PN16 / ANSI 150 lbs

Max static pressure: 16 bar (232 PSI)

Min static pressure: Line pressure of approximately 1 bar (14 PSI) is

required for proper operation

Protection class

IP65 (NEMA4)

Temperature ranges

Control unit

Operating temp: -10 to 65°C (14 to 149°F)

Higher process temperatures are achievable by remote installation

of the Control unit, see chapter 2.5 “Separate Mounting”

Pipe section

GL and FA: -10 to 120°C (14 to 248°F)

FSS and FSS: -10 to 250°C (14 to 482°F)

Power supply

24 VDC, ±1.5 VDC

Output

4-20 mA, HART protocol, pulse or 200-1000 Hz frequency (AO

update rate 20 ms)

See chapter 2.6 “Electrical Installation”

Connection cable

Shielded twisted pair, min. 0,2 mm² (0,0031 inch²)

Current consumption

Max 50 mA

Alarm relays

Two independent relays, user settable over the whole flow range

Max: 50 V AC/DC

Min: 1 mA, 5 VDC

Max switching capacity: 30 W

Materials: Diaphragm, O-

rings and sealings

NBR (Nitrile rubber), standard for GL/FA, optional on GSS/FSS

FPM (Fluorinated rubber), standard on GSS/FSS, optional on GL/FA

EPDM (Ethylene Propylene Diene), optional on all models

Materials: Spacers

GL pipes: Polyamide plastic (-10 to 120°C /14 to 248°F)

FA pipes: DN15-100 Polyamide plastic (-10 to 120°C /14 to 248°F)

DN125 –400 Stainless steel EN 1.4404 (ASTM 316L)

2021-09-06 70C2E22

2 Installation

2.1 Unpacking

Before installation, we kindly ask you to perform the following steps:

1) Check that there are no external damages to the outer packaging. If there are damages, check to

see if the Flow Monitor has been damaged. If there is a transportation damage on the Flow Monitor,

please contact your forwarder.

2) Check that the delivered parts correspond to the Packing list. Also check that the information on

the Type Plate corresponds to what you have ordered. The Type Plate is located on top of the

Control Unit, see chapter 1.7 “Type Plate”.

The packaging material is made of recycled environmental friendly material, and we kindly ask you

to deal with the material in a way that will have as little impact on the environment as possible.

2.2 Preparations

Before installation, we kindly ask you to perform the following steps:

1) Eletta recommends that you choose a correct position for installation of the Flow Monitor in your

pipe system. The following table serves as a guideline.

2) Check that the planned flow direction in your pipe system corresponds to the flow direction of the

Flow Monitor. The flow direction is indicated by a red arrow that is mounted on the GL/FA Pipe

Section. On the GSS/FSS version there will be an engraved arrow on the Pipe Section. If there is a

mismatch of the flow direction, we refer to chapter 3.2 “Change of Flow Direction” for instructions

on how to adjust the internal flow direction selector (GL/FA) to match the desired flow direction. It is

not possible to change the flow direction on the GSS/FSS version without ordering a new Pipe

Section, this is because the flow direction channels are fixed for the specific flow direction and

cannot be reversed.

Process Media

Correct installation

Liquid

Low level position of the system

Gas

High level position of the system

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
