ELEMENTI OCK45-NG01 Manual de usuario
Manual No.: ANGE45-A0
Natural Gas Conversion Kit
OCK45-NG01
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or
fire department.
Failure to follow these instructions could result in
fire or explosion,which could cause property
damage, personal injury, or death.
!
WARNING
!
IMPORTANT
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
!
US
R
C
Contact Elementi for Technical Support.
Customer Service:800-678-7294
EN
This conversion kit shall be installed by a
qualified service agency in accordance with
the manufacturer’s instructions and all
applicable codes and requirements of the
Authority Having Jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation is not
proper and complete until the operation of
the converted appliance is checked as
specified in the manufacturer’s instructions
supplied with the kit.
Important Safety Information -----------------------------------------------------------------------3
Parts List ------------------------------------------------------------------------------------------------7
Natural Gas Conversion Instruction--------------------------------------------------------------12
Leakage Test ------------------------------------------------------------------------------------------13
Lighting Instructions ---------------------------------------------------------------------------------14
TABLE OF CONTENTS
WARNING: This product can expose you to Carbon
monoxide, which is known to the Sate of California to cause birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov .
!DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
2 / 40
IMPORTANT SAFETY INFORMATION
!WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
IF YOU SMELL GAS
• Shut off gas supply to the fire table.
• Extinguish any open fame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning may
be required as necessary. It is imperative that the control compartment, burners, and circulating air
passageways of the appliance are kept clean.
• WARNING: Installation and service must be performed by a qualified installer, service agency or gas
supplier.
• WARNING: Failure to follow with the safety warnings and precautions in this manual may result in
serious bodily injury or death, a fire or an explosion causing damage to property.
• IMPORTANT NOTICE: Read and understand all warnings and precautions prior to assembly and
use your gas fire table. Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage.
3 / 40
!This conversion kit is for changing a liquefied Petroleum(LP) fire table into a Natural Gas
Fire Table.
PARTS LIST
Plaque
1, Natural Gas Hose and Quick Disconnect x 1 pc
2, Natural Gas Orifice 3.71mm x 1 pc
3, Natural Gas Valve x 1 pc
4, Hexagon screwdriver( for knob use) x 1 pc
5, Natural Gas Conversion Plaque x 1 pc
6, Natural Gas Conversion Kit Manual x 1 pc
7, Cable Kit x 1 pc
Manual
1
OFG101LP OFG105LP OFG110LP OFG145LP
OFG121LP OFG126LP OFG127LP OFG128LP OFG139LP OFG147LP
OFG103LP OFG104LP
2 pieces
Bellows
Models
1 piece
Bellows
Models
OFH101LP OFH103LP OFG201LP OFM103LP OFM104LP OFM106LP
Applicable Model:
23
4
5
6
7
4 / 40
NATURAL GAS CONVERSION INSTRUCTION
1ENSURE THE UNIT IS OFF AND COMPLETELY COOL, AND THE GAS
SUPPLY TO THE UNIT IS TURNED OFF.
!WARNING
Disconnecting the LP Gas Tank
Make sure the valve on the LP gas tank is OFF.
Disconnect by turning the knob counter clockwise until it is
detached from the valve.
2Remove lava rock from burner pan area carefully.
Fire Table
3
Fire
Table
Lay down blanket or cardboard to avoid
damaging the finish, carefully tilt unit on
its side.
Blanket or cardboard
5 / 40
NATURAL GAS CONVERSION INSTRUCTION
4
5
Disconnect the Propane regulator from the fire table.
For 2 piece Bellows models, please see A.
For 1 pieces Bellows models, please see B.
Attach NG hose to the unit.
For 2 piece Bellows models, please see A.
For 1 pieces Bellows models, please see B.
6Disconnect the knob from the LP valve by using a Hexagon screwdriver
insert it into the small round hole on the side of knob and turning it
counterclockwise.
6 / 40
Fire table
Propane Regulator and Hose
Propane Regulator and Hose LP valve Bellows
AB
NG Hose
Quick Disconnect Socket
Natural Gas Hose and Quick Disconnect
LP valve Bellows
AB
NATURAL GAS CONVERSION INSTRUCTION
Turn the hex nut counterclockwise to disconnect the
LP valve from the control panel.
7
8
Disconnect
Disconnect
Disconnect
Bellows
Bellows
LP Valve
Thermocouple
Gas inlet
(connect to regulator)
Gas outlet
(connect to burner)
A
B
C
Disconnect the bellows from the LP valve.
For ONE piece Bellows models, please see A.
For TWO pieces Bellows models, please see A&B.
Disconnect the thermocouple from the LP valve.(see C)
ONLY turn the brass joint counterclockwise on the bellows when disconnecting it from valve.
DO NOT rotate the stainless steel tube. Excessive rotation of the stainless steel tube will cause the gas pipe to
twist or break,causing gas leaks.
!WARNING
Brass joint
SS tube
Brass joint
7 / 40
NATURAL GAS CONVERSION INSTRUCTION
9
10
11
Disconnect the bellows from brass fitting.
Disconnect the Orifice Holder and LP orifice spud from the Venturi tube
(Air mixer).
Connect
1
1
2
2
Pull out the stainless steel net from the Venturi tube(Air mixer).
Make sure no spider nets or other debris in the tube.
Locate the new NG orifice spud, verify it is the correct size, the sign
3.71mm should be on the side of the orifice spud.
Screw the new NG orifice spud into the Venturi tube(Air mixer).
Re-attach bellows to the NG orifice spud.
Disconnect
Venturi tube(Air mixer)
Bellows
Orifice Holder
LP Orifice Spud
1
2
Venturi tube(Air mixer)
Bellows
3.71
1
2
Although your unit’s burner
may vary, conversion
method is the same.
Although your unit’s burner
may vary, conversion
method is the same.
8 / 40
Although your unit’s burner may vary,
conversion method is the same.
NATURAL GAS CONVERSION INSTRUCTION
12 Locate the new NG valve, verify it is the correct one, the lable
with NATURAL GAS VALVE should be on the new NG valve.
Re-attach bellows to the NG Valve.
For ONE piece Bellows models, please see E.
For TWO pieces Bellows models, please see D&E.
Re-attach thermocouple to NG Valve.(see F)
Gas inlet
Gas outlet
Please note that the valve has an air inlet and an air outlet with arrows
indicating the flow direction of the gas,the gas comes out of from the
Natural Gas Piping Quick Disconnect and NG Hose Valve
Orifice Spud Burner.
Failure to follow the instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
IMPORTANT
!
Connect
Connect
Natural Gas Hose
Quick Disconnect
Valve
Bellows
Bellows
Burner
NATURAL GAS VALVE
VANNE A GAZ NATUREL
Gas inlet
(bellows connect to
regulator)
Gas outlet
(bellows connect to
burner)
D
E
F
Connect
When connecting the bellows, please ONLY
turn the brass joint counterclockwise on the
bellows.Do not rotate the stainless steel tube.
Excessive rotation of the stainless steel tube
will cause the gas pipe to twist or break,
causing gas leaks.
!WARNING
Brass joint
SS tube
Brass joint
9 / 40

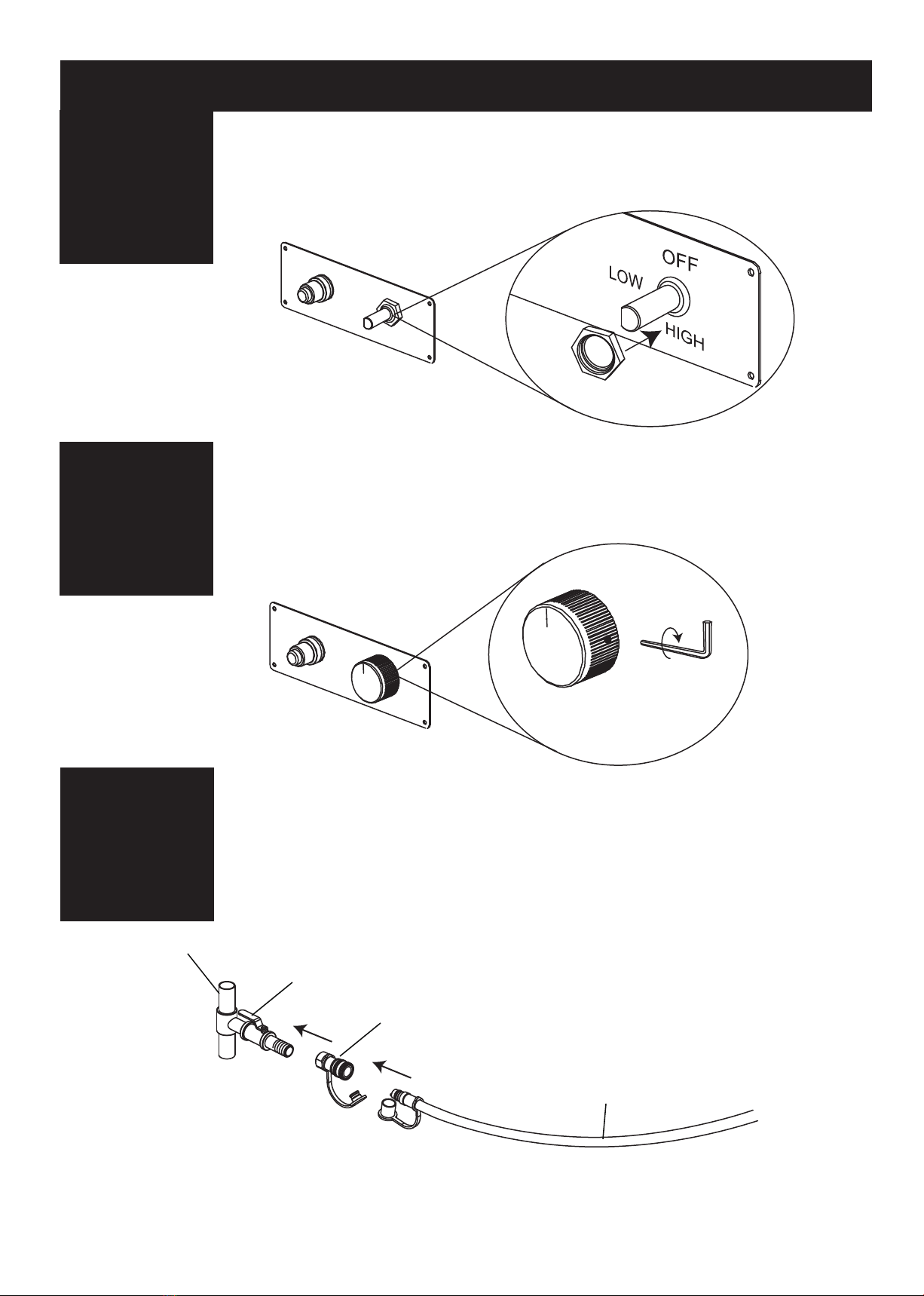

NATURAL GAS CONVERSION INSTRUCTION
13 Connect the new NG valve to the control panel.
14 Connect the knob to the new NG valve.
15 Attach quick disconnect to the gas supply.
NG Hose
Quick Disconnect Socket
House Natural gas piping
Shut-off Valve
10 / 40
