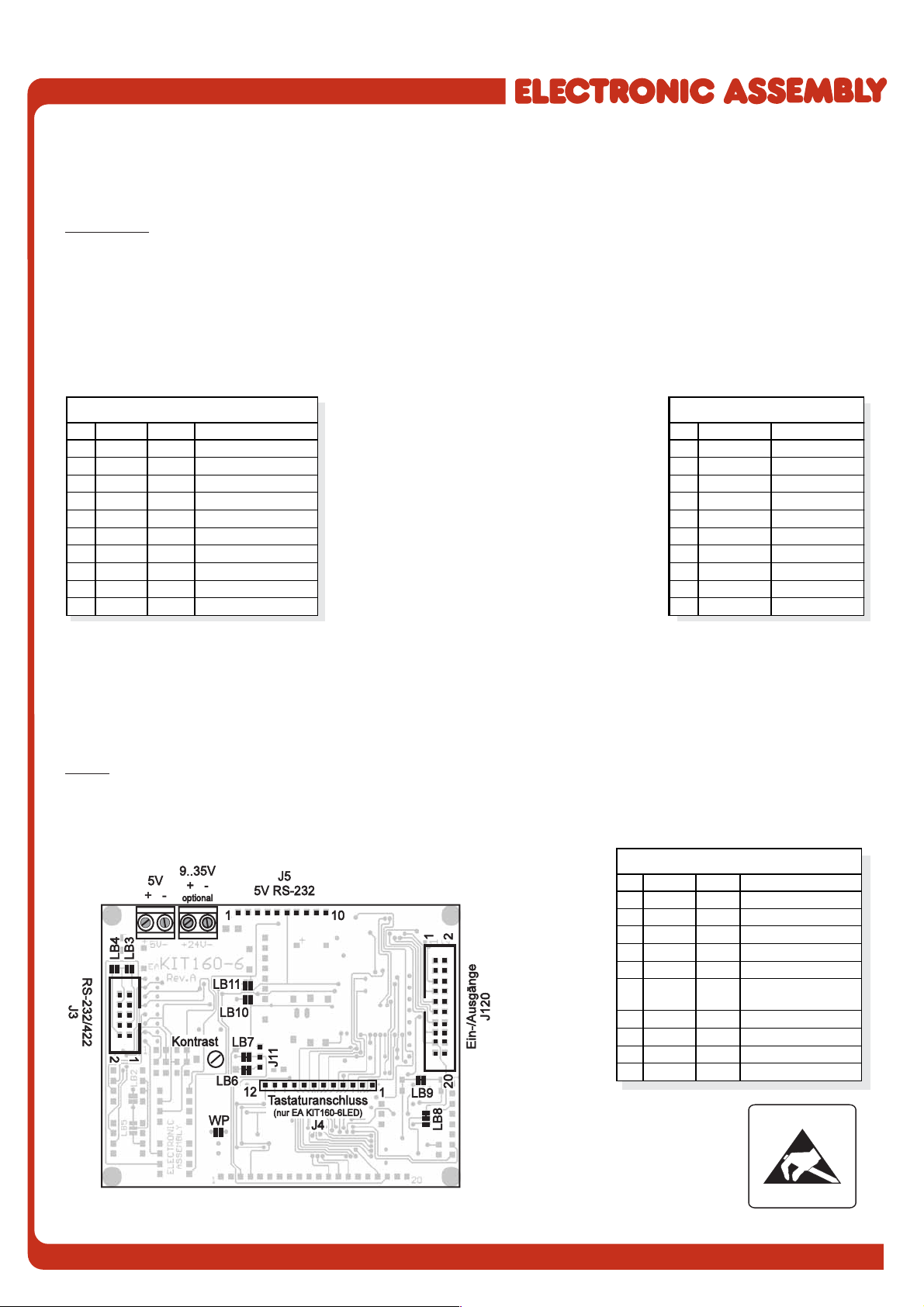

EA KIT160-6
Bar graph commands
Define bar graph
ESC B
R
L
O
U
no x1 y1 x2 y2 sv ev pat
Defines a bar graph to the left (L), right (R), top (O) or bottom
(U) with the number no (1..16). x1,y1,x2,y2 define the
rectangle enclosing the bar graph. sv,ev are the values for
0% and 100%. pat=pattern (0..7)
Draw bar graph no value Sets the bar graph with the number no (1..16) to the new
user 'value'
Keyboard/touch panel commands
Define touch key with
horizontal label
ESC T
H
f1 f2 Ret
code Form Text
... NUL
Groups touch fields f1 to f2 (diametrically opposite corner fields)
together to form a touch key with the return value ´Ret. code´ (=1..255)
(Ret. code=0 means the touch key is inactive).
´Form´: Draws touch key (=0 nothing; =1 delete; =2 with frame)
´Text´: Positions a string on the touch key (centered) using the current
font; lines are separated by the character '|' ($7C, dec: 124); NUL
character ($00) = end of string
Define touch key with
vertical label (rotated by
90°)
V
(P)reset touch keys PActivates all touch keys in ascending order (fields with code 1..60)
RDeactivates all touch keys (all fields with code 0)
Touch key response
In1 n1=0: Touch key is not inverted when touched
n1=1: Touch key is automatically inverted when touched
Sn1 n1=0: No tone sounds when (touch) key is touched
n1=1: Tone sounds briefly when (touch) key is touched
Inve rt touch key Mn1 The touch key assigned the return code n1 is inverted manually
Query key manually WSends the currently depressed (touch) key at the RS-232/RS-422 interface
Key query on/off An1
The keyboard query is n1=0:deactivated;
n1=1:activated, keystrokes are sent automatically;
n1=2:activated, keystrokes are not sent (query with ESC T W)
Menu/pop-up commands
Define menu with
horizontal items
ESC N
H
x1 y1 no Text
... NUL
Draws a menu from the corner x1,y1 (horizontal menu = upper left corner;
vertical menu = upper right corner) using the current font.
no:= currently inverted item (e.g.: 1 = 1st item)
Text:= string with the menu items. The items are separated by the character '|'
($7C,dec:124), e.g. "Item1|Item2|Item3"
The background of the menu is automatically saved to the clipboard.
If a menu is already defined, it is automatically canceled and removed
Define menu with
vertical items (rotated
by 90°)
V
Invert menu box IInverts the entire menu box. Useful for negative display
Next item NInverts the next item or remains at the end
Previous item PInverts the previous item or remains at the beginning
Menu end/send SRemoves the menu from the display and replaces it with the clipboard
contents. The current item is sent as a number (1..n) (0=no menu displayed)
Menu end/macro Mno Removes the menu from the display and replaces it with the contents of the
clipboard. Macro 'no' is called for item 1; macro no+1 for item 2, and so on
Menu end/cancel ARemoves the menu from the display and replaces it with the contents of the
clipboard
Control/definition commands
Automatic flashing
area
(cursor function)
ESC Q
Dx1 y1 x2 y2 Defines a flashing area from x1,y1 to x2,y2; activates the flashing function
Zn1 Sets the flashing time n1= 1..15 in 1/10s; 0=deactivates the flashing function
Cn1
Automatically flashing area as cursor for terminal operation
n1=0: deactivates flashing function; n1=1: activates flashing function
(inverse, 6/10s)
Select/deselect ESC K
Sadd Activates the kit with the address n1 (n1=255: all)
Dadd Deactivates the kit with the address n1 (n1=255: all)
Aadd Assigns a new address (add) (in the power-on macro, for example)
Wait (pause) ESC Xn1 Wait n1 tenths of a second before the next command is executed
Buzzer on/off ESC Jn1 n1=0:tone off; n1=1:tone on; n1=2..255:for n1 1/10s long on
Send bytes ESC Snum data ... Sends num (1..255; 0=256) bytes at the RS-232/RS-422 interface;
data ... = num bytes (e.g. control of an external serial printer)
Port commands
Write output port
ESC Y
Wn1 n2 n1=0: Sets all 8 output ports in accordance with n2 (=8-bit binary value)
n1=1..8: Resets (n2=0), sets (n2=1) or inverts (n2=2) output port n1
Read input port Rn1 n1=0: Reads in all 8 input ports as 8-bit binary value
n1=1..8: Reads in input port <n1> (1=high level=5V, 0=low level=0V)
Port scan on/off An1 Deactivates (n1=0) or activates (n1=1) automatic scanning of the input port
Input port inverse In1 Evaluates the input port (n1=0: normal; n1=1: inverted)
LED backlit on/off Ln1 LED backlit n1=0: off, n1=1: on; n1=2: invert; n1=3..255 n1/10 sec. on
