Electrolux W455H Manual de usuario

Installation manual

W455H

438 9067-51/EN

06.35

Contents

Technical data .............................................................................................. 3

Installation .................................................................................................... 7

Siting........................................................................................................ 7

Unpacking ............................................................................................... 8

Mechanical installation ............................................................................ 9

Water supply.......................................................................................... 10

Drain ...................................................................................................... 11

Electrical installation.............................................................................. 12

Machine connection options ................................................................. 13

Connection of external liquid supplies .................................................. 14

Marine installation ................................................................................. 21

Function checks .................................................................................... 23

Safety

This machine can only be used with water. Never use dry cleaning

agents.

Do not allow children to operate the machine.

Do not hose down or spray the machine with water.

All mechanical and electrical installation must be carried out by

qualiﬁed personnel.

Do not bypass the door locking device.

Should the machine malfunction, please report the fault to the

technician responsible for the machine.

The manufacturer reserves the right to make changes in design

and materials speciﬁcations.

Technical data

Connections

W455H

Innerdrum, volume litres 53

diameter mm 452

depth mm 332

Drum speed

wash rpm 35/54

extraction 1300

Heating

electricity kW 4.4

steam –

hot water x

G-factor 425

Weight, net kg 102

Water valves connection DN20

BSP 3/4’’

Capacity at 300 kPa

l/min 17

Drain valve outer Ø mm 50

Draining capacity l/min 160

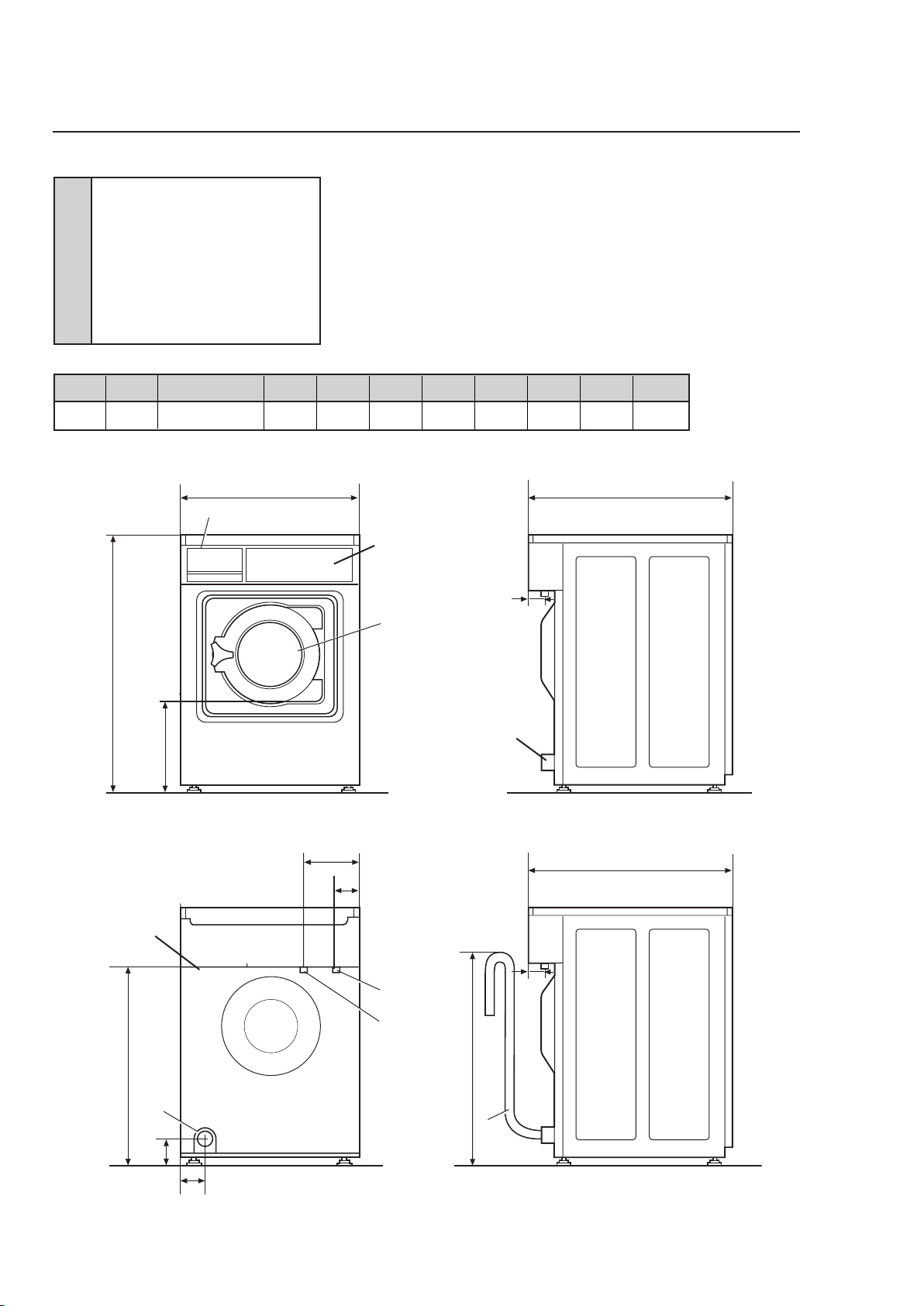

6206

A B C D E F G H I K L

595 680 850/875* 305 660 80 195 60 90 80 650

1 Control panel

2 Soap box

3 Door opening ø255

4 Cold water

5 Hot water

6 Drain, valve

7 Drain, pump

8Electrical connection

* Adjustable height, 25 mm

Technical data

Frequency of the

dynamic force Hz 20

Max ﬂoor load

at extraction kN 1.2±0.3

Sound levels

A B

Solid sound level in dB (A)

re 10-9 mm/sec (44-707 Hz) 76 62

Airborne sound level

dB (A) re 2x10-5 Pa 51/71* 45/59*

Vibration level

(m/sec2) 0.36 0.66

Vibration speed

(mm/sec) 57 83

A = Standard

B = With insulation

* = Wash/extraction

6216

Installation

Leave the machine on the pallet on which it was

delivered until the installation site has been pre-

pared to receive it.

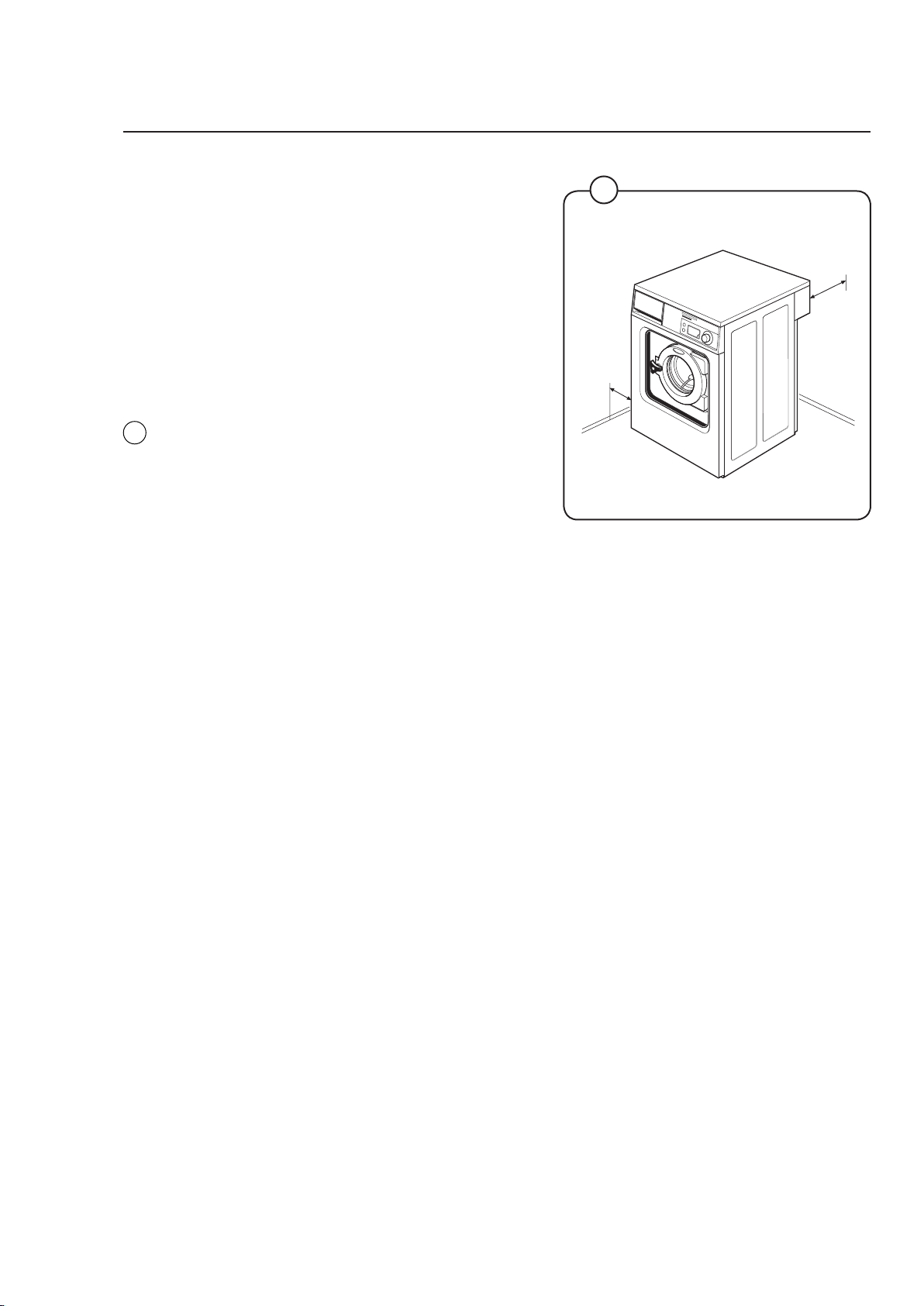

Siting

Install the machine close to a ﬂoor drain or open

waste water channel.

The following clearances are recommended for

easier installation and servicing:

• at least 500 mm between the machine and the

wall behind it.

• at least 50 mm on each side of the machine,

whether it is next to a wall or to other machi-

nes.

A clearance of 70 mm may be required bet-

ween the machine and the 130-litre tumble

dryer depending on which way the dryer’s

door opens.

Rec.

50 mm

Rec.

500 mm

6214

6215

Unpacking

In transit the machine’s drum is locked in place

by three locking devices between chassis and

drum.

Instructions for installing machine and removing

transit locking devices, step by step:

• Remove the packaging.

• Remove the components shipped inside the

drum.

• Remove the front panel by undoing the two

screws on its bottom edge.

• Remove the rear panel by undoing the

screws.

• Remove the three transport securities, one at

the front and two at the back. Save the trans-

port securities if the machine needs to be

moved sometime in the future.

Installation
