EWS 1476 FDW

................................................ .............................................

EN WASHING MACHINE USER MANUAL

CONTENTS

1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. CONSUMPTION VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

11. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

12. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

13. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

2www.electrolux.com

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes in-

juries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or in-

struction concerning use of the appliance in a safe way

and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door

when it is open.

• If the appliance has a child safety device, we recom-

mend you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

• Before maintenance, deactivate the appliance and dis-

connect the mains plug from the mains socket.

• Do not change the specification of this appliance.

• Obey the maximum load volume of 6.5 kg (refer to the

“Programme chart” chapter).

ENGLISH 3

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa)

• The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

• The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Do not install or use a damaged appli-

ance.

• Do not install or use the appliance

where the temperature is less than 0 °C

or where it is exposed to the weather.

• Obey the installation instruction sup-

plied with the appliance.

• Make sure that the floor where you in-

stall the appliance is flat, stable, heat

resistant and clean.

• Do not install the appliance where the

appliance door can not be fully opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the pow-

er supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and ex-

tension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the appliance power supply ca-

ble need to be replaced, this must be

carried out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the E.E.C.

Directives.

4www.electrolux.com

Water connection

• Make sure not to cause damage to the

water hoses.

• The appliance is to be connected to the

water mains using the new supplied

hose-sets. Old hose sets must not be

reused.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

2.2 Use

WARNING!

Risk of injury, electrical shock, fire,

burns or damage to the appliance.

• Use this appliance in a household envi-

ronment.

• Do not change the specification of this

appliance.

• Obey the safety instructions on the de-

tergent packaging.

• Do not put flammable products or items

that are wet with flammable products

in, near or on the appliance.

• Do not touch the glass of the door

while a programme operates. The glass

can be hot.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect possi-

ble water leakage under the appliance.

Contact the Service to ensure which

accessories can be used.

2.3 Care and Cleaning

WARNING!

Risk of injury or damage to the

appliance.

• Before maintenance, deactivate the ap-

pliance and disconnect the mains plug

from the mains socket.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

jects.

2.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent chil-

dren and pets to get closed in the ap-

pliance.

ENGLISH 5

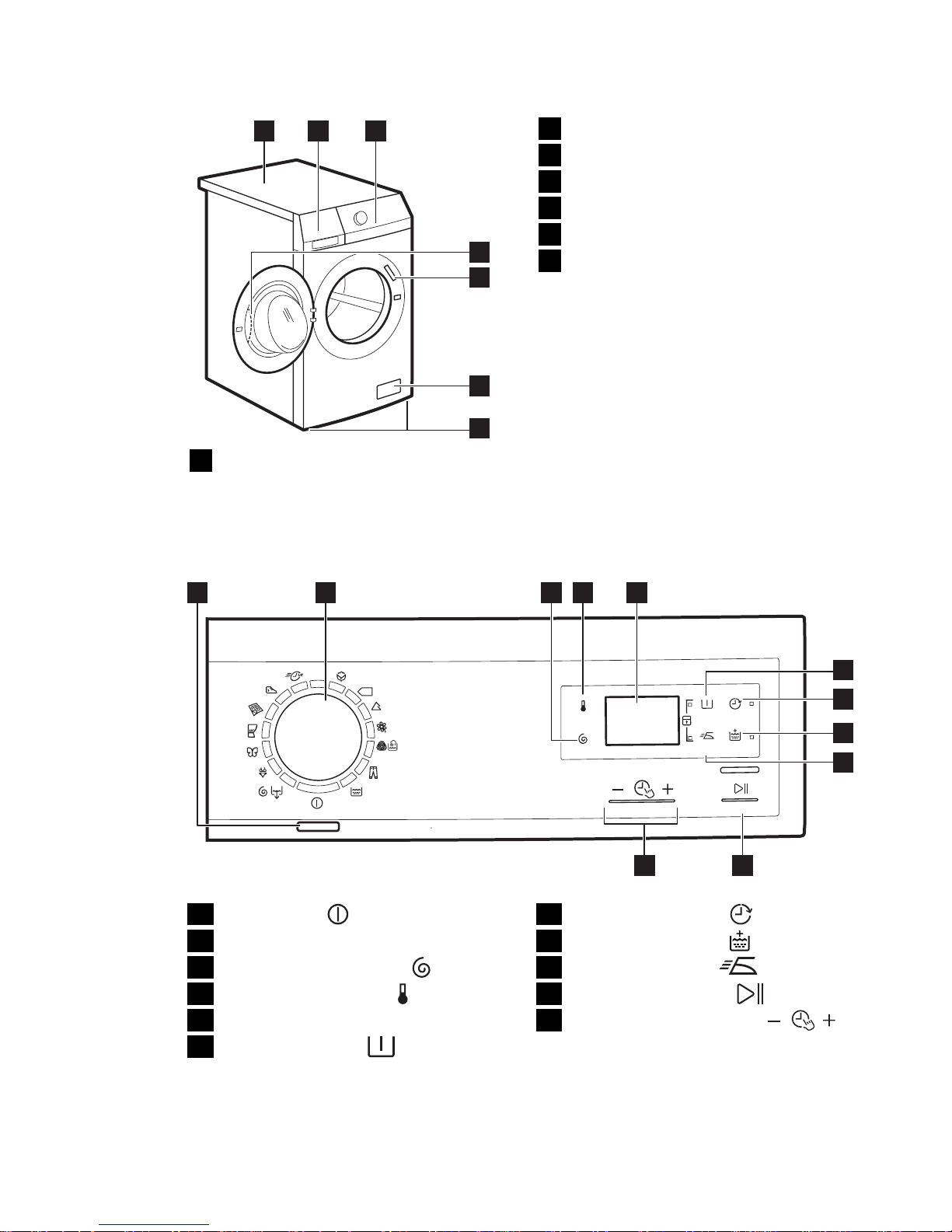

3. PRODUCT DESCRIPTION

1 2 3

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

3.1 Fixing plate kit

(4055171146)

Available from your authorized dealer.

If you install the appliance on a plinth, se-

cure the appliance in the fixing plates.

Follow the instructions supplied with the

kit.

4. CONTROL PANEL

Vapaa-aika

Villa/Käsinpesu

Ulkoilupuvut

Hienopesu

Siliävät

Valko/Kirjo

Peitot

Linkous/

Tyhjennys Huuhtelut

On/O

14 Min.

Puuvilla Eco

Verhot

Silkki

Alusasut

Lämpötila

Linkous

Ajastin

Helposti

Siliävät Lisähuuhtelu

Esipesu

Käynnistä/Tauko

TimeManager

53 4

1011

1 2

1On Off button

2Programme knob

3Spin reduction touchpad

4Temperature touchpad

5Display

6Prewash touchpad

7Delay start touchpad

8Extra rinse touchpad

9Easy iron touchpad

10 Start pause touchpad

11 Time Manager touchpads

6www.electrolux.com

4.1 Display

A B C D

EFG

A) The Temperature area:

: Temperature indicator

: Cold water indicator

B) : Time Manager indicator.

C) The time area:

–: the programme duration

–: the delay start

–: the alarm codes

–: the message of error

–: Programme is completed.

D) : the child safety lock indicator.

E) Washing indicators:

–: the washing phase

–: the rinses phase

–: the spin phase

–: the steam phase

–: Extra rinse permanent option.

F) The spin area:

–: the Spin speed indicator

–: the No Spin indicator

–: the Rinse Hold indicator

–: the Extra Silent indicator.

G) : the Door locked indicator

5. PROGRAMMES

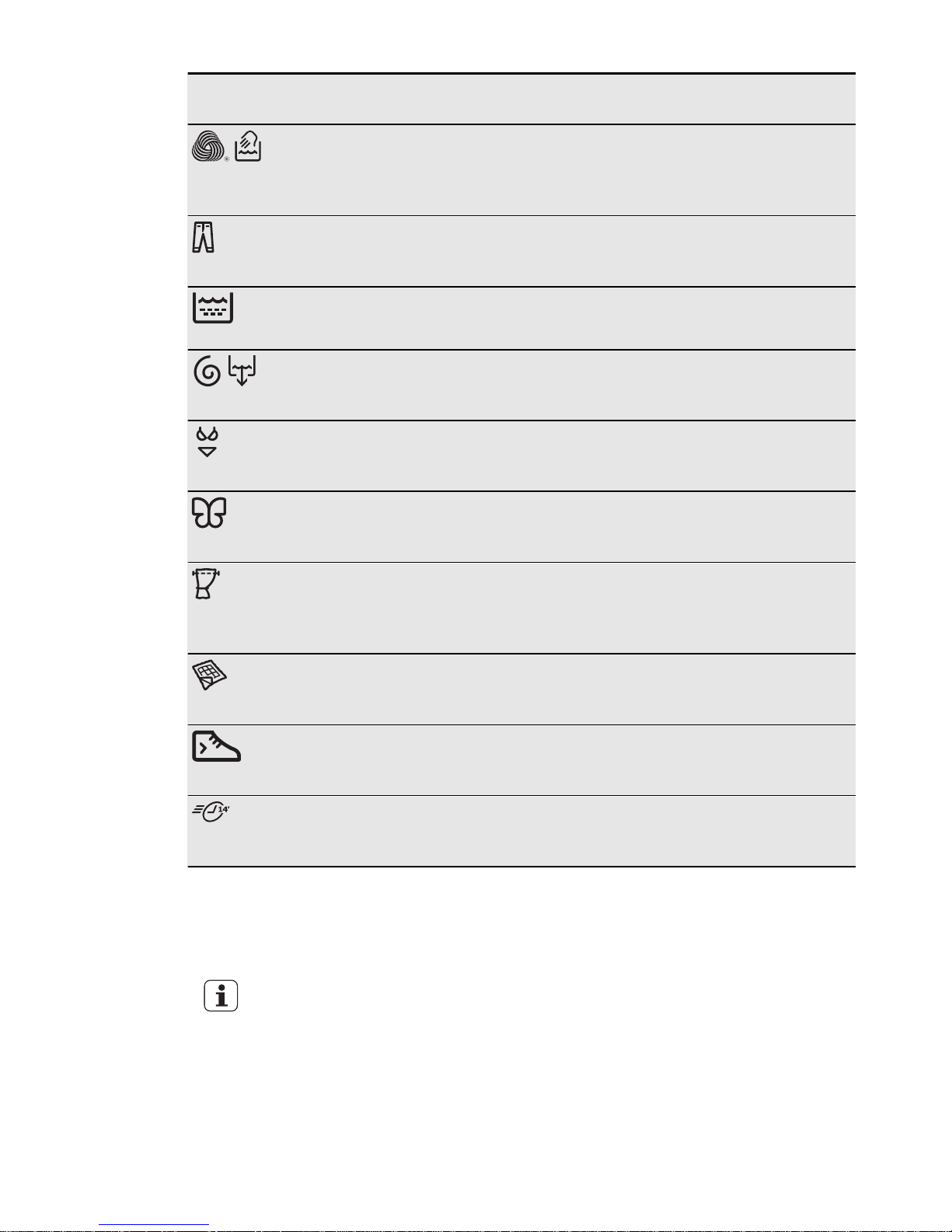

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Cottons

90° C - Cold

White cotton and coloured cotton (normal soil

and light soil).

6.5 kg, 1400 rpm

Cottons Eco

60° C - 40° C

White cotton and colour-fast cotton. Normal soil.

6.5 kg, 1400 rpm

Synthetics

60° C - Cold

Synthetic items or mixed fabric items. Normal

soil.

3 kg, 1200 rpm

Delicates

40 °C - Cold

Delicate fabrics as acrylics, viscose, polyester

items. Normal soil.

3 kg, 1200 rpm

ENGLISH 7

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Wool / Handwash

40 °C – Cold

Machine washable wool, hand washable wool

and delicate fabrics with «hand washing» care

symbol.

2 kg, 1200 rpm

Jeans

60 °C – Cold

Items in denim and jersey. Also for items in dark

colours.

6.5 kg, 1200 rpm

Rinse

Cold

To rinse and spin the laundry. All fabrics.

6.5 kg, 1400 rpm

Spin / Drain To spin the laundry and to drain the water in the

drum. All fabrics.

6.5 kg, 1400 rpm

Lingerie

40 °C – Cold

Special programme for very delicate items, as lin-

gerie, bras and underwear etc.

1 kg, 800 rpm

Silk

30 °C

Special programme for silk and mixed synthetic

items

2 kg, 800 rpm

Curtains

40 °C – Cold

Special programme for curtains with prewash

phase. DO NOT put the detergent for prewash to

rinse with only water.

2 kg , 800 rpm

Duvet

60° C - 30° C

Special programme for one synthetic blanket, du-

vet, bedspread and so on.

2 kg, 800 rpm

Sport

30 °C

Synthetic and delicate items. Light soil or items or

items to refresh.

2.5 kg, 800 rpm

14 Min.

30 °C

Synthetic and mixed fabric items. Light soil and

items to freshen up.

1 kg, 800 rpm

1) Standard programmes for the Energy Label consumption values

According to regulation 1061/2010, the “Cottons Eco 60° C” and “Cottons Eco° C” are

respectively the “standard 60° C cotton programme” and the “standard 40° C cotton

programme”. They are the most efficient programmes in terms of combined energy and

water consumption for washing normally soiled cotton laundry.

Set this programme to have a good washing results and decrease the energy con-

sumption. The time of the washing programme is extended.

The washing temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

8www.electrolux.com

Programme options compatibility

Programme

■ ■ ■ ■ ■ ■ ■ ■

Eco ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■■

■ ■ ■

■ ■ ■ ■ ■

■ ■ ■

■ ■ ■ ■■

■■

■ ■ ■

■ ■ ■ ■

1) If you set No Spin option the only drain phase is available.

6. CONSUMPTION VALUES

At programme start the display shows the duration programme for the maxi-

mum load capacity.

During the washing phase the programme duration is automatically calculated

and can greatly be reduced if the laundry load is lower than the maximum load

capacity (e.g. Cotton 60°C, maximum load capacity 6.5 kg, the programme

duration exceeds 2 hours; real load 1 kg, the programme duration don’t reach

1 hour).

When the appliance is calculating the real programme duration a dot blinks in

the display.

The data of this table are approximate. Different causes can change the data:

the quantity and type of laundry, the water and ambient temperature.

ENGLISH 9

Pro-

grammes

Load

(Kg)

Energy

consump-

tion (kWh)

Water con-

sumption

(litre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remain-

ing mois-

ture (%)

Cottons 60

°C 6.5 1.15 62 166 52

Cottons 40

°C 6.5 0.75 62 165 52

Synthetics 40

°C 30.45 45 110 35

Delicates 40

°C 30.60 62 91 35

Wool 30 °C 20.25 50 58 30

Standard cotton programmes

Standard 60

°C cotton 6.5 0.81 52 190 52

Standard 60

°C cotton 3.2 0.60 42 164 52

Standard 40

°C cotton 3.2 0.49 42 142 52

Off Mode (W) Left On Mode (W)

0.48 0.48

The information given in the chart above are in compliance with the EU Commis-

sion regulation 1015/2010 implementing directive 2009/125/EC.

1) At the end of spin phase.

7. OPTIONS

7.1 Temperature

Set this option to change the default tem-

perature.

Indicator = cold water.

The display shows the set temperature.

7.2 Spin

With this option you can decrease the de-

fault spin speed.

The display shows the indicator of the set

speed.

Additional spin options:

No Spin

• Set this option to remove all spin pha-

ses.

• Set it for very delicate fabrics.

• The rinse phase uses more water for

some washing programmes.

•The display shows the indicator

Rinse Hold

• Set this option to prevent the laundry

creases.

10 www.electrolux.com

Tabla de contenidos

Otros manuales de Arandela de Electrolux

Electrolux

Electrolux EW6S427BI Manual de usuario

Electrolux

Electrolux EWF 1408 ME1 Manual de usuario

Electrolux

Electrolux EWF9023BDWA Manual de usuario

Electrolux

Electrolux EWT 0862 EOW Manual de usuario

Electrolux

Electrolux EWT 1100 Manual de usuario

Electrolux

Electrolux EWT126218W Manual de usuario

Electrolux

Electrolux EWF 935 Manual de usuario

Electrolux

Electrolux EWF12932 Manual de usuario

Electrolux

Electrolux WH828 Manual de instrucciones

Electrolux

Electrolux EWP 1674 TDW Manual de usuario

Electrolux

Electrolux W4600X Manual de usuario

Electrolux

Electrolux WAVE-TOUCH 137356900 A Manual de usuario

Electrolux

Electrolux 300 Series Manual de usuario

Electrolux

Electrolux EWT 9120 W Manual de usuario

Electrolux

Electrolux WH1128 Manual de instrucciones

Electrolux

Electrolux W465H Manual de usuario

Electrolux

Electrolux EWF 1287 Manual de usuario

Electrolux

Electrolux EWN 13570 W Manual de usuario

Electrolux

Electrolux EW6T5226C5 Manual de usuario

Electrolux

Electrolux EW 1078 F Manual de usuario

Electrolux

Electrolux EWS 125416 A Manual de usuario

Electrolux

Electrolux EWF 1674 FDW Manual de usuario

Electrolux

Electrolux EIFLS20QSW Manual de usuario

Electrolux

Electrolux EW 1007 F Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
