EWG 147540 W EN WASHING MACHINE USER MANUAL
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 5
4. CONTROL PANEL............................................................................................... 6
5. PROGRAMMES ..................................................................................................8
6. CONSUMPTION VALUES..................................................................................10
7. OPTIONS...........................................................................................................11
8. SETTINGS......................................................................................................... 12
9. BEFORE FIRST USE..........................................................................................13
10. DAILY USE...................................................................................................... 13
11. HINTS AND TIPS............................................................................................. 16
12. CARE AND CLEANING....................................................................................17
13. TROUBLESHOOTING......................................................................................21
14. INSTALLATION................................................................................................23
15. TECHNICAL DATA...........................................................................................31
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 7 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8
MPa).
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
ENGLISH 3
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• Do not install the appliance where the
appliance door can not be fully
opened.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Only for UK and Ireland: The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
• This appliance complies with the E.E.C.
Directives.
www.electrolux.com4
2.3 Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household only.
• Obey the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION

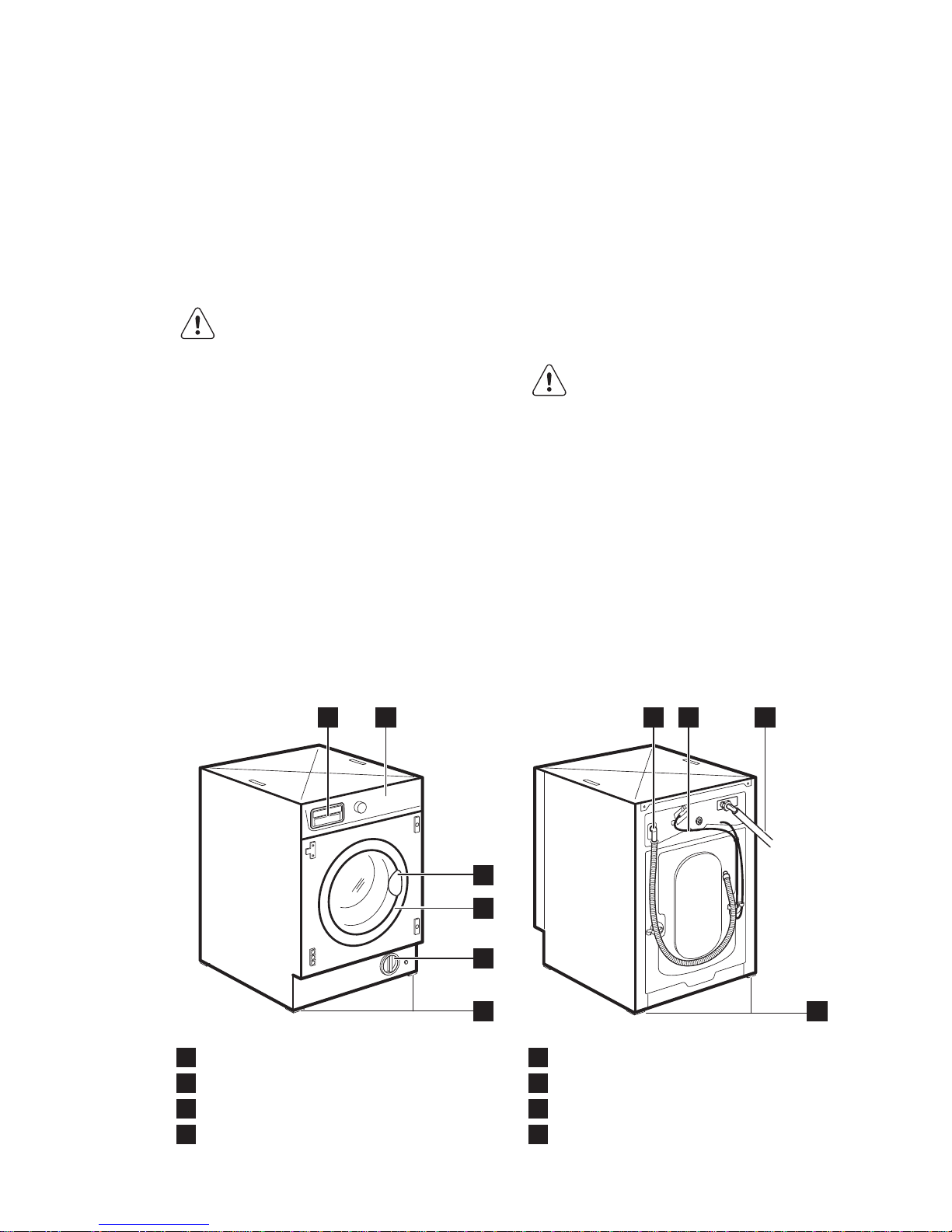

3.1 Appliance overview
7 8 9
10
1 2
3
4
5
6
1Detergent dispenser
2Control panel
3Door handle
4Rating plate
5Drain pump filter
6Feet for the appliance level
7Water drain hose
8Mains cable
ENGLISH 5
9Water inlet hose
10 Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to be
closed in the drum.
Turn the device clockwise, until the groove
is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
4. CONTROL PANEL

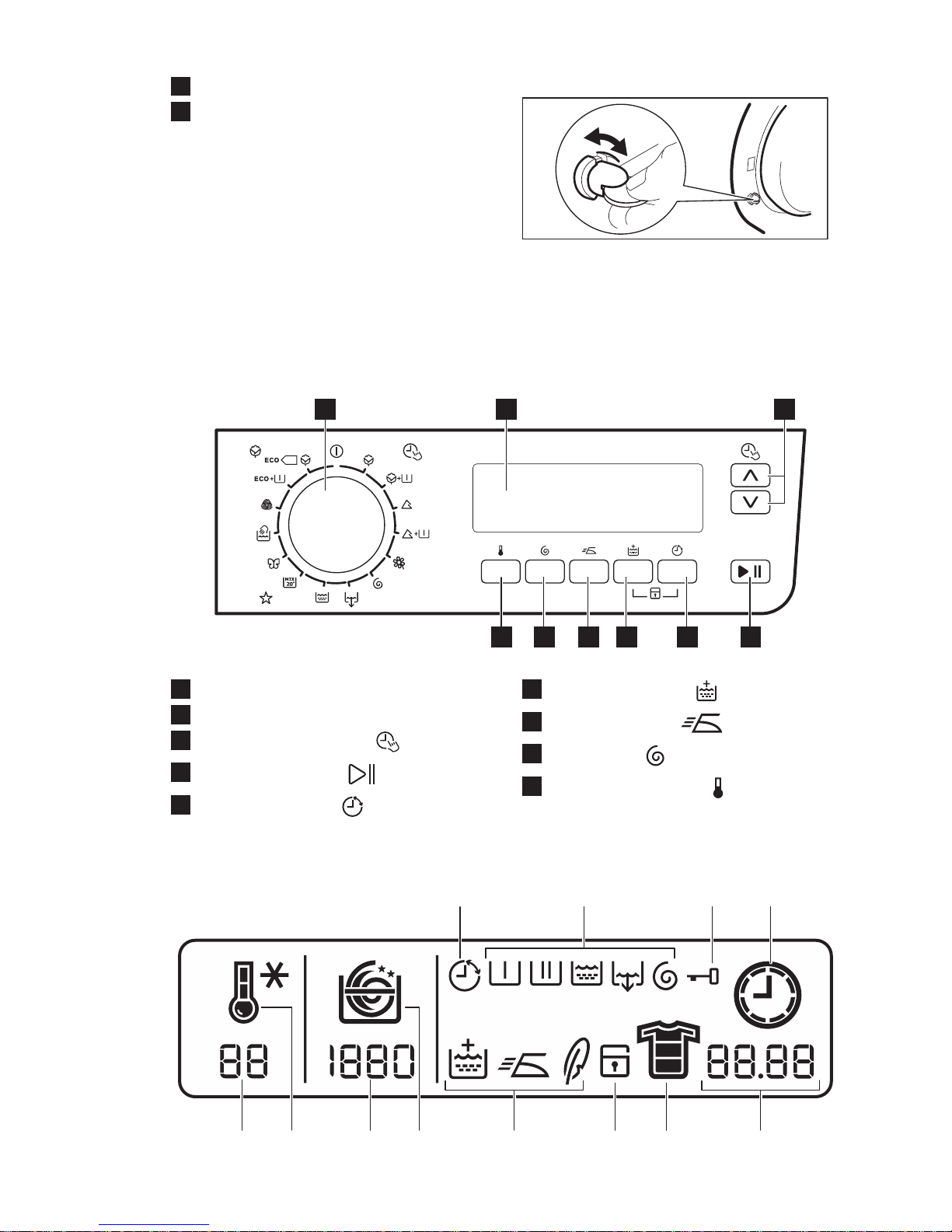

4.1 Control panel description
12
456789
3
1Programme knob
2Display
3Time Manager buttons
4Start/Pause button
5Delay Start button
6Extra Rinse button
7Easy Iron button
8Spin button
9Temperature button
4.2 Display
A B C D
EFGHIJKL
www.electrolux.com6

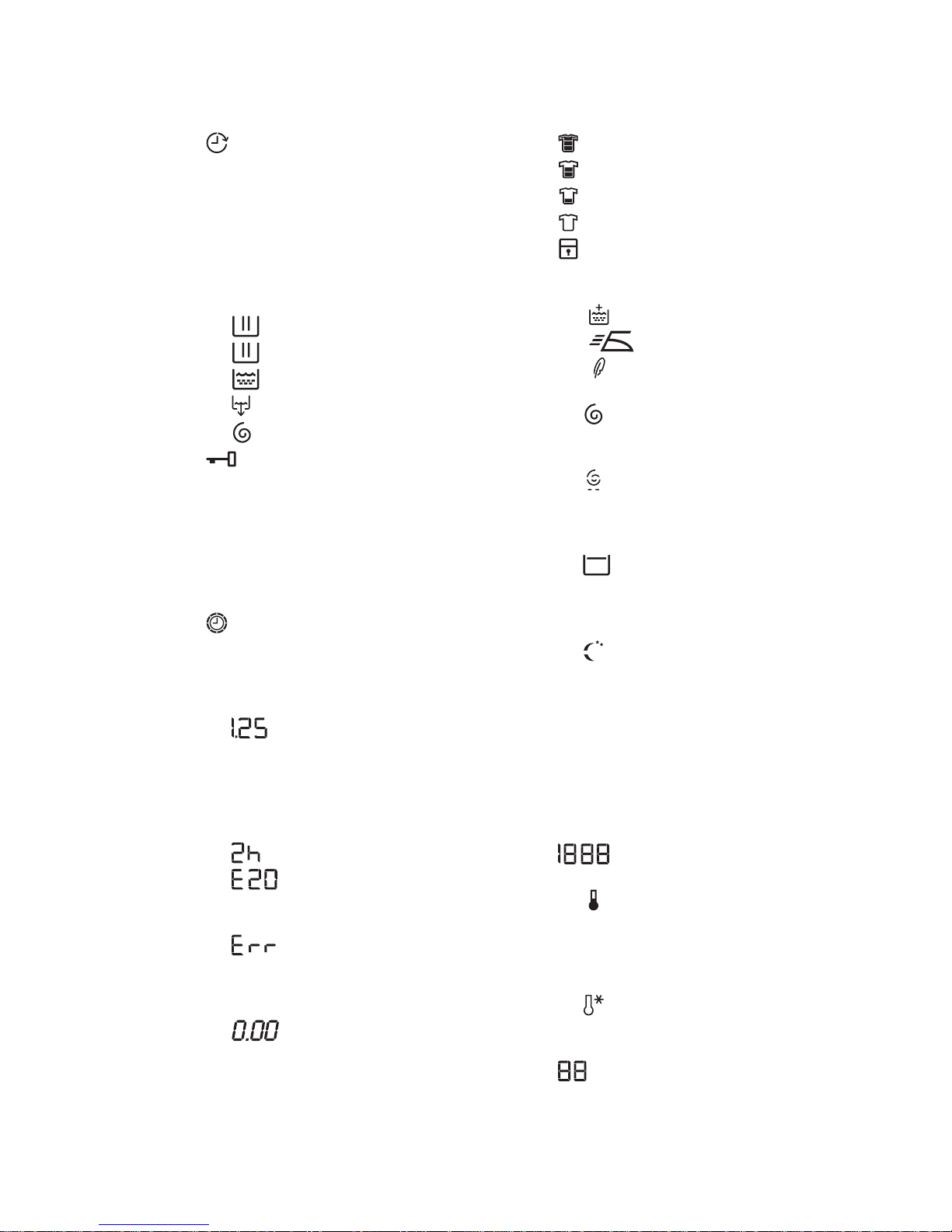

The display show the following information:
A) : Delay start indicator. When you
set a delay, the indicator illuminates on
the display.
B) Washing indicators: When a
programme is set, all the phases
indicators of a programme illuminate.
When the programme starts, the
indicators flash and remain on
according the programme progress.
• : Pre washing phase
• : Washing phase
• : Rinses phase
• : Draining phase
• : Spinning phase
C) : Door locked indicator. Once the
machine has started, this indicator is
lighted on. When the programme has
finished, this indicator disappears.
• Indicator on: you cannot open the
appliance door.
• Indicator off: you can open the
door.
D) : Clock indicator. After the
programme has started, the
programme duration is displayed and
the clock icon is animated.
E) The time area:
• : Programme duration. After
you set a programme, the duration
is displayed in hours and minutes.
After the programme has started,
the time remaining is updated
every minute.
• : Delay start value
• : Alarm codes. The
integrated red light of Start/Pause
button flashes.
• : Error message. In the event
of operating problems, some alarm
codes can be displayed (see
«Troubleshooting» chapter).
• : The programme is
completed.
F) Soil degree indicators (see paragraph
«Time Manager»).
: Intensive
: Normal / Daily
: Light / Quick
: Super Quick
G) : Child lock indicator (see «Settings»
chapter)
H) Option indicators:
a. : Extra Rinse
b. : Easy Iron
c. : Sensitive (if available).
I) Spin indicators:
•: Spin indicator. During the
spinning phase the spiral is
animated.
• : No spin indicator. This option
eliminates all the spin phases and
increases the number of rinses for
some programmes.
• : Rinse Hold indicator. The
water of the last rinse is not
emptied out to prevent the fabrics
from creasing.
• : Night Cycle indicator. The
machine will not drain the water of
the last rinse, so as not to wrinkle
the laundry. As all spinning phases
are suppressed, this washing cycle
is very noiseless. It can be set at
night or in times with a more
economical power rate. On some
programmes the rinses will be
performed with more water.
J) : Spin speed value.
K) Temperature indicators:
• : Temperature indicator. During
the washing cycle this indicator is
animated to show that the
appliance has started the heating
phase in the tub.
• : Cold water indicator. The
appliance perform a washing cycle
with cold water.
L) : Temperature value
ENGLISH 7
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature range
Maximum load
Reduced load1)
Maximum spin
speed
Programme description
(Type of load and soil level)
Cottons
90°C - (Cold)
7 kg
3.5 kg
1400 rpm
White cotton and coloured cot-
ton. Normal soil and light soil.
+
Cottons + Prewash
90°C - (Cold)
7 kg
3.5 kg
1400 rpm
White cotton and coloured cot-
ton. Heavy soil and normal soil.
Synthetics
60°C - (Cold)
3 kg
1.5 kg
900 rpm
Synthetic items or mixed fabric
items. Normal soil.
+
Synthetics + Prewash
60°C - (Cold)
3 kg
1.5 kg
900 rpm
Synthetic items or mixed fabric
items. Heavy soil and normal soil.
Delicates
40°C - (Cold)
3 kg
1.5 kg
700 rpm
Delicate fabrics as acrylics, vis-
cose, polyester items. Normal soil.
Spin
7 kg
1400 rpm
To spin the laundry and to drain the
water in the drum. All fabrics.
Drain
7 kg To drain the water in the drum. All
fabrics.
Rinse
(Cold)
7 kg
1400 rpm
To rinse and spin the laundry. All
fabrics.
Mix 20°
20°C
3 kg
900 rpm
Special programme for cotton, syn-
thetic and mixed fabrics with light
soil. Set this programme to decrease
the energy consumption. Make sure
that the detergent is for low tempera-
ture in order to have good washing
results2).
Silk
30°C - (Cold)
1 kg
700 rpm
Special programme for silk and
mixed synthetic items.
www.electrolux.com8
Programme
Temperature range
Maximum load
Reduced load1)
Maximum spin
speed
Programme description
(Type of load and soil level)
Handwash
40°C - (Cold)
2 kg
1000 rpm
Machine washable wool, hand
washable wool and delicate fab-
rics with «hand washing» care sym-
bol.3)
Wool
40°C - (Cold)
2 kg
1000 rpm
Machine washable wool, hand
washable wool and delicate fab-
rics with «hand washing» care sym-
bol.3)
ECO +
90°C - 40°C
7 kg
1400 rpm
White cotton and colour-fast cot-
ton. Normal soil with stains. The en-
ergy consumption decreases and the
time of the washing programme is
extended.
ECO
4)
90°C - 40°C
7 kg
1400 rpm
White cotton and colour-fast cot-
ton. Normal soil. The energy con-
sumption decreases and the time of
the washing programme is extended.
1) If you select the Super Quick, Refresh and Super Refresh option by pressing buttons Time
Manager, we recommend that you reduce the maximum load as indicated in the programmes
for cottons, synthetics and delicates. Full loading is possible however with somewhat reduced
cleaning results.
2) The appliance performs the short heating phase if the water temperature is below 20°C. The
appliance can show the temperature setting as “cold”.
3) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-
pliance.
4) Standard programmes for the Energy Label consumption values. According to regu-
lation 1061/2010, these programmes with temperature selected 60°C and with temperature
selected 40°C are respectively the «Standard 60°C cotton programme» and the «Standard
40°C cotton programme». They are the most efficient programmes in terms of combined ener-
gy and water consumption for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature de-
clared for the selected programme.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■ ■
+ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■
ENGLISH 9
Programme
+ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
1) ■ ■
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■
ECO + ■ ■ ■ ■ ■ ■ ■
ECO ■ ■ ■ ■ ■ ■ ■
1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only
drain phase is available.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient temperature.
Programmes Load
(kg)
Energy
consump-
tion (kWh)
Water con-
sumption
(litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Cottons 60 °C 7 1.2 53 140 52
Cottons 40 °C 7 0.7 53 130 52
Synthetics 40 °C 3 0.50 40 80 35
Delicates 40 °C 3 0.55 55 65 35
Wool 30 °C 2) 2 0.25 58 50 30
Standard cotton programmes
Standard 60 °C
cotton 7 0.86 46 189 52
www.electrolux.com10
Otros manuales para EWG 147540 W
3
Tabla de contenidos
Otros manuales de Arandela de Electrolux
Electrolux
Electrolux EW8F1168MS Manual de usuario
Electrolux
Electrolux EWT 12420 W Manual de usuario
Electrolux
Electrolux EWF8024Q5WB Manual de usuario
Electrolux
Electrolux ews 1042 edu Manual de usuario
Electrolux
Electrolux EWFLW65IRR - 27" Front-Load Washer Manual de usuario
Electrolux
Electrolux Swissline GL EWF 1082 Manual de usuario
Electrolux
Electrolux EWT 106510 W Manual de usuario
Electrolux
Electrolux EWF 12981 W Manual de usuario
Electrolux
Electrolux EW 770 F Manual de usuario
Electrolux
Electrolux SWX703CS0 Manual de usuario
Electrolux
Electrolux EWS 7146 EDU Manual de usuario
Electrolux
Electrolux U03266 EW 1230F Manual de servicio
Electrolux
Electrolux EWG 147540 W Manual de usuario
Electrolux
Electrolux EW 658 F Manual de usuario
Electrolux
Electrolux EWS 31064 NU Manual de usuario
Electrolux
Electrolux STF7000FS0 Manual de usuario
Electrolux
Electrolux EWF 1287 EMW Manual de usuario
Electrolux
Electrolux EWF 1029 Manual de usuario
Electrolux
Electrolux Washer-extractors WS4250H Manual
Electrolux
Electrolux EWP 106100 W Manual de usuario
