EN Washing Machine User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 5
4. CONTROL PANEL............................................................................................. 6
5. PROGRAMMES ................................................................................................ 9
6. CONSUMPTION VALUES................................................................................11
7. OPTIONS..........................................................................................................12
8. SETTINGS........................................................................................................13
9. BEFORE FIRST USE....................................................................................... 14
10. DAILY USE..................................................................................................... 14
11. HINTS AND TIPS........................................................................................... 17
12. CARE AND CLEANING..................................................................................18
13. TROUBLESHOOTING....................................................................................22
14. INSTALLATION.............................................................................................. 24
15. TECHNICAL DATA.........................................................................................32
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 7 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
ENGLISH 3
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• Do not install the appliance where the
appliance door can not be fully
opened.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
www.electrolux.com4
2.3 Water connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Obey the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION

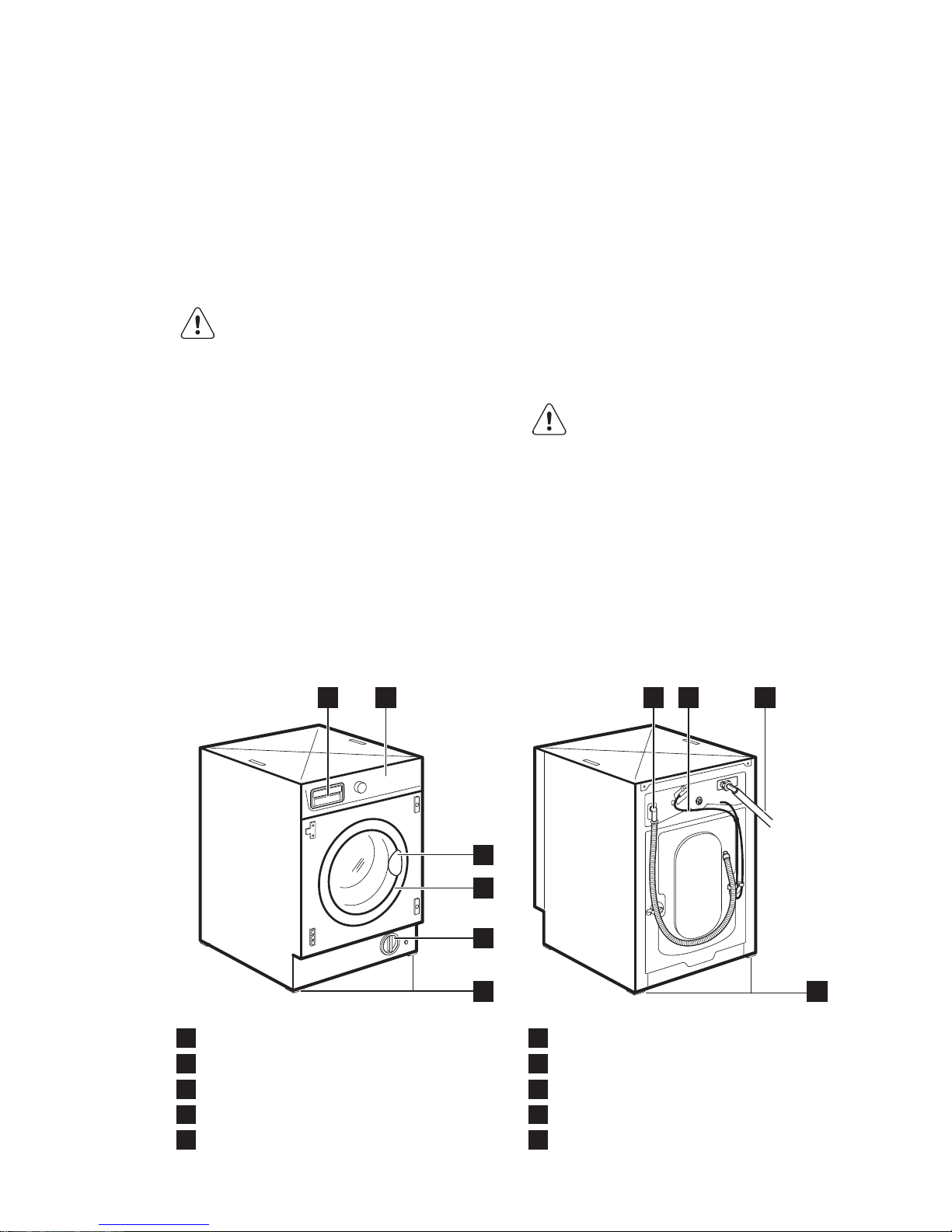

3.1 Appliance overview
7 8 9
10
1 2
3
4
5
6
1Detergent dispenser
2Control panel
3Door handle
4Rating plate
5Drain pump filter
6Feet for the appliance level
7Water drain hose
8Mains cable
9Water inlet hose
10 Feet for the appliance level
ENGLISH 5
3.2 How to activate the child
safety device
This device prevents children or pets to
be closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
4. CONTROL PANEL

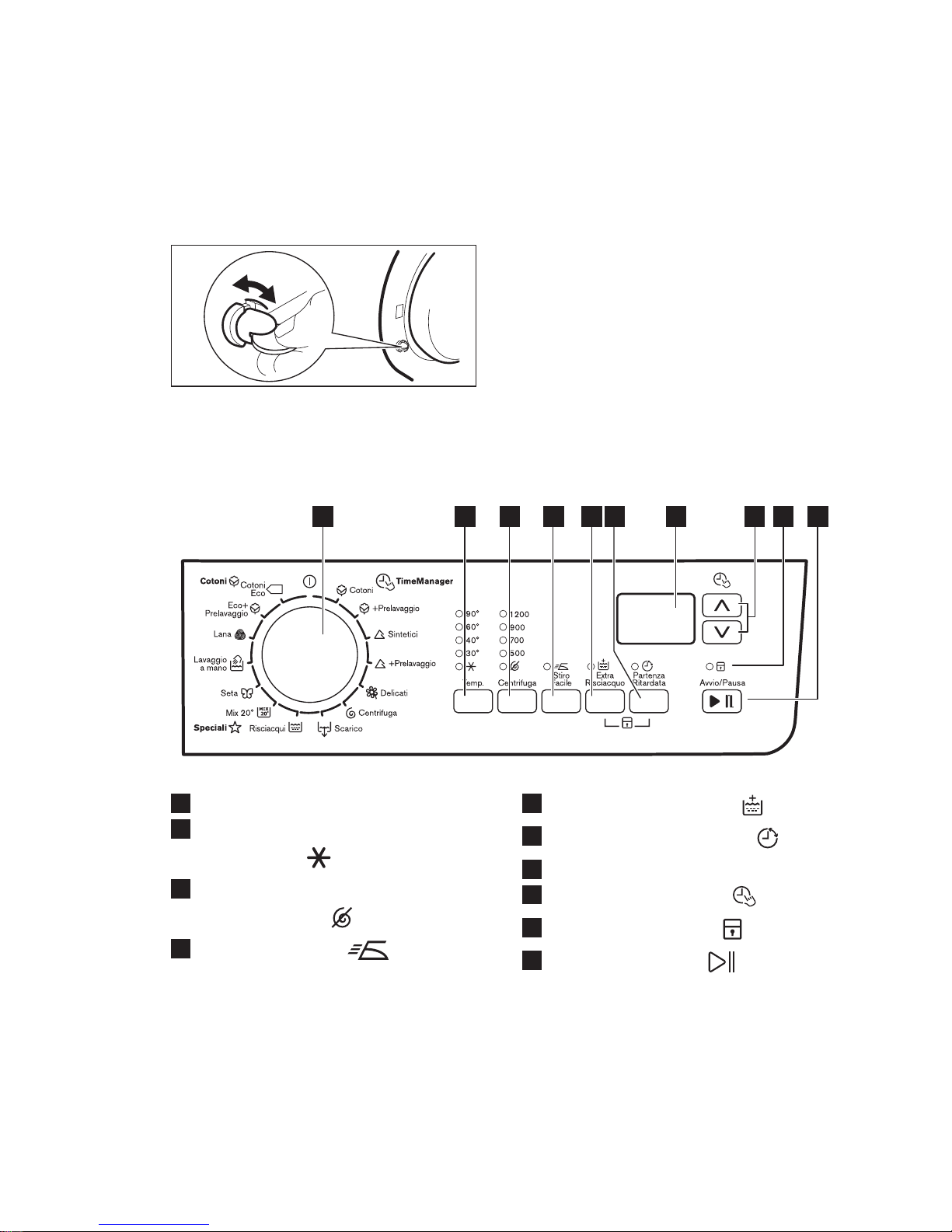

4.1 Control panel description
1 2 3 4 5 76 98 10
1Programme knob
2Temperatura button
Cold position
3Centrifuga button
No spin function
4Stiro Facile button
5Extra Risciacquo button
6Partenza Ritardata button
7Display
8Time Manager buttons
9Door locked indicator
10 Avvio/Pausa button
www.electrolux.com6
4.2 Display
A B C
DE

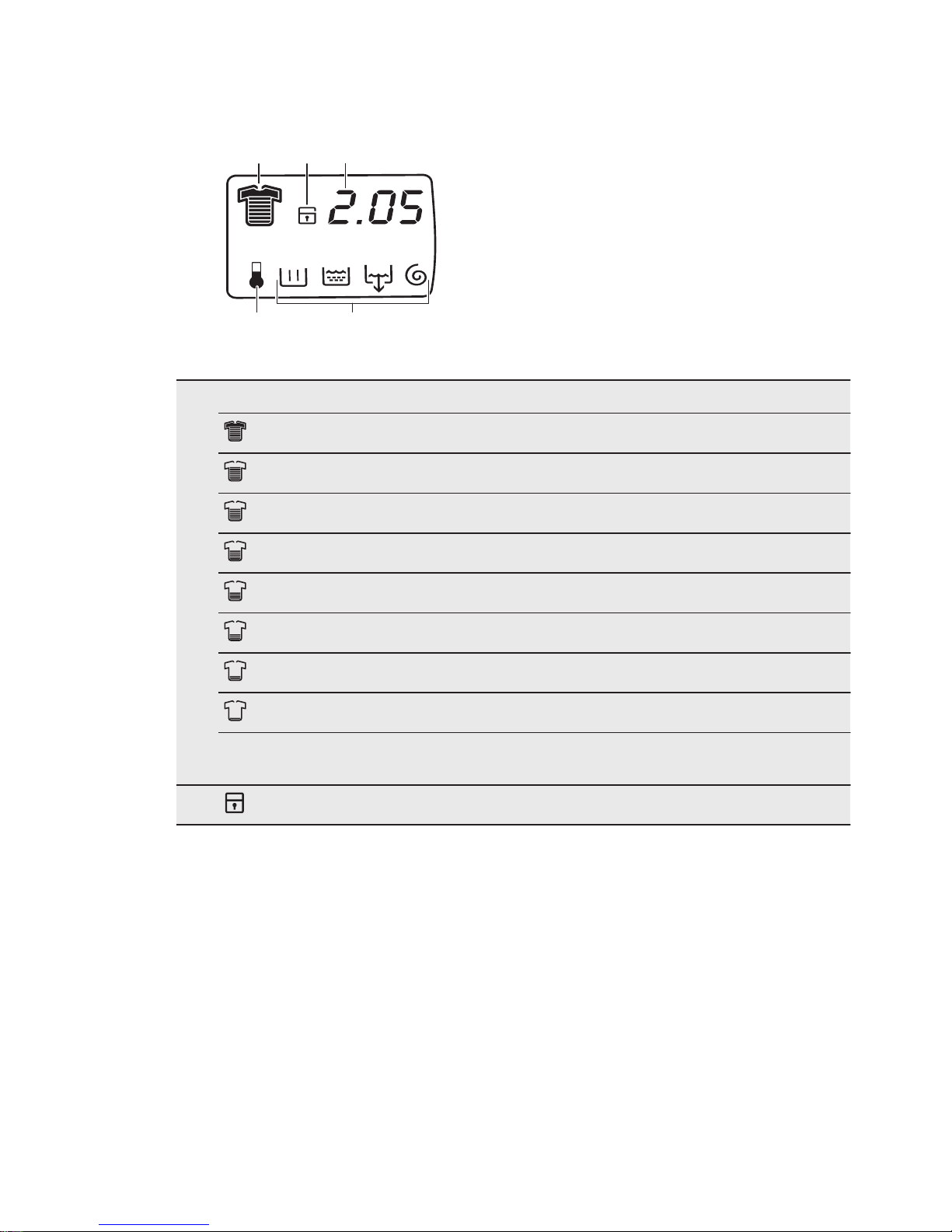

The display shows the following information:
ASoil degree indicators:
Intensive
Normal
Daily
Light
Quick
Quick
Refresh
Super Refresh
When you select a programme, the display shows the indicator of the soil de‐
gree automatically proposed by the appliance.
BChild safety lock (see «Settings» chapter).
ENGLISH 7
CDigit
area:
•Duration of the selected programme
After you select a programme, the duration is displayed in hours and
minutes (e. g. ). The duration is calculated automatically on
the basis of the maximum recommended load for each type of fabric.
After the programme start, the time remaining is updated every mi‐
nute.
•Delayed start
The selected delay appears for a few seconds, then the display
shows the duration of the selected programme again.
•Alarm codes
In the event of operating problems, some alarm codes can be dis‐
played, e. g. (see chapter «Troubleshooting»).
•Incorrect option selection
If you set an option not compatible with the selected wash pro‐
gramme, the message shows up for a few seconds and the
red indicator of button Avvio/Pausa starts flashing.
•End of programme
When the programme has finished, three flashing zeros are
displayed and the indicator of button Avvio/Pausa goes out.
If the indicator goes off, you can open the door.
DWashing programme phase indicators:
Wash
Rinses
Drain
Spin
By selecting the wash programme, the washing programme indicators corre‐
sponding to the various phases making up the programme are shown.
After you have pressed the Avvio/Pausa button, only the indicator of the run‐
ning phase stays on.
EDuring the washing cycle the display shows a temperature icon indicat‐
ing that the appliance has started the heating phase of the water in the
tub.
www.electrolux.com8
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature range
Maximum
load
Reduced
load1)
Maximum
spin speed
Programme description
(Type of load and soil level)
Washing programmes
Cotoni
90°C - (Cold)
7 kg
3.5 kg
1200 rpm
White cotton and coloured cotton. Normal soil
and light soil.
+ Prelavaggio
Cotoni + Prelavag‐
gio
90°C - (Cold)
7 kg
3.5 kg
1200 rpm
White cotton and coloured cotton. Heavy soil
and normal soil.
Sintetici
60°C - (Cold)
3 kg
1.5 kg
900 rpm
Synthetic items or mixed fabric items. Normal
soil.
+ Prelavaggio
Sintetici + Prelavag‐
gio
60°C - (Cold)
3 kg
1.5 kg
900 rpm
Synthetic items or mixed fabric items. Heavy
soil and normal soil.
Delicati
40°C - (Cold)
3 kg
1.5 kg
700 rpm
Delicate fabrics as acrylics, viscose, polyest‐
er items. Normal soil.
Centrifuga
7 kg
1200 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Scarico
7 kg To drain the water in the drum. All fabrics.
Risciacqui
7 kg
1200 rpm
To rinse and spin the laundry. All fabrics.
Mix 20°
20°C
3 kg
900 rpm
Special programme for cotton, synthetic and
mixed fabrics with light soil. Set this programme
to decrease the energy consumption. Make sure
that the detergent is for low temperature in order
to have good washing results2).
ENGLISH 9
Programme
Temperature range
Maximum
load
Reduced
load1)
Maximum
spin speed
Programme description
(Type of load and soil level)
Seta
30°C - (Cold)
1 kg
700 rpm
Special programme for silk and mixed synthet‐
ic items.
Lavaggio a mano
40°C - (Cold)
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing»
care symbol.3)
Lana
40°C - (Cold)
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing»
care symbol.3)
Eco+Prelavaggio
90°C - 40°C
7 kg
1200 rpm
White cotton and colour-fast cotton. Normal
soil with stains. The energy consumption de‐
creases and the time of the washing programme
is extended.
Cotoni Eco4)
90°C - 40°C
7 kg
1200 rpm
White cotton and colour-fast cotton. Normal
soil. The energy consumption decreases and
the time of the washing programme is extended.
1) If you select the Super Quick, Refresh and Super Refresh option by pressing buttons
Time Manager, we recommend that you reduce the maximum load as indicated in the pro‐
grammes for cottons, synthetics and delicates. Full loading is possible however with some‐
what reduced cleaning results.
2) The appliance performs the short heating phase if the water temperature is below 20°C.
The appliance can show the temperature setting as “cold”.
3) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the
appliance.
4) Standard programmes for the Energy Label consumption values. According to regu‐
lation 1061/2010, these programmes with temperature selected 60°C and with temperature
selected 40°C are respectively the «Standard 60°C cotton programme» and the «Standard
40°C cotton programme». They are the most efficient programmes in terms of combined en‐
ergy and water consumption for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature
declared for the selected programme.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■
www.electrolux.com10
Otros manuales para EWG 127410 W
2
Tabla de contenidos
Otros manuales de Arandela de Electrolux
Electrolux
Electrolux EWF 14470 W Manual de usuario
Electrolux
Electrolux EWP 1474 THW Manual de usuario
Electrolux
Electrolux EW6T5226C5 Manual de usuario
Electrolux
Electrolux EWS 106210 W Manual de usuario
Electrolux
Electrolux EWP 1274 TDW Manual de usuario
Electrolux
Electrolux EWM1000 Manual de usuario
Electrolux
Electrolux EWF 146410 A Manual de usuario
Electrolux
Electrolux EWN 13570 W Manual de usuario
Electrolux
Electrolux EWF1041R9WB Manual de usuario
Electrolux
Electrolux Compact front series Manual de usuario
Electrolux
Electrolux EWS 12610 W Manual de usuario
Electrolux
Electrolux EW2F2027R2 Manual de usuario
Electrolux
Electrolux EWT 1276 EOW Manual de usuario
Electrolux
Electrolux EW879F Manual de usuario
Electrolux
Electrolux EWF 129442 W Manual de usuario
Electrolux
Electrolux EW6S347SI Manual de usuario
Electrolux
Electrolux FO 950 Manual de usuario
Electrolux
Electrolux EIFLW55HIW - 27" Front-Load Washer Manual de instrucciones
Electrolux
Electrolux W4130S Manual de usuario
Electrolux
Electrolux MKTG15DNAWB Manual de usuario
