WASHING MACHINE

INSTRUCTION BOOK

EW 713 T

146 1013 06 GB

CONTENTS

For the user

Safety instructions 23/24

Description of the appliance 25

Use of your appliance 26

Operating instructions 27/28

Programme chart 29/30

Hints & Tips 31-33

Cleaningandmaintenance 34

If something doesn't work 35/36

Service 37

For the installer

Technicalinformation 38

Installation

Unpacking 38

Installation 39

Levelling 39

Moving of the appliance 39

Water connection 40

Electrical connection 40

Guide to use the instruction

The following symbols will be found in the text to guid you

throughout the instructions :

Safety instructions

Hints and tips

Environmentalinformation

You must read the whole of this instruction book

before you use the appliance. Follow the advice

carefully.Keepthebookforfuturereference.Ifyou

sellorgiveawaytheappliance,makesurethatthe

book is passed to the new owner.

Thefollowingwarningsareprovidedintheinterest

of overall safety. You must read them before the

appliance is installed or used.

Use

This appliance is designed to be used by

adults.Children shouldnotbeallowedtotouch

the controls or play with the product.

It is dangerous to modify the specifications of

this appliance in any way.

Always unplug the appliance and turn off the

water after use.

Only wash fabrics with are designed to be

machinewashed.Ifindoubt,followtheinstruc-

tions you find on the label of the item itself.

Place small metal rings or edged plastic rings

in a net or bag.

Make sure that all pockets are empty. Hard,

sharpobjects suchascoins,safety pins,nails,

screwsorstonescancauseextensivedamage.

Do not machine wash fabrics which are

saturated with petroleum products. If volatile

cleaning fluids have been used, make sure

that they are thoroughly removed from the

fabricsbeforetheyareplacedintheappliance.

Small and delicate objects (e.g. baby socks,

stockings)canbeeasily washed inside asmall

pillowcase with a zip fastener or in larger

socks.

Useonlythe recommended quantitiesoffabric

conditioner.

Beforecleaning,careandmaintenance,ensure

that the machine is unplugged.

Installation

Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

Any plumbing work required to install this

appliance should be cariied out by a qualified

plumber or competent person.

Make sure that the appliance does not stand

on its electrical supply cable.

This appliance is heavy. Care should be taken

when moving it.

Allpackagingandtransitboltsmustberemoved

before the appliance is used. Serious damage

may occur if this is not done.

Ifyourwashingmachineisina room subject to

temperatures below freezing, the water must

be removed from the machine. So, the danger

of freezing should be expected.

SAFETY INSTRUCTIONS

Read all instructions before using

the appliance and save them for

future reference.

Safeties

Lid : your washing machine is equipped with

asafety avoidingtheswitching oftheappliance

when the flapdoors of the drum are opened ;

the closure of the lid is so impossible. An

electromechanic safety prohibits the opening

ofthelidwhenthewashingmachineworksand

2 minutes after the end of the programme.

Washing motor : in case of mechanic

overloading, overvoltage, a thermic safety

protects automatically the motor.

Heating : the heating can only begin when

the water quantity necessary for the washing

is in the tub. This safety is useful when there is

a water break-up or if you forget to open the

water inlet hose.

Anti-balanced system : This safety allows to

the appliance to keep a perfect stability during

the intermediary spinnings and during the final

spinning. If you notice that your laundry is not

spinnedenough,theanti-balancedsystemhas

then detected a bad distribution of the laundry

during the final spinning ; so it is adviced to

realize a new spinning taking care to unpack

handly the laundry before.

Environmental information

All materials marked by the symbol are

biodegradable. They can be disposed of without

danger or burnt in rubbish incinerators.

Inordertorealizewaterandenergysavingsandto

act in an environmentally conscious manner, we

advice to follow the below instructions :

Use if possible the appliance with full loads

instead of partial loads. Take care to do not

overload the drum.

Useonlytheprogrammeswithprewashforvery

soiled laundry.

Savings on detergent and for the environment

may also be achieved if with medium to hard

wateryouaddsufficientdetergentforsoftwater

andthenaddseparatelyasoftener.Thisrelieves

our waters of a certain amount of chemicals.

When disposing of the machine in a proper

manner, destroy the door lock and cut off the

power supply cord.

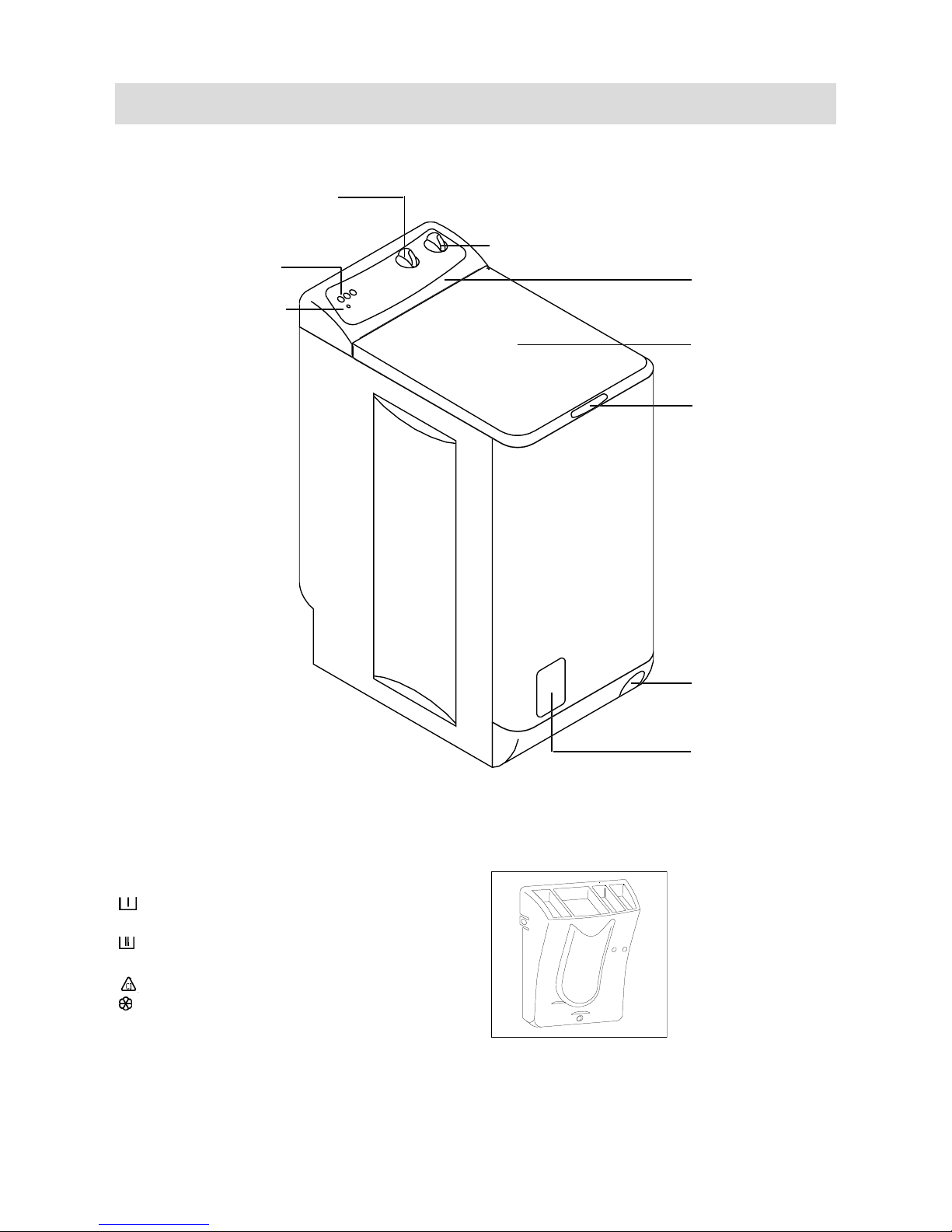

DESCRIPTION OF THE APPLIANCE

Detergent dispenser

Symbols

() Washing powder for programmes with

pre-wash (1).

() Washing powder or liquid detergent for

the main wash (2).

() Bleach compartment (3).

() Liquid additives (fabric softener and

conditioner...) (4).

(5) Liquiddetergent.

1234

Control panel

Lid

Handle for

opening lid

Trap door for

lint filter

Lever for castors

Programme selector

Control lamp

Pushbuttons Spinning speed variator

USE OFYOUR APPLIANCE

The control panel

1 ON/OFF pushbutton " "

Press the ON/OFF pushbutton, the programme

starts : the control lamp lights on.

2 Control lamp

The control lamp lights on when the appliance is

working (on/off pushbutton " " pressed). It lights

offwhenthecycleisfinished(programmeselector

on a stop position "I").

3 Cold wash pushbutton " "

If pressed at the beginning of any programme, it

allows to wash your laundry with cold water ; the

water entering in the tub is not heated.

4 Half load pushbutton " "

This pushbutton allows to wash small quantity of

linen not much soiled (2,0 kg) only on the cotton

programmes.

5 Programme selector

It enables to select the most adapted programme

to the nature and degrees of soil of your laundry.

Turn the programme selector clockwise to select

the chosen programme.

The programme selector indicates each pro-

gramme phase as it takes place.

Never turn the programme selector when the appliance is working.

At the end of the programme, the appliance stops

automatically on a position "I" for cotton program-

mes or on a position rinse hold " " for synthetics

programmes.

Neverturntheprogrammeselectoranticlockwise.

6 Spinning speed variator

It enables to select the spinning speed of your

washingmachinefrom" "(draining)to700rpm.

Thus, you can choose the spinning speed suiting

besttothenatureofyourlaundryandtothedegree

of humidity wished at the end of the wash.

12 634 5

EW 713T

GHJ

M300

350

400

500 600 650

700

Made in France

OPERATING INSTRUCTIONS

1. Place the laundry in the drum

lift up the lid of the machine.

open the drum with your two hands by pressing

the button Aand the two flapdoors till they

disengage.

introduce the laundry into the drum ; close the

drum and the lid of the machine.

Becareful:beforeclosingthelidofyourmachine,

make sure that the drum flapdoors are correctly

closed :

the two flapdoors fastened,

the button Apressed out.

2. Measure out the detergent

Measure out the amount of detergent

recommended by the manufacturer in the main

wash compartment ( ).

Ifyouwishtocarryoutaprewash,pourtheamount

required into the prewash compartment ( ).

3. Add the bleach agent, if

required

You may use a bleach agent in all the washing

programmes. However, make sure that the fabric

withstands the treatment. Bleach is automatically

washeddowninto thedrum.Pour1/4to 1glassof

12° chl bleach into compartment marked ( )

before switching the machine on.

4. Add the fabric softener

Pourthesoftener,ifrequired,intothecompartment

marked ( ). Do not exceed the MAX level.

Your washing machine has been conceived in

order to save water and detergent products.

Pleasetakecarethefillinglevelofthedetergent

productsdonotexceedtheMAXmarkslocated

near the display window of your detergent

dispenser.

5. Press the half load pushbutton

"" and/or the cold wash

pushbutton " "if required.

Liquiddetergent

only compartment Powder detergent

Compartment

(prewash)

Compartment

(wash)

Beforeusingyour washingmachineforthefirst time,werecommendthat you doapreliminarywash with

the machine empty, as a precaution to clean the drum, tank and the product box.

1. Pour a dose of detergent in the “washing” detergent dispenser

2. Select the program B "White 90°C".

3. Press the On/Off button " ".

6. Select the spinning speed

Choose the spinning speed suiting best to the

natureofyourlaundryandtothedegreeofhumidity

wishedat the end of the wash(from draining " "

to 700 rpm).

7. Select the programme

Choose the programme according to the nature

and the degree of soil of the laundry.

Turn the programme selector clockwise to select

the chosen programme.

8. Starting of the programme

The ON/OFF pushbutton " " enables to switch

on your machine. The control lamp lights on and

the programme begins.

9. At the end of the programme

When the selected programme is over, the ma-

chine stops automatically. The timer knob stops

on the position "I" for all the programmes and the

control lamp lights off.

The synthetics programmes end by a rinse hold

""inordertoavoidtheformationofcreases.You

can finish these programmes by a short spinning

(programme N) or by a draining (programme P).

Depress the on/off pushbutton " " before doing

your choice.

After each wash, depress the on/off pushbutton

"". Press off the pushbuttons if necessary ;

unplug the machine from the wall socket ; turn off

the water tap.

GHJ

300

350

400

500 600 650

700

PROGRAMMES CHART

Programmes for cotton/linen

Maximum load : 5,0 kg (cotton)

Programmes description Temperatures

(°C) Water

consumption

in liters

Time in

minutes

White with prewash

White without prewash

Coloured

Short programme

Rinsing

Spinning

Detergent

dispensers

to use

(*) If the laundry can withstand the bleaching treatment.

When the selected programme is over, the washing machine stops automatically. The timer knob stops

on the position "I".

BE CAREFUL :

THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.

150

130

105

Programmes for synthetics/delicates/wool

Maximum loads : 2,5 kg (synthetics), 1 kg (wool).

Synthetics

with prewash

Synthetics

without prewash

Delicate

Wool

Rinsing

Short spinning

Drain

Programmes description Temperatures

(°C) Water

consumption

in liters

Time in

minutes

Detergent

dispensers

to use

When the selected programme is over, the washing machine stops automatically. The timer knob stops

on the rinse hold position " " for the synthetics programmes.

The synthetics programmes end by a rinse hold in order to avoid the formation of creases. You can end

these programmes by a short spinning (programme N) or by a draining (programme P) ; please depress

the ON/OFF " " pushbutton before doing your choice).

BE CAREFUL :

THE LID CAN ONLY BE OPENED 90 SECONDS AFTER THE MACHINE HAS STOPPED.

Tabla de contenidos

Otros manuales de Arandela de Electrolux

Electrolux

Electrolux WH1018 Manual de instrucciones

Electrolux

Electrolux W 815 F Manual de usuario

Electrolux

Electrolux LP21Y Manual de usuario

Electrolux

Electrolux EWT 2066EEW Manual de usuario

Electrolux

Electrolux EW7F348W Manual de usuario

Electrolux

Electrolux PW9C Manual de usuario

Electrolux

Electrolux EWF 10260 W Manual de usuario

Electrolux

Electrolux EW6FN428BC Manual de usuario

Electrolux

Electrolux EW7F6669Q6 Manual de usuario

Electrolux

Electrolux EIFLS55IIW - 27" Front-Load Steam Washer Manual de servicio

Electrolux

Electrolux EWS 1276CIU Manual de usuario

Electrolux

Electrolux WH823 Manual de instrucciones

Electrolux

Electrolux EW 1418 1 Manual de usuario

Electrolux

Electrolux STAR-EFLS210TIW Manual de usuario

Electrolux

Electrolux EIFLS20QSW Manual de usuario

Electrolux

Electrolux W465H Manual de usuario

Electrolux

Electrolux EW 705 F Guía rápida

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer Manual de funcionamiento

Electrolux

Electrolux WH6-8CV Manual de usuario

Electrolux

Electrolux RWP 105205W Manual de usuario

Electrolux

Electrolux EWF 1386 Manual de operación

Electrolux

Electrolux EWF 1294BW Manual de usuario

Electrolux

Electrolux WASL6E202 Manual de usuario

Electrolux

Electrolux EWF 925 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
