INSTRUCTIONS MANUAL

EW 1024 T

146 1903 03 GB

WASHING MACHINE

- 2 -

CONTENTS

For the user

Safety instructions 4/5

Description of the appliance 6

Use of your appliance 7

Operating instructions 8/9

Programme chart 10/11

Hints & Tips 12-14

Cleaningandmaintenance 15

If something doesn't work 16/17

Service 18

For the installer

Technicalinformation 19

Installation

Unpacking 19

Installation 20

Levelling 20

Moving of the appliance 20

Water connection 21

Electrical connection 21

Guide to use the instruction

The following symbols will be found in the text to guid you

throughout the instructions :

Safety instructions

Hints and tips

Environmentalinformation

- 3 -

Youmustreadthewholeofthisinstructionbookbefore

you use the appliance. Follow the advice carefully.

Keep the book for future reference. If you sell or give

awaytheappliance,makesurethatthebookispassed

to the new owner.

The following warnings are provided in the interest of

overallsafety.Youmustreadthembeforetheappliance

is installed or used.

Use

This appliance is designed to be used by

adults. Children should not be allowed to touch

the controls or play with the product.

It is dangerous to modify the specifications of

this appliance in any way.

Always unplug the appliance and turn off the

water after use.

Only wash fabrics with are designed to be

machine washed. If in doubt, follow the instruc-

tions you find on the label of the item itself.

Place small metal rings or edged plastic rings

in a net or bag.

Make sure that all pockets are empty. Hard,

sharp objects such as coins, safety pins, nails,

screws or stones can cause extensive damage.

Do not machine wash fabrics which are

saturated with petroleum products. If volatile

cleaning fluids have been used, make sure

that they are thoroughly removed from the

fabrics before they are placed in the appliance.

Small and delicate objects (e.g. baby socks,

stockings) can be easily washed inside a small

pillowcase with a zip fastener or in larger

socks.

Use only the recommended quantities of fabric

conditioner.

Before cleaning, care and maintenance, ensure

that the machine is unplugged.

Installation

Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

Any plumbing work required to install this

appliance should be carried out by a qualified

plumber or competent person.

Make sure that the appliance does not stand

on its electrical supply cable.

This appliance is heavy. Care should be taken

when moving it.

All packaging and transit bolts must be removed

before the appliance is used. Serious damage

may occur if this is not done.

If your washing machine is in a room subject to

temperatures below freezing, the water must

be removed from the machine. So, the

danger of freezing should be expected.

SAFETY INSTRUCTIONS

Read all instructions before using

the appliance and save them for

future reference.

- 4 -

Safeties

Lid : your washing machine is equipped with

a safety avoiding the switching of the appliance

when the flapdoors of the drum are opened ;

the closure of the lid is so impossible. An

electromechanic safety prohibits the opening

of the lid when the washing machine works and

2 minutes after the end of the programme.

Washing motor : in case of mechanic

overloading, overvoltage, a thermic safety

protects automatically the motor.

Heating : the heating can only begin when

the water quantity necessary for the washing

is in the tub. This safety is useful when there is

a water break-up or if you forget to open the

water inlet hose.

The anti-foam system: water consumption is very

low, due to the electronic spin cycle with an inter-

mediate spin after the main wash and three rinse

cyclesforwhiteandcolorprograms. Thespincycle

remains under the control of the foam detection

system after the wash cycle has finished. If

necessary, the spin cycle will stop until all foam is

removed.

Anti-balanced system : This safety allows to the

appliance to keep a perfect stability during the

intermediaryspinningsandduringthefinalspinning.

Ifyounoticethatyourlaundryisnotspinnedenough,

the anti-balanced system has then detected a bad

distributionofthelaundry during the finalspinning;

soitisadvicedtorealizeanewspinningtakingcare

to unpack handly the laundry before.

Environmental information

All materials marked by the symbol are

biodegradable. They can be disposed of without dan-

ger or burnt in rubbish incinerators.

Inordertorealize waterandenergysavingsandtoact

inanenvironmentallyconsciousmanner,weadviceto

follow the below instructions :

- use if possible the appliance with full loads

instead of partial loads. Take care to do not

overload the drum.

- Use only the programmes with prewash for very

soiled laundry.

- Savings on detergent and for the environment

may also be achieved if with medium to hard

water you add sufficient detergent for soft water

and then add separately a softener. This relieves

our waters of a certain amount of chemicals.

When disposing of the machine in a proper

manner, destroy the door lock and cut off the

power supply cord.

- 5 -

DESCRIPTION OF THE APPLIANCE

Detergent dispenser

Symbols

() Washing powder for programmes with

prewash (1).

() Washing powder or liquid detergent for

the main wash (2).

() Bleach compartment (3).

() Liquid additives (fabric softener and

conditioner...) (4).

(5) Overflow orifice

Control panel

Lid

Handle for opening lid

Trap door for lint filter

Lever for castors

Pushbuttons

Programme selector Temperature selector

Light

1234

Spinning speed selector

- 6 -

USE OFYOUR APPLIANCE

The control panel

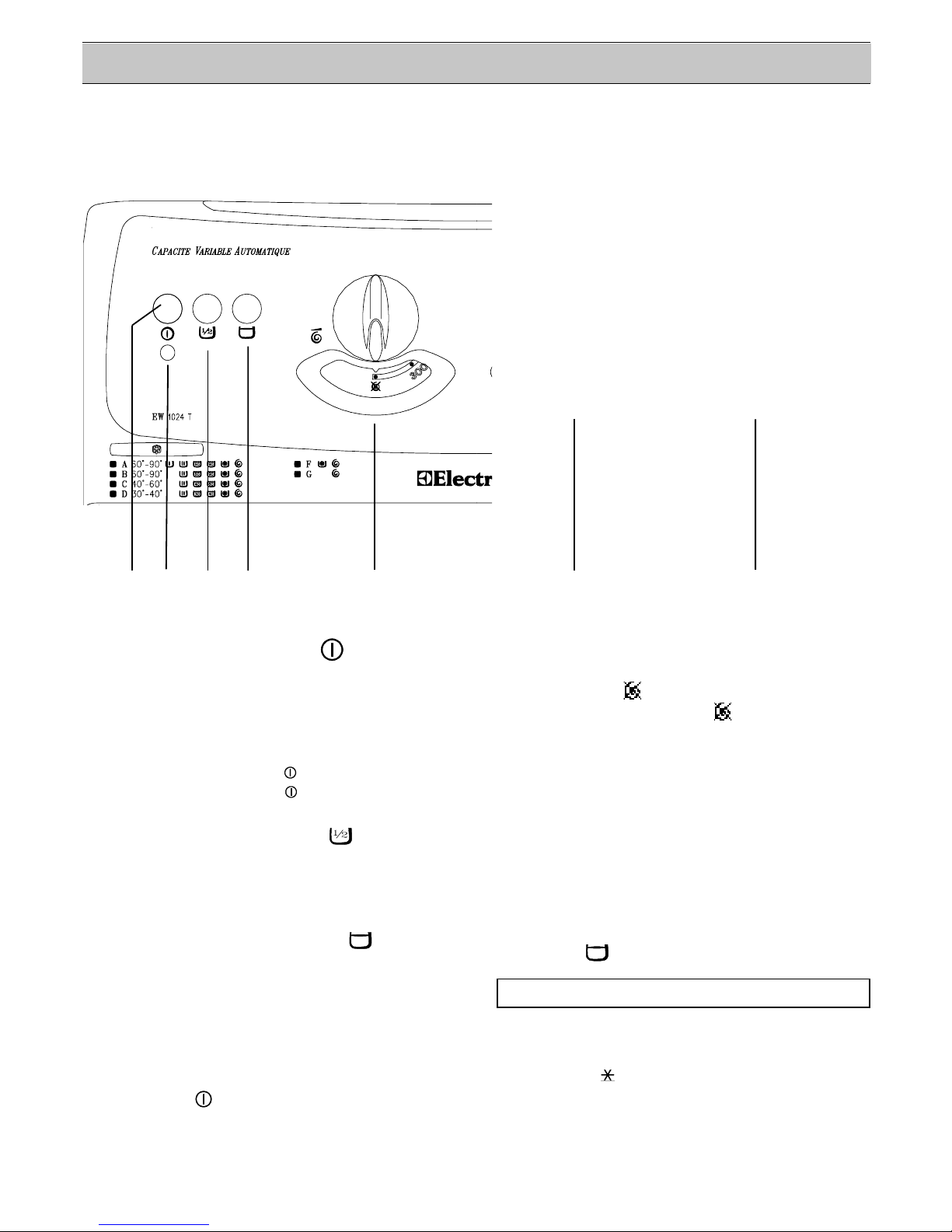

1 ON/OFF pushbutton " "

Press the ON/OFF pushbutton, the programme

starts : the control lamp lights on.

2 Control lamp

The control lamp lights on when the appliance is

working (on/off pushbutton " " pressed). It lights off

when the on/off pushbutton " " is pressed out.

3 Half load pushbutton " "

Thispushbuttonallows to wash small quantity of linen

not much soiled (2,5 kg) only on the cotton program-

mes.

4 Rinse hold pushbutton " "

Pressthisbuttontoleavethewaterinthedrumafterthe

wash cycle is completed. This works on all program-

mes.The clothes are left suspended in water after the

final rinse to prevent the formation of creases.

You can end these programmes by a spinning (by

depressingthispushbutton)orbyadraining(bysetting

thetimerontheprogrammeP).Pleasedepresstheon/

off pushbutton ""before doing your choice.

Never turn the programme selector when the appliance is working.

5 Spinning speed selector

It enables to choose the spinning speed from the

draining position " " (or no spin) to 1000 rpm on the

cotton programmes and from " " to 650 rpm for the

synthetics, delicates and wool programmes.

6 Programme selector

Itenablestoselectthemostadaptedprogrammetothe

nature and degreees of soil of your laundry.

Turn the programme selector clockwise to select the

chosen programme.

The programme selector indicates each programme

phase as it takes place.

At the end of the programme, the appliance stops

automatically on a position off "I" (the rinse hold

pushbutton " " is not selected).

Neverturntheprogrammeselectoranticlockwise.

7 Temperature selector

It enables to choose the mosta adapted temperature

between cold ( ) and 90°C.

Choose the temperature which corresponds to the

chosen programme, with the help of the indications or

the programme table, according to the fibers and the

fastness of the colours.

1 3 6

274 5

- 7 -

OPERATING INSTRUCTIONS

1. Place the laundry in the drum

lift up the lid of the machine.

open the drum with your two hands by pressing the

button Aand the two flapdoors till they disengage.

introduce the laundry into the drum ; close the drum

and the lid of the machine.

Be careful : before closing the lid of your machine,

make sure that the drum flapdoors are correctly

closed :

the two flapdoors fastened,

the button Apressed out.

2. Measure out the detergent

Measure out the amount of detergent recommended

by the manufacturer in the main wash compartment

().

If you wish to carry out a prewash, pour the amount

required into the prewash compartment ( ).

3. Add the bleach agent, if required

You may use a bleach agent on cotton programmes.

However, make sure that the fabric withstands the

treatment. Bleach is automatically washed down into

the drum. Pour 1/4 to 1 glass of 12° chl bleach into

compartment marked ( ) before switching the ma-

chine on.

4. Add the fabric softener

Pour the softener, if required, into the compartment

marked ( ). Do not exceed the MAX level.

Your washing machine has been conceived in

ordertosavewateranddetergentproducts.Please

takecare thefillinglevel ofthe detergentproducts

do not exceed the MAX marks located near the

display window of your detergent dispenser.

5. Press the half load " " or the rinse

hold " " pushbuttons if required.

Liquiddetergent

only compartment Powder detergent

Compartment

(prewash)

Compartment

(wash)

Beforeusingyourapplianceforthefirsttime,werecommend thatyoudoapreliminarywash

with the machine empty, as a precaution to clean the drum, the tub and the detergent

dispenser.

1. Pour a dose of detergent in the “washing” compartment.

2. Select the "whites 90°C" program without prewash.

3. Press the on/off button " ". The cycle starts.

- 8 -

6. Select the temperature

Choose the temperature which corresponds to the

chosen programme.

7. Select the spinning speed

Choosethespinningspeedsuitingbesttothenatureof

your laundry and to the degree of humidity wished at

the end of the wash.

Here are the spinning speeds according to the nature

of the laundry :

8. Select the programme

Choose the programme according to the nature and

the degree of soil of the laundry.

Turn the programme selector clockwise to select the

chosen programme.

9. Starting of the programme

The ON/OFF pushbutton " " enables to switch on

your machine. The control lamp lights on and the

programmebegins.

10. At the end of the programme

When the selected programme is over, the machine

stops automatically. The timer knob stops on the

position "I" for all the programmes.

Iftherinseholdpushbutton" "isselected,thechosen

programme end by a rinse hold. You can finish this

programmebyaspinningbydepressingtherinsehold

pushbutton " " or by a draining (programme P).

Depress the on/off pushbutton " " before doing your

choice.

After each wash, depress the on/off pushbutton.

Press off the pushbuttons if necessary ; unplug the

machine from the wall socket ; turn off the water tap.

Cotton 300 400 500 650 800 900 1000

Synth. 300 350 400 450 500 550 650

- 9 -

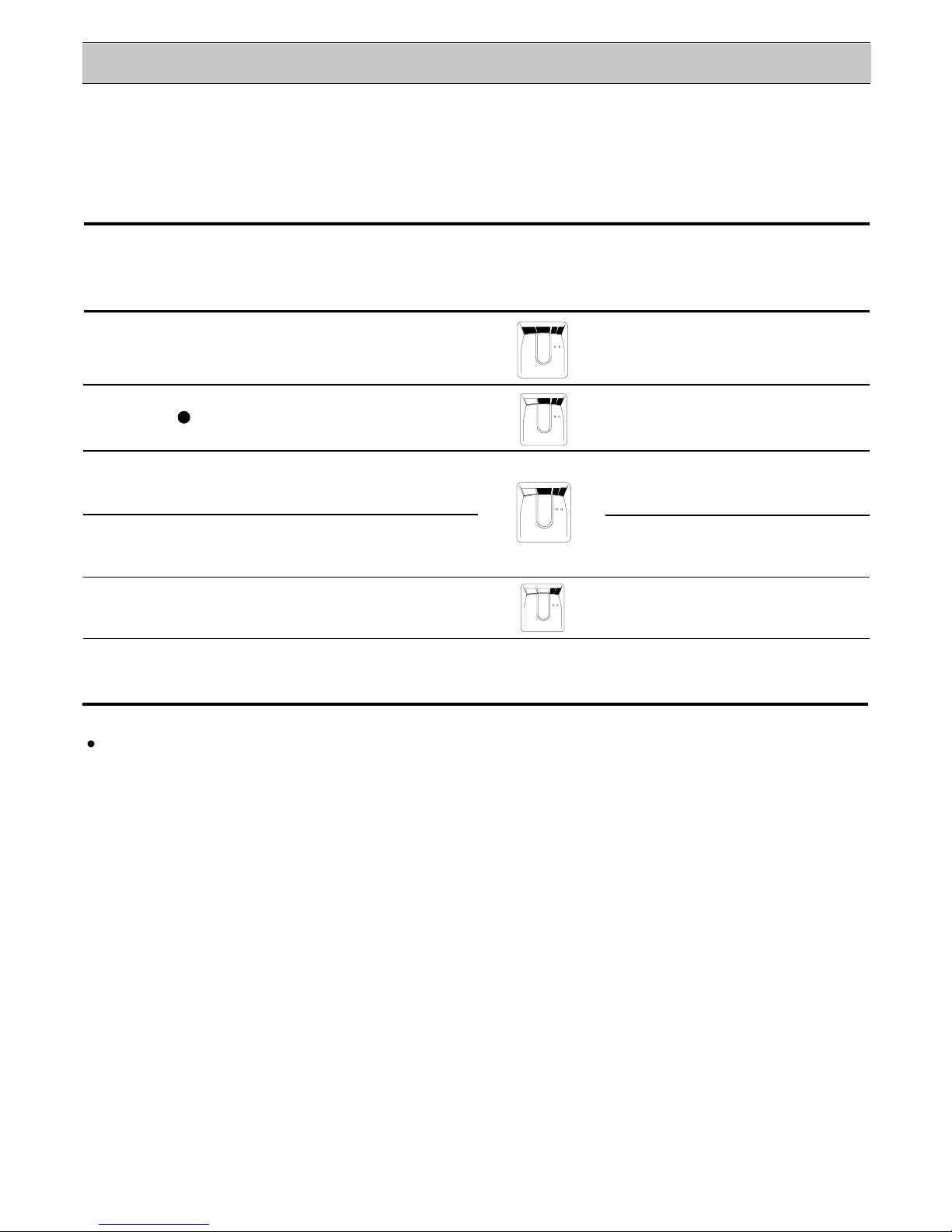

PROGRAMMES CHART

Programmes

description Temperatures

(°C) Water

consumption

in liters

Time

in minutes

(2)

White with prewash

White( )

Coloured

Delicate coloured

Rinsings

Spinning

60-90

40-60

30-40

Detergent

dispensers

to use

Programmes for cotton/linen

Maximum load : 5 kg (cotton)

()recommendedprogramforcomparisonsbasedonstandardIEC456. Thermostatat60°(58liters-130minutes)

(1) if the laundry can withstand the bleaching treatment.

(2) Program times given in the above table are provided as a guide and may vary depending on the water supply

temperature and pressure, and your electricity power supply mains voltage.

TheprogramsBandCbeginwithashortdraining,followed then by an automatic advance of the program selector

untilthefillingposition.

The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat

knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item

of washing.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

(1)

165

145

130

100

- 10 -

Programmes

description Temperatures

(°C) Water

consumption

in liters

Time

in minutes

(1)

Synthetics with prewash

Synthetics

Wool

Delicate

Rinsings

Rinsing

Drain

40-60

-40

30-40

Detergent

dispensers

to use

Programmes for synthetics/delicates/wool

Maximum loads : 2,5 kg (synthetics), 1 kg (wool).

(1) Program times given in the above table are provided as a guide and may vary depending on the water supply

temperature and pressure, and your electricity power supply mains voltage.

The programs J and K begin with a short draining, followed then by an automatic advance of the program selector

untilthefillingposition.

The temperatures given in the programs table are provided as a guide. You can vary them using the thermostat

knob on your washing machine. Always scrupulously respect the temperature shown on the label on each item

of washing.

BE CAREFUL :

THE LID CAN ONLY BE OPENED 2 MINUTES AFTER THE MACHINE HAS STOPPED.

100

Tabla de contenidos

Otros manuales de Arandela de Electrolux

Electrolux

Electrolux EW1232I Manual de usuario

Electrolux

Electrolux EWF 1072EMW Manual de usuario

Electrolux

Electrolux EWM1000 Manual de usuario

Electrolux

Electrolux EW6F4923EB Manual de usuario

Electrolux

Electrolux EWC 1350 Manual de usuario

Electrolux

Electrolux EFLS617SIW Manual de funcionamiento

Electrolux

Electrolux W5130S Manual de usuario

Electrolux

Electrolux EW7F3946LB Manual de usuario

Electrolux

Electrolux EW 1232 F Manual de usuario

Electrolux

Electrolux EIFLS55IIW - 27" Front-Load Steam Washer Instrucciones de instalación

Electrolux

Electrolux EWF 1487 HDW2 Manual de usuario

Electrolux

Electrolux EW 880F Manual de usuario

Electrolux

Electrolux EWT806 Manual de usuario

Electrolux

Electrolux 134700400 Manual de usuario

Electrolux

Electrolux EW6T4261 Manual de usuario

Electrolux

Electrolux EW1220N Manual de usuario

Electrolux

Electrolux EW 1170 C Manual de usuario

Electrolux

Electrolux EWF 1386 Manual de operación

Electrolux

Electrolux EWF 1276GDW Manual de usuario

Electrolux

Electrolux EWF16980 Manual de usuario

Electrolux

Electrolux EWF 1497 HDW Manual de usuario

Electrolux

Electrolux Wave-Touch EWFLW65HTS0 Manual de usuario

Electrolux

Electrolux EW 1233I Manual de usuario

Electrolux

Electrolux WE1100P Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
