1. SAFETY INFORMATION

For your safety and correct operation of the appliance,

read this manual carefully before installation and use.

Always keep these instructions with the appliance even if

you move or sell it. Users must fully know the operation

and safety features of the appliance.

The wire connection has to be done by specialized

technician.

• The manufacturer will not be held liable for any damages

resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and

the extractor hood is 650 mm (some models can be installed

at a lower height, please refer to the paragraphs on working

dimensions and installation).

• If the instructions for installation for the gas hob specify a

greater distance, this must be respected.

• Check that the mains voltage corresponds to that indicated

on the rating plate xed to the inside of the hood.

• Means for disconnection must be incorporated in the xed

wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power sup-

ply guarantees adequate earthing.

• Connect the extractor to the exhaust ue through a pipe of

minimum diameter 120 mm. The route of the ue must be

as short as possible.

• Regulations concerning the discharge of air have to be

fullled.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunction with non-electrical ap-

pliances (e.g. gas burning appliances), a su󰀩cient degree of

aeration must be guaranteed in the room in order to prevent

the backow of exhaust gas. When the cooker hood is used

in conjunction with appliances supplied with energy other

than electric, the negative pressure in the room must not

exceed 0,04 mbar to prevent fumes being drawn back into

the room by the cooker hood.

• The air must not be discharged into a ue that is used for

4www.electrolux.com

exhaustingfumes fromappliances burninggas orother fuels.

• If the supply cord is damaged, it must be replaced from the

manufacturer or its service agent.

• Connect the plug to a socket complying with current regula-

tions, located in an accessible place.

• With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the pro-

tective lms.

• Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or xing device

in accordance with these instructions may result in elec-

trical hazards.

• Do not look directly at the light through optical devices (bin-

oculars, magnifying glasses…).

• Do not ambè under the range hood; risk of re.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concern-

ing use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by chil-

dren without supervision.

• Children should be supervised to ensure that they do not

play with the appliance.

• The appliance is not to be used by persons (including chil-

dren) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction.

Accessible parts may become hot when used with cook-

ing appliances.

• Clean and/or replace the Filters after the specied time

period (Fire hazard). See paragraph Care and Cleaning.

• There shall be adequate ventilation of the room when the

range hood is used at the same time as appliances burning

gas or other fuels (not applicable to appliances that only

ENGLISH

discharge the air back into the room).

• Range hoods and other cooking fume extractors may

adversely a󰀨ect the safe operation of appliances burn-

ing gas or other fuel (including those in other rooms)

due to back ow of combustion gases. These gases

can potentially result in carbon monoxide poisoning.

After installation of a range hood or other cooking fume

extractor, the operation of ued gas appliances should

be tested by a competent person to ensure that back

ow of combustion gases does not occur.

• The symbol on the product or on its packaging indicates

that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection

point for the recycling of electrical and electronic equip-

ment. By ensuring this product is disposed of correctly,

you will help prevent potential negative consequences for

the environment and human health, which could other-

wise be caused by inappropriate waste handling of this

product. For more detailed information about recycling

of this product, please contact your local city o󰀩ce, your

household waste disposal service or the shop where you

purchased the product.

WARNING:

- Ensure the rangehood is switched o󰀨 before carrying

out maintenance, to avoid any possibility of electric

shock.

- This rangehood is not recommended for barbecues.

- Exhaust air must not be discharged into a wall cavity,

unless the cavity is designed for the purpose.

- Always cover lit gas burners with pots or pans when

the rangehood is in use.

- Always switch o󰀨 gas burners before you remove

pots or pans.

6www.electrolux.com

CAUTION:

- In order to avoid a hazard due to inadvertent reset-

ting of the thermal cut-out, this appliance must not be

supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly

switched on and o󰀨 by the utility.

ELECTRICAL CONNECTION

• Check that the installation complies with standards of

local gas and electricity authorities.

• If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a similarly

qualied person in order to avoid a hazard.

• Ensure that the plug is accessible after installation.

ACCESSORIES

• When using exible duct always install duct with the

wire helix pulled taut to minimise pressure loss.

• Try to keep exhaust duct short and straight.

• Keep bends in the exhaust duct to a minimum.

• Do not restrict exhaust duct.

• Reducing the size of the exhaust duct will reduce the

airow of the rangehood. Please read instructions care-

fully. Service calls resulting from incorrect installation

will be charged for.

• Installation must comply in all respects with your gas

and electrical authorities. This rangehood is an indoor

domestic appliance, and has been manufactured and

tested to comply with Australian and New Zealand

Standard AS/NZS 60335.2.31

ENGLISH

2. USE

• The extractor hood has been de-

signed exclusively for domestic use

to eliminate kitchen smells.

• Never use the hood for purposes

other than for which it has been

designed.

• Never leave high naked ames un-

der the hood when it is in operation.

• Adjust the ame intensity to direct

it onto the bottom of the pan only,

making sure that it does not engulf

the sides.

• Deep fat fryers must be continuously

monitored during use: overheated

oil can burst into ames.

• Always switch o󰀨 gas burners before

removing pots or pans.

3. CARE AND CLEANING

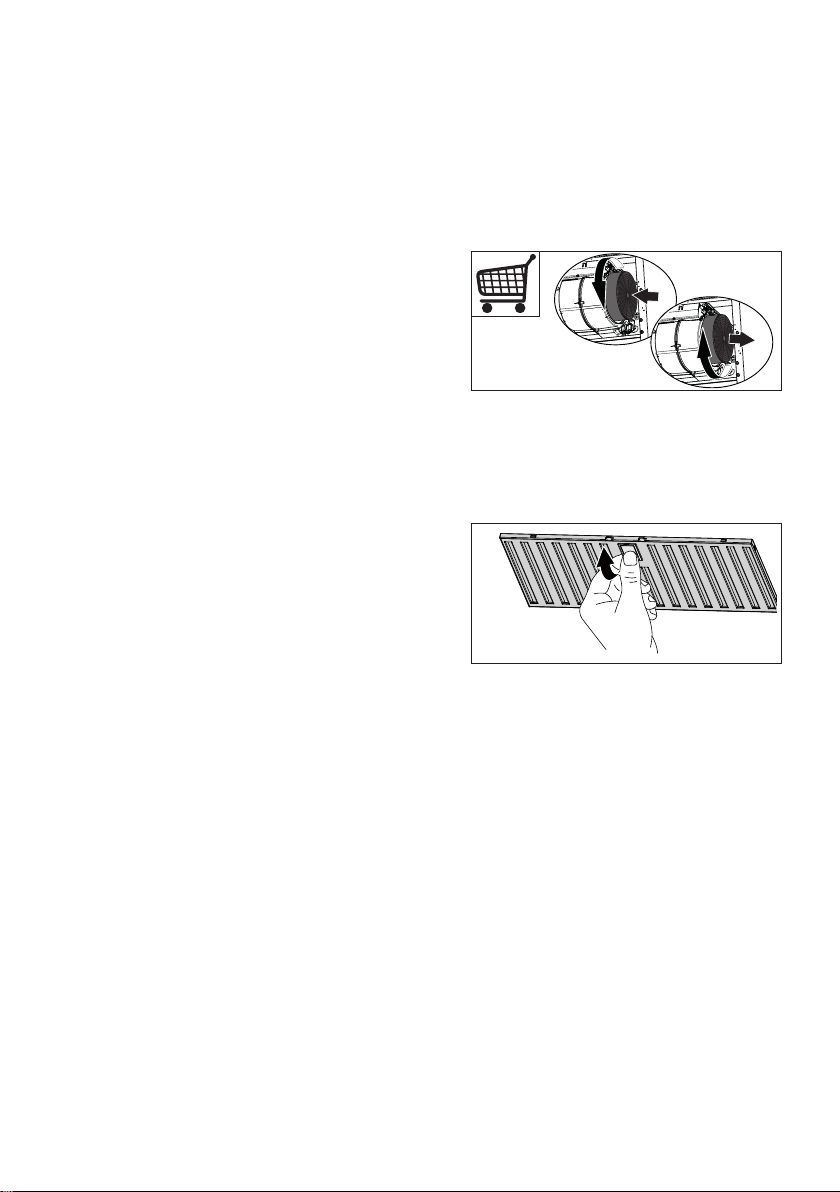

- The Activated charcoal lter is

not washable and cannot be re-

generated, and must be replaced

approximately every 4 months of

operation, or more frequently for

particularly heavy usage (W).

- The Grease lters must be cleaned

every 2 months of operation, or

more frequently for particularly

heavy usage, and can be washed

in a dishwasher (Z).

• Clean the hood using a damp cloth

and a neutral liquid detergent.

• Wipe the rangehood body and

ue with a sponge or soft cloth

soaked in warm soapy water, and

dry with a soft cloth, for stainless

steel models apply a stainless steel

protector. Do not use oven cleaners

or other abrasive materials.

• There is a re risk if cleaning is

not carried out in accordance with

instructions.

8www.electrolux.com

4. CONTROLS



    

Button Function Led

LTurns the lights on/o󰀨 at maximum strength. -

T1 Turns the motor on/o󰀨 at speed one. Fixed.

T2 Turns the Motor on at speed two.

Press and hold the button for approximately 3 seconds,

with all the loads turned o󰀨 (Motor and Lights), to turn the

Activated Charcoal Filter alarm on. The relevant LED ashes

twice to conrm.

To turn the alarm o󰀨, press the button again and hold for at

least 3 seconds. The relevant LED ashes once.

Fixed.

T3 Turns the Motor on at speed three.

Press and hold the button for approximately 3 seconds, with

all the loads turned o󰀨 (Motor and Lights), to perform a reset.

The LED S1 ashes three times.

Fixed.

T4 Turns the Motor on at INTENSIVE Speed.

This speed is timed to run for 6 minutes. At the end of this

time, the system returns automatically to the speed that was

set before. If it is activated with the motor turned o󰀨, the hood

will switch to OFF at the end of the time.

Fixed.

S1 Signals the Metal Grease Filter saturation alarm, indicating that

it is necessary to wash the lters. The alarm is triggered after

the Hood has been in operation for 100 working hours.

Fixed.

When this is activated, it signals the Activated Charcoal Filter

saturation alarm, indicating that the lter must be changed;

the Metal Grease Filters must also be washed. The Activated

Charcoal Filter saturation alarm comes into operation after the

Hood has been working for 200 hours.

Flashing.

5. LIGHTING

• Lamps in risk group 1 under

IEC/EN62471 at a distance

of 20cm and is exempt

from risk group under IEC/

EN62471 at a distance of

30cm.

• For replacement contact techni-

cal support (“To purchase contact

technical support”).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de Electrolux

Electrolux

Electrolux EFT 800 Manual de usuario

Electrolux

Electrolux REX CA 962 ALU Manual de usuario

Electrolux

Electrolux PLHV42P8CC Manual de usuario

Electrolux

Electrolux ERHC1238S Manual de instrucciones

Electrolux

Electrolux EFC 980 Manual de usuario

Electrolux

Electrolux EFL10566DX Manual de usuario

Electrolux

Electrolux ECS9081G Manual de usuario

Electrolux

Electrolux EFC 635 X Manual de usuario

Electrolux

Electrolux LFP716W Manual de usuario

Electrolux

Electrolux EFP 6430 Manual de usuario

Electrolux

Electrolux LFD619Y Manual de usuario

Electrolux

Electrolux LFP229X Manual de usuario

Electrolux

Electrolux EFC9660 Manual de usuario

Electrolux

Electrolux WEGL1030CN Manual de usuario

Electrolux

Electrolux KFVB19K Manual de usuario

Electrolux

Electrolux HOST11 Manual de usuario

Electrolux

Electrolux Icon E36WC45FSS Manual de usuario

Electrolux

Electrolux EFT 601-2 Manual de usuario

Electrolux

Electrolux EFC60001 Manual de usuario

Electrolux

Electrolux DF 1090 Hoja de especificaciones

Electrolux

Electrolux ICON E30WV60EPS Guía de inicio rápido

Electrolux

Electrolux EFB90460OX Manual de usuario

Electrolux

Electrolux ZHT 510 Manual

Electrolux

Electrolux EFC70720X Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
