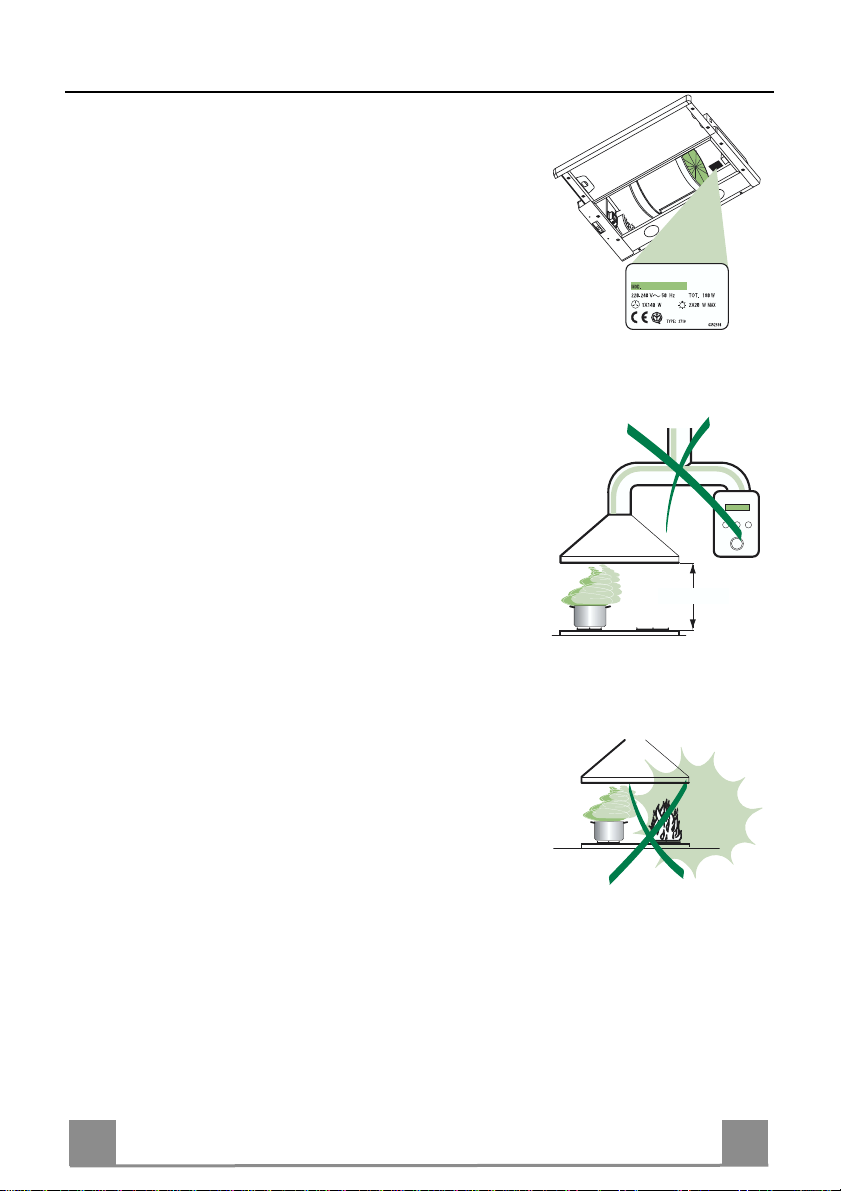

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• Do not flambè under the range hood; risk of fire

• The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

81 Directional Air Outlet grille

91 Flange ø 150 mm

10a 1 Flange ø 120 mm

10b 1 Adapting ring ø 120-125mm

20 1 Closing element

Ref. Q.ty Installation Components

12a 4 Screws 3,5 x16

12e 2 Screws 2,9 x12,7

12f 5 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

12e

12a

12f

10a

10b

INSTALLATION

Drilling the Support surface and Fitting the Hood

• The Hood can be fitted directly on the

lower surface of the Wall Units (650 mm

min. above the Cooker Top) using the snap-

on Side Supports.

• Make an opening on the lower surface of

the Wall Unit, as indicated. (fig.1)

• Before carrying out the installation, the

wooden transportation protections screwed

on the visor and on the canopy body must

be removed. (fig.2)

• Choose the correct flange measure basing

on the air outlet diameter and insert it to the

upper air outlet opening. (fig.3)

• Screw the closing profile 20 onto the rear

part of the hood, using the screws 12f (2.9

x 9.5) provided. (fig.4)

• Open the sliding suction panel.

• Remove the metal grease filters one by one

after having disconnected the relative fas-

tening elements.

• Close the sliding suction panel again.

• Insert the Hood until the snap-on side sup-

ports click into place. (fig.5)

• Open the sliding suction panel.

• Lock in position by tightening the screws

Vf from underneath the Hood. (fig.5)

• If necessary, adjust the whole filter holder

unit and proceed as follows:

• Loosen the four adjustment screws Vr

and close the sliding panel again. (fig.6)

• Move the entire filter holder unit until it

is properly aligned with the wall unit.

(fig.7)

• Keeping the hood canopy still, remove

the sliding panel and lock the adjustment

screws again. (fig.6)

• The hood can now be fastened to the

wall unit using the four screws 12a (3.5

x 16) provided. (fig.8)

• Replace the metal grease filters.

• Close the sliding suction panel again.

523

162

10a

10b

12a

Connections

DUCTING VERSION AIR EXHAUST SYSTEM

When installing the hood in ducting version, a rigid or a

flexible pipe with the diameter corresponding to the

flange diameter is used in order to connect the hood to

the air outlet piping.

• Fix the pipe with an adequate quantity of pipe

clamps (not supplied).

• Remove possible charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Cut a hole ø 125 mm in any shelf that may be posi-

tioned over the hood.

• Insert the flange 10a on the hood body outlet.

• Connect the flange to the outlet on the shelf over the

hood using a flexible or rigid pipe ø120 mm.

• Fix the pipe in position using sufficient pipe clamps

(not supplied).

• Fix the directional grille 8on the recirculation air

outlet using the 2 screws 12e (2,9 x 12,7) provided.

• Ensure that the activated charcoal filters have been

inserted.

12e

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3

mm..

USE

FUNCTION OF THE PULL-OUT SLIDING SUCTION PANEL

With the sliding panel kept closed is not possible to start up the motor of the hood, on the con-

trary is possible to engine and/or to switch off the lighting system. When the sliding panel is

pulled out the button pad is enabled, so that all functions are active and any functions that were

activated previously will be restored. Example: sliding panel pulled out : lights ON and motor

ON at speed T2; when the sliding panel is pushed back in again all these functions are turned

off. When the sliding panel is pulled out again, the hood will automatically restore the previ-

ous state, that is to say lights ON, motor ON at speed T2. If intensive speed was turned on at

the time the sliding panel was closed, the hood will not return to intensive speed when the slid-

ing panel is extracted, but to the speed set prior to that.

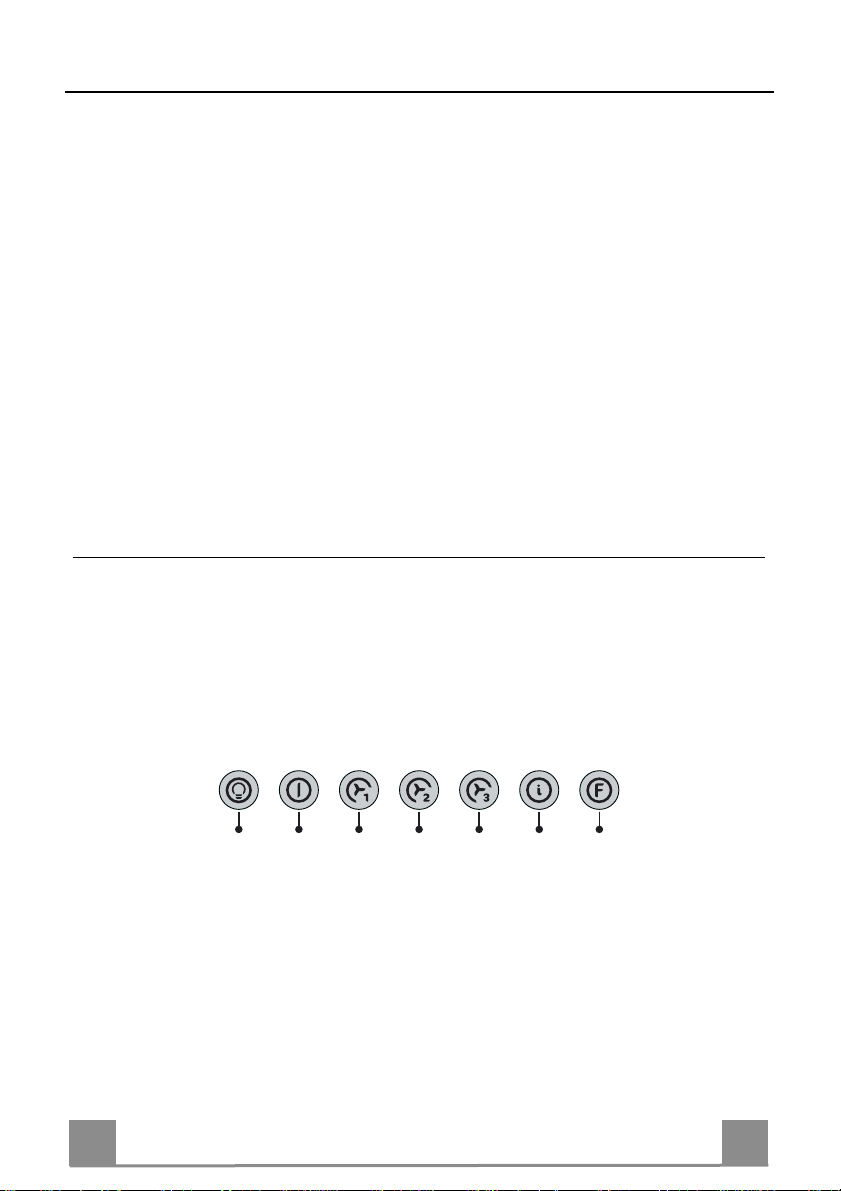

Control Panel

L T1 T2 T3 T4 T5 F
