Electrolux EFC 1540 Manual de usuario

Instruction Manual

Manual de instrucciones

Bedienungsanleitung

Manual de Instruções

PT 30

DE 21

ES 12

GB 3

EFC 6540

EFC 7540

EFC 9540

EFC 1540

3GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual, your

appliance will give you constant high per-

formance and will remain efficient for

many years to come.

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 5

INSTALLATION 6

USE 9

MAINTENANCE 10

4GB

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use

to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben

designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

5GB

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

11 HoodBody,completewith:Controls,Light,Blower,

Filters

21 TelescopicChimneycomprising:

2.1 1 UpperSection

2.2 1 LowerSection

91ReducerFlangeø150-120mm

14.1 2 AirOutletConnectionExtension

15 1 AirOutletConnection

Ref. Q.ty Installation Components

7.2.1 2 UpperChimneySectionFixingBrackets

7.3 1 AirOutletConnectionSupport

11 6 WallPlugs

12a 6 Screws4,2x44,4

12c 6 Screws2,9x9,5

Q.ty Documentation

1 InstructionManual

1 Warranty

740

870

1200

260

300

650 min.

490 60

598-898

108

150

2.1

2.2

12c

12a 7.2.1 11

12a

7.3

14.1

6GB

12a

320 X

116

1÷2

116

650 min.

7.2.1

INSTALLATION

Walldrillingandbracketfixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of

the area in which the hood will be installed.

• Draw a horizontal line at 650 mm above the hob.

• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the

centre (notch) with the vertical reference line.

• Mark the wall at the centres of the holes in the bracket.

• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.

• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above

the horizontal reference line.

• Repeat this operation on the other side.

• Drill ø 8 mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.

• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.

• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws

12a (4,2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6

mm between the wall and the head of the screw.

7GB

Mounting the hood body

• Before attaching the hood body, tighten the two

screws Vr located on the hood body mounting

points.

• Hook the hood body onto the screws 12a

• Fully tighten support screws 12a

• Adjust screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

• Fix the pipe in position using sufficient pipe

clamps (not supplied).

• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Put connection 15 into the connection support 7.3.

• Insert the connection extension pieces laterally 14.1

in connection 15.

• Make sure that the outlet of the extension pieces

14.1 is horizontally and vertically aligned with the

chimney outlets.

• Connect the air outlet connection 15 to the hood

body outlet using either a flexible or rigid pipe ø 150

mm, the choice of which is left to the installer.

• Ensure that the activated charcoal filters have been

inserted.

12a

ø 120ø 150

ø 150

14.1

8GB

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole

switch having a contact gap of at least 3 mm.

• Remove the grease filters and verify that the

connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan Enlever

les filtres à graisse et s'assurer que le connecteur

Flueassembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue

and hook them behind the brackets 7.2.1, making

sure that they are well seated.

• Secure the sides to the brackets using the 4

screws 12c (2,9 x 9,5) supplied.

• Make sure that the outlet of the extensions pieces

is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook

them between the upper flue and the wall, making

sure that they are well seated.

• Fix the lower part laterally to the hood body using

the 2 screws 12c (2,9 x 9,5) supplied.

12c

2.1

2.2

7.2.1

12c

9GB

USE

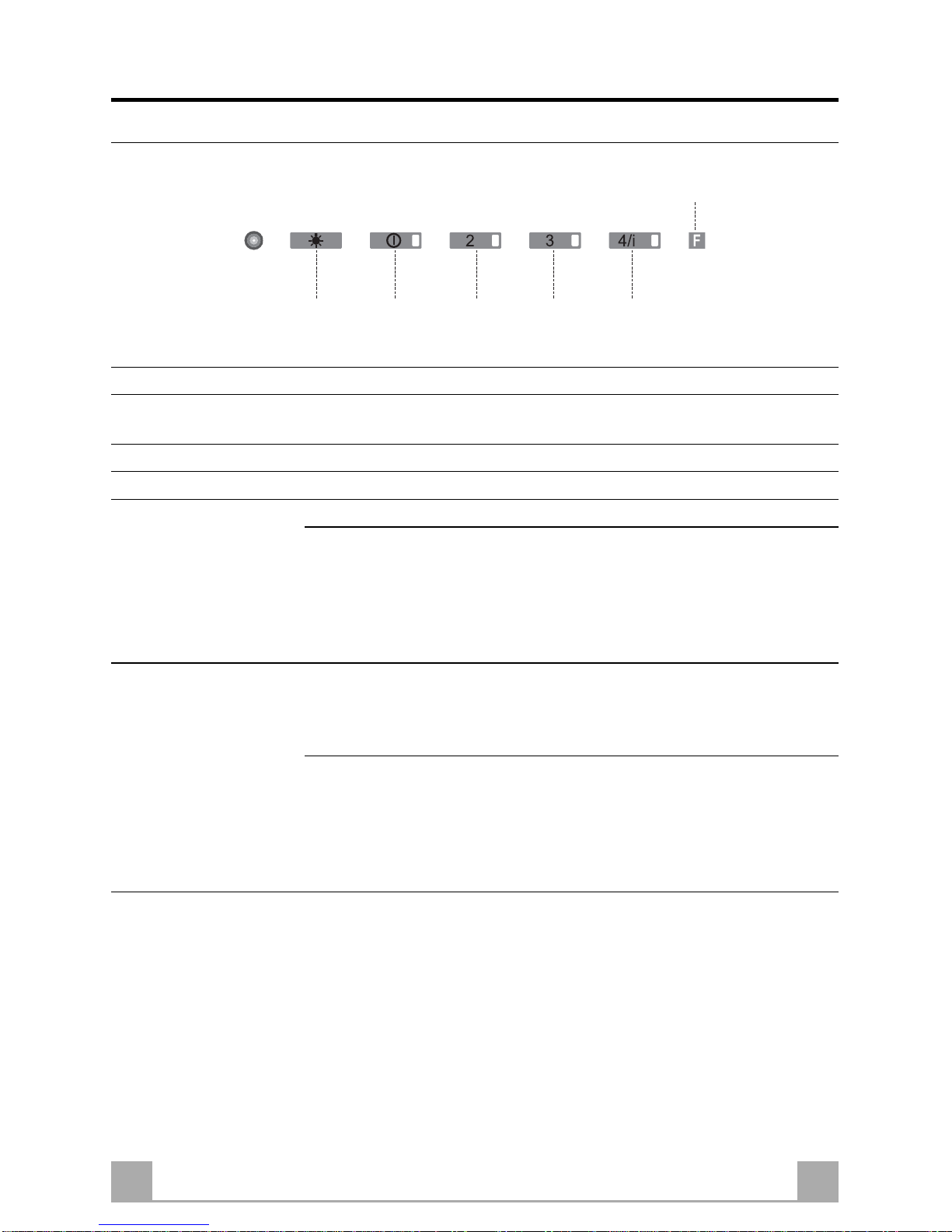

ControlPanel

The hood can be switched on pushing directly onto the requested speed without firstly having to select

0/1 button.

KEY LED FUNCTIONS

L0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed.

When pressed for about 1 seconds the motor is switched off.

T2 Speed on Second speed.

T3 Speed on Third speed.

T4 Speed Fixed Max. speed

Flashing Intensive speed.

Suitable for the strongest cooking vapours and odours.

The function becomes active when the button is pushed

for about 2 seconds. After 10 minutes of functioning it

turns off automatically. This function can be interrupted

by means of pressing any of the buttons.

S1 Led Fixed Indicates that the Metal grease filters saturation alarm

has been triggered, and the filters need to be washed.

The alarm is triggered after 100 working hours. (Reset;

check the Maintenance-paragraph)

Flashing indicates that the activated charcoal odour filter saturation

alarm has been triggered, and the filter has to be replaced;

the metal grease filters must also be washed. The

activated charcoal odour filter is triggered after 200

working hours. (Activation and Reset; check the

Maintenance-paragraph)

T1 T2 T3 T4

10GB

MAINTENANCE

Greasefilters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button T3 for at least 3 seconds, until the

leds start to flash.

Cleaning the filters

• The filters must be cleaned every 2 months of

operation, or more frequently for particularly

heavy usage, and can be washed in a dishwasher.

• Remove the filters one at a time by pushing them

towards the back of the group and pulling down

at the same time.

• Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

• When refitting the filters, make sure that the

handle is visible on the outside.

Activatedcharcoalfilter(Recirculationversion)

REPLACING THE ACTIVATED CHARCOAL FILTER

Alarm signal activation

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later

date. Turn the Lights and the suction Motor off.

• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.

• Restore the connection by pressing and holding T1.

• Release the button. All five LEDs are turned on

• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

LED flashes twice -Activated charcoal filter saturation alarm ENABLED

LED flashes once - Activated charcoal filter saturation alarm DISABLED
