Electrolux HD-Line

290 lt refrigerated counters

The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage

located below. This range of counters is constructed in stainless steel to meet the highest hygiene standards.

The range is comprised of three sizes of counters, with built-in or remote compressor units, in various door or

drawer configurations and in refrigerator or freezer versions. The models detailed on this sheet are refrigerated

counters with two sections and operate over the temperature range of –2°C to +10°C.

726550

EASY TO INSTALL

• Mounted on legs with height

adjustment.

• Built-in compressor to suit

operating conditions.

• Suitable for use in ambient

temperatures of up to 43°C.

EASY TO CLEAN

• Constructed in 304 AISI

stainless steel to meet the highest

hygiene standards.

• Rounded internal corners for

ease of cleaning.

• Mounted on stainless steel legs

to provide 150 mm clearance for

easy floor cleaning.

EASY TO USE

• Adjustable temperature range

from –2°C to +10°C to suit meat,

fish and dairy storage

requirements.

• Anti-tilt runners accept GN1/1

containers.

• Combination of doors and

drawers to suit varying needs, with

the possibility to change the

configuration on site.

• Electronic microprocessor

control with external digital

temperature display.

• Forced air circulation for rapid

cooling and an even temperature

distribution.

• Worktop in 304 AISI stainless

steel 50 mm in thickness.

EASY TO MAINTAIN

• Access to all components from

the front.



EASY ON THE ENVIRONMENT

• CFC and HCFC free (ecological

refrigerant type: R134a, - gas in

foam: cyclopenthane).

• 60 mm insulation thickness for

energy saving.

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

• All models comply with the

standards required by the main

international approval bodies and

are H marked.

Electrolux HD-Line

290 lt refrigerated counters

Internet: http://www.electrolux.com/foodservice

HBAB0102010-05-28Subject to change without notice

WORKTOP+UPSTAND FOR REF.COUNTER-2

COMP.

880259 880259

WORKTOP FOR REFR.COUNTER-2

COMPARTMENTS

880256 880256

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457 881457

PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038 881038 881038 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040 881040 881040 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451 811451 811451 811451

LOCK FOR REFRIGERATED COUNTERS 881499 881499 881499 881499 881499

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166 922166 922166

KIT 3 DRAWERS 1/3+RACK-HD REF.COUNTERS 881515 881515 881515 881515 881515

KIT 2 DRAWERS 1/2+RACK-HD REF.COUNTERS 881514 881514 881514 881514 881514

KIT 1 DOOR FOR REFRIGER.COUNTER 881517 881517 881517 881517 881517

KIT 1 BOTTLER+1 DRAWER FOR

REFR.COUNTER

881516 881516 881516 881516 881516

2 WHEELS FOR

REFRIGERATORS/REFRIG.TABLES

880539 880539 880539 880539 880539

1/1 GN GREY "RILSAN" GRID 881435 881435 881435 881435 881435

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 2 1 2 1

INCLUDED ACCESSORIES

Net weight - kg. 119 126 135 119 119

installed-electric 0.34 0.34 0.34 0.34 0.34

Power - kW

at evaporation temperature - °C -10 -10 -10 -10 -10

Refrigerant power

Refrigeration power - W 378 378 378 378 378

Refrigerant quantity - g. 220 220 220 220 220

Refrigerant type R134a R134a R134a R134a R134a

N° defrost in 24 hrs. 3/15' 3/15' 3/15' 3/15' 3/15'

Compressor power - HP 1/4 1/4 1/4 1/4 1/4

N° and type of grids (included) 2, GN 1/1 1, GN 1/1 2, GN 1/1 1, GN 1/1

Door hinges 1 Left+1 Right Right Side 1 Left+1 Right Left

N° of drawers 2x1/2 4x1/2 3x1/3

Min/Max internal humidity - % 80/95 80/95 80/95 80/95 80/95

Top material 304 AISI 304 AISI 304 AISI

Worktop type Stainless

Steel

Stainless

Steel

Stainless

Steel

none none

height 850 850 850 800 800

depth/with open doors 700, 1110 700, 1110 700, 1110 700, 1110 700, 1110

width 1274 1274 1274 1274 1274

External dimensions - mm

Cooling unit Built-In Built-In Built-In Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 291 291 291 291 291

Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10 -2/10

TECHNICAL DATA

RCDR2M20

726550

RCDR2M12

726551

RCDR2M04

726552

RCDR2M20T

727074

RCDR2M13T

727075

Electrolux HD-Line

290 lt refrigerated counters

Internet: http://www.electrolux.com/foodservice

HBAB0102010-05-28Subject to change without notice

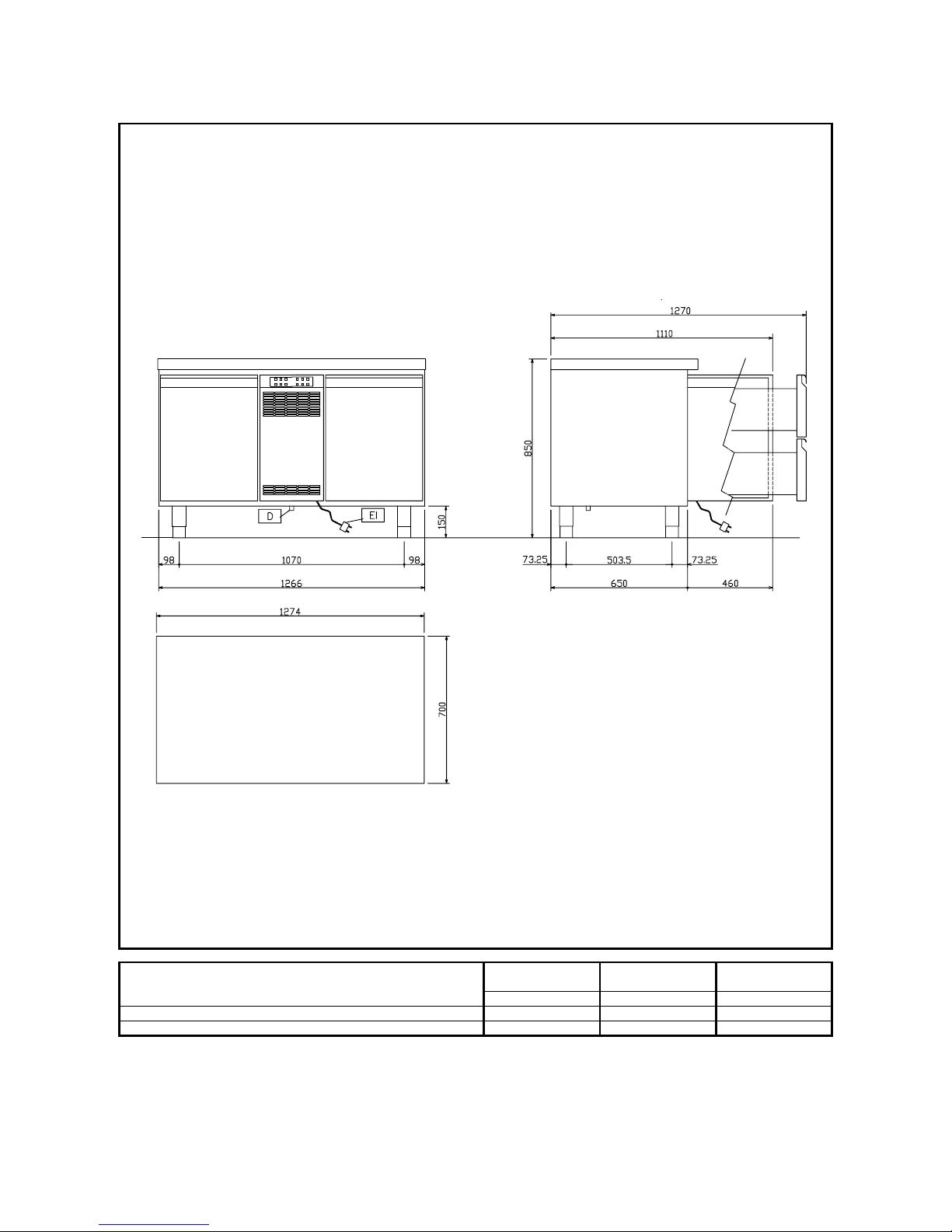

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

D - Water drain 16mm 16mm 16mm

LEGEND

RCDR2M20

726550

RCDR2M12

726551

RCDR2M04

726552

726550, 726552, 726551
