Electrolux ERCP3215AW Manual de usuario
ERCP3215AW EN REFRIGERATOR USER MANUAL 2
FR RÉFRIGÉRATEUR NOTICE D'UTILISATION 17
DE KÜHLSCHRANK BENUTZERINFORMATION 33
IT FRIGORIFERO ISTRUZIONI PER L’USO 50
CONTENTS
1. SAFETY INFORMATION...................................................................................... 3
2. SAFETY INSTRUCTIONS.....................................................................................4
3. OPERATION........................................................................................................ 5
4. DAILY USE.......................................................................................................... 7
5. HINTS AND TIPS................................................................................................. 9
6. CARE AND CLEANING........................................................................................9
7. TROUBLESHOOTING........................................................................................11
8. INSTALLATION..................................................................................................13
9. NOISES............................................................................................................. 14
10. TECHNICAL INFORMATION............................................................................16
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
www.electrolux.com4
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority
for information on how to discard the
appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Control Panel
1
23456
1Display
2Temperature warmer button
3Temperature colder button
4OK
5Mode
6ON/OFF
It is possible to change predefined sound
of buttons to a loudly one by pressing
together Mode and temperature colder
button for some seconds. Change is
reversible.
ENGLISH 5
3.2 Display
A HE F GCB D
A) Timer function
B) FreeStore function
C) Shopping function
D) DrinksChill function
E) Holiday function
F) ChildLock function
G) Alarm indicator
H) Temperature indicator
3.3 Switching on
Connect the mains plug to the power
socket.
Press the ON/OFF button if the display is
off.
If DEMO appears on the display, the
appliance is in demonstration mode. Refer
to "Troubleshooting" section.
The temperature indicators show the set
default temperature.
To set a different temperature refer to
"Temperature regulation".
3.4 Switching off
Press the ON/OFF button for 5 seconds.
The display turns off.
To disconnect the appliance from the
power, disconnect the mains plug from
the power socket.
3.5 Temperature regulation
The default set temperature for the fridge
is +5°C.
Set the temperature of the fridge by
pressing the temperature button.
The temperature indicator shows the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.6 FreeStore function
The activation of the FreeStore function
increases the energy consumption.
If the function is activated
automatically the FreeStore
indicator is not shown (refer
to "Daily use").
1. To switch on the function press Mode
until the corresponding icon appears.
2. To switch off the function press Mode
in order to select an other function or
press Mode until you can see none of
the special icons.
3.7 Shopping function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the Shopping function to chill the products
more rapidly and to avoid warming the
other food which is already in the
refrigerator.
1. Press the Mode until the
corresponding icon appears.
The Shopping indicator flashes.
2. Press the OK to confirm.
The Shopping indicator is shown.
The Shopping function shuts off
automatically after approximately 6 hours.
To switch off the function before its
automatic end, repeat the procedure.
The function switches off by
selecting a different fridge set
temperature.
3.8 DrinksChill function
The DrinksChill function is to be used to
set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down a mixture for a
certain period of time, or when a reminder
is needed in order not to forget the bottles
placed in the freezer for fast cooling.
1. Press Mode until the corresponding
icon appears.
The DrinksChill indicator flashes.
www.electrolux.com6
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Timer regulator to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
The DrinksChill indicator is shown.
The Timer start to flash (min).
At the end of the countdown the
DrinksChill indicator flashes and an audible
alarm sounds that indicates that any
drinks contained in the freezer
compartment should be removed and it is
necessary to press OK to switch off the
sound and terminate the function.
To switch off the function repeat the
procedure until the DrinksChill goes off.
It is possible to change the
time during the countdown
and at the end by pressing
the Temperature colder
button and the Temperature
warmer button.
3.9 Holiday mode
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the formation
of a bad smell.
Empty the fridge
compartment before turning
the Holiday mode on.
1. Press the Mode until the Holiday
indicator icon appears.
The Holiday icon flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK to confirm.
The Holiday icon appears.
To turn off the Holiday mode, repeat the
procedure until the Holiday indicator icon
goes off.
3.10 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Movable shelves
The walls of the refrigerator are equipped
with a series of supports so that the
shelves can be positioned as desired.
For better use of space, the front half-
shelves (A) can be placed under the rear
ones. (B)
A
B

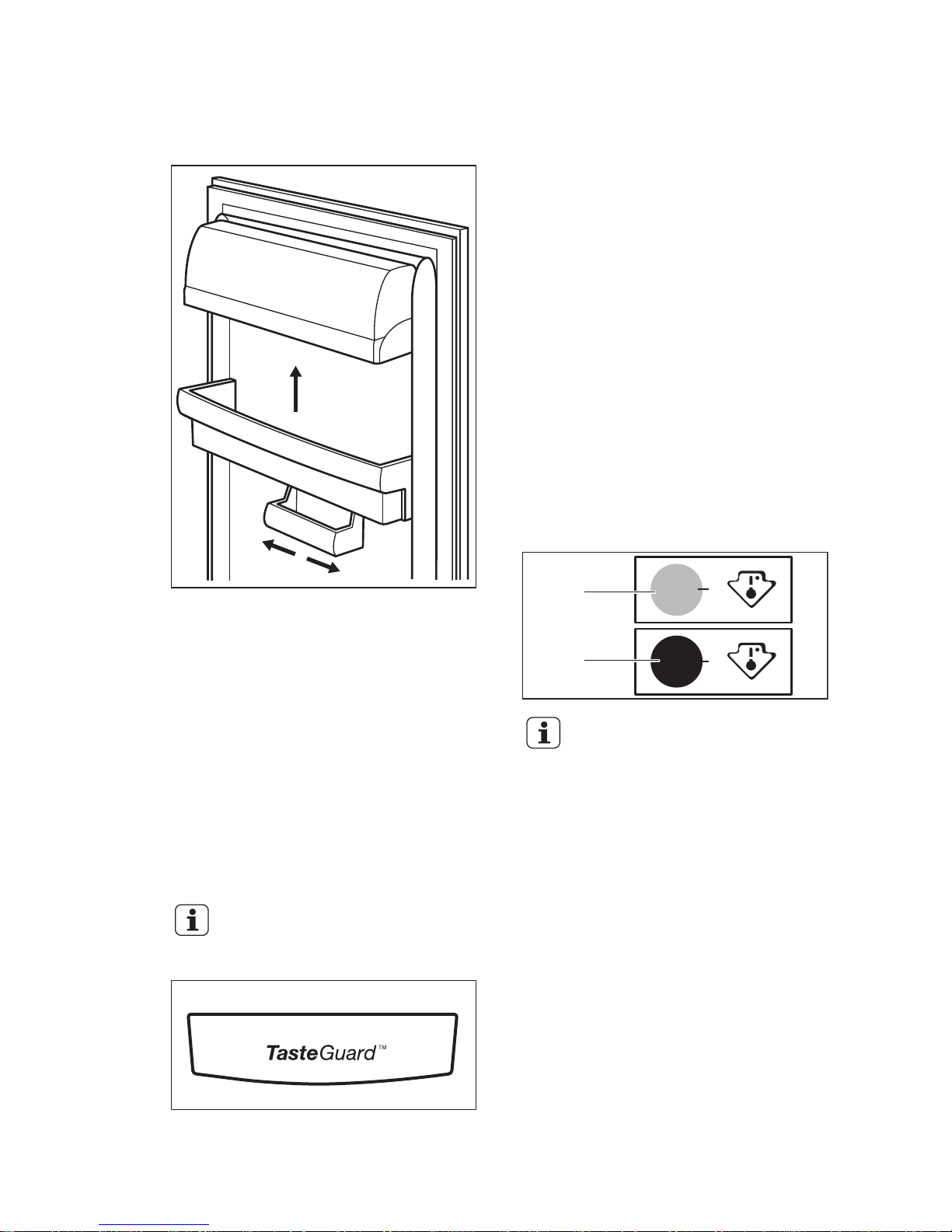

4.2 Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
ENGLISH 7
To make these adjustments proceed as
follows:
1. Gradually pull the shelf in the direction
of the arrows until it comes free.
2. Reposition the shelf as required.
The model is equipped with a variable
storage box which is fitted under a door
shelf compartment and can be slide
sideways.
4.3 Carbon Air Filter
our appliance is equipped with a carbon
filter TASTEGUARD in a drawer in the rear
wall of the fridge compartment.
The filter purifies the air from unwanted
odours in the fridge compartment
meaning that the storage quality will be
further improved.
During the operation, always
keep the air ventilation drawer
closed.
4.4 Low Temperature
compartment
In models equipped with this feature in the
fridge part, it is intended for a best
conservation of fresh foods like fish, meat,
seafood, etc.
It is located in the lower part, directly
above of the vegetable conservation
drawer.
4.5 Temperature indicator
For proper storage of food the refrigerator
is equipped with the temperature
indicator. The symbol on the side wall of
the appliance indicates the coldest area in
the refrigerator.
If “OK” is displayed (A), put fresh food into
area indicated by symbol, if not (B), adjust
the temperature controller to a colder
setting and wait 12 hours before checking
the temperature indicator again.
OK
OK
A
B
After putting fresh food into
the appliance or after opening
the door repeatedly or for a
long period, it is normal for
the indicator not to show
"OK"; wait at least 12 hours
before readjusting the
temperature controller.
4.6 FreeStore
The refrigerator compartment is equipped
with a device that allows for rapid cooling
of foods and more uniform temperature in
the compartment.
This device activates by itself when
needed, for example for a quick
temperature recovering after door opening
or when the ambient temperature is high.
www.electrolux.com8
It is possible to switch on the device
manually when needed (refer to "FreeStore
function").
The FreeStore device stops
when the door is open and
restarts immediately after the
door closing.
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor
switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as
possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
ENGLISH 9
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use. The
defrost water drains out through a trough
into a special container at the back of the
appliance, over the motor compressor,
where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
6.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent the
food inside from spoiling in
case of a power failure.
6.5 Replacing the carbon filter
The air filter is a consumable
accessory and as such is not
covered by the guarantee.
To get best performance the carbon air
filter should be changed once every year.
New active air filters can be purchased
from your local dealer.
Refer to “Installation of the carbon air filter”
for the instructions.
www.electrolux.com10
Otros manuales para ERCP3215AW
1
Tabla de contenidos
Idiomas:
Otros manuales de Refrigerador de Electrolux
Electrolux
Electrolux ERN29651 Guía rápida
Electrolux
Electrolux ENN2800BOW Manual de usuario
Electrolux
Electrolux EI28BS56ISB Manual de usuario
Electrolux
Electrolux EI27BS16J B Manual de usuario
Electrolux
Electrolux FI22/10FA Manual de usuario
Electrolux
Electrolux EW23CS70IS - 22.6 cu. ft. Refrigerator Instrucciones de montaje
Electrolux
Electrolux ER 2821 B Guía rápida
Electrolux
Electrolux 42 Instrucciones de funcionamiento
Electrolux
Electrolux ER7529B Manual de usuario
Electrolux
Electrolux SC 33010 Manual de usuario
Electrolux
Electrolux E24RD75HSS - 24" Double Drawer Refrigerator Guía del usuario
Electrolux
Electrolux EI15IM55GS - 15 Inch Ice Maker Guía de inicio rápido
Electrolux
Electrolux U20012 ER 6632 Manual de usuario
Electrolux
Electrolux EW28BS70IS - Refrigerator With Wave-Touch... Manual de usuario
Electrolux
Electrolux ERES38810W Manual de usuario
Electrolux
Electrolux E23BC78IPS - 22.6 cu.ft Manual de usuario
Electrolux
Electrolux EJF1800FW Manual de usuario
Electrolux
Electrolux EW26SS70IS6 Manual de usuario
Electrolux
Electrolux LRC5ME38X4 Manual de usuario
Electrolux
Electrolux R134A Manual de usuario
