Electrolux EN3390MOX Manual de usuario
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. CONTROL PANEL............................................................................................. 6
4. DAILY USE......................................................................................................... 8
5. CARE AND CLEANING......................................................................................9
6. TROUBLESHOOTING......................................................................................10
7. INSTALLATION................................................................................................ 13
8. TECHNICAL DATA...........................................................................................14
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
ENGLISH 3
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
www.electrolux.com4
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Internal light
• The type of lamp used for this
appliance is not suitable for
household room illumination
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH 5
3. CONTROL PANEL
1
2
3
4
1Temperature scale
2NaturaFresh 0° icon
3FastFreeze icon
4Temperature key
3.1 Switching on
1. Plug the appliance into electrical
mains socket.
2. To turn on the appliance, touch the
temperature key until all LED
indicators light up.
3.2 Switching off
1. To switch off the appliance press the
temperature key for 3 seconds.
All LED indicators turn off.
2. To disconnect the appliance from the
electrical supply, remove the mains
plug from the power socket.
3.3 Temperature regulation
To regulate the temperature, press the
temperature key. Every time the key is
pressed, the set temperature moves by 1
position and corresponding LED indicator
lights up. Press the temperature key
repeatedly until the required temperature
is selected. The setting will be fixed.
Selection is progressive,
varying from +2°C to +8°C.
Coldest setting: +2°C.
Warmest setting: +8°C
Choose the setting keeping in mind that
the temperature inside the appliance
depends on:
• room temperature
• frequency of opening the door
• quantity of food stored
• appliance location.
3.4 Sleep mode of the display
After 30 seconds of no interaction with
the appliance, the display goes into the
sleep mode. Only LED indicator
corresponding to currently set
temperature illuminates in low light. All
other LED indicators are off. To
deactivate this mode press the
temperature key.
3.5 FastFreeze function
If you need to insert a large amount of
warm food into fridge compartment (for
example after doing the grocery
shopping) or rapidly decrease the
temperature in the freezer compartment
to freeze fresh food quickly, we suggest
activating FastFreeze function for proper
food storage.
www.electrolux.com6
To activate this function press the
temperature key repeatedly until the LED
indicator next to FastFreeze icon lights
up. Also LED indicator corresponding to
+2°C illuminates.
This function stops
automatically after 52 hours.
When the function
deactivates, the previous
temperature setting is
restored.
You can deactivate this
function at any time by
pressing the temperature
key and choosing a new
temperature setting.
This function corresponds
both to fridge and freezer
compartment.
3.6 Setting the temperature to
0° in NaturaFresh
0°compartment
In order to set the temperature close to
0° in NaturaFresh 0° compartment:
Press the temperature key repeatedly
until LED indicator lights up in one of the
following configurations:
1.
2.
3.
• Configuration 1 - activates also
FastFreeze function
• Configuration 2 - most suitable for fish
and meat
• Configuration 3 - most suitable for
fresh food other than fish and meat
If you set a temperature to 5° or higher,
the temperature inside NaturaFresh 0°
compartment will be higher than 3°.
3.7 Door open indicator
If the door has been left open for
approximately 5 minutes, the door open
indicator activates. The temperature key
and LED indicator of the currently set
temperature flash.
ENGLISH 7
You can deactivate this
indicator by closing the door
or by pressing the
temperature key.
4. DAILY USE
4.1 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Place the fresh food to be frozen in the
bottom compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the
inside of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
4.2 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours with the FastFreeze
function turned on.
If large quantities of food are to be
stored, remove all drawers from
appliance and place food on glass shelf
to obtain the best performance.
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer that the value shown
in the technical data chart
under "Rising time", the
defrosted food must be
consumed quickly or cooked
immediately and then re-
frozen (after cooling).
4.3 Storage of the food in a
fridge compartment
Cover or wrap the food, particularly if it
has a strong flavour.
Position the food so that air can circulate
freely around it.
Keep the food on all shelves no closer
than 20 mm from the rear wall and 15
mm from the door.
4.4 NaturaFresh
0°compartment
This compartment is suitable for storing
fresh food like fish, meat, seafood,
because it provides the best storage
temperature.
The temperature is lower here than in the
rest of the fridge.
To lower the temperature in the
compartment to 0° refer to a respective
section in 'Control Panel' chapter.
www.electrolux.com8
4.5 Temperature indicator
For proper storage of food the
refrigerator is equipped with the
temperature indicator. The symbol on the
side wall of the appliance indicates the
coldest area in the refrigerator.
If OK is displayed (A), put fresh food into
area indicated by symbol, if not (B),
adjust the temperature controller to a
colder setting and wait 12 hours before
checking the temperature indicator
again.
OK
OK
A
B
After putting fresh food into
the appliance or after
opening the door repeatedly
or for a long period, it is
normal for the indicator not
to show OK; wait at least 12
hours before readjusting the
temperature controller.
4.6 MULTIFLOW
The refrigerator compartment is
equipped with a device that allows rapid
cooling of food and keeps a more
uniform temperature in the compartment.
This device activates automatically when
needed, for example when the
temperature inside the appliance is high.
4.7 TASTEGUARD filter
This active carbon filter absorbs bad
odours and maintains the best flavour
and aroma for all the food stored in the
refrigerator compartment.
On delivery the filter is in a plastic bag.
To install the filter in the appliance:
1. Take off the filter cover.
2. Take out the filter from the plastic
bag.
3. Insert the filter in the slot in the rear
wall of the appliance.
4. Put on the filter cover.
CAUTION!
Make sure that the filter
cover is always closed so
that the filter functions
correctly.
To get the best performance the filter
should be changed once every 6 months.
New active filter can be purchased from
your local dealer or through the website.
The part number is printed on the plastic
bag.
5. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
5.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
ENGLISH 9
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
5.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
5.3 Defrosting
Your appliance is frost free. This means
that there is no build up of frost when it is
in operation, neither on the internal walls
nor on the foods. The absence of frost is
due to the continuous circulation of cold
air inside the compartment, driven by an
automatically controlled fan. The defrost
water drains out through a trough into a
special container at the back of the
appliance, over the motor compressor,
where it evaporates.

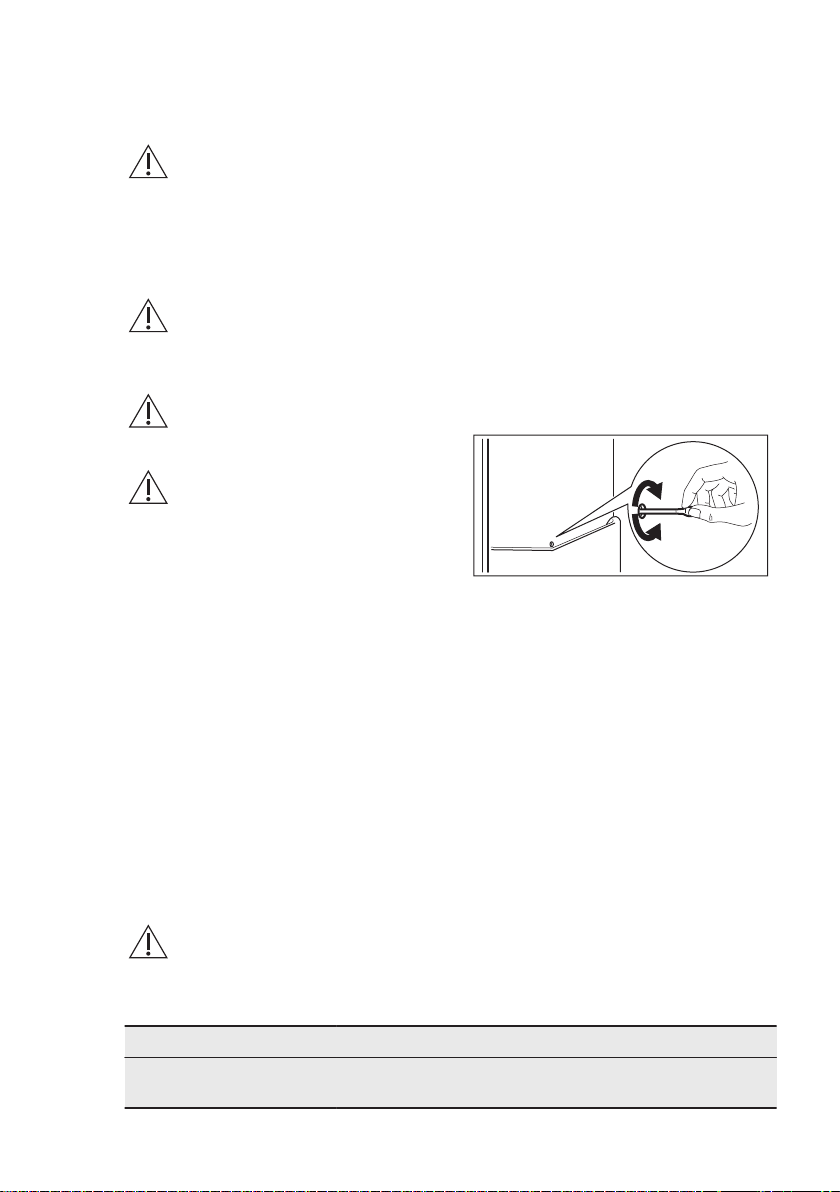

It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
5.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
6. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
6.1 What to do if...
Problem Possible cause Solution
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
www.electrolux.com10
Otros manuales para EN3390MOX
1
Tabla de contenidos
Idiomas:
Otros manuales de Refrigerador de Electrolux
Electrolux
Electrolux Cold Rooms 102028 Manual de usuario
Electrolux
Electrolux EJF4842AOX Manual de usuario
Electrolux
Electrolux EI24RD65HS - 6.0 cu. Ft. Double Drawer... Manual de usuario
Electrolux
Electrolux Juno JRZ90122 Manual de usuario
Electrolux
Electrolux ERG47800 Manual de usuario
Electrolux
Electrolux Icon 242000100 Manual de usuario
Electrolux
Electrolux ER 6430 U Guía rápida
Electrolux
Electrolux ER 2620 C Manual de usuario
Electrolux
Electrolux Side by Side Refrigerator Manual de usuario
Electrolux
Electrolux ERX3214AOX Manual de usuario
Electrolux
Electrolux ETM4407PD-RPH Manual de usuario
Electrolux
Electrolux SG280NICN Manual de usuario
Electrolux
Electrolux ER 6641 T Manual de usuario
Electrolux
Electrolux SMART 726594 RH06RE1FEU Manual de usuario
Electrolux
Electrolux EW23BC71IB Manual de usuario
Electrolux
Electrolux EW23SS65HS Instrucciones de montaje
Electrolux
Electrolux RP1348 Manual de usuario
Electrolux
Electrolux JUNO JCN 44181 Manual de usuario
Electrolux
Electrolux IK243SL Manual de usuario
Electrolux
Electrolux ER6247T Guía rápida
