Electrolux 31066396E80S1 Manual de usuario

E30GF74HPS1.eps CE30GF74HPS1.eps VE30GF74HPS1.eps BE30GF74HPS1.eps

ME30GF74HPS1.eps DE30DF74GPS1.eps 318403413.eps

Product No. E30GF74HPS1

31066396E80S1

Series 30" f/s gas

Color stainless

Market North America

Wiring Diagram 318403413

Owner's Guide 318203958

Installation Instructions 318201775

Service Data Sheet 318204805

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995529582

08/11/24

(EN/SERVICE/ECL)

377

30-INCH FREE

STANDING GAS

RANGE

Model No.

E30GF74H

Publication No: 5995529582 E30GF74HPS1

11/08 2

BACKGUARD

E30GF74HPS1 Publication No: 5995529582

# Functional Parts 3 11/08

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 7318285722 Panel, control, stainless

21 7318389500 Retainer, lens

24 # 75308015487 Switch, oven light, rocker

26 # 75304452799 Board, indicator light, (2), LED

30 7318377000 Support, control panel, (2)

31 7318242252 Knob, control, stainless, (3)

32 7318242253 Knob, control, stainless, dual

33 7318242230 Knob, selector

33A 7318242231 Knob, control, oven

35 7318251911 Skirt, (6)

35A 7318251912 Skirt, (2)

46 7318044501 Lens, indicator light, blue, (5)

46A 7318228310 Lens, indicator light, (2)

54 # 75304452797 Control, oven selector

54A# 75304452798 Control, oven temp.

69 75303300265 Screw, 8-18 X 1/2, (4)

69A 75303311306 Screw, 8-18 x 0.375, (6)

74 7318383901 Bracket, controls

* # 7318532143 Harness, wiring, display/control

* # 7318532142 Harness, wiring, relay baord

* 7318163602 Cleaner, stainless steel

* 708016432 Screw, truss head, 8-18 x 0.375

Publication No: 5995529582 E30GF74HPS1

11/08 4

BURNER

E30GF74HPS1 Publication No: 5995529582

# Functional Parts 5 11/08

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 7318357801 Manifold, (2)

* 75303311333 Screw, 8-32 x 3/8

1B # 7318305402 Tube, manifold, 3/8, interconnect

2 # 7316520700 Valve, burner, 5K

2A # 7316412510 Valve, top burner, 18K, dual port

2B # 7316520703 Valve, burner, 14.2K

2C # 7316520701 Valve, burner, 9.5K

3 # 7318232634 Wiring Harness, w/igntr switch

10 # 7316510800 Burner, sealed, 5K

10A# 7316525400 Burner, sealed, dual, 18K

10B# 7316511200 Burner, sealed, 14K

10C# 7316511000 Burner, sealed, 9.5K

11 # 7316524800 Ignitor/orifice assy., top burner, 5K, w/holder

11A# 7316525100 Ignitor/orifice assy., top burner, 18K, w/holder

11B# 7316525000 Ignitor/orifice assy., top burner, 14K, w/holder

11C# 7316524900 Ignitor/orifice assy., top burner, 9.5K, (2), w/holder

12 # 7318366727 Tube, burner, RH rear, 5K

12A# 7318366731 Tube, 18K burner, RH front

12B# 7318366732 Tube, 18K burner, RH front

12C# 7318366733 Tube, 9.5K burner, LH front

12E# 7318366728 Tube, 14K burner, LH rear

13 # 7318360620 Tube, regulator, to manifold

14 # 7316082907 Regulator-pressure

15 7318376120 Bracket, regulator

17 # 75303210798 Valve, safety

18 # 7318292210 Burner, bake, 18000

19 # 7318177710 Ignitor, oven burner

20 7318290400 Baffle, bake burner

21 75303323000 Nut, Keps

22 # 7318305212 Tube, broil supply

22A# 7318305211 Tube, bake supply

23 # 7318292300 Burner, broil, 14000

* 75303323277 Screw, 8-18 X 13/32

24 # 7316409703 Elbow, mixer

24A# 7318347219 Mixer Elbow, bake

25 7316401301 Baffle, broil burner

26 7318363802 Bracket, channel mtg

26A 7318363902 Bracket, channel mtg.

36 # 7318177812 Tubing, oven supply

37 7316518100 Screw, ignitor assy mt, 6-32 x .62

44 # 7316523504 Orifice, top burner, 5K

44A# 7316523508 Orifice, top burner, 18K

44B# 7316523506 Orifice, top burner, 14K

44C# 7316523500 Orifice, top burner, 9.5K

46 7318536250 Protector, air shutter

72 7316215600 Screw, valve mtg., 1/4 - 20

77 7318355503 Bracket, channel mtg.

* # 7318186919 LP Conversion Kit

* # 7318199782 Wiring Harness, ignitor

* 75303311306 Screw, 8-18 x 0.375, (6)

Publication No: 5995529582 E30GF74HPS1

11/08 6

BODY

E30GF74HPS1 Publication No: 5995529582

# Functional Parts 7 11/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 7318259230 Back, main

1A 7318353110 Panel, back, upper

2 7318258930 Shield, insulation, upper

3 7318352702 Panel, side, stainless, LH

3A 7318352703 Panel, side, stainless, RH

4 7318356002 Panel, upper side, RH

4A 7318356003 Panel, upper side, LH

5 7318175506 Screw, leveling

5A 7318368800 Bracket, leveling leg, (4)

5B 7318352404 Cover, leveling leg, (4)

6 7318240103 Shelf, oven, fixed

6A 7318365800 Rack, broiler pan

6B 7318345404 Shelf, oven, extendable, (2)

7 7318533700 Bracket, main back, (4)

8 7318290502 Panel, oven, bottom

8A 7318367401 Bracket, retainer, (2)

* 75303325980 Screw, 10-32 x 0.437

9 7318138801 Pan, broiler

10 7318126401 Insert, broiler pan

11 7318240016 Glide& Support assy, ovenshelves, RH

11A 7318240017 Glide& Support assy, ovenshelves, LH

12 7316445501 Switch, oven light, door frame

13 7318603913 Bracket, ladder mtg., (4)

14 7318903401 Switch, rack sensing

15 7318241002 Lamp, oven, (2), halogen

20 7318389400 Plate, retainer

21 7318389000 Seal, ring

25 7318291900 Bracket, shield, lower

28 7318369301 Bracket, side panel, (2)

29 7318147411 Bumper, (2)

35 7318291300 Seal, flue cavity

36 7318561201 Flue Assembly

37 # 7316217002 Probe, oven temp

39 7318144008 Cord, service

40 7318291800 Box, oven burner

* 75303131801 Screw, 10 x 3/8

41 7318366601 Spacer, front frame

42 7318288710 Box, oven burner

46 7318258905 Deflector, air

57 7318268300 Cover, burner opening

58A 7318386103 Insulation, oven wrapper

58B 7318362131 Insulation, oven back

58C 7318362153 Insulation, flue, (3)

70 7318302710 Shield, insulation, right, (2)

70A 7318302711 Shield, insulation, left, (2)

71 7318300910 Panel, cover

76 7318056232 Front, oven

77 7316247900 Spacer, power board

77A 7316114100 Spacer

80 75303320846 Plate, oven mtg

81 7318192400 Spring, oven

Publication No: 5995529582 E30GF74HPS1

11/08 8

BODY

E30GF74HPS1 Publication No: 5995529582

# Functional Parts 9 11/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

* 75303323129 Screw, 8 X 0.750

82 7318258740 Shield, insulation, lower

83 7318327023 Liner, oven

86 7318241406 Receptacle, hinge, (2)

86* 75304461333 Screw, 10-32 x 17/32

87 7318260621 Bracket, cable mtg.

89 # 7318261215 Motor, latch assy

89* 7318370338 Wiring Harness, latch

* 75303325978 Screw, shoulder head, 8-18 X 1/2

90 7318355001 Trim, bottom, stainless

97 # 7316519202 Board, relay, convection

97A# 7316455710 Board, power, relay

98 73201861 Screw, 6 x 0.375, (4)

107 7318906601 Cover, fan

108# 7318073028 Motor, blower

* 708016432 Screw, truss head, 8-18 x 0.375

108A 7318251300 Bracket, fan support

109 7318398300 Fan Blade

111 7318399800 Nut-fan retainer

125# 75304463302 Motor-convection

131 7318272905 Box, vent

132 7318003004 Plate, shield

141 7318368402 Bracket, reinforcement, RH

142 7318368403 Bracket, reinforcement, LH

161# 7318255503 Element, convection, 350 W

163 7318531700 Spacer, (2)

164 7318125310 Plate, connection

166 7318352501 Bracket, leveling leg, (2), reinforcement

170 7318335701 Anti-tip & accessories

219# 7318003633 Thermostat, safety

264 7318257723 Trim, oven, black, front

272 7318249403 Tube, protector

* # 7318532123 Harness, wiring, main

* 75304400192 retainer wire

* 7318165800 Spacer

* 73051050 Screw, shoulder

* 75303211311 Screw, 8 x 0.500

* 75303300265 Screw, 8-18 X 1/2, (4)

* 75303311306 Screw, 8-18 x 0.375, (6)

* 75303311333 Screw, 8-32 x 3/8

* 75303323136 Screw ground

* 75303323139 Screw, 10-24 x 0.906

* 75303323277 Screw, 8-18 X 13/32

* 75303324184 Screw, 8-18 x 5/16, black, (4)

* 75304415832 Screw, 8-18 x 0.406

* 75304436875 Screw, 8-18 X 1/2, black

* 75304454881 Screw, #8-18 x 3/8

Publication No: 5995529582 E30GF74HPS1

11/08 10

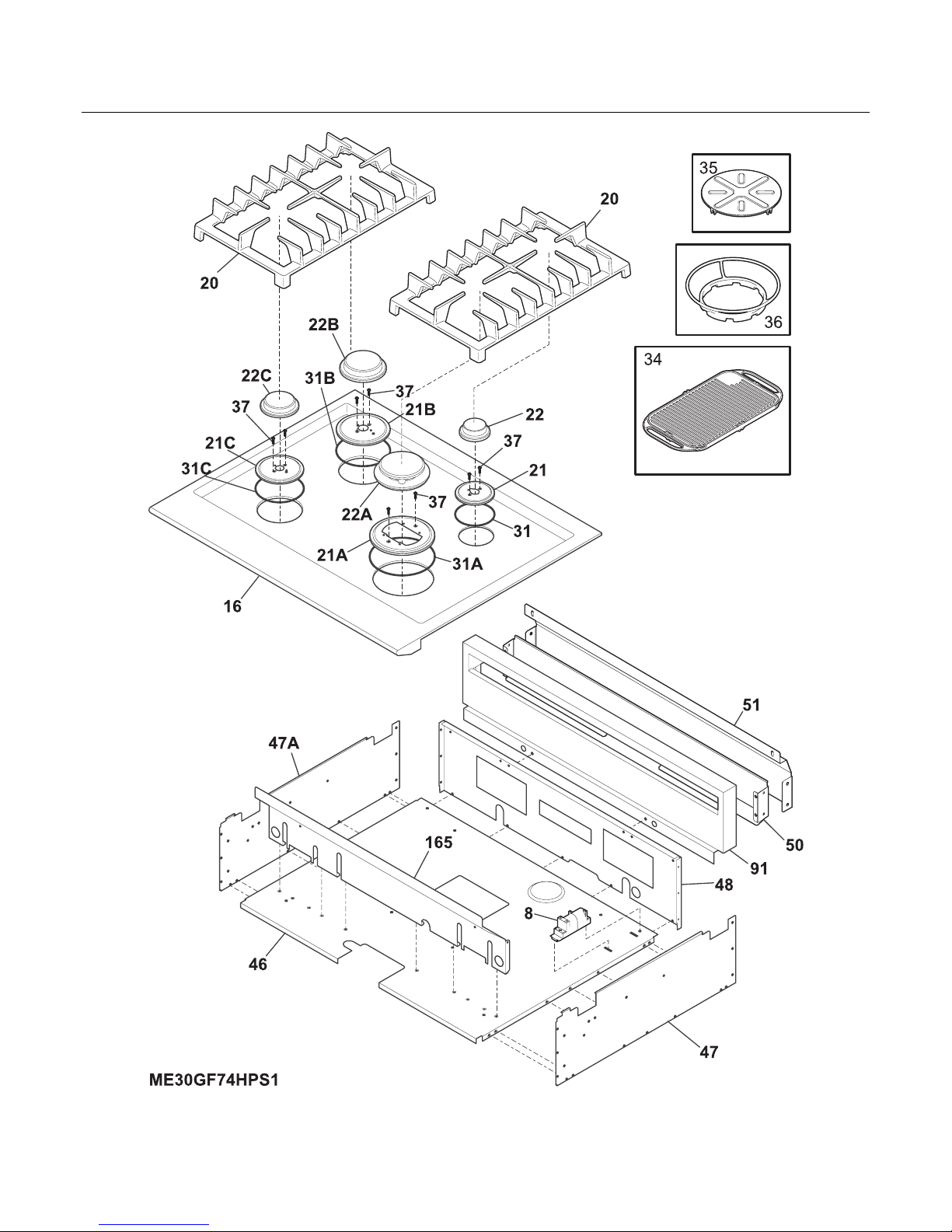

TOP
