Electrolux 30366373P70S2 Manual de usuario

E30DF74GPS1.eps CE30DF74GPS2.eps BRE30DF74GPS1.eps BE30DF74GPS1.eps

ME30DF74GPS1.eps DE30DF74GPS1.eps 318271962.eps

Product No. E30DF74GPS2

30366373P70S2

Series 30" dual fuel

Color stainless

Market North America

Wiring Diagram 318271962

Owner's Guide 318203954

Installation Instructions 318201773

Service Data Sheet 318204802

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995502704

07/10/23

(EN/SERVICE/BJH)

377

30-INCH FREE

STANDING DUAL FUEL

RANGE

Model No.

E30DF74G

Publication No: 5995502704 E30DF74GPS2

10/07 2

BACKGUARD

33A

35A

54A

CE30DF74GPS2

69A

46A

E30DF74GPS2 Publication No: 5995502704

# Functional Parts 3 10/07

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 318285722 Panel, control, stainless

21 318389500 Retainer, lens

24 # 5308015487 Switch, oven light, rocker

26 # 5304452799 Board, indicator light, (2), LED

30 318377000 Support, control panel, (2)

31 318242225 Knob, control, (2)

32 318242226 Knob, control, dual, (2)

33 318242230 Knob, selector

33A 318242231 Knob, control, oven

35 318251911 Skirt, (4)

35A 318251912 Skirt, (2)

46 318044501 Lens, indicator light, blue, (5)

46A 318228310 Lens, indicator light, (2)

54 # 5304452797 Control, oven selector

54A# 5304452798 Control, oven temp.

69 5303300265 Screw, 8-18 X 1/2, (4)

69A 5304453707 Screw, control mtg.

* # 318370352 Wriring Harness, timer, to relay board

* # 318370353 Wriring Harness, relay board, to display

* 318163602 Cleaner, stainless steel

Publication No: 5995502704 E30DF74GPS2

10/07 4

BURNER

E30DF74GPS2 Publication No: 5995502704

# Functional Parts 5 10/07

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 318357801 Manifold, (2)

1B 318305402 Tube, manifold, 3/8, interconnect

2 # 316520700 Valve, burner, 5K

2A # 316412510 Valve, top burner, 18K, dual port

2B # 316520703 Valve, burner, 14K

3 # 318232634 Wiring Harness, w/igntr switch

3* 5303311306 Screw, 8-18 x 0.375, (8)

10 # 316510800 Burner, sealed, 5K

10A# 316525400 Burner, sealed, dual, 18K

10B# 316511200 Burner, sealed, 14K

11 # 316524800 Ignitor/orifice assy., top burner, 5K, w/holder

11A# 316525100 Ignitor/orifice assy., top burner, 18K, w/holder

11B# 316525000 Ignitor/orifice assy., top burner, 14K, w/holder

12 # 318366727 Tube, burner, RH rear, 5K

12A# 318366731 Tube, 18K burner, RH front

12B# 318366732 Tube, 18K burner, RH front

12C# 318366729 Tube, 18K burner, LH front

12D# 318366730 Tube, 18K burner, LH front

12E# 318366728 Tube, 14K burner, LH rear

13 318360600 Tube, regulator, to manifold

14 # 318122708 Regulator, pressure

15 318376100 Bracket, regulator

15A 318376200 Bracket, regulator, support

26 318363800 Bracket, channel mtg, (2)

37 316518100 Screw, ignitor assy mt, 6-32 x .62

44 316523504 Orifice, top burner, 5K

44A 316523508 Orifice, top burner, 18K

44B 316523506 Orifice, top burner, 14K

72 316215600 Screw, valve mtg., 1/4 - 20

77 318355502 Bracket, channel mtg.

* # 318199756 Wiring Harness, ignitor

* 318186917 LP Conversion Kit

* 5303211311 Screw, 8 x 0.500

Publication No: 5995502704 E30DF74GPS2

10/07 6

BODY

E30DF74GPS2 Publication No: 5995502704

# Functional Parts 7 10/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259222 Back, main

1A 318353100 Panel, back, upper

2 318258922 Shield, insulation, upper

3 318352702 Panel, side, stainless, LH

3A 318352703 Panel, side, stainless, RH

4 318356002 Panel, upper side, RH

4A 318356003 Panel, upper side, LH

5 318175506 Screw, leveling

5A 318368800 Bracket, leveling leg, (4)

5B 318352404 Cover, leveling leg, (4)

6 318240103 Shelf, oven, fixed

6A 318365800 Rack, broiler pan

6B 318345404 Shelf, oven, extendable, (3)

7 318297302 Box, bake element

8 318359500 Panel, service

8A 318313601 Bracket, bake element

9 318138801 Pan, broiler

10 318126401 Insert, broiler pan

11 318240014 Glide & Support assy, ovenshelves, RH

11A 318240015 Glide& Support assy, oven shelves, LH

12 316445501 Switch, oven light, door frame

13 318603913 Bracket, ladder mtg., (4)

14 318903401 Switch, rack sensing

15 318241002 Lamp, oven, (2), halogen

20 318389400 Plate, retainer

21 318389000 Seal, ring

28 318369301 Bracket, side panel, (2)

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 318366601 Spacer, front frame

57 318362600 Panel, service

57A 318394600 Panel, service

58A 318386100 Insulation, oven wrapper

58B 318285079 Insulation, oven back

58C 318294912 Insullation, bake element

58D 318372001 Insulation, door, 20.5 x 2.375, (2)

59 318072577 Duct, oven vent

* 5303311333 Screw, 8-32 x 3/8

62 5303935061 Terminal Block Kit

62* 5303212739 Plate-ground strap

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255806 Element, broil, 4000W

67 # 318254903 Element, bake, 2500W, 8 pass

70 318302710 Shield, insulation, right, (2)

70A 318302711 Shield, insulation, left, (2)

71 318300903 Panel, cover

76 318056232 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

Publication No: 5995502704 E30DF74GPS2

10/07 8

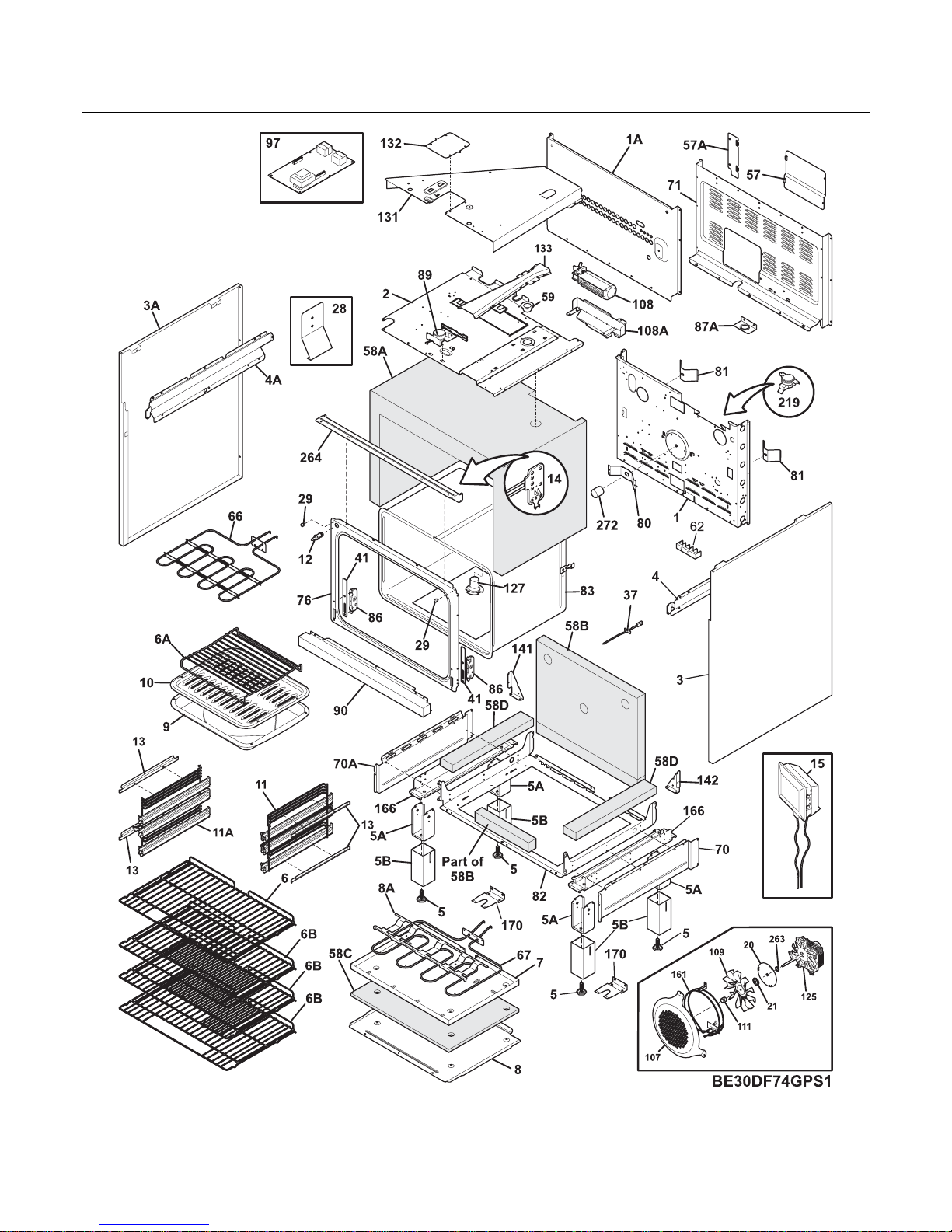

BODY

E30DF74GPS2 Publication No: 5995502704

# Functional Parts 9 10/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

82 318258715 Shield, insulation, lower

* 08002868 Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

83 318261428 Liner, ovenassy

86 318241406 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32, (4)

87A 318111805 Plate, cord set mtg

89 # 318261211 Motor, latch assy

89* 318370338 Wriring Harness, latch

* 5303325978 Screw, shoulder head, 8-18 X 1/2

90 318355001 Trim, bottom, stainless

97 316455704 Board, power, relay

107 318906601 Cover, fan

108# 318073018 Motor, blower

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

125# 316415800 Motor, fan

127 318357001 Adapter, vent tube

131 318272902 Box, vent

132 318003000 Plate, shield

* 5304436875 Screw, 8-18 X 1/2, black

133 318347800 Chimney

141 318368400 Bracket, reinforcement, RH

142 318368401 Bracket, reinforcement, LH

161# 318255506 Element, convection, 2500 W

166 318352501 Bracket, leveling leg, (2), reinforcement

170 318335701 Anti-tip & accessories

219# 318003631 Thermostat, safety, (2)

* 3201861 Screw, 6 x 0.375, (4)

263 316136500 Washer, flat

264 318257723 Trim, oven, black, front

272 318249403 Tube, protector

* # 318370366 Wriring Harness, main

* # 318231859 Harness, wiring, power

* 318235300 Connector assy., w/3 lugs, & instructions

* 318165800 Spacer

* 3051050 Screw, shoulder

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995502704 E30DF74GPS2

10/07 10

TOP
