User manual Built-under oven

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Safety for children and incompetent

persons 2

Installation safety measures 3

Electrical safety 3

Operation safety measures 3

Product description 4

General overview 4

Oven accessories 5

Oven steam outlet 5

Before first use 5

Initial Cleaning 5

Setting the time 5

Daily use 5

Switching the Oven On and Off 6

Cooling fan 6

Cooking zones 6

Heat settings 6

Oven Functions 6

Inserting the Oven Accessories 7

Inserting/Removing the Fat Filter 8

Display 8

Setting the clock functions 8

Cancelling the clock functions 9

Helpful hints and tips 9

Inner side of door 10

Baking 10

Roasting 15

Grilling 17

Preserving 18

Drying 18

Defrosting 19

Care and cleaning 20

Oven Ceiling 20

Shelf Support Rails 21

Oven lamp 21

Oven door and glass panels 22

What to do if… 23

Disposal 24

Service and spare parts 24

Subject to change without notice

Safety information

Safety for children and incompetent persons

• People (including children) who, because of their physical, sensory or mental capabilities

or their inexperience of ignorance are not able to use the appliance safely, should not

use this appliance without supervision or instruction by a responsible person.

• Switch on the child lock when there are children. The child lock makes sure that children

do not accidentally switch on the appliance.

2Contents

Installation safety measures

• Let a registered electrician do the installation of the appliance. If you do not contact a

registered electrician, the guarantee becomes invalid if there is damage.

• For safety on installation, refer to "Installation"

Electrical safety

• Let a registered electrician do the electrical connection of the appliance.

• For safety on installation, refer to "installation".

Risk of fire

• Open the door carefully. The use of ingredients with alcohol can cause a mixture of

alcohol and air. There is risk of fire.

• Do not let sparks or open flames come near the appliance when you open the door. There

is risk of fire.

• Do not keep flammable materials in the appliance. There is risk of fire.

Operation safety measures

Discoloration of the oven enamel does not effect the performance of the appliance. The

guarantee does not become invalid.

• Only use the appliance to cook, roast and bake food

• When you connect electrical appliances to mains sockets, do not let cables touch or come

near the hot oven door.

• The inner side of the appliance becomes hot during use. There is risk of burns.

• Do not cover the appliance with aluminium foil to prevent damage to the oven enamel.

• Do not put baking trays, pots, etc. on the oven floor to prevent damage to the oven

enamel.

• Never put hot water directly into the appliance to prevent damage to or discoloration

of the oven enamel.

• User a deep baking tray for very moist cakes. If not, fruit juices can cause stains that can

be permanent.

• Do not apply pressure on an open appliance door.

• Be careful when you remove or install the glass panels.

• Do not keep moist food in the appliance to prevent damage to the oven enamel.

• After you switch off the cooling fan, do not keep uncovered food in the appliance.

Moisture can condense in the appliance or on the glass doors.

Care and cleaning

• Before maintenance, switch off the appliance and make sure that the appliance is cool.

• Do not clean the appliance with a steam cleaner or a high-pressure cleaner.

• Do not clean the glass oven door with abrasive fluids or metal scrapers, which could

cause scratches on the surface. The glass could break and shatter

Safety information 3

Product description

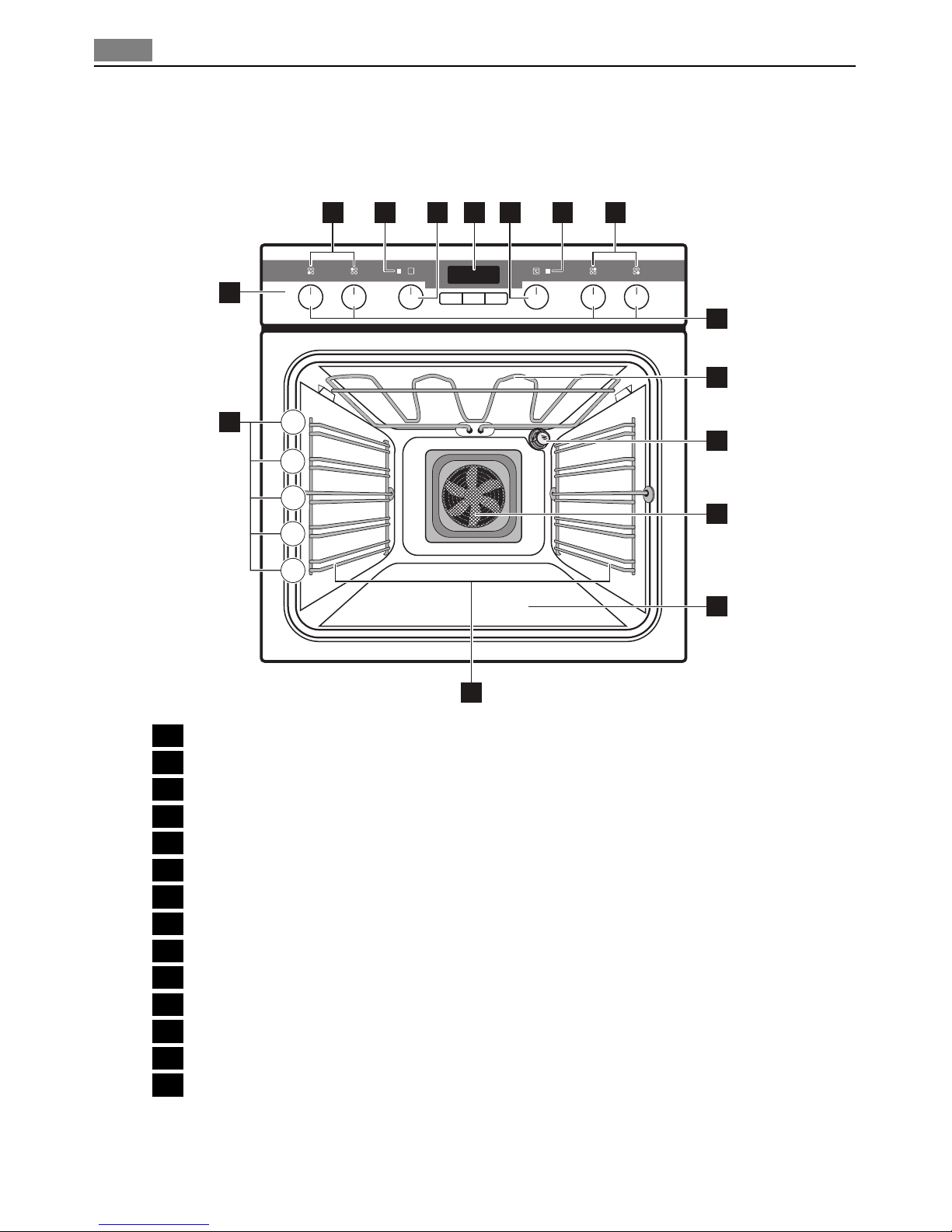

General overview

2 23 4 5 6 7

14 5

1Control panel

2Cooking zone indicators

3Power indicator

4Control knob for oven functions

5Display

6Control knob for temperature

7Temperature indicator

8Control knobs for cooking zones

9Heating element

10 Oven lamp

11 Fan and fat filter

12 Bottom heat

13 Oven shelf runners, removable

14 Shelf positions

4Product description

Oven accessories

•Oven shelf

For cookware, cake tins, roasts.

•Flat baking tray

For cakes and biscuits.

•Nonstick flat baking tray

For cakes and biscuits.

•Nonstick deep roasting pan

To bake and roast or as pan to collect fat.

Oven steam outlet

The steam from the oven gets out through the outlet in the back left corner of the cooking

surface (see the Description of the appliance in hob user manual).

Before first use

Initial Cleaning

• Remove all parts from the appliance.

• Clean the appliance before first use.

CAUTION!

Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care

and Cleaning".

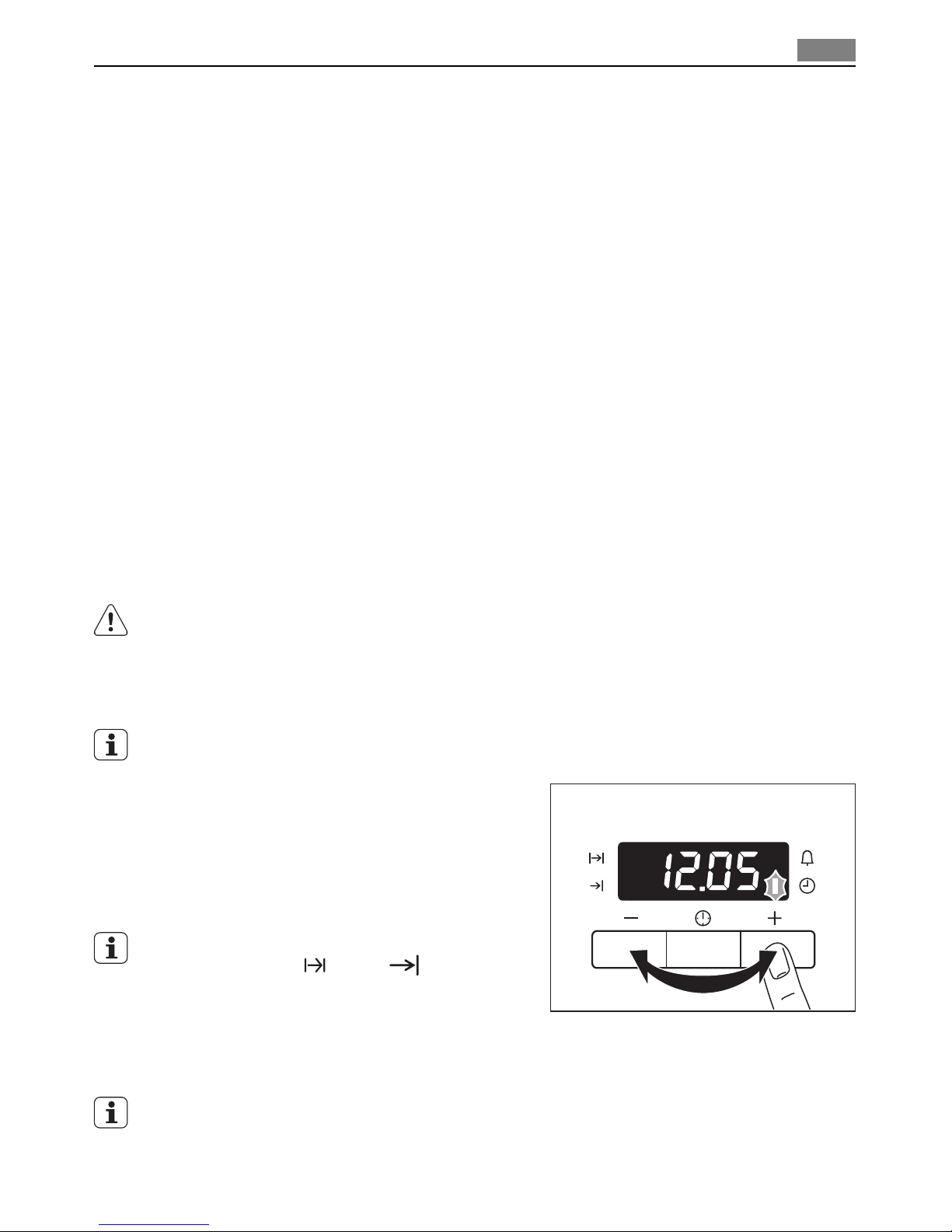

Setting the time

The oven only operates after time set.

When you connect the appliance to the electrical

supply or in case of a power cut, the Time function

indicator flashes automatically.

To set the current time use " +" or " - " button.

After approximately 5 seconds, the flashing stops

and the display shows the time of day set.

For time change you must not set an automatic

function (Duration or End ) at the same

time.

Daily use

To use the oven, push the retractable knob. The knob then comes out.

Before first use 5

Switching the Oven On and Off

1. Turn the oven functions control knob to an oven function.

2. Turn the temperature control knob to a temperature.

The power indicator comes on while the oven is in operation.

The temperature indicator comes on while the oven temperature increases.

3. To switch off the oven, turn the oven functions control knob and the temperature

control knob to the Off position.

Cooling fan

When the appliance operates, the cooling fan switches on automatically to keep the sur-

faces of the appliance cool. If you switch off the appliance, the cooling fan continues to

operate until the appliance cools down.

Cooking zones

With the control knobs for cooking zones you operate the hob that you installed with the

oven. For more information about the hob, refer to the hob user manual.

Heat settings

Cooking zone indicators (refer to "General overview ") show which zone you set.

Control knob Function

Keep warm setting

1-9 Heat settings

(1 = lowest heat setting; 9 = highest heat setting)

1. Turn the control knob to a necessary heat setting.

2. To complete the cooking process, turn the control knob to the “0” position.

Automatic heat-up function

This information is applicable only if you install the hob with Automatic heat up function!

The automatic heat-up function heats the cooking zone with full power for some time.

1. To switch on the function, turn the control knob clockwise as far as possible (pass the

highest heat setting).

2. To continue the cooking process, turn the control knob to the necessary heat setting.

3. To complete the cooking process, turn the control knob to the “0” position.

Oven Functions

Oven function Application

Light Use this function to light up the oven interior.

TRUE FAN To bake maximum on three oven levels at the same time.

Decrease the oven temperatures (20-40 °C) compared with

Conventional. And to dry food.

6Daily use

Oven function Application

FAN BAKING To bake on one oven level food with a more intensive

browning and a crispy base. Decrease the oven tempera-

tures (20-40 °C) compared with Conventional

CONVENTIONAL To bake and roast on one oven level.

BASE HEAT To bake cakes with crispy or crusty bases and to preserve

food

DEFROST To defrost frozen food.

SINGLE GRILL To grill flat food in the middle of the grill and to toast.

DUAL GRILL To grill flat food in large quantities and to toast.

ROTITHERM To roast larger joints of meat or poultry on one level. Also

to gratinate and brown.

Inserting the Oven Accessories

Put in the slide-in accessories so that the double side edges are at the back of the oven and

point down to the bottom. Push the slide-in accessories between the guide-bars of one of

the oven levels.

The deep roasting pan and the oven shelf have

double side edges. These edges and the shape of

the guide-bars causes the anti-tilt safety for the

oven accessories.

Inserting the oven shelf and deep roasting

pan together

Put the oven shelf on the deep roasting pan. Push

the deep roasting pan between the guide-bars of

one of the oven levels.

Daily use 7

Inserting/Removing the Fat Filter

Only use the fat filter when roasting to protect

the rear heating elements from fat splashes.

Inserting the fat filter

Hold the fat filter by the tab and insert the two mounts downwards into the opening on

the rear wall of the oven (fan opening).

Removing the fat filter

Hold the fat filter by the tab, unhook it and lift out.

Display

1 2 3

456

1Function Indicators

2Time display

3Function Indicators

4Button " +"

5Selector Button

6Button " -"

Setting the clock functions

1. Push the Selection button again and again

until necessary function indicator flashes.

2. To set the time for Minute minder ,

Duration or End , use " +" or " -"

button.

The related function indicator comes on.

When the time period is completed, the

function indicator flashes and an acoustic

signal sounds for 2 minutes.

8Daily use

With the functions Duration and End

the oven switches off automatically.

3. Push any button to stop the signal.

Clock function Application

Time of day Shows the time. To set, change or check the time.

Minute minder To set a countdown time.

A signal sounds, after the time period is completed.

This function has no effect on the operation of the oven.

Duration To set how long the oven has to be in operation.

End To set the switch-off time for an oven function.

Duration and End can be used at the same time, if the oven is to be switched on and

off automatically later. In this case first set Duration , then End .

Cancelling the clock functions

1. Push the Selection button again and again until necessary function indicator flashes.

2. Push and hold button " -".

After some seconds the clock function goes out.

Helpful hints and tips

Examples of cooking applications

The data in the table is for guidance only.

Heat

setting

Use to: Time Hints

1 Keep cooked foods warm as re-

quired

Cover

1-2 Hollandaise sauce, melt: butter, choco-

late, gelatine

5-25

min

Mix occasionally

1-2 Solidify: fluffy omelettes, baked eggs 10-40

min

Cook with a lid on

2-3 Simmer rice and milkbased dishes, heat-

ing up ready-cooked meals

25-50

min

Add at least twice as much liquid as

rice, stir milk dishes part way

through

3-4 Steam vegetables, fish, meat 20-45

min

Add a few tablespoons of liquid

4-5 Steam potatoes 20-60

min

Use max. ¼ l water for 750 g of po-

tatoes

4-5 Cook larger quantities of food, stews

and soups

60-150

min

Up to 3 l liquid plus ingredients

Helpful hints and tips 9

Heat

setting

Use to: Time Hints

6-7 Gentle fry: escalope, veal cordon bleu,

cutlets, rissoles, sausages, liver, roux,

eggs, pancakes, doughnuts

as re-

quired

Turn halfway through

7-8 Heavy fry, hash browns, loin steaks,

steaks

5-15

min

Turn halfway through

9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

Inner side of door

On the inner side of the oven door you can find:

• the numbers of the shelf levels

• information about the oven functions, recommended shelf levels and temperatures for

typical dishes.

The temperature and baking times in the tables are guidelines only. They depend on the

recipes, quality and quantity of the ingredients used.

Baking

General instructions

• Your new oven may bake or roast differently to the appliance you had before. Adapt

your usual settings (temperature, cooking times) and shelf levels to the values in the

tables.

• With longer baking times, the oven can be switched off about 10 minutes before the

end of baking time, to use the residual heat.

When you use frozen food, the trays in the oven can twist during baking. When the

trays get cold again, the distortion will be gone.

How to use the Baking Tables

• We recommend to use the lower temperature the first time.

• If you cannot find the settings for a special recipe, look for the one that is almost the

same.

• Baking time can be extended by 10-15 minutes, if you bake cakes on more than one

level.

• Cakes and pastries at different heights do not always brown equally at first. If this occurs,

do not change the temperature setting. The differences equalize during the baking pro-

cedure.

Baking on one oven level - Baking in tins

Type of baking Oven function Level Temperature

(°C)

Time (h:min)

Ring cake or brioche TRUE FAN 1150 - 160 0:50 - 1:10

Madeira cake/Fruit

cakes

TRUE FAN 1140 - 160 1:10 - 1:30

Sponge cake TRUE FAN 1140 0:25 - 0:40

Sponge cake CONVENTIONAL 1160 0:25 - 0:40

10 Helpful hints and tips

Tabla de contenidos

Otros manuales de Horno de Electrolux

Electrolux

Electrolux EOC5650AA Manual de usuario

Electrolux

Electrolux COP846X1 Manual de usuario

Electrolux

Electrolux B31915-5 Manual de usuario

Electrolux

Electrolux EOD43102 Manual de usuario

Electrolux

Electrolux EVE678 Manual de usuario

Electrolux

Electrolux E30EW8CESS1 Manual de usuario

Electrolux

Electrolux EOG1102 Manual de usuario

Electrolux

Electrolux KODDP66X Manual de usuario

Electrolux

Electrolux KDFGE40TK Manual de usuario

Electrolux

Electrolux EOC68000 Manual de usuario

Electrolux

Electrolux KODDP71XA Manual de usuario

Electrolux

Electrolux EOD3C40BX Manual de usuario

Electrolux

Electrolux EDB710B Manual de usuario

Electrolux

Electrolux EOC68200 Manual de usuario

Electrolux

Electrolux OPEA4300X Manual de usuario

Electrolux

Electrolux EOB 949 Manual de usuario

Electrolux

Electrolux EOG2100 Manual de usuario

Electrolux

Electrolux KOFEH60W Manual de usuario

Electrolux

Electrolux ESO45DIGIT Manual de usuario

Electrolux

Electrolux EOD6335 Manual de usuario

Electrolux

Electrolux 318205134 Manual de usuario

Electrolux

Electrolux E30EW85EPS - Icon 30" Professional Series Electric Double... Manual de usuario

Electrolux

Electrolux EOB5750AOX Manual de usuario

Electrolux

Electrolux EVY 9741 AAX Instrucciones de funcionamiento

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

DeLonghi

DeLonghi XA660 Manual

AEG

AEG BEB331010M Manual de usuario
