Electrolux E30EW85E Manual de usuario

E30EW85EPS.tif CE30EW85ESS1.eps BUE30EW85ESS1.eps BLE30EW85ESS1.eps

DE30EW75EPS1.eps 318046117.eps

Product No. E30EW85EPS1

37066393P50S1

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046117

Owner's Guide 318200938

Installation Instructions 318201520

Service Data Sheet 318047415

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438479

05/06/03

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

E30EW85E

Publication No: 5995438479 E30EW85EPS1

06/05 2

CONTROL PANEL

100

77A

99 77

77 77A

100

CE30EW85ESS1

E30EW85EPS1 Publication No: 5995438479

# Functional Parts 3 06/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

19 318244812 Control Panel, assembly, w/stainless trm

20 # 316434700 Oven control, electronic, ES600

54 5303308456 Screw, 8-18 x 0.531, black

68 318237200 Housing, top/control

69 318237310 Shield, control

77 316247900 Spacer, power board, (4)

77A 316114100 Spacer, (2)

78 318293700 Spacer, control panel, (4)

97 # 316434800 Relay Board

99 316435700 Board, power supply

100 5303297477 Screw, 6-20 x 1 1/4

* 318231731 Harness, communication

* 318231729 Harness, switch input

* 318231730 Harness, probe

* 5303211311 Screw, 8 x 0.500

Publication No: 5995438479 E30EW85EPS1

06/05 4

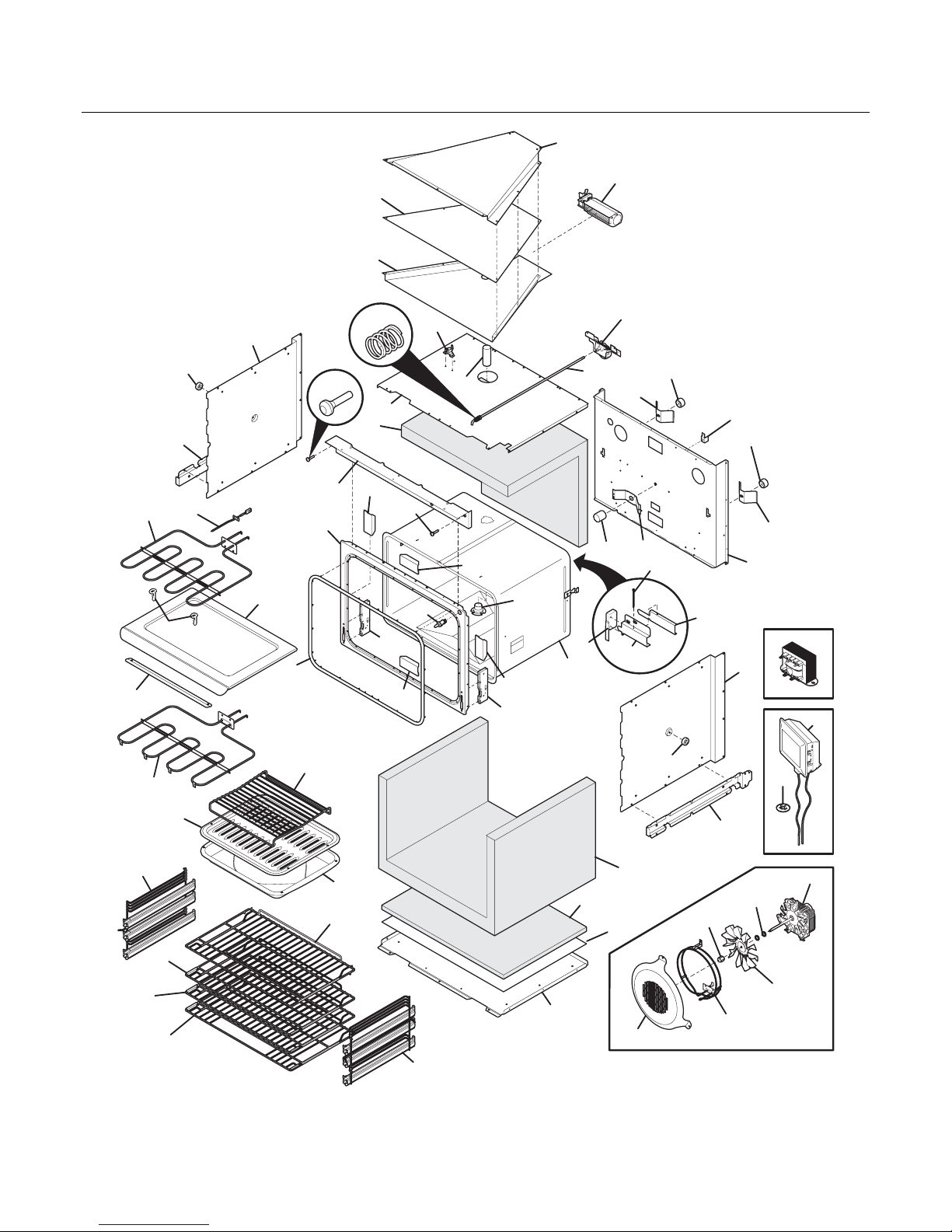

UPPER OVEN

131

132

133

108

129 89

185

74 59

119

88 188

188

272

58B

264

284

302

300 301

303

186A

186B

127

186

58A

58E

58D

107

161

111

109

BUE30EW85ESS1

263

125

185

143

E30EW85EPS1 Publication No: 5995438479

# Functional Parts 5 06/05

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318066413 Panel, main back

2 318236400 Shield, oven top

6 318240100 Shelf, oven, fixed

6A 318219500 Rack, broiler pan

6B 318240200 Shelf, oven, extendable

7 318240002 Glide & Support assy, oven shelves, RH

7A 318240003 Glide & Support assy, oven shelves, LH

8 318262002 Cover, element

8A 318318600 Bracket, element, hidden bake

9 318138801 Pan, broiler

10 318126401 Insert, broiler pan

12 # 318089917 Switch, light

15 318241000 Lamp, oven, (2), halogen

15* 318052197 Harness, wiring, halogen lamp

16 318283500 Bushing, halogen lamp, (8)

20 318239000 Gasket, oven door

37 # 316217002 Probe, oven temp

37* 5304435874 Plate, covering, probe

58A 318133788 Insulation, oven wrapper, bottom/sides

58B 318133787 Insulation, oven back/top

58D 318133789 Insulation, 1/2" thick, 26.75 x 19

58E 318235701 Panel, insulation, 26.75 x 18, aluminum

59 318072561 Tube, vent, oven

66 # 318255800 Element, broil, 4000W

67 318254901 Element, bake, 3400W, 8 pass

68 5304403015 Support, hanger, (2), broil element

70 318236300 Shield, insulation, (2)

74 5304435878 Bumper

76 318056211 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318072310 Shield, oven bottom

83 318236003 Liner, oven assy

86 318241405 Receptacle, hinge, (2)

* 5304437044 Screw, 10-32 x 1/4, black

88 318250202 Rod, latch, w/bushing

88* 318167300 Clip, rod

89 318095950 Motor, latch assy, w/brkt & switch

89* 3201861 Screw, 6 x 0.375, (4)

89* 318120711 Switch

99 318278000 Bracket, oven, (2)

107 318219402 Cover, fan

108# 318073019 Motor, blower

* 5304436875 Screw, 8-18 X 1/2, black

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125* 318142100 Washer, motor, RH, convection

125* 5303316994 Insulation, 3.81 x 3.13

125# 316136300 Motor, fan

127 318072802 Adaptor assy

Publication No: 5995438479 E30EW85EPS1

06/05 6

UPPER OVEN

131

132

133

108

129 89

185

74 59

119

88 188

188

272

58B

264

284

302

300 301

303

186A

186B

127

186

58A

58E

58D

107

161

111

109

BUE30EW85ESS1

263

125

185

143

E30EW85EPS1 Publication No: 5995438479

# Functional Parts 7 06/05

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

129 5303311164 Spring

131 318237401 Channel, air, upper

132 318237600 Divider, air channel

133 318237500 Channel, air, lower

143 318172904 Support, wire/glass

* 08016432 Screw, truss head, 8-18 x 0.375

161# 318255502 Element, convection, 2500 W

185 318014700 Spacer, oven shield, (4)

186 318236900 Bracket, oven, lower

186A 318237000 Bracket, oven, upper

186B 318237100 Bracket, oven, side, (2)

188 318014110 Spacer, (4)

188* 3131048 Screw, 8 x 5/8

263 316136500 Washer, fan motor

264 318278601 Trim, vent

* 5303320422 Screw, 6-20 x 5/16, black, (6)

272 318249400 Tube, protector

284 318244500 Transformer

284* 318302000 Spacer, cork & rubber, (2)

300 318089801 Switch, door, oven light

* 3015722 Clip, wire retainer

301 318234600 Support, tongue mtg

302 318278200 Tongue, door switch, w/plate

303 318228400 Pin, cotter

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995438479 E30EW85EPS1

06/05 8

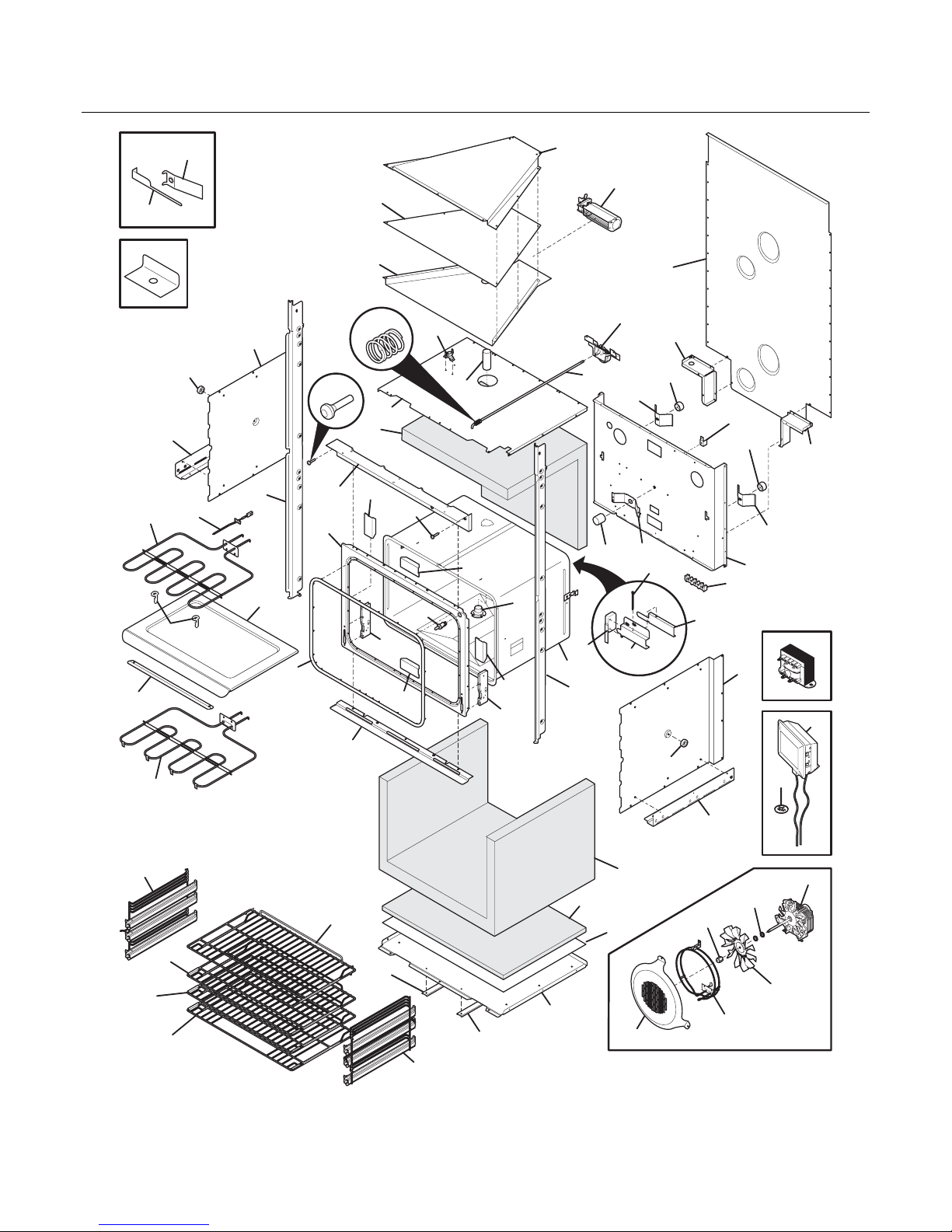

LOWER OVEN

310

311

312

131

132

133

108

129 89

185

74 59

119

150A

150

188

272

58B

264

284

302

300 301

303

186A

186B

127

186

58A

58E

58D

107

161

111

109

BLE30EW85ESS1

263

125

185

227

143

56A

E30EW85EPS1 Publication No: 5995438479

# Functional Parts 9 06/05

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318066412 Panel, main back

2 318236400 Shield, oven top

6 318240100 Shelf, oven, fixed

6B 318240200 Shelf, oven, extendable

7 318240002 Glide & Support assy, oven shelves, RH

7A 318240003 Glide & Support assy, oven shelves, LH

8 318262002 Cover, element

8A 318318600 Bracket, element, hidden bake

12 # 318089917 Switch, light

15 318241000 Lamp, oven, (2), halogen

15* 318052197 Harness, wiring, halogen lamp

16 318283500 Bushing, halogen lamp, (8)

20 318239000 Gasket, oven door

37 # 316217002 Probe, oven temp

37* 5304435874 Plate, covering, probe

56 318283102 Trim, side, black, RH

56A 318283103 Trim, side, black, LH

58A 318133788 Insulation, oven wrapper, bottom/sides

58B 318133787 Insulation, oven back/top

58D 318133789 Insulation, 1/2" thick, 26.75 x 19

58E 318235701 Panel, insulation, 26.75 x 18, aluminum

59 318072561 Tube, vent, oven

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255800 Element, broil, 4000W

67 318254901 Element, bake, 3400W, 8 pass

68 5304403015 Support, hanger, (2), broil element

70 318236300 Shield, insulation, (2)

71 318236710 Panel, wire shield

74 318283600 Bumper

76 318056211 Front, oven

77 318243600 Bracket, stopping

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318072310 Shield, oven bottom

83 318236003 Liner, oven assy

86 318241405 Receptacle, hinge, (2)

* 5304437044 Screw, 10-32 x 1/4, black

88 318250202 Rod, latch, w/bushing

88* 318167300 Clip, rod

89 318095950 Motor, latch assy, w/brkt & switch

89* 3201861 •Screw, 6 x 0.375, (4)

89* 318120711 •Switch

90 318236601 Gutter

99 318055425 Support, adjustable, (2)

107 318219402 Cover, fan

107* 5304415832 Screw, 8-18 x 0.406

108# 318073019 Motor, blower

* 5304400192 retainer wire

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995438479 E30EW85EPS1

06/05 10

LOWER OVEN

310

311

312

131

132

133

108

129 89

185

74 59

119

150A

150

188

272

58B

264

284

302

300 301

303

186A

186B

127

186

58A

58E

58D

107

161

111

109

BLE30EW85ESS1

263

125

185

227

143

56A
