User manual BuiltIn Electric Oven

Dear Customer

Thank you for choosing one of our highquality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per

formance and control  indeed we are setting the highest standards of excel

lence.

In addition to this you find environmental and energy saving aspects as an inte

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

3General information and tips

2Environmental information

3Contents

Contents

Operating Instructions 5

Safety instructions 5

Description of the Appliance 7

General Overview 7

The electronic oven controls 8

Indicators 8

Buttons 9

Oven Features 10

Oven accessories 11

Before Using for the first time 12

Setting the language 12

Setting the clock 13

Initial cleaning 14

Using the Oven 15

Menu operation in overview 15

The Oven Functions menu 16

The Options menu 17

Use of the oven functions 18

Switching the Oven On and Off 20

Inserting the Oven Shelf, Baking Tray and Roasting Pan 23

Inserting/Removing the Grease Filter 24

Meat Probe 24

Setting meat probe core temperature 25

Automatic programmes 27

Meat programmes with weight input 27

Meat programmes with meat probe 28

Options 29

RECIPE MENU in overview 29

MEMORY MENU 33

SETTINGS MENU 35

Clock Functions 37

Additional functions 42

CHILD LOCK for the oven 42

BUTTON LOCK 43

Oven safety cutout 43

Cleaning and Care 44

Outside of the appliance 44

Contents4

Oven interior 44

Accessories 44

Fat Filter 44

Cleaning function for oven cleaner spray 45

Performing Pyroluxe cleaning 47

Shelf Support Rails 49

Oven Lighting 50

Oven door 51

Oven door glass 53

What to do if … 56

Disposal 57

Installation Instructions 58

Safety information for the installer 58

Guarantee/Customer Service 63

Index 66

Service 67

5Operating Instructions

Operating Instructions

1Safety instructions

5This appliance conforms with the following EU Directives:

–73/23/EEC dated 19.02.1973 Low Voltage Directive

–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive

92/31/EEC

–93/68/EEC dated 22.07.1993 CE Marking Directive

Electrical safety

•This appliance must be only connected by a registered electrician.

•In the event of a fault or damage to the appliance: Take the fuses out or

switch off.

•Repairs to the appliance must only be carried out by qualified service engi

neers. Considerable danger may result from improper repairs. If repairs be

come necessary, please contact our Customer Services or your dealer.

Child Safety

•Never leave children unsupervised when the appliance is in use.

•The appliance is fitted with a child safety device.

Safety whilst Using

•This appliance is intended to be used for cooking, roasting and baking food in

the home.

•Take care when connecting electric appliances to sockets nearby. Do not allow

connecting leads to come into contact with or to catch beneath the hot oven

door.

•Warning: Risk of burns! The interior of the oven becomes hot during use.

•Using ingredients containing alcohol in the oven may create an alcoholair

mixture that is easily ignited. In this case, open the door carefully. Do not have

embers, sparks or naked flames in the vicinity when opening the door.

3Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, espe

cially in products containing starch, can constitute a health risk due to acryla

mides. Therefore we recommend cooking at the lowest possible temperatures

and not browning foods too much.

Safety instructions6

How to avoid damage to the appliance

•Do not line the oven with aluminium foil and do not place baking trays, pots,

etc. on the oven floor, as the heat that builds up will damage the oven enamel.

•Fruit juices dripping from the baking tray will leave stains, which you will not

be able to remove. For very moist cakes, use a deep tray.

•Do not put any strain on the oven door when open.

•Never pour water directly into the oven when it is hot. This could cause dam

age to or discoloration of the enamel.

•Rough handling, especially around the edges of the front panel, can cause the

glass to break.

•Do not store any flammable materials inside the oven. These could ignite

when the oven is switched on.

•Do not store any moist foods inside the oven. This could damage the oven

enamel.

•After switching off the cooling fan, do not keep uncovered dishes in the oven.

Moisture may condense in the oven interior or on the glass doors and may get

into the units.

3Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not af

fect the appliance’s suitability for normal and correct use. They therefore do not

constitute a defect in the sense of the warranty law.

7Description of the Appliance

Description of the Appliance

General Overview

Full glass door

Oven displays

and buttons

Door

handle

Description of the Appliance8

The electronic oven controls

Indicators

Menu status bar

In the menu status bar the current position within a menu is shown by a flash

ing bar.

When the menu status bar can no longer be seen in the display, the oven begins

to heat or the time set begins to count down.

Symbol status bar

Symbol Function

Door lock Door is locked, PYROLUXE in operation.

RAPID HEAT UP RAPID HEAT UP is in operation.

MEATPROBE MEATPROBE is plugged in.

PROFI HOT AIR

150ûc 12.05 00.06

___________________

Symbol status bar Menu status bar Text line

Temperature Time

Meat core temperature

Clock functions

Period of operation

Heat indicator Shelf positions

9Description of the Appliance

Buttons

Button Function

To select oven functions.

To move down and up in the menu.

¸To open the Options menu.

To close the Options menu (press and hold button).

¹Confirm, change to the submenu.

ºTo switch appliance on or off.

»Switch RAPID HEAT UP on or off.

¼Select between clock functions and MEATPROBE.

To set temperature, time, weight or degree of cooking.

wm¸¹º»¼-+

Description of the Appliance10

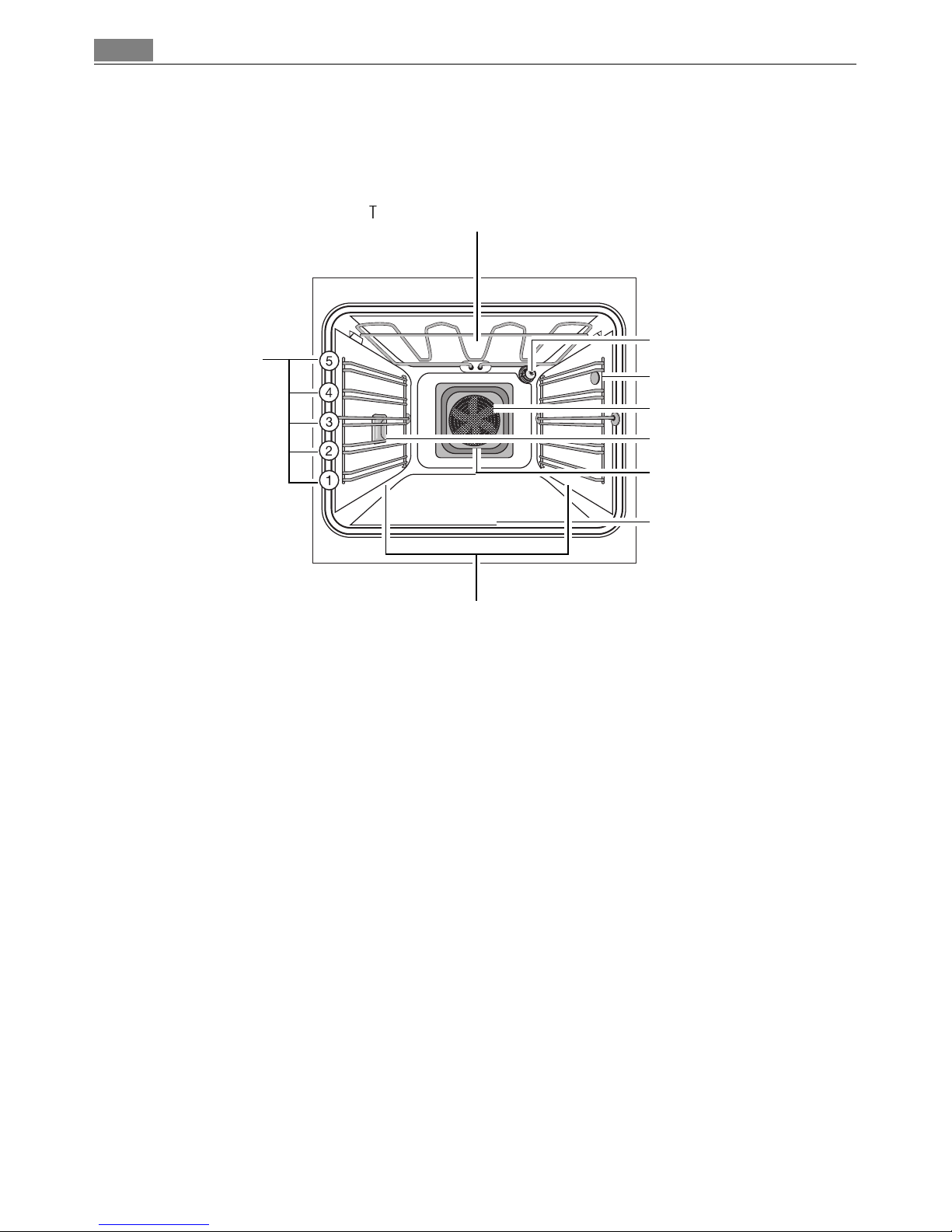

Oven Features

Top heat and heating elements

Oven lighting

Meat probe socket

Fat Filter

Oven lighting

Fan heating element

Fan

Bottom Heat

Shelf positions

Oven shelf runners,

removable
