Electrolux 790.42003605 Manual

79042003.tif C79042003600.eps BU79042003601.eps BL79042003602.eps

D79042003601.eps 318271935-1.eps 318271935-2.eps

REPAIR

PARTS

LIST

790.42003605

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

30” DOUBLE ELECTRIC WALL OVEN

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995522611

790.42003605

08/08 2

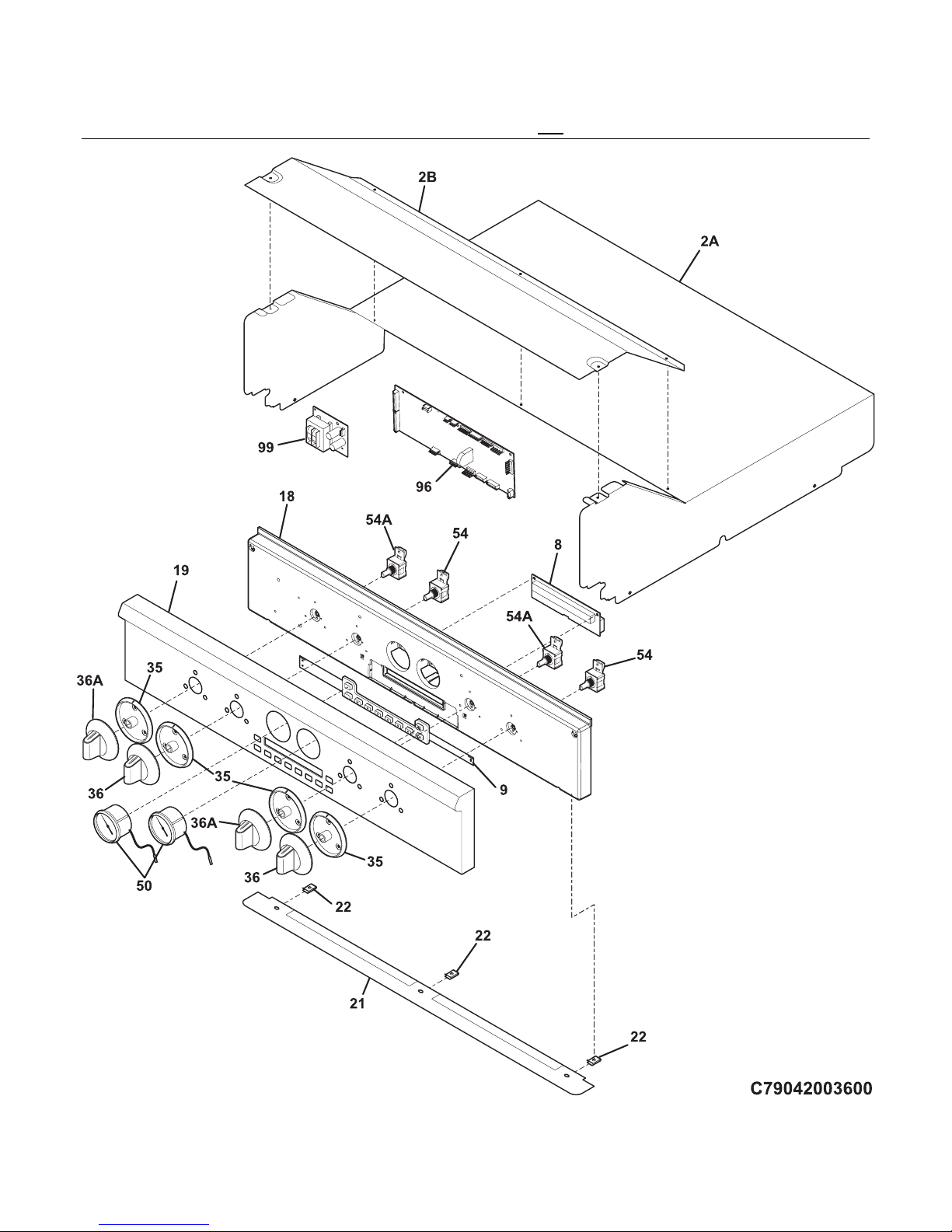

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.42003605

# Functional Parts 3 08/08

* Non-Illustrated Parts

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

8 # 316460300 Board, display

8* 5304453707 Screw, control mtg.

9 # 318600800 Keypad, switch

18 318603702 Panel, control assy, black

19 318600302 Panel, control, stainless, outer

21 318603101 Trim, control panel, bottom

22 318601100 Clip, tinnerman

35 318600604 Bezel, knob, (2)

36 318602403 Knob, temperature, control

36A 318602607 Knob, selector

50 # 318602800 Gauge, analog display

54 # 318601500 Control, temperature, potentiometer

54A# 318601700 Switch, selector, potentiometer

* 316247800 Washer, lock, mtg

96 # 316460201 Board, control, analog

99 # 316435701 Board, power supply

* # 318370374 Wiring Harness, timer, to relay board

* # 318370306 Wiring Harness, potentiometer

* 316136900 Cleaner, stainless steel

* 5995522611 Repair Parts List

* 318205106 Owners Manual

* 318204800 Service Data Sheet

* 318271935 Wiring Diagram

* 318201522 Instruction sheet

* 318203402 Quick Start Sheet

* 5303211311 Screw, 8 x 0.500

790.42003605

08/08 4

UPPER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

119

108

108A

185

163

58A

264

29 127

58B

BU79042003601

185

59A

131

132

58D

143

142

310

311

312

107

161

111

109

263

125

272

192

97A

790.42003605

# Functional Parts 5 08/08

* Non-Illustrated Parts

UPPER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

2 318258902 Shield, insulation, upper

6 318601900 Rack, oven, (3)

6A 318365800 Rack, broiler pan

7 318368300 Pin, locking, (2)

8 318361801 Bracket, element, (2)

9 318138803 Pan, broiler

10 318126403 Insert, broiler pan

11 318603801 Ladder, oven rack, (2)

12 316445501 Switch, oven light, door frame

13 318603914 Bracket, ladder mtg., (4)

13* 5304456367 Rivet, ladder bracket, (8)

15 318241001 Lamp, oven, 23.82" harness, halogen

15 318241004 Lamp, oven, 8.82" harness, halogen

15* 318268099 Insulation, oven light

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

37* 318373001 Bracket, receptacle, temp probe

41 318366601 Spacer, front frame

53 # 318601302 Probe, meat temp

54 # 318601201 Receptacle, probe

55 316247700 Nut, mounting, (2)

57 318361610 Panel, service

58 318330501 Insulation, service panel, 12.47 x 14.77

58A 318285055 Insulation, oven wrapper

58B 318362100 Insulation, rear & bottom, oven wrapper

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255800 Element, broil, 4000W

67 # 318601601 Element, hidden bake

* # 318231838 Wiring Harness, bake element

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056231 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258730 Shield, insulation, lower

83 318261418 Liner, ovenassy

86 318241406 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

86* 5304463119 Washer, (4)

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199768 Wiring Harness, latch, BAS

97 # 316443910 Board, relay, dual oven

97A# 316460901 Board, relay, convection

99 318252804 Support, side

790.42003605

08/08 6

UPPER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

119

108

108A

185

163

58A

264

29 127

58B

BU79042003601

185

59A

131

132

58D

143

142

310

311

312

107

161

111

109

263

125

272

192

97A

790.42003605

# Functional Parts 7 08/08

* Non-Illustrated Parts

UPPER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

107 318219407 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 318398200 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

161# 318255506 Element, convection, 2500 W

163 318531703 Spacer, (2)

185 318531800 Spacer, oven shield, (2)

192 316117100 Grill, searing

263 316136500 Washer, flat

264 318257704 Trim, oven, black, front

272 318249403 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323139 Screw, 10-24 x 0.906

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

790.42003605

08/08 8

LOWER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

58B

143

119

108

108A

185

163

272

142

58A

58D

127

90 15

107

161

111

109

BL79042003602

263

125

185

59A

264

56A

790.42003605

# Functional Parts 9 08/08

* Non-Illustrated Parts

LOWER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

2 318258902 Shield, insulation, upper

6 318601900 Rack, oven, (3)

7 318368300 Pin, locking, (2)

11 318603801 Ladder, oven rack, (2)

12 316445501 Switch, oven light, door frame

13 318603914 Bracket, ladder mtg., (4)

13* 5304456367 Rivet, ladder bracket, (8)

15 318241001 Lamp, oven, 23.82" harness, halogen

15 318241004 Lamp, oven, 8.82" harness, halogen

15* 318268099 Insulation, oven light

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

37* 318373001 Bracket, receptacle, temp probe

41 318366601 Spacer, front frame

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

57 318361610 Panel, service

58 318330501 Insulation, service panel, 12.47 x 14.77

58A 318285055 Insulation, oven wrapper

58B 318362100 Insulation, rear & bottom, oven wrapper

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255800 Element, broil, 4000W

67 # 318601601 Element, hidden bake

* # 318231838 Wiring Harness, bake element

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056231 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258730 Shield, insulation, lower

83 318261418 Liner, ovenassy

86 318241406 Receptacle, hinge, (2)

86* 5304463119 Washer, (4)

87 318260600 Bracket, cable mtg.

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199746 Wiring Harness, latch, NO BAS

90 318601401 Trim, bottom, stainless

99 318256201 Bracket, side, bottom, (2)

107 318219407 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

790.42003605

08/08 10

LOWER OVEN

CAUTION: Use the Kenmore part number to order part, not the illustration number.

58B

143

119

108

108A

185

163

272

142

58A

58D

127

90 15

107

161

111

109

BL79042003602

263

125

185

59A

264

56A

Tabla de contenidos

Otros manuales de Horno de Electrolux

Electrolux

Electrolux EH6L40YCN Manual de usuario

Electrolux

Electrolux Air-O-Steam 268002 Manual de usuario

Electrolux

Electrolux B4431-5 Manual de usuario

Electrolux

Electrolux KOCGS70TX 949494043 Manual de usuario

Electrolux

Electrolux FQV741XEV Manual de usuario

Electrolux

Electrolux EOC6P50X Manual de usuario

Electrolux

Electrolux air-o-convect Natural Gas Hybrid Convection Oven... Cómo utilizar

Electrolux

Electrolux KOHLH00BK Manual de usuario

Electrolux

Electrolux ESO936 Manual de usuario

Electrolux

Electrolux KODEH70X Manual de usuario

Electrolux

Electrolux E3101-5 Manual de usuario

Electrolux

Electrolux AEG BS8304021M Manual de usuario

Electrolux

Electrolux FQ63BE Manual de usuario

Electrolux

Electrolux EOB5450AAW Manual de usuario

Electrolux

Electrolux EOC5640 Manual de usuario

Electrolux

Electrolux Built-in ovens Manual de usuario

Electrolux

Electrolux EZB3400AOX Manual de usuario

Electrolux

Electrolux E31915-6 Manual de usuario

Electrolux

Electrolux E30EW7CDSS1 Manual de usuario

Electrolux

Electrolux E30MC75PPSC Manual de usuario

Electrolux

Electrolux EOB8851AA Manual de usuario

Electrolux

Electrolux air-o-steam class B Natural Gas Combi Oven... Cómo utilizar

Electrolux

Electrolux EOB3450AOX Manual de usuario

Electrolux

Electrolux COP740X Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

DeLonghi

DeLonghi XA660 Manual

AEG

AEG BEB331010M Manual de usuario
